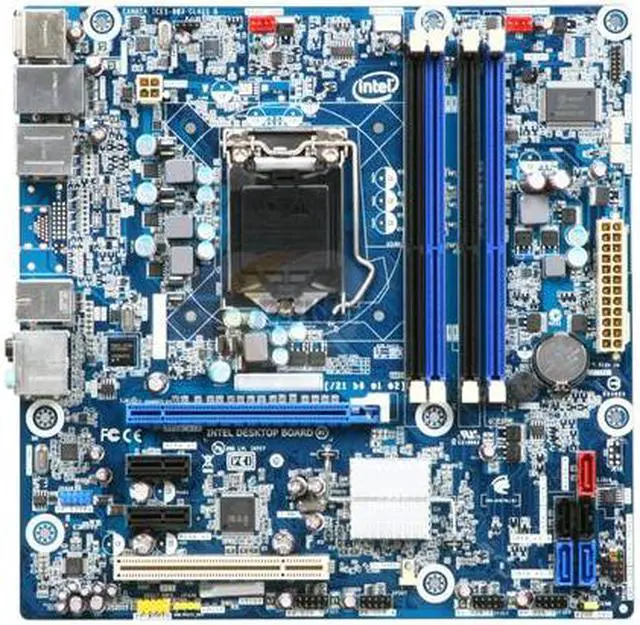

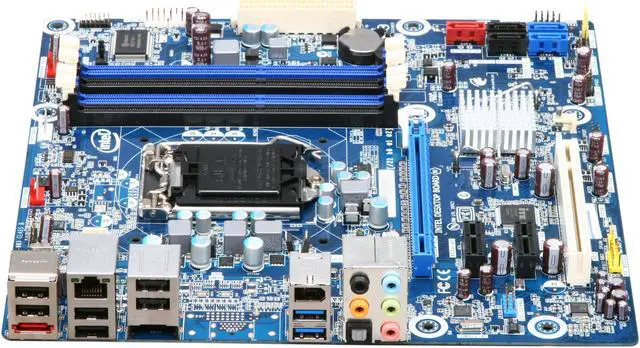

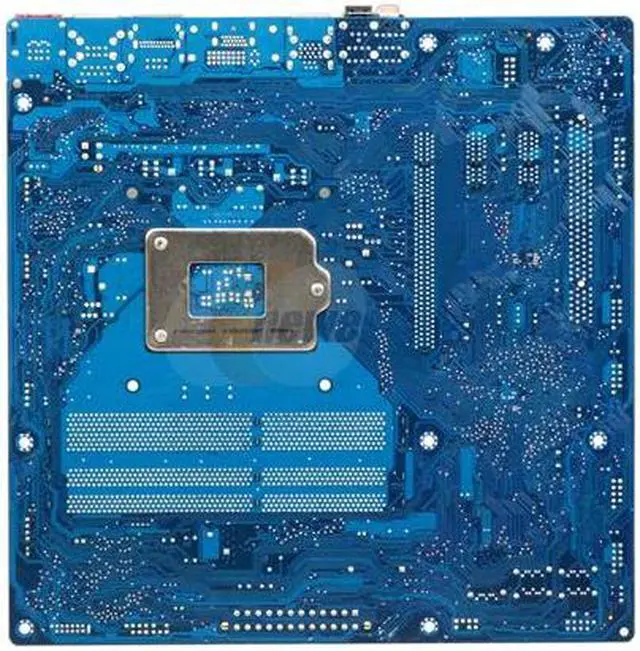

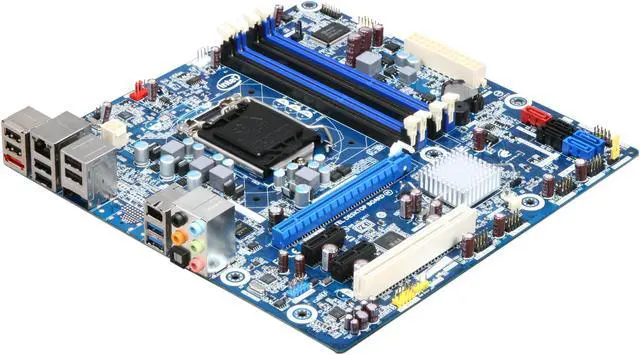

Intel BOXDP67DE LGA 1155 Intel P67 USB 3.0 Micro ATX Intel Motherboard
- Intel P67
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155)
- DDR3 1333/1066 (XMP Supports overclocking beyond 1333)
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXDP67DE
| Brand | Intel |
|---|---|
| Model | BOXDP67DE |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155) |
| Chipset | Intel P67 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 (XMP Supports overclocking beyond 1333) |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Serial ATA (SATA) | 2 x SATA 6Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Audio Channels | 10-channel (7.1 + 2) |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 2 x USB 3.0 / 6 x USB 2.0/1.1 |
|---|---|
| USB 3.0 | 2 x USB 3.0 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Onboard USB | 8 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| First Listed on Newegg | January 08, 2011 |
|---|
