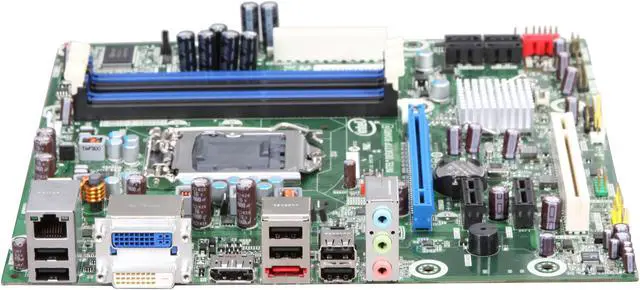

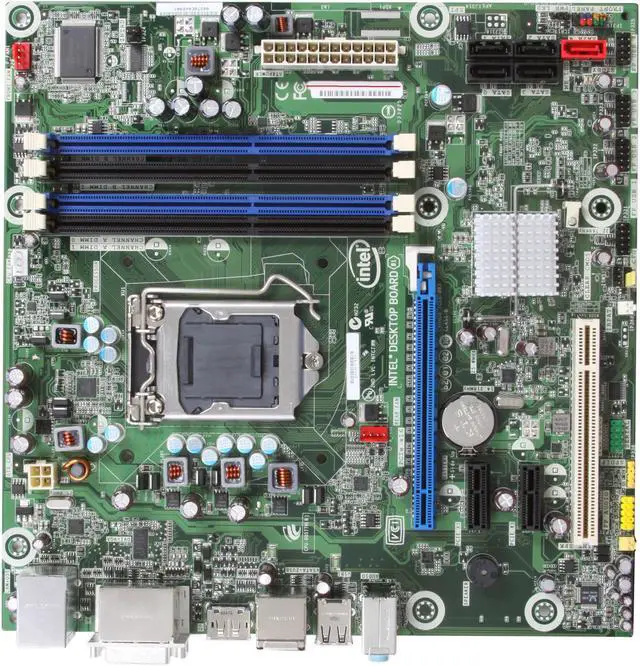

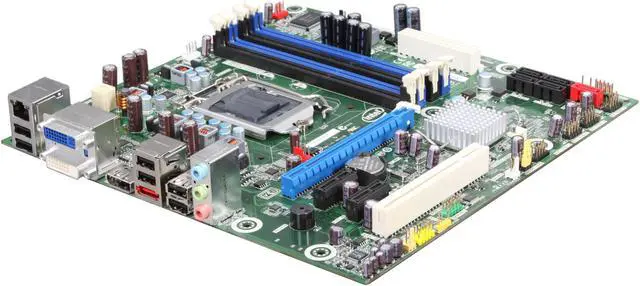

Intel BOXDQ57TM LGA 1156 Intel Q57 Micro ATX Intel Motherboard
- Intel Q57
- Core i7 / i5 / i3 / Pentium (LGA1156)
- DDR3 1333/1066
Specs
Reviews (8)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXDQ57TM
| Brand | Intel |
|---|---|
| Model | BOXDQ57TM |
| CPU Socket Type | LGA 1156 |
|---|---|
| CPU Type | Core i7 / i5 / i3 / Pentium (LGA1156) |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology |
| Chipset | Intel Q57 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82578DM |
|---|---|
| Max LAN Speed | 1Gbps |
| Video Ports | D-Sub + DVI |
|---|---|
| DisplayPort | 1 x DisplayPort |
| USB 1.1/2.0 | 6 x USB 2.0 |
| eSATA | 1 x eSATA 3Gb/s |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB connectors support additional 8 USB ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Intel vPro Technology support |
|---|
| First Listed on Newegg | February 05, 2010 |
|---|
