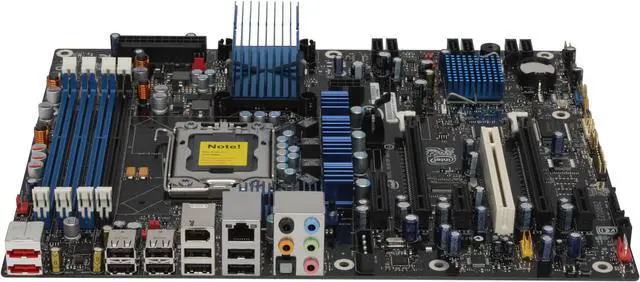

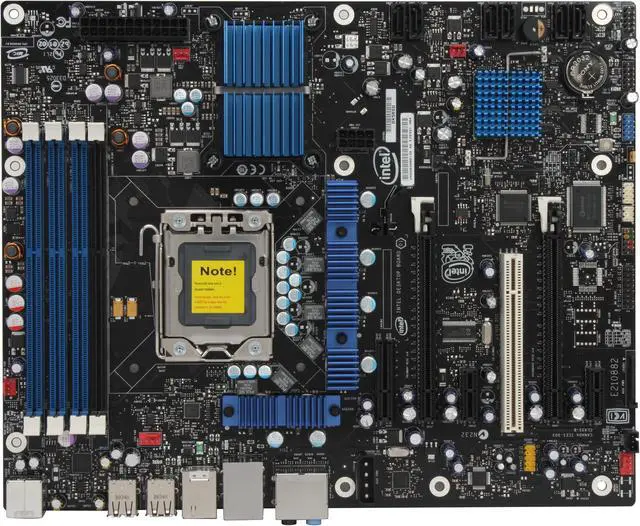

Intel Extreme Series BOXDX58SO LGA 1366 Intel X58 ATX Intel Motherboard
- LGA 1366
- Intel X58
- 4×240pin DDR3 1600
Specs
Reviews (167)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXDX58SO
| Brand | Intel |
|---|---|
| Model | BOXDX58SO |
| CPU Socket Type | LGA 1366 |
|---|---|
| CPU Type | Core i7 (LGA1366) |
| FSB | QPI 6.4GT/S |
| Chipset | Intel X58 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1600 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Triple Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 1 x PCI Slot |
| SATA RAID | 0/1/5/10 |
|---|
| Audio Channels | 8 Channels |
|---|
| LAN Chipset | Intel 82567 |
|---|---|
| Max LAN Speed | 1Gbps |
| USB 1.1/2.0 | 8 x USB 2.0 |
|---|---|
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 2 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 Ports |
| Form Factor | ATX |
|---|---|
| Power Pin | 24 Pin |
| Features | Supports NVIDIA SLI technology and ATI CrossFire |
|---|
| First Listed on Newegg | November 16, 2008 |
|---|
