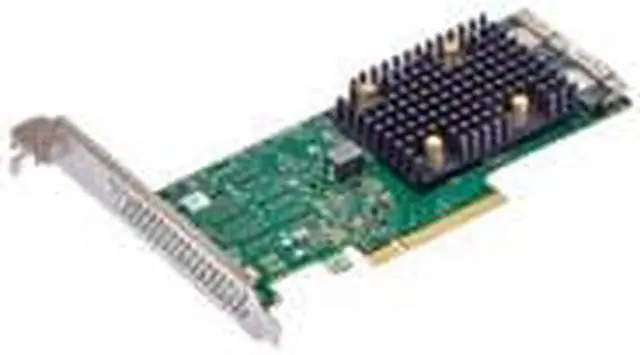

BROADCOM MegaRAID 05-50134-00 PCI-Express 4.0 x8 PCI-Express Controller Card
- Two x8 SFF-8654 Internal Connectors
- 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
+
+
Learn more about the Broadcom 05-50134-00
| Brand | BROADCOM |
|---|---|
| Series | MegaRAID |
| Model | 05-50134-00 |
| Type | PCI-Express |
|---|---|
| Internal Connectors | Two x8 SFF-8654 |
| Interface | PCI-Express 4.0 x8 |
| Transfer Rate | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Cache Memory | 8GB |
| Dimensions | 6.13" x 2.72" |
| Operating Systems Supported | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD. |
| Features | Connect up to 240 SAS/SATA devices or 24 NVMe devices per controller Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors Form-factor friendly cable exit Support critical, high-bandwidth applications with PCIe 4.0 connectivity Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 JBOD mode with RAID 0, 1, 10 and JBOD for SDS environments Add more protection and peace of mind with CacheVault flash cache protection |
|---|
| First Listed on Newegg | October 15, 2024 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-877-577-2726
- Support Website
- View other products from Broadcom
LOADING...
The Broadcom MegaRAID 05-50134-00 is a PCIe 4.0 x8 tri-mode RAID controller with 8GB cache for server administrators building high-bandwidth SAS, SATA, or NVMe storage systems with RAID protection.
Recommended For
- Server and NAS builders who need to connect many internal SAS or SATA drives for operating-system-managed storage, such as ZFS or another software-defined storage setup.
- Enterprise server teams adding NVMe, SAS, or SATA drives to a PCIe 4.0 system that needs one internal tri-mode HBA for storage connectivity.
- Storage-system integrators connecting multiple NVMe drives through compatible SlimSAS cabling and a suitable backplane or drive enclosure.
- Workstation or rack-server operators who need to expand internal storage connectivity while using supported Windows, Linux, VMware, or FreeBSD environments.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Expanding rack-mounted server storage with SAS/SATA or NVMe devices in RAID or JBOD configurations |
| Controller Interface | PCI-Express 4.0 x8 controller card |
| Drive Connectivity And Transfer Rates | Two x8 SFF-8654 internal connectors; supports 12Gb/s SAS, 6Gb/s SATA, and Gen 4.0 PCIe (NVMe), with up to 240 SAS/SATA devices or 24 NVMe devices per controller |
| Cache And Protection | 8GB cache memory with CacheVault flash cache protection |
| RAID And Operating Modes | Supports RAID 0, 1, 5, 6, 10, 50, and 60; JBOD mode also supports RAID 0, 1, and 10 for SDS environments |
| Supported Operating Systems | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, and FreeBSD |
| Form Factor And Dimensions | Low-profile form factor for rack-mounted servers, with side-mounted SAS connectors and a form-factor-friendly cable exit; measures 6.13 × 2.72 inches |
| Model Identifiers | Broadcom MegaRAID, model 05-50134-00 |
