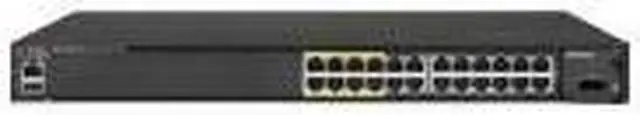

    Brocade ICX7450-24P Managed Switch

    Be the first to review this product...
    • 32K MAC Address Table
    • Managed
    • PoE
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Brocade ICX7450-24P

    Model
    Brand Brocade
    Model ICX7450-24P
    Switch Type Layer 3 Switch
    Format & Standards
    Format Stackable
    Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
    Network Management Type Managed
    Ports & Interface
    Uplink Ports auto-uplink
    Primary Ports 24 x RJ45
    Primary Port Speed 10/100/1000Mbps
    Data Transmission
    MAC Address Table 32K
    VLAN Support Yes
    Jumbo Frames 9216 bytes
    Details
    Protocols Routing Protocol:
    IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD

    Remote Management Protocol:
    SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
    Security Encryption Algorithm: AES
    PoE Yes
    Stackable Yes
    SNMP SNMP 1, SNMP 3, SNMP 2c
    QoS Yes
    LACP Yes
    Port Mirroring Yes
    Power Installed Qty:
    0 (installed) / 2 (max)

    Power Consumption: 75 Watt (operational)

    Power Device:
    Internal power supply - hot-plug

    Power Redundancy: Optional

    Power Redundancy Scheme: 1+1 (with optional power supply)
    Features
    Features Flow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LACP support, DHCP relay, Port Security, Per-VLAN Rapid Spanning Tree (PVRST), port based access control, Energy Efficient Ethernet, Management Information Base (MIB), hot swappable fan, Strict Priority (SP), tagged VLAN, IGMP proxy, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, MACsec support

    Performance
    Switching capacity: 288 Gbps
    Forwarding performance: 214 Mpps

    Capacity
    Virtual interfaces (VLANs): 4096
    Spanning Tree Protocol instances: 254
    IPv4 routes: 16000
    IPv6 routes: 3000

    Expansion Slots:
    3 (total) / 3 (free) x Expansion Slot

    Interfaces:
    24 x 1000Base-T - RJ-45 - PoE+ - 30 W
    1 x USB - Type A
    1 x 1000Base-T - RJ-45 - management
    1 x mini-USB - management
    Dimensions & Weight
    Dimensions 1.72" x 17.32" x 15.50"
    Weight 15.21 lbs.
    Environmental
    Temperature Operating temperature: -5 °C to 50 °C

    Storage temperature: -25 °C to 70 °C
    Humidity Operating: 5 - 95% (non-condensing)

    Storage: 0 - 95% (non-condensing)
