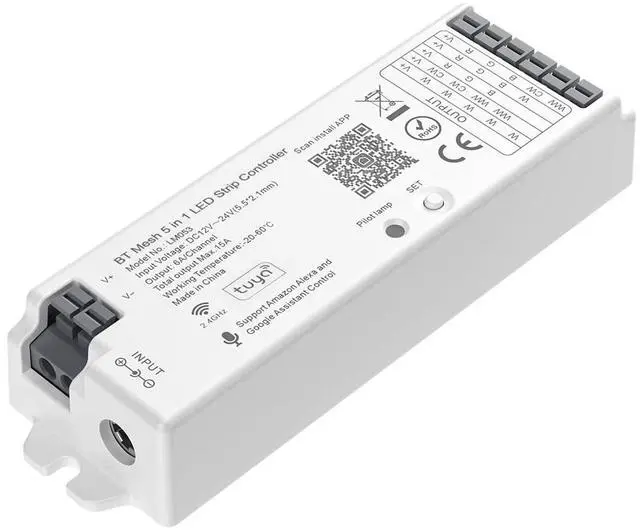

KEHIPI 5in1 LM053 Tuya Bluetooth Mesh Controller SmartLife TuyaSmart APP Control for Dimming CCT RGB RGBW RGBCCT LED Work with WR01RF WR02RF RC02RFB RC03RFB etc RF Remote DC12V DC24V Max 15A

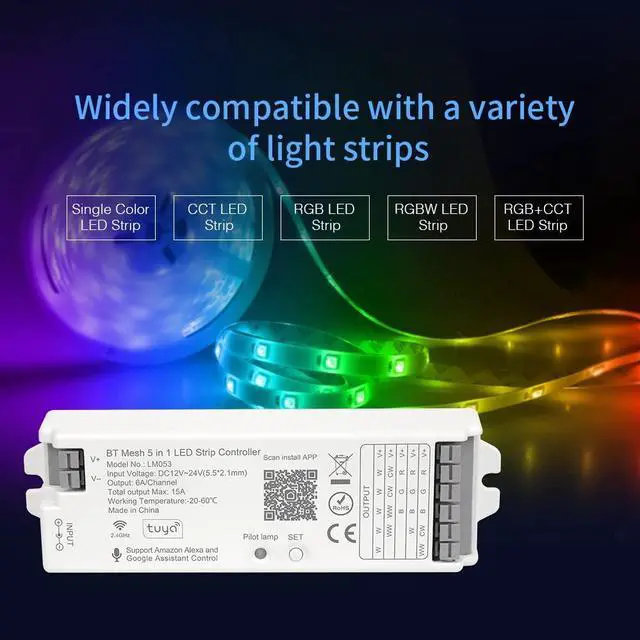

5 in 1 Tuya Bluetooth Mesh LED controller. This Controller can control Dimming(single color), CCT(dual white,warm white cold white), RGB, RGBW, RGB + CCT 5 kinds of LED strip. You can click the SET button to switch the output mode according to the type of the LED strips you connecting and choose the corresponding operation interface. Power: 6A/Channel Total output max 15A .DC12V180W DC24V360W.
Auto-transmitting functionOne controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.
Suitable for the scene without WiFi or the WiFi signal is weak. Compared with WiFi controller, it's signal transmission is more stable and the connection is more convenient and faster. One remote/smartphone can control multiple controllers simultaneously.Very suitable for yacht, garden, outdoor and other projects.Note: This controller is IP30 Non-waterproof.
2 control methods1st:Compatible 2.4GHz RF Remote: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB 2nd: Tuya Smart ,Smart Life APP Bluetooth control . Two methods can be used at the same time.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Single Color (Monochrome)-2 Pin LED

Parameters:

Model: LM053
Product Name: 5 IN 1 Bluetooth Mesh LED Controller
Item size(LxWxH):122x38x22(mm) / 4.9x1.5x0.9(in)
RF: 2.4GHz
Control Distance: 30m (98.42ft)
APP name: Smart Life or Tuya Smart
Input voltage: DC12V or DC24V (It depends on what LED strip you use)
Output: 6A/Channel (Total Output Max 15A) 12V180W 24V360W
Working Temperature: -20-60?
Compatible LED strip: FCOB COB 3014 5630 3528 2835 5050RGB 5050RGBW 5050RGB+CCT 5050 CCT etc
Compatible Remote control :

Remote control series: RC01RFB/RC02RFB/RC03RFB/RC04RFB/RC05RFB etc RF remote

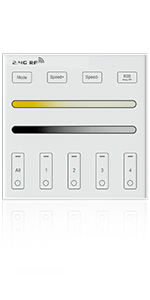

Panel series: WR01RF WR02RF Panel remote

CCT Color (Dual white=Warm white+Cool White)-3 Pin LED

Attention:

The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher than 24V.
Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of the cathode and anode.
Please don't use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance

Package included:

1x 5 in 1 Bluetooth Mesh controller (The LED strip, remote controller or power supply is not included)

RGB/RGBW/RGBCCT LED-4pin 5pin 6pin LED

Button fixation-Fast, Firm and Simple

SET key-Pilot Lamp

Different Pilot Lamp color

1. Long press SET key 3 seconds ,Pilot lamp pureple blink 3 times-Link mode or Unlink mode

2.Short press SET key , White-single color LED strip ,Yellow-CCT LED Strip, Red-RGB LED strip ,Green-RGBW LED strip ,Blue-RGB+CCT LED strip

	Single Color/CCT RF Remote	RGB/RGBW/RGBCCT RF Remote	LM051 RF 5in1 Controller	LM052 Zigbee 5in1 Controller	WB5 WiFi 5in1 Controller

Customer Reviews	—	—	—	—	—
Price	—	—	— no data	—	—
Group Control	?	?	?	?	?
Controller	Work with Bluetooth/WiFi/Zigbee Controller	Work with Bluetooth/WiFi/Zigbee Controller	2.4GHz RF	2.4GHz	2.4GHz WiFi
Gateway	no data	no data	Philip Hue/Tuya Gateway	Philip Hue/Tuya Gateway	No need
APP	no data	no data	SmartLife/TuyaSmart	Smart Life/Tuya Smart/Philip Hue	Smart Life/Tuya Smart
Google Home/Alexa	no data	no data	Need Tuya Gateway	Need Tuya Gateway	?

PWM Monochrome LED Controller

Work With PWM Single Color LED Strip

2.4Ghz WIFI / Bluetooth Mesh / Zigbee3.0 / 2.4GHz wireless

Only Indoor Use

PWM Monochrome LED Controller
