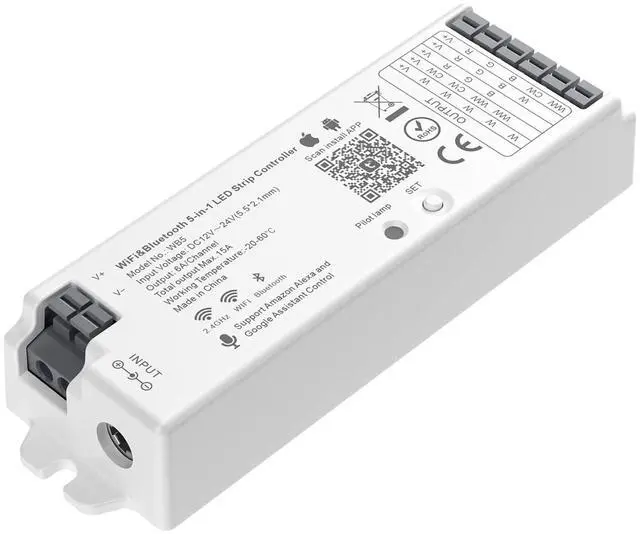

Main image of KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Alt view image 2 of 6 - KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Alt view image 3 of 6 - KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Alt view image 4 of 6 - KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Alt view image 5 of 6 - KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Alt view image 6 of 6 - KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

Shop All KEHIPI Products | Visit Wispa Technologies Store

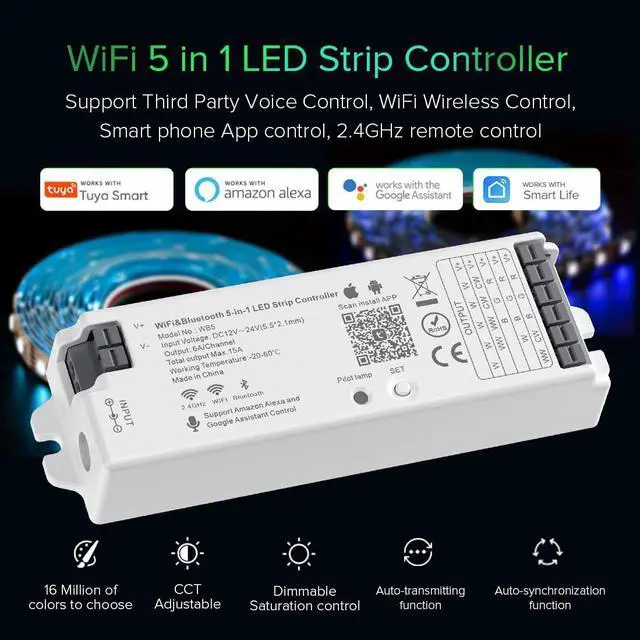

KEHIPI 5in1 WB5 2.4GHz Tuya WiFi PWM LED Controller Compatible with Alexa/Google Home/Smart Life/Tuya Smart APP Control for Dimming CCT RGB RGBW RGBCCT LED Strip Work with WR01RF WR02RF etc

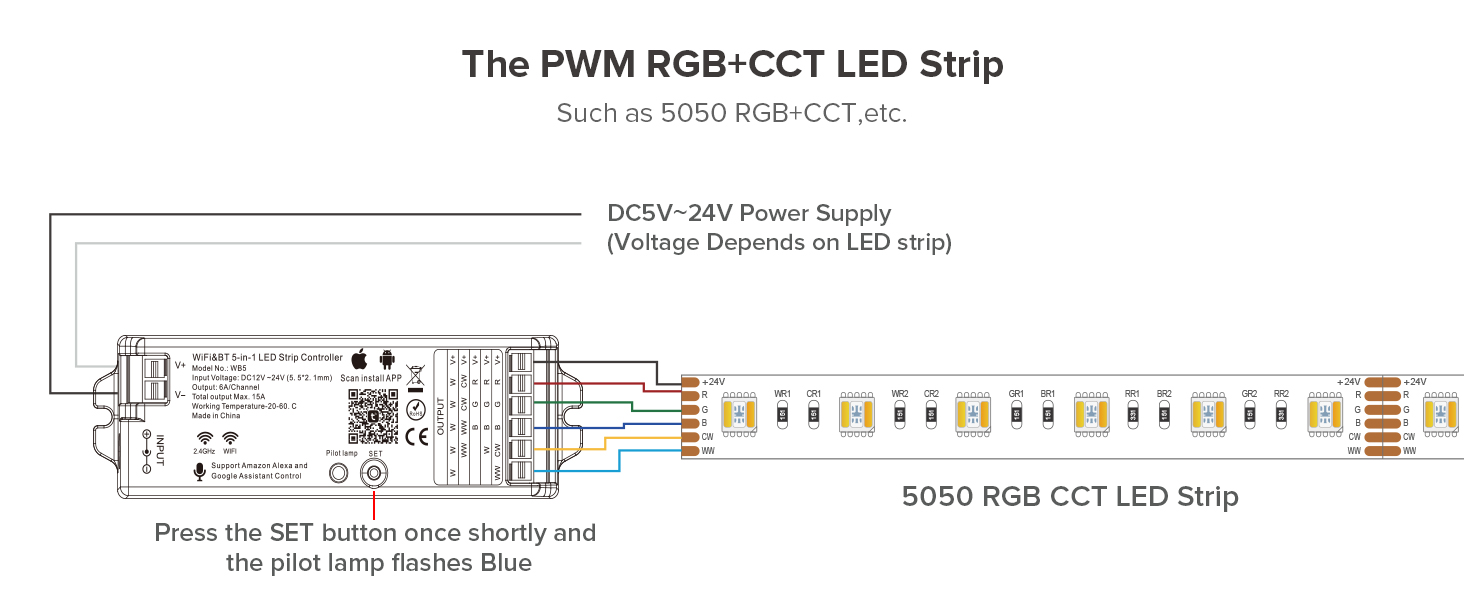

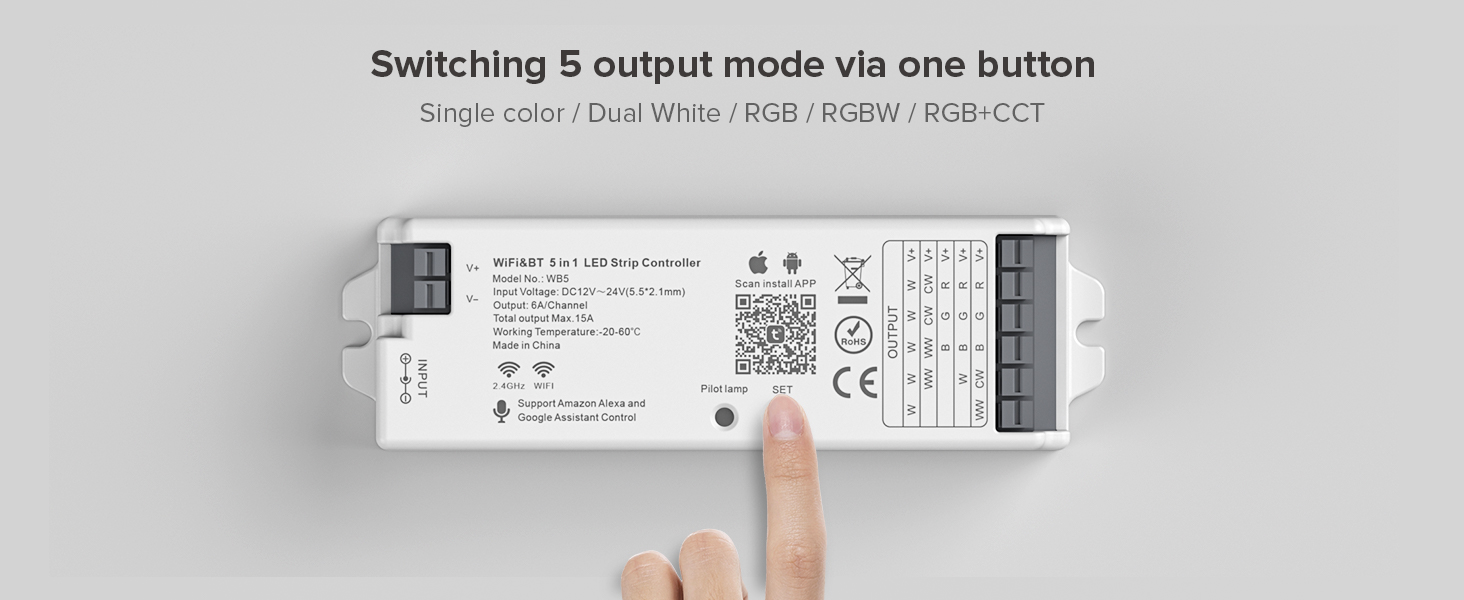

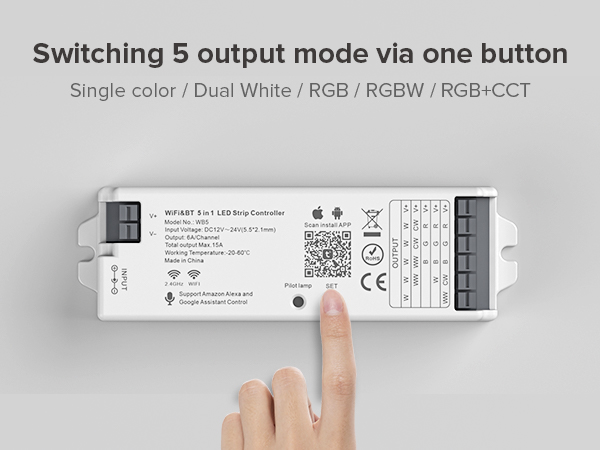

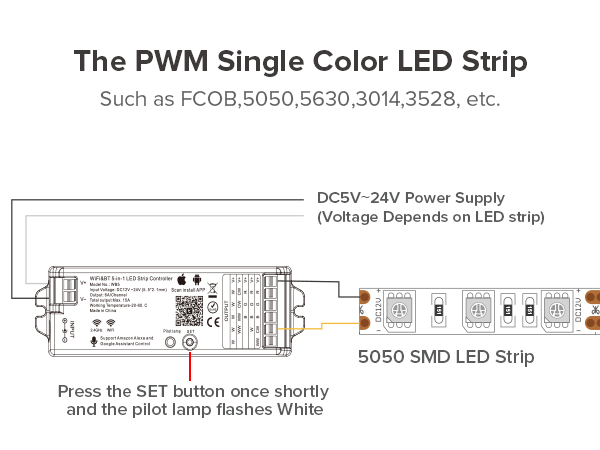

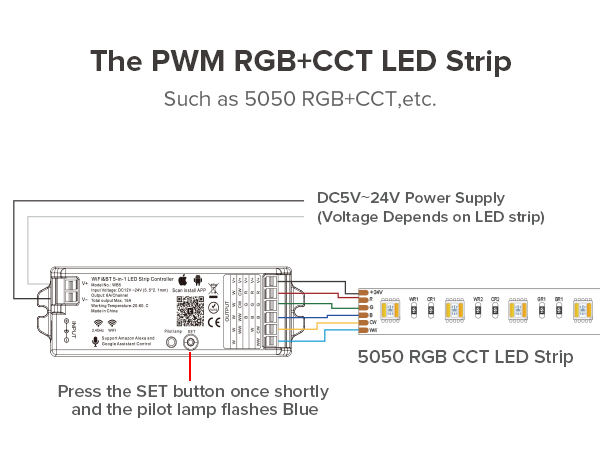

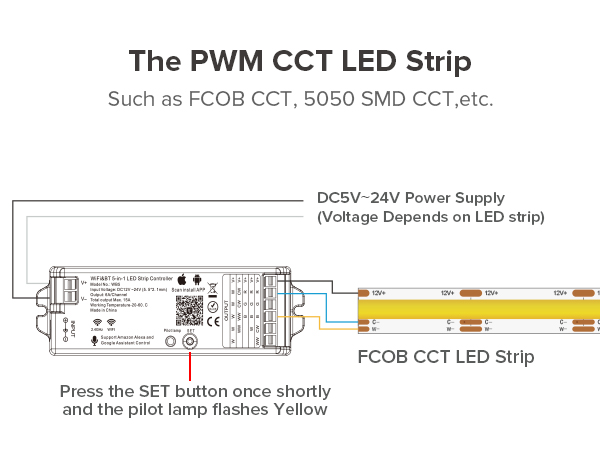

5 in 1 Tuya WiFi PWM ControllerWB5=C01W+C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT(Dual White), C03W=RGB, C04W=RGBW, C05W=RGB+CCT. This Controller supports PWM monochrome, CCT, RGB, RGBW, RGB + CCT, WW+CW LED strip. Switch mode by one setting button.

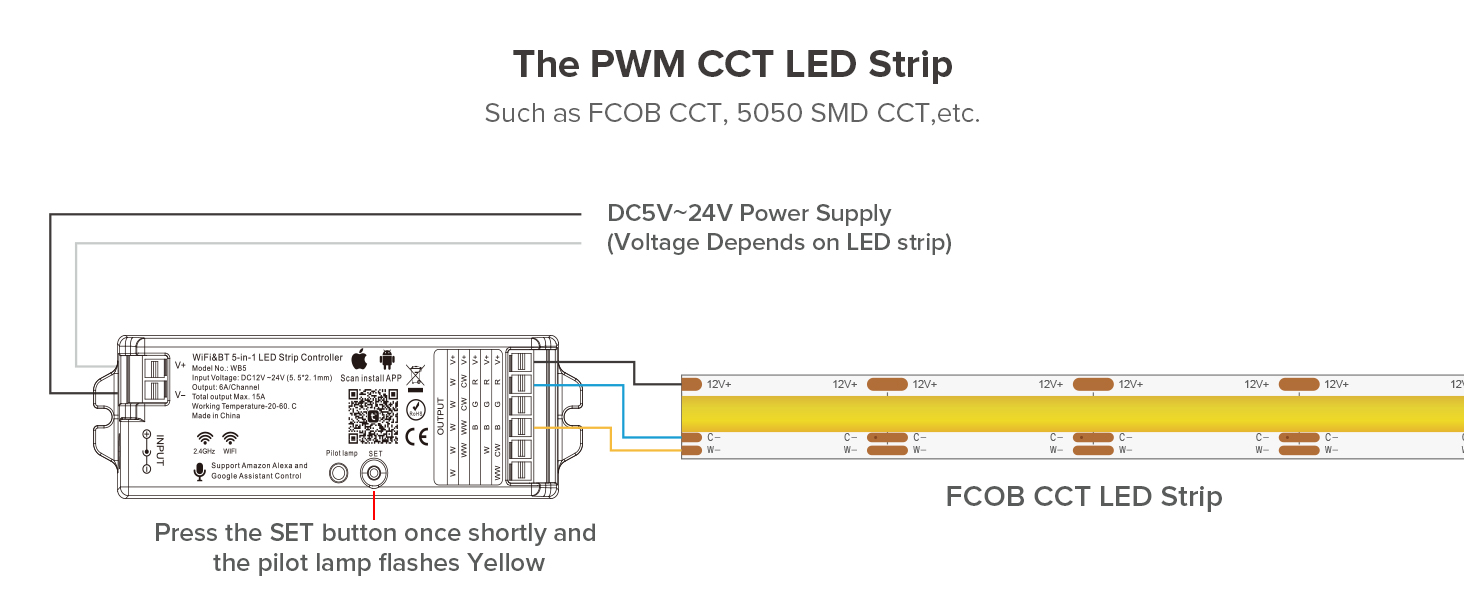

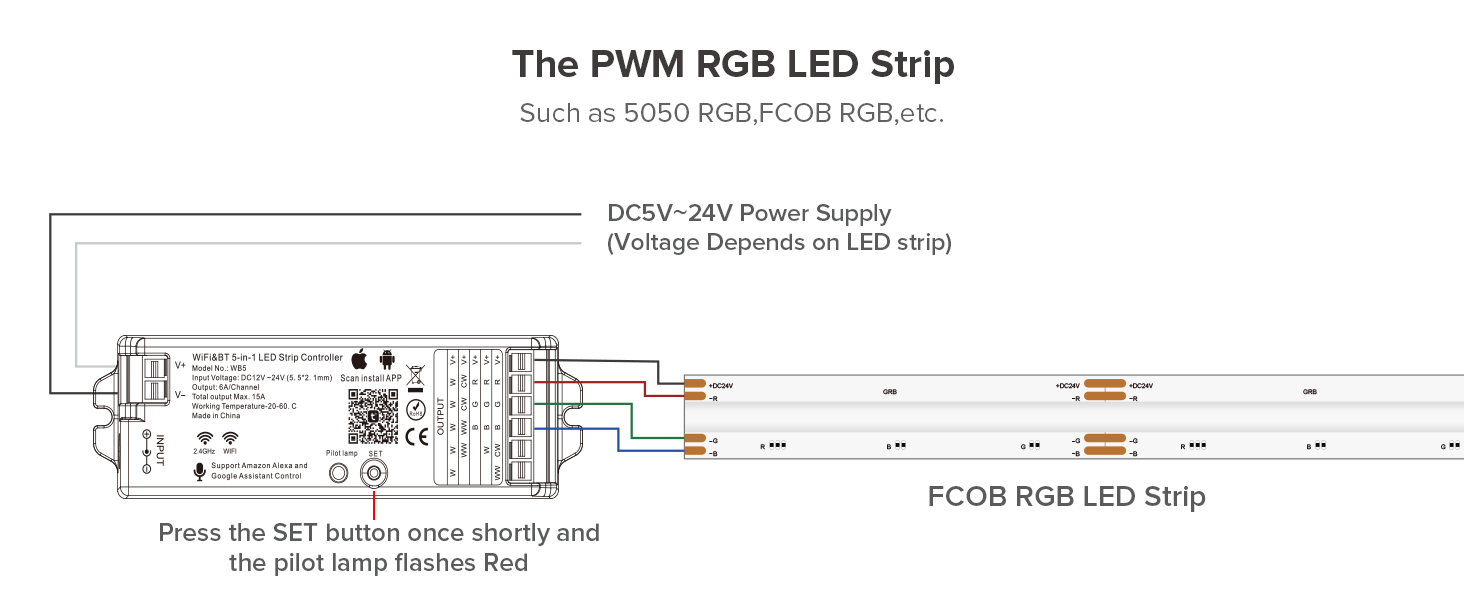

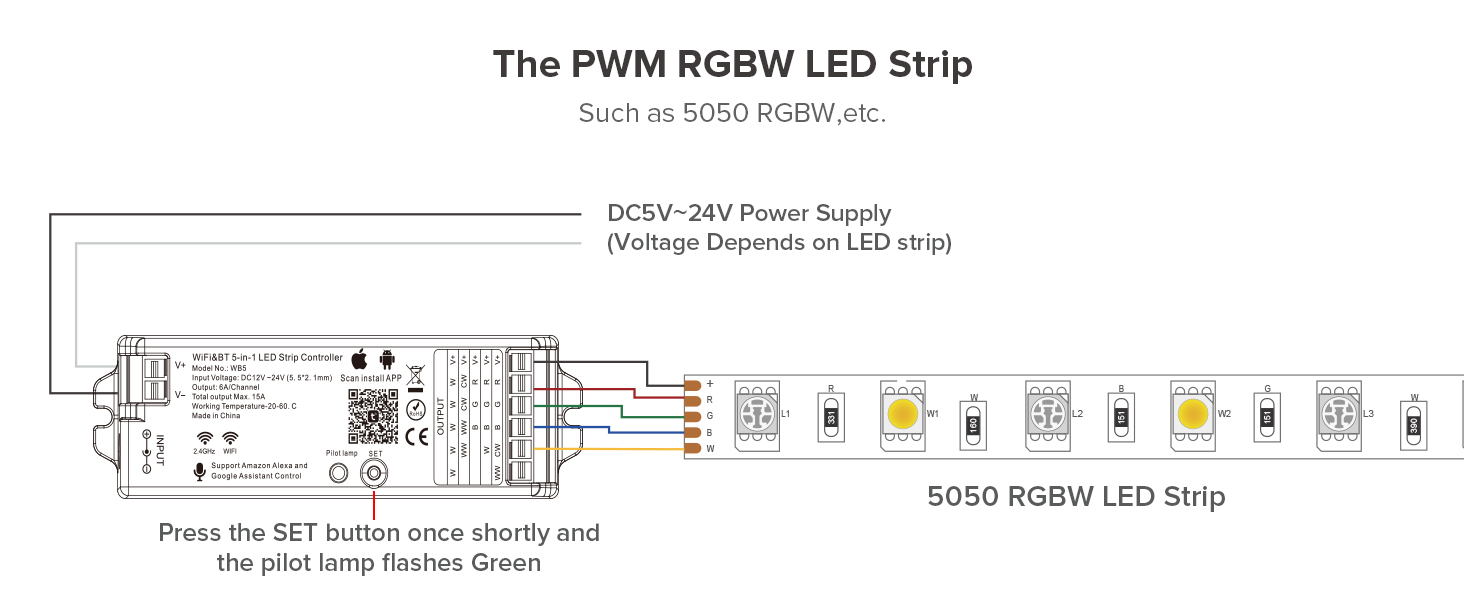

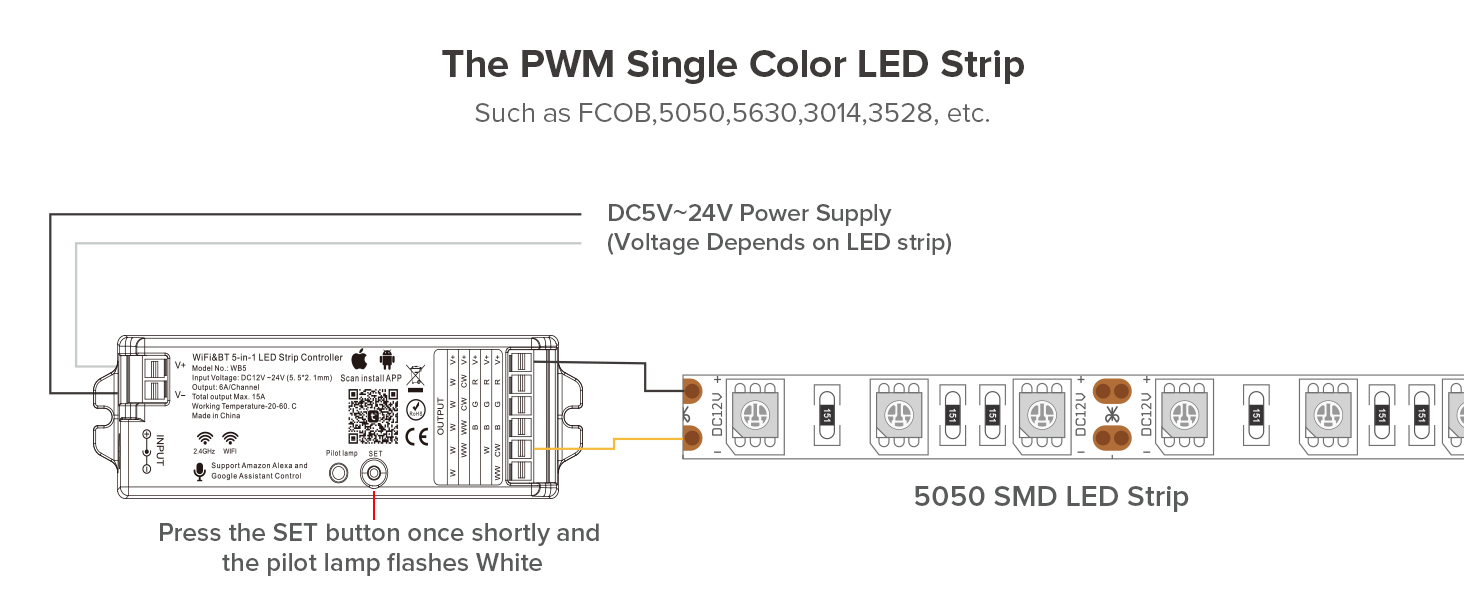

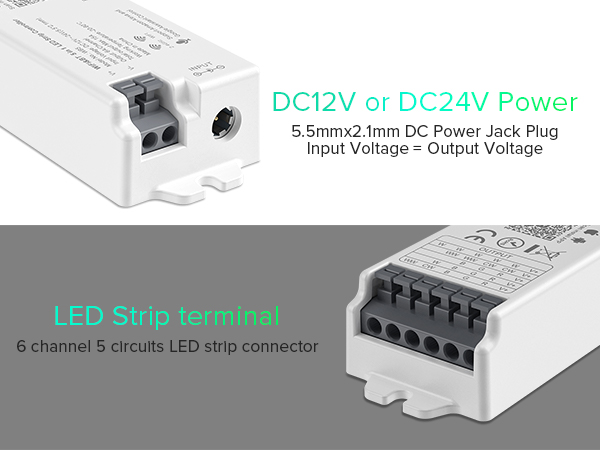

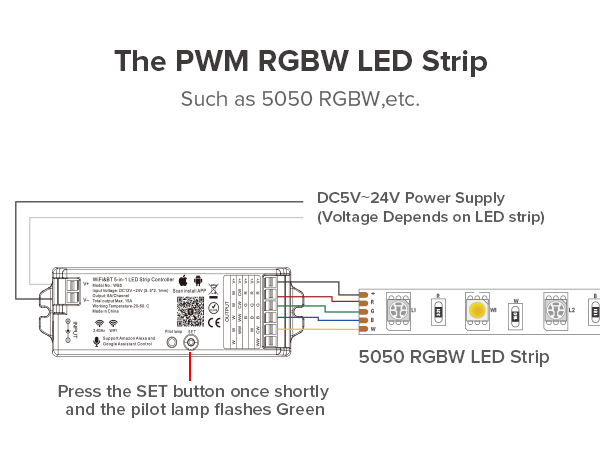

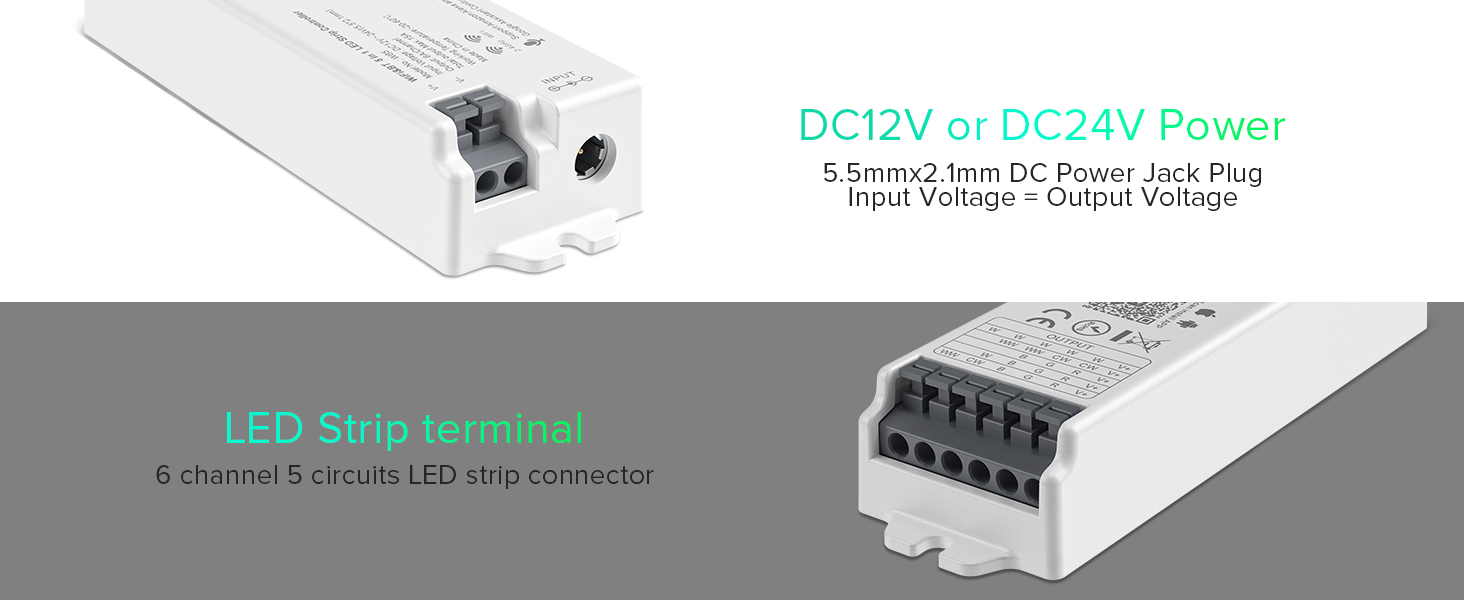

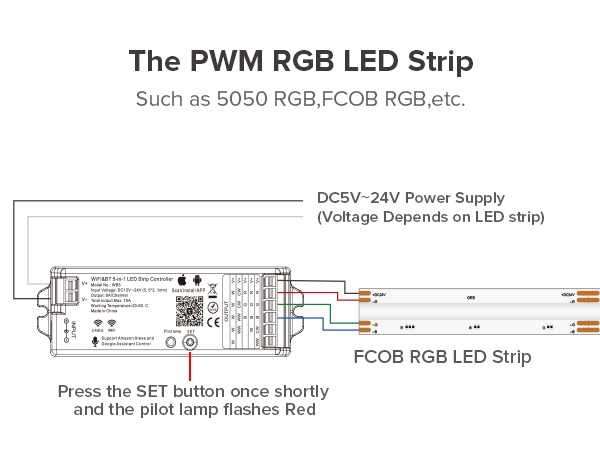

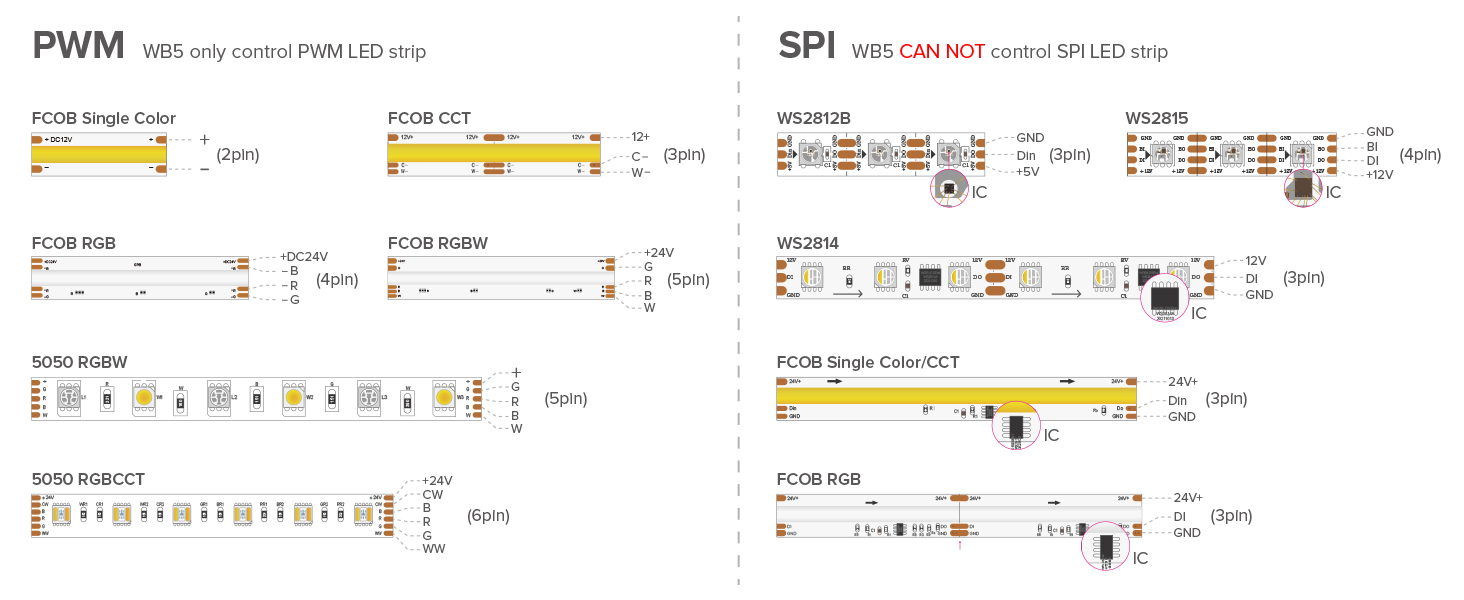

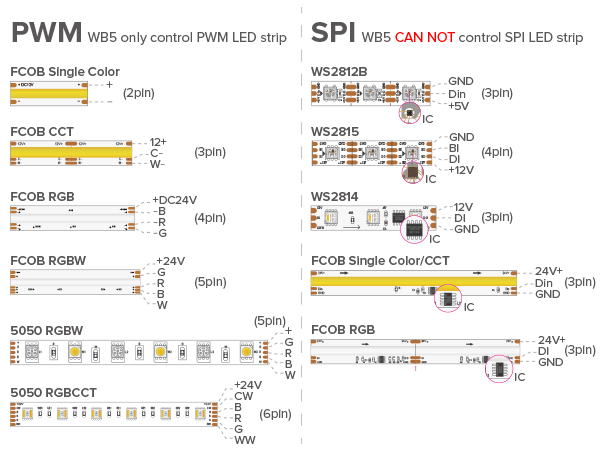

PWM LED TypeThe operating voltage range is DC12V-24V.Without IC chip PWM LED. Single color 2 wires, CCT 3 wires, RGB 4 wires, RGBW 5 wires, RGBCCT 6 wires. FCOB 5050 3528 5630 5730 3014SMD etc LED string strip bulb lamp. Power: 6A/Channel,Total output max 15A .DC12V 180W max. DC24V 360W max.
Not Compatible with Addressable LED StripsThis PWM 5-in-1 2.4GHz WiFi Controller (Model WB5) is not compatible with addressable LED strips.Such as: WS2811/WS2812/WS2813/WS2814/WS2815/SK6812/WS2805/FCOB WS2811 IC (Single Color/CCT/RGB)/FCOB WS2812 IC RGB/FCOB WS2814 IC RGBW, or any FCOB/SMD strips using these ICs (RGB/RGBW/RGBCCT). Please verify your strip type before purchase.

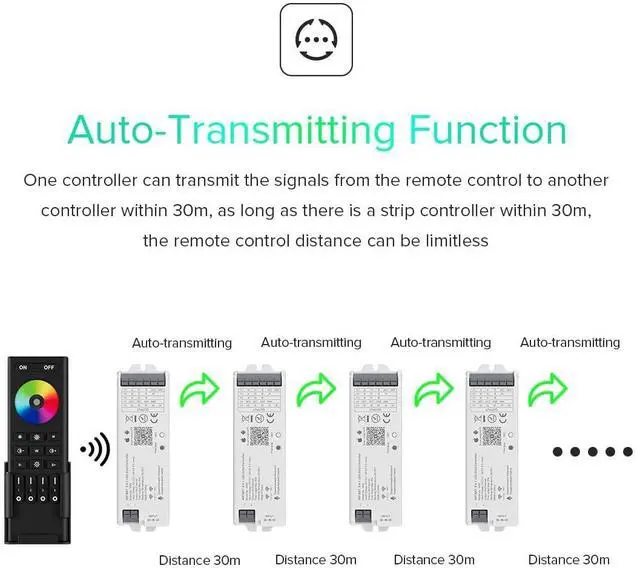

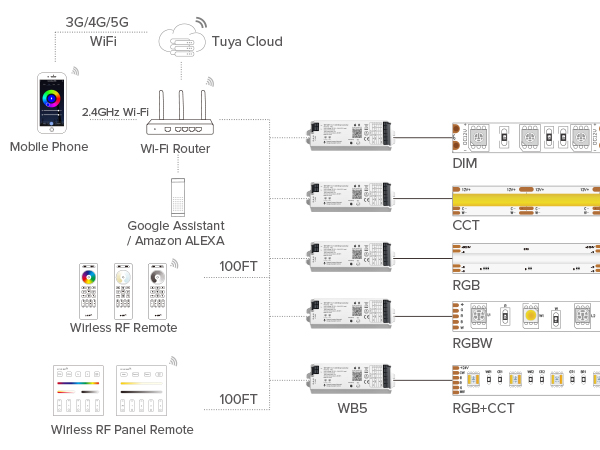

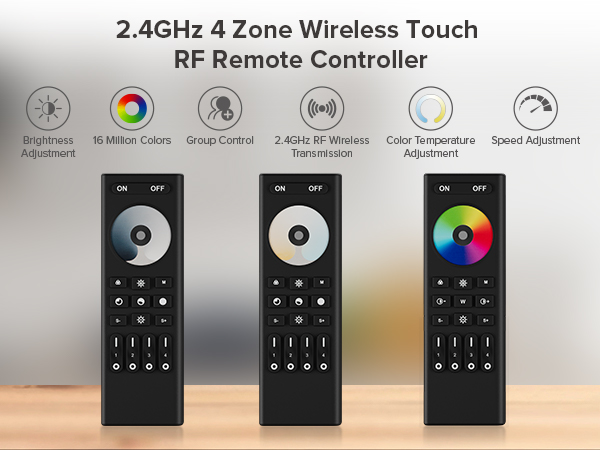

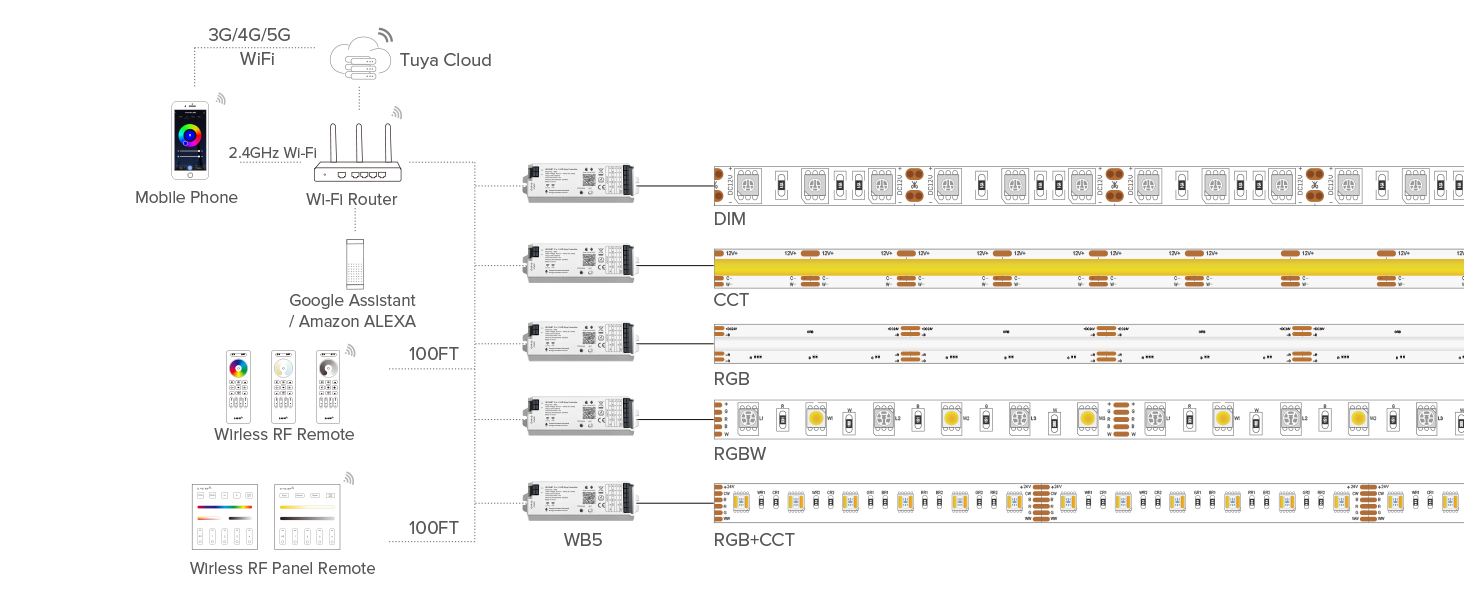

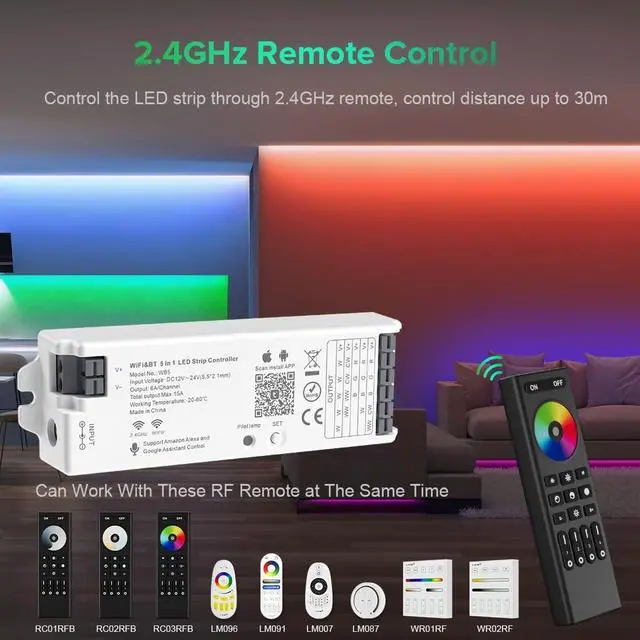

3 control methods1st:Compatible 2.4GHz RF Remote: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2nd: Tuya Smart ,Smart Life APP 2.4GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control.Three methods can be used at the same time.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Parameter Table

Brand	BTF-LIGHTING
Model	WB5
Product Name	5 IN 1 Tuya WiFi LED Controller
Input Voltage	DC12V-DC24V Controller voltage depends on LED strip
Power	6A/Channel Total output max 15A. DC12V 180W max. DC24V 360W max.
Wi-Fi	2.4GHz Wi-Fi
Waterproof level	IP30 Non-waterproof

Operation temperature	-4?~140?(-20?~+60? )
Ways of working	Smart Life/Tuya Smart APP or Match with RF remote
Support LED Types	PWM FCOB COB 3014 5630 3528 2835 5050 Single color , CCT, RGB, RGBW, RGBCCT LED Strip Light
Control Distance	30m (98.42ft)

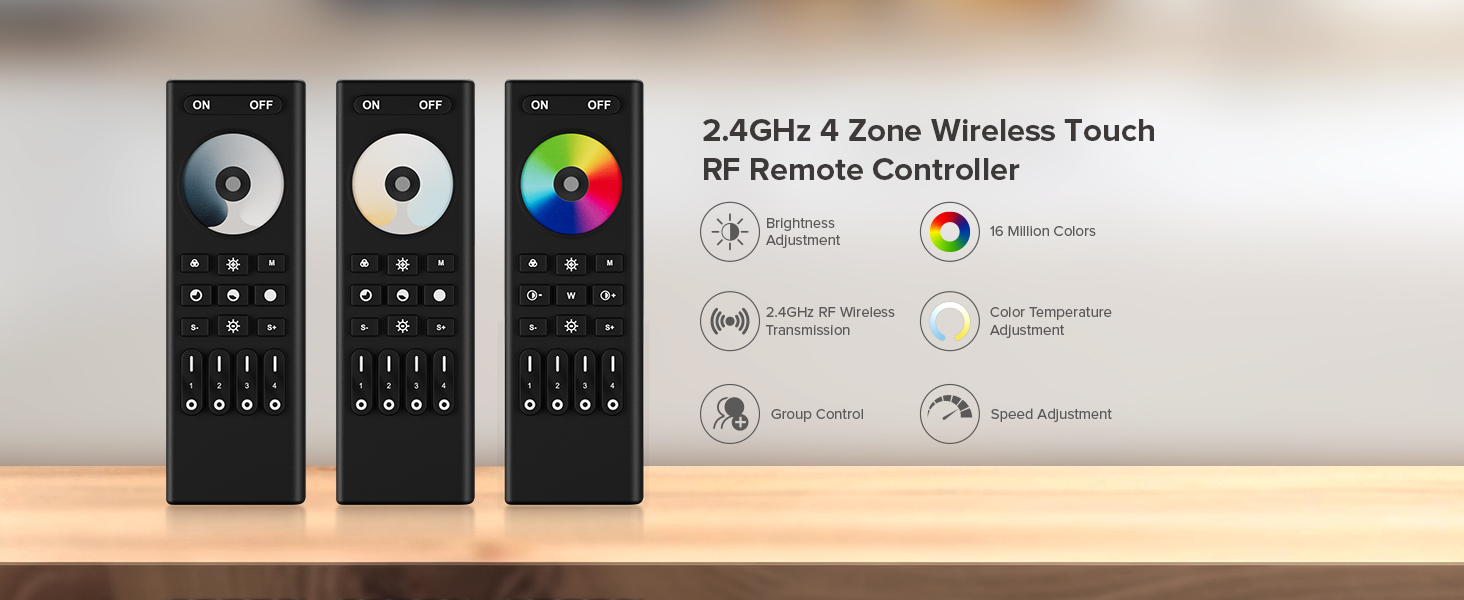

Compatible RF Remote	RC01RFB; RC02RFB; RC03RFB;RC04RFB; RFC05RFB
Compatible RF Panel Remote	WR01RF; WR02RF

Enjoy Technical Family to be Super Technical Expert

PWM Monochrome LED Controller

Work With PWM Single Color LED Strip

2.4Ghz WIFI / Bluetooth Mesh / Zigbee3.0 / 2.4GHz wireless

Only Indoor Use

PWM Monochrome LED Controller
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the . The shop mainly deals in LED Controllers, Accessories ,Dream Color LED strips, FCOB LED strips,LED matrix, power supplies. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
PWM Dimming LED Controller
PWM Single Color RF Controller
2.4G WIFI/Zigbee 3.0/Bluetooth
SP530E/SP630E + RB1 Kit
PWM Single Color RF Remote
Triac Zigbee/RF/WIFI Dimmer
Dimmer for PWM Singe Color LED

Parameter Table

Brand	BTF-LIGHTING
Model	WB5
Product Name	5 IN 1 Tuya WiFi LED Controller
Input Voltage	DC12V-DC24V Controller voltage depends on LED strip
Power	6A/Channel Total output max 15A. DC12V 180W max. DC24V 360W max.
Wi-Fi	2.4GHz Wi-Fi
Waterproof level	IP30 Non-waterproof
Operation temperature	-4?~140?(-20?~+60? )
Ways of working	Smart Life/Tuya Smart APP or Match with RF remote
Support LED Types	PWM FCOB COB 3014 5630 3528 2835 5050 Single color , CCT, RGB, RGBW, RGBCCT LED Strip Light
Control Distance	30m (98.42ft)
Compatible RF Remote	RC01RFB; RC02RFB; RC03RFB;RC04RFB; RFC05RFB
Compatible RF Panel Remote	WR01RF; WR02RF

Enjoy Technical Family to be Super Technical Expert

PWM Monochrome LED Controller

Work With PWM Single Color LED Strip

2.4Ghz WIFI / Bluetooth Mesh / Zigbee3.0 / 2.4GHz wireless

Only Indoor Use

PWM Monochrome LED Controller
BTF-LIGHTING US is the exclusive distributor of the BTF-LIGHTING brand on the . The shop mainly deals in LED Controllers, Accessories ,Dream Color LED strips, FCOB LED strips,LED matrix, power supplies. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
PWM Dimming LED Controller
PWM Single Color RF Controller
2.4G WIFI/Zigbee 3.0/Bluetooth
SP530E/SP630E + RB1 Kit
PWM Single Color RF Remote
Triac Zigbee/RF/WIFI Dimmer
Dimmer for PWM Singe Color LED

Parameters:

Model: WL5

Product Name: 5 IN 1 WiFi LED Controller

Item size(LxWxH):125x38x23(mm)

Package weigh: 0.08KG

Control Distance: 30m

APP name: MiBOXER

Input voltage: DC 12/24V (It depends on what LED strip you use)

Output: 6A/Channel (Total Output Max 15A)

Working Temperature: -20-60

Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz or 2.4G RF

Compatible LED strip: 3014 5630 3528 2835 5050RGB 5050RGBW 5050RGBW+CCT 5050 WW+CW

Compatible Remote: FUT089 FUT088 FUT092 FUT096 FUT 006 FUT 007 FUT 091 B8 B4/T4 B3/T3 B1/T1 B0

Package included:

1x 5 in 1 WiFi controller (The LED strip, remote controlelr and power supply aren't included)

Attention:

1.The working voltage is DC12-24V, the controller will be broken if the voltage is higher than 24V.

2.Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of the cathode and anode.

3.Please don't use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance
