BZBGEAR Full HD and UHD Video Test Pattern Generator and Analyzer Complete Installer Kit (BG-AVTPG-4K and BG-AVTPG-MINI)

In stock.
Ships from United States.
Most customers receive within 2-8 days.

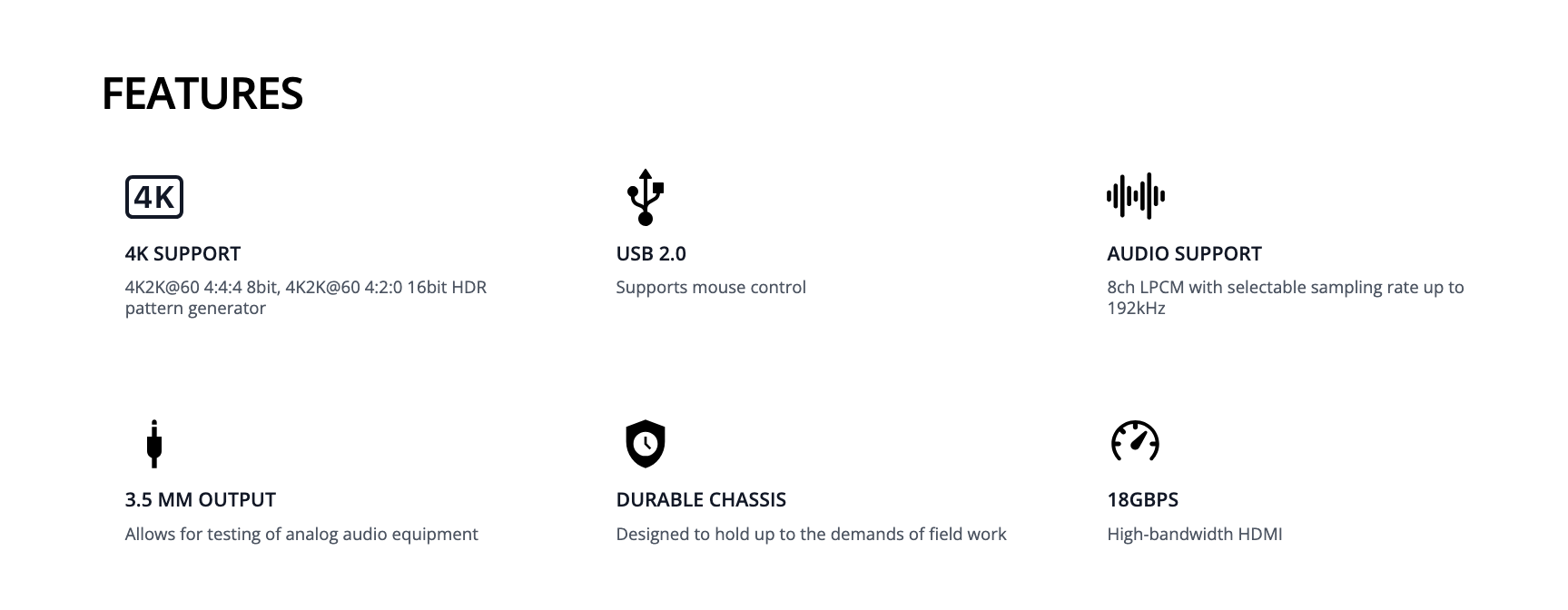

  • 18Gbps – High-bandwidth HDMI
  • 4K Support– 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit HDR pattern generator
  • Audio Support- 8ch LPCM with selectable sampling rate up to 192kHz
  • USB 2.0 – Supports mouse control
  • 3.5 mm Output – Allows for testing of analog audio equipment
  • Durable Chassis – Designed to hold up to the demands of field work
Overview
Specs
Reviews

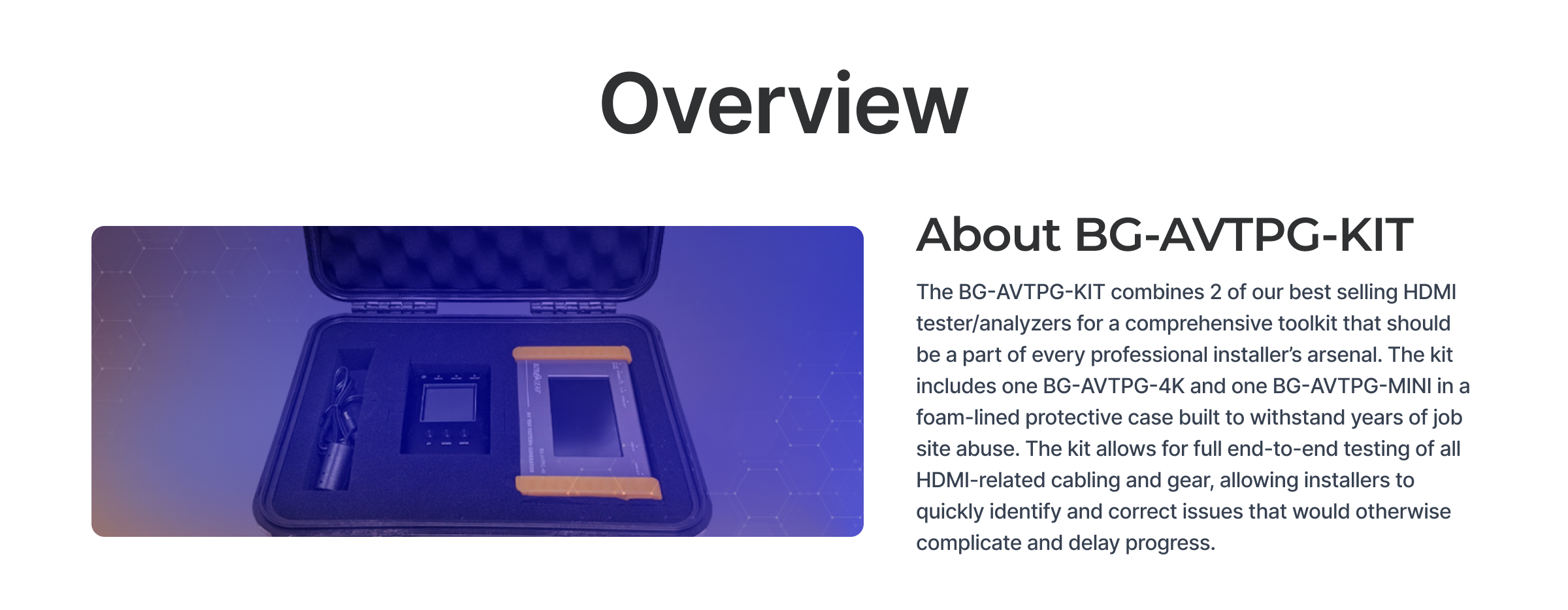

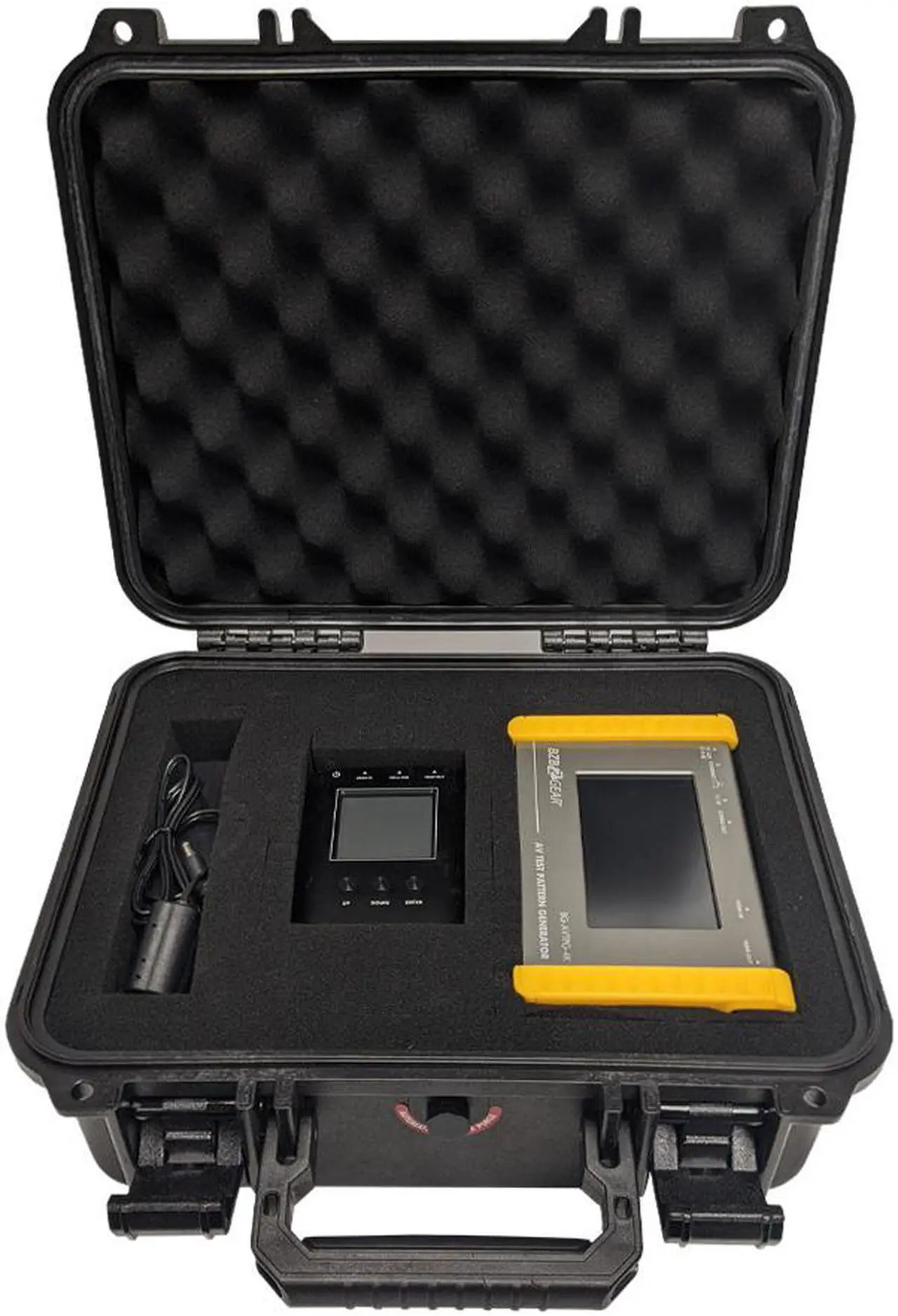

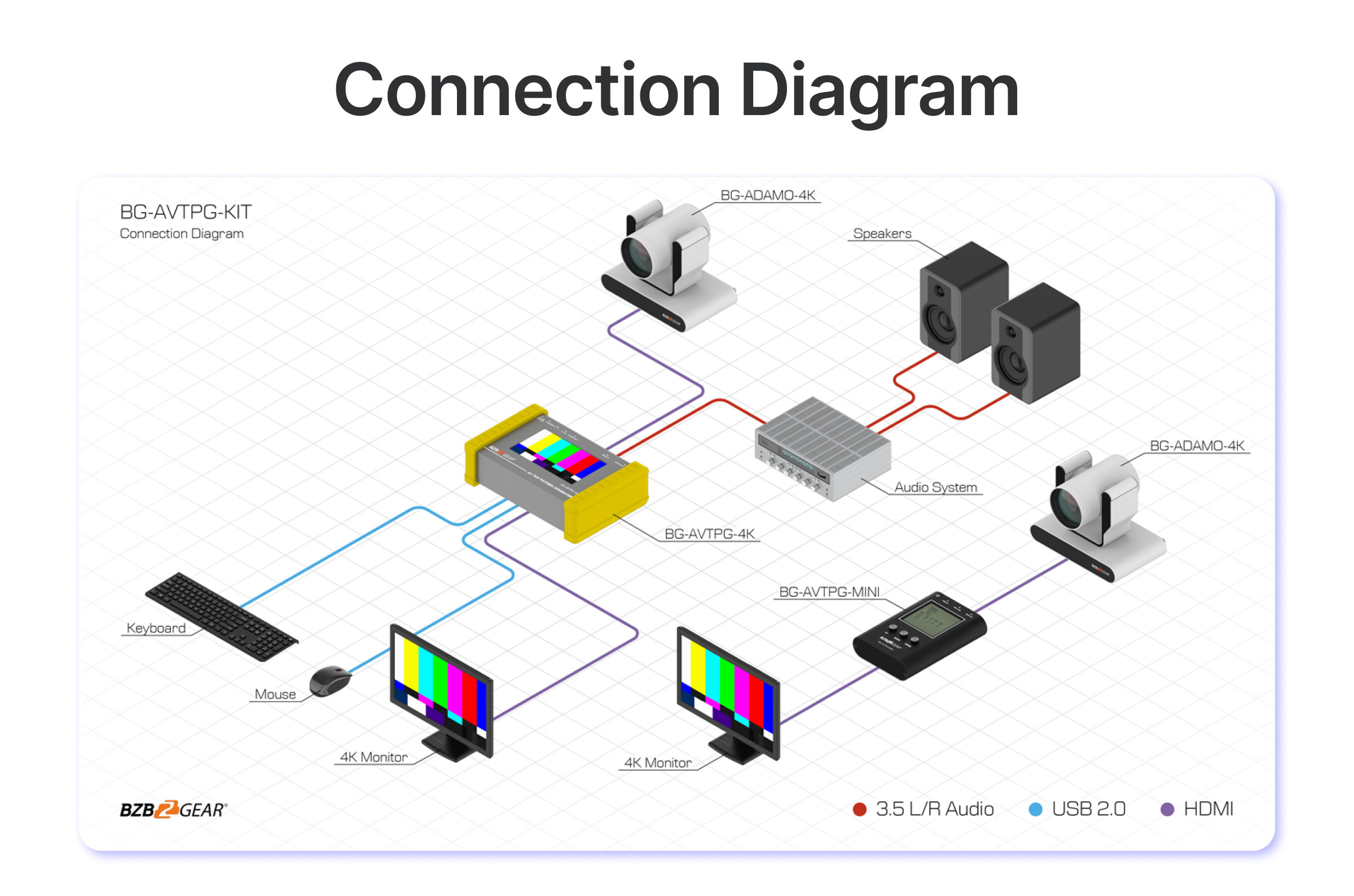

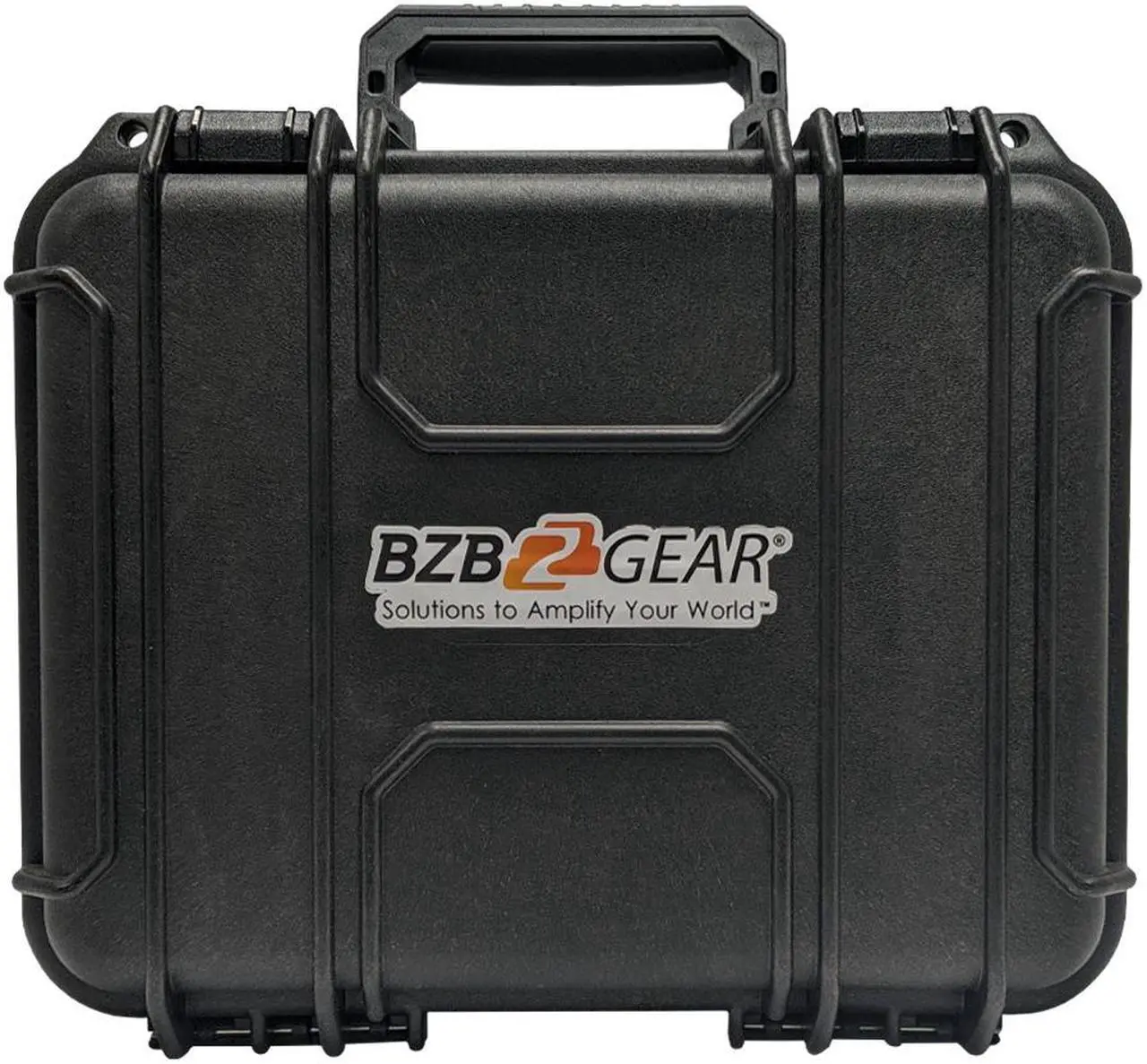

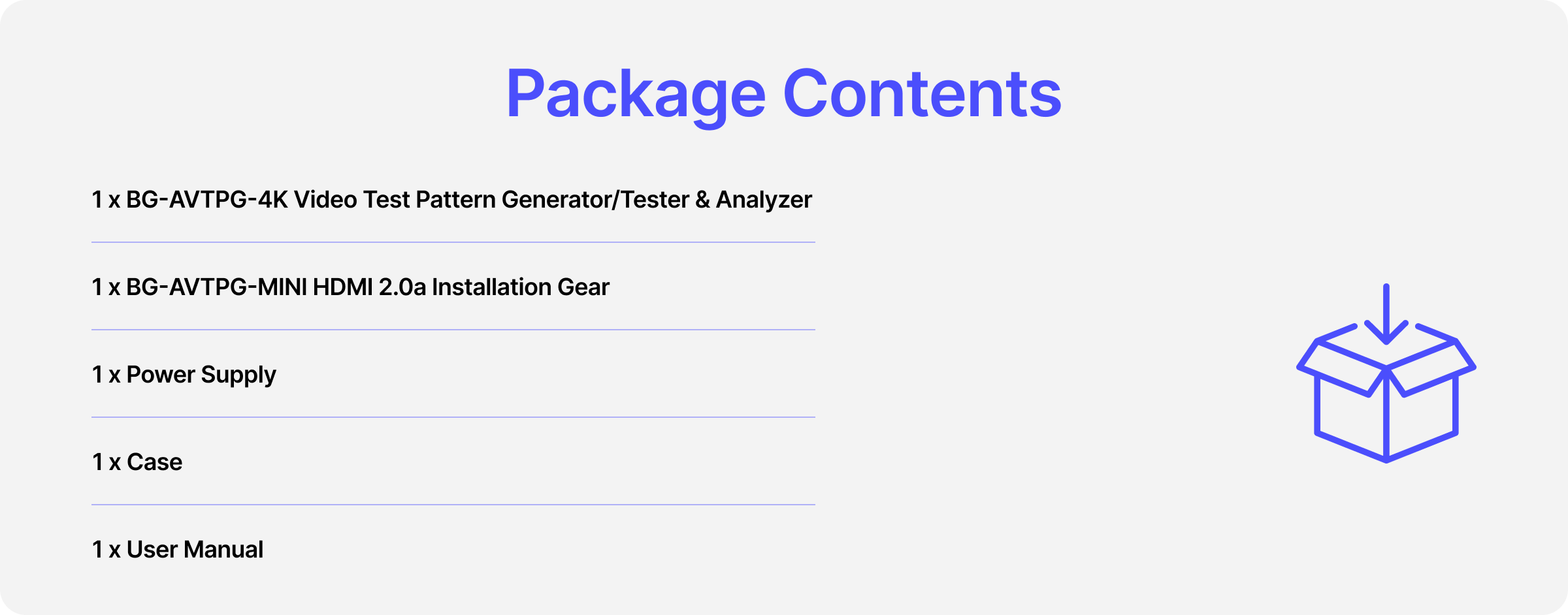

The BG-AVTPG-KIT combines 2 of our best selling HDMI tester/analyzers for a comprehensive toolkit that should be a part of every professional installer’s arsenal. The kit includes one BG-AVTPG-4K and one BG-AVTPG-MINI in a foam-lined protective case built to withstand years of job site abuse. The kit allows for full end-to-end testing of all HDMI-related cabling and gear, allowing installers to quickly identify and correct issues that would otherwise complicate and delay progress.

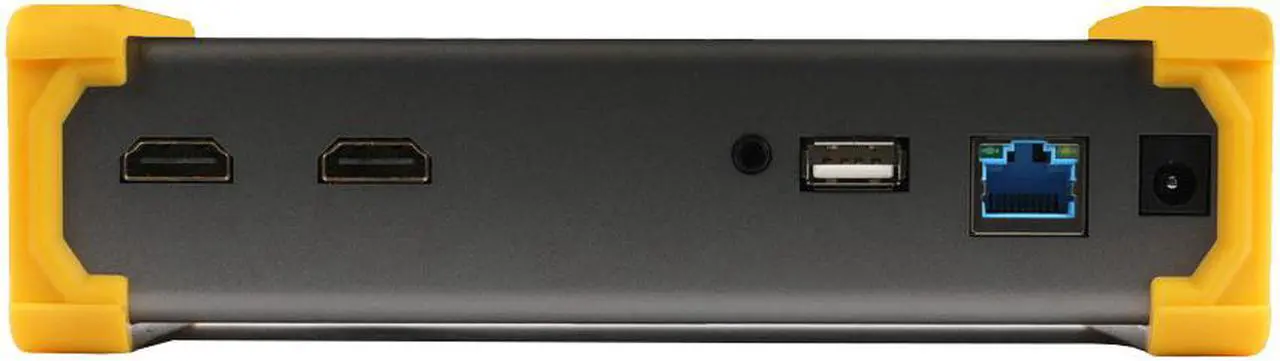

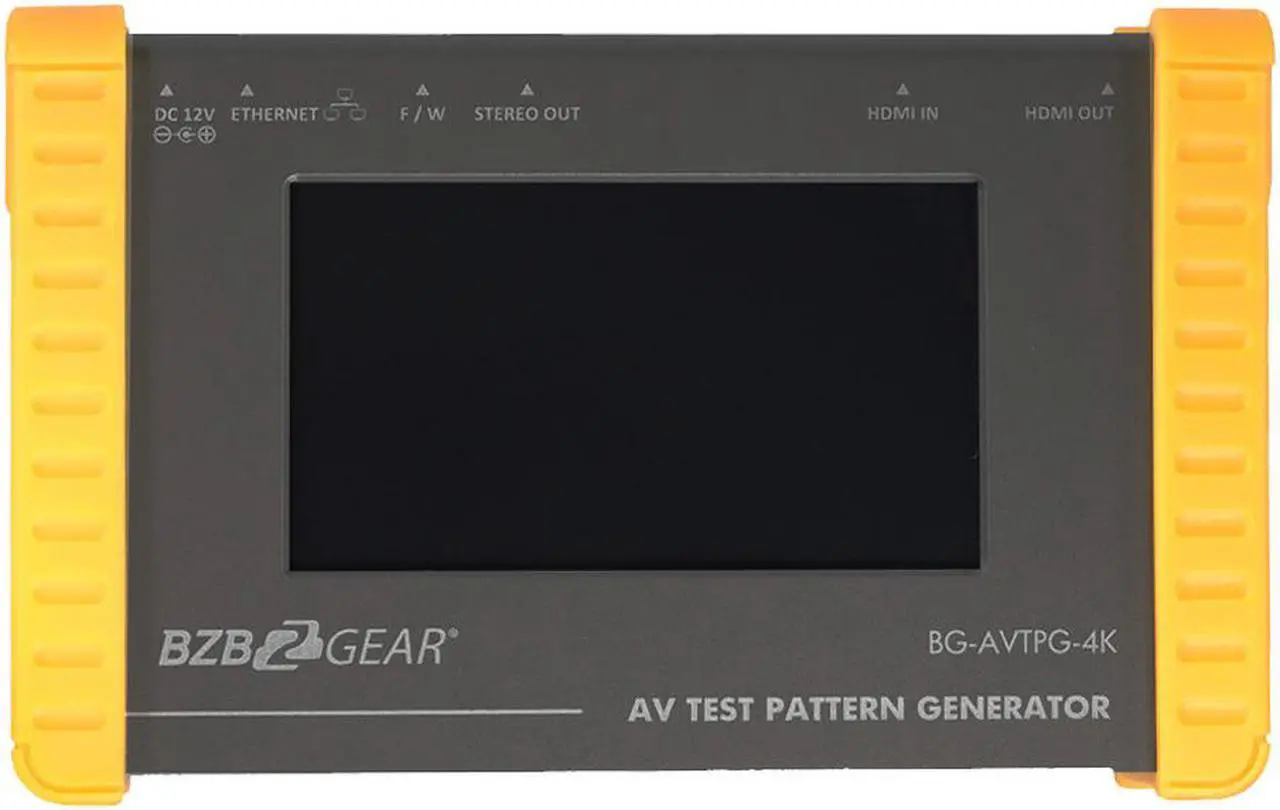

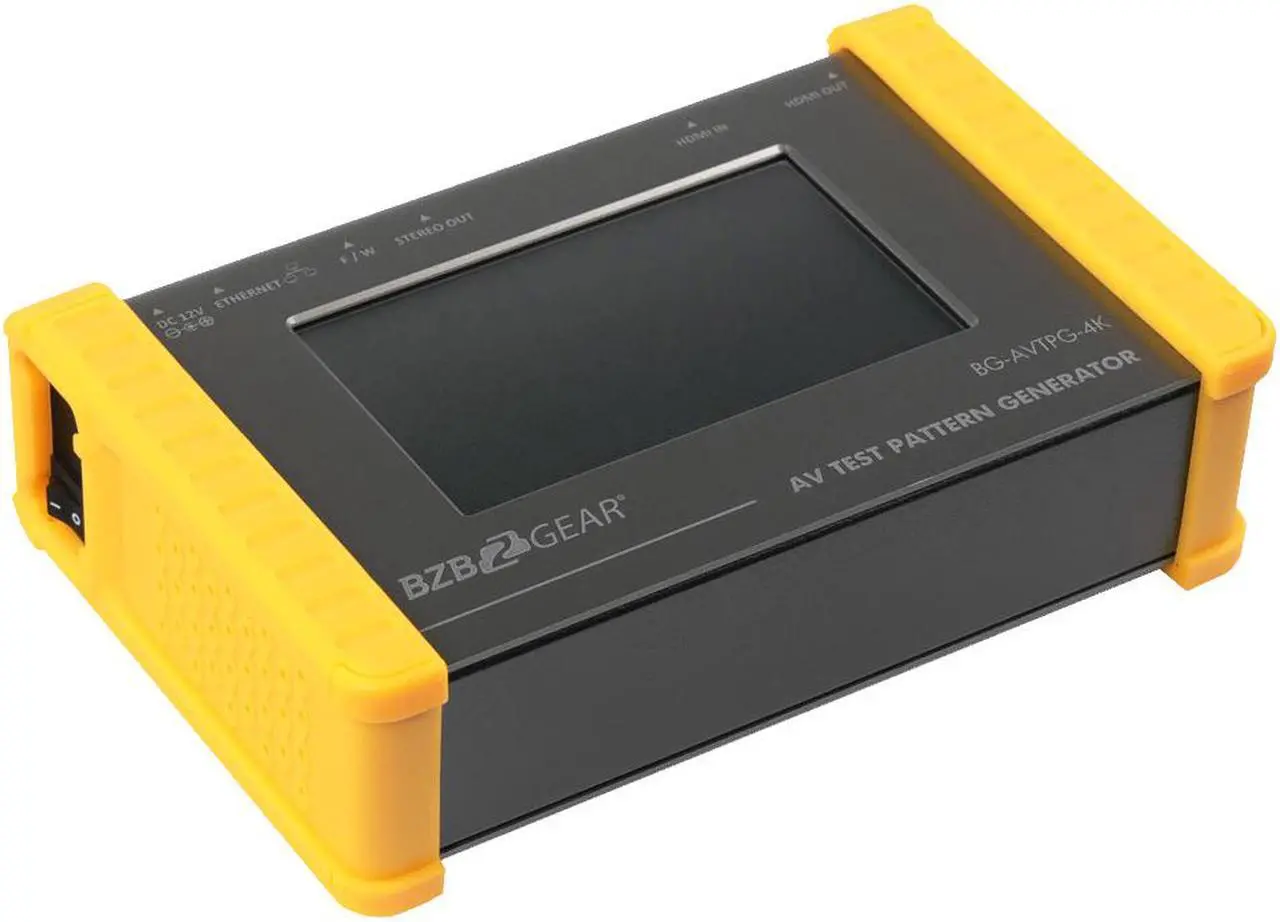

The BG-AVTPG-4K HDMI 2.0 Generator and Analyzer is a versatile and compact test set designed for A/V Professionals. The set allows the user to conduct verification and diagnostic tests of HDMI cables, A/V components and video distribution networks with confidence. Its protective rubberized edges and rechargeable battery make it well-suited for on-site testing virtually anywhere. With the advanced touch panel and USB connection mouse control you can easily access options for video patterns, audio signals, HDCP analyzer, and loop signal testing. The unit supports 8 channel LPCM with selectable sampling rate making it perfect for testing multi-channel audio systems. The BG-AVTPG-4K is a must-have for all AV System Integrators and Technicians.

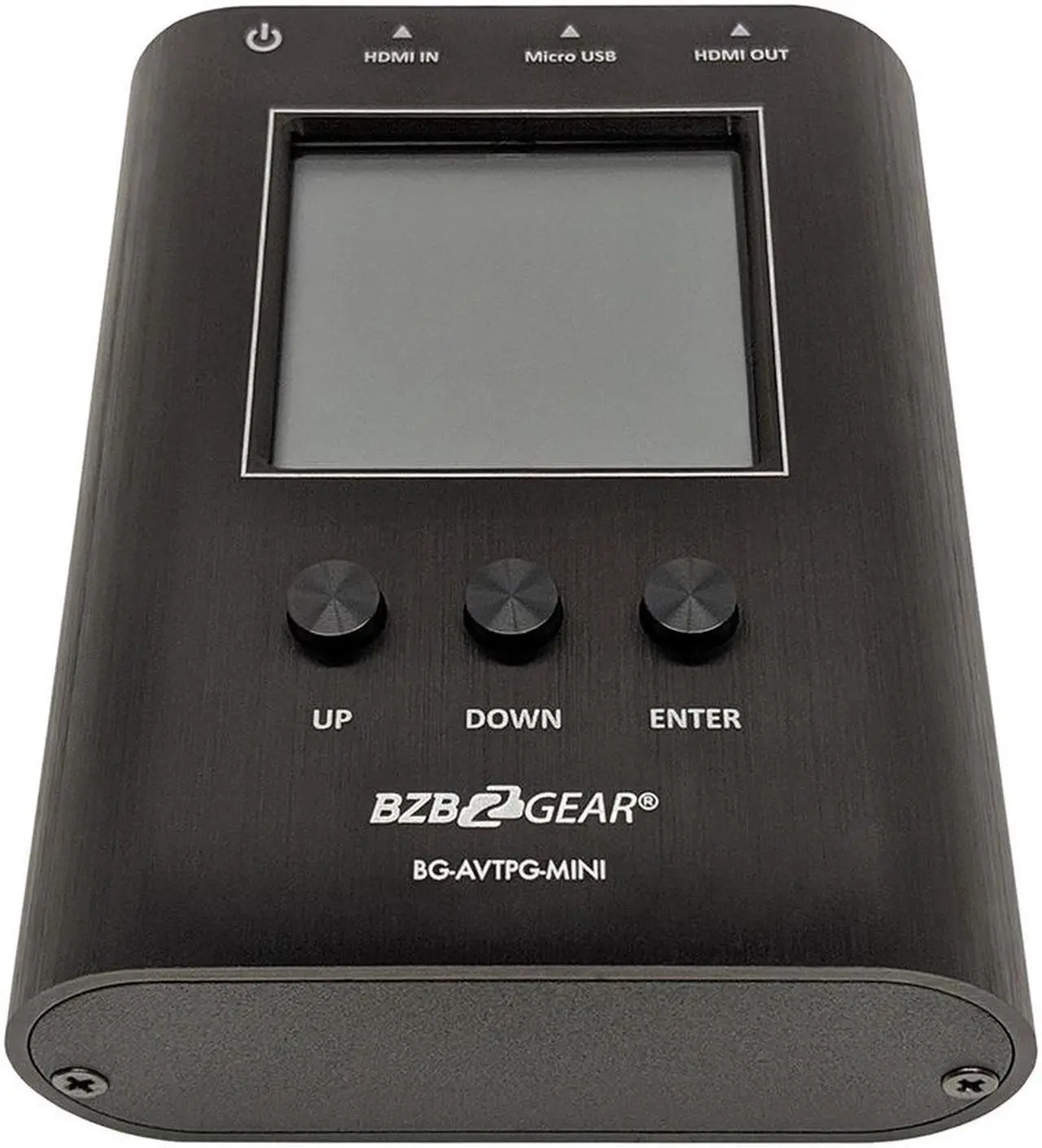

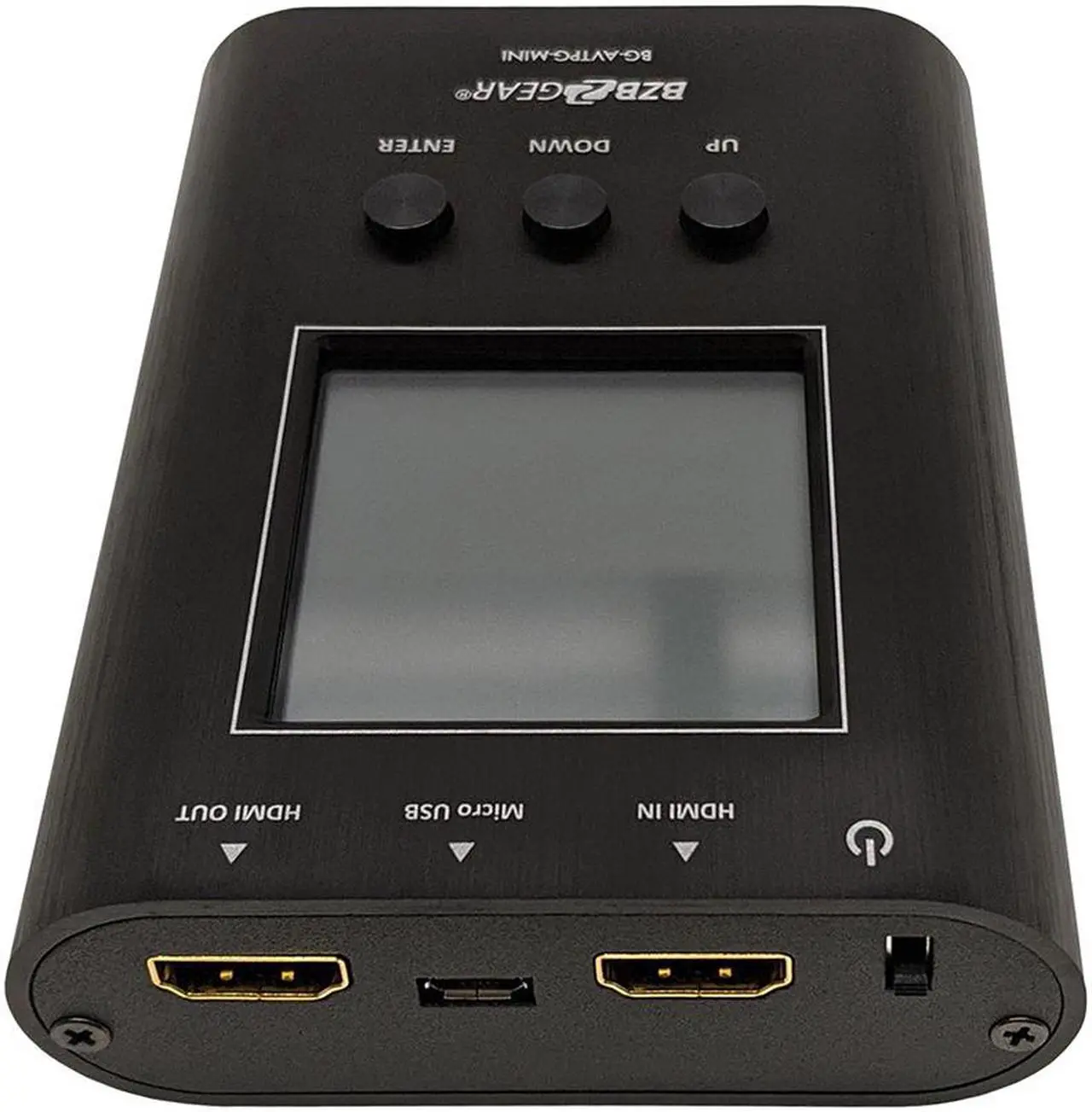

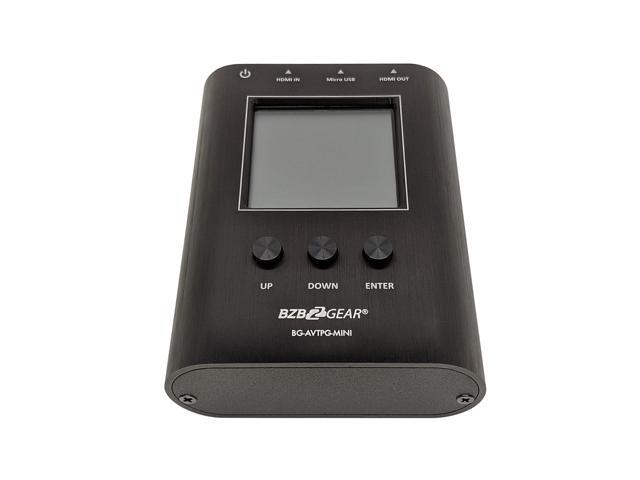

The BG-AVTPG-MINI HDMI 2.0a tester/analyzer is a mobile, hand-held device which can help installers test cable quality by generating HDMI signals and detecting important HDMI features quickly. With this handy and portable tool users will appreciate the built-in 3 hour chargeable battery, video patterns and other features. It features adjustable color depth so installers can instantly test the connected display’s capability. Getting important pieces of information makes troubleshooting a breeze and helps installers take the guess work out of HDMI compatibility issues. With the device’s response time, you will have the answer to a potential problem in less than a minute! The BG-AVTPG-MINI, with its cost and features, is the ideal testing unit for custom and commercial integrators to have on every call!


Features:


BG-AVTPG:



  • 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit HDR pattern generator

  • 4.3 touch panel

  • Supports mouse control

  • Supports user control device through Ethernet

  • Firmware update through USB Flash Drive

  • Supports user defined pattern up to 2GB

  • Embedded LINUX KERNAL system with limitless extension

  • Scrambler supported for videos over 340MHz output wise

  • Loop test capability to provide statistics analysis for connection stability

  • Supports HDMI loop through function

  • HDCP test allow verify HDCP of HDMI source and transmit HDCP encrypted video

  • Qualified physical layer performance to ensure the best compatibility

  • Battery powered for portability, it can extend operation time with full load up to 4 hours

  • Rechargeable battery design with short charging time about 2 hours


BG-AVTPG-MINI:



  • Supports video resolution* outputs up to 4K2K@60 4:4:4 8bit, HDR 10bits**, 12bits, 16bits

  • Built-in 3 video patterns***

  • Both HDMI input and output support up to HDMI 2.0

  • Fundamental HDMI feature analysis up to 4K2K@60 4:4:4 8bit HDMI 2.0 input

  • HDCP 1.4 & 2.2 compliant

  • Tests cable quality

  • Provides statistics analysis for cable quality or connection stability

  • Hand-held pocket size

  • Battery powered for portability, it can extend operation time with full load up to 3 hours

  • Rechargeable battery design with short charging time about 3 hours
