    BZBGEAR 4K UHD 18Gbps HDBaseT HDMI/USB-C/RS-232 Wall Plate Transmitter/Receiver Kit up to 230ft

    + 20% off w/ promo code BZBGEAR20,limited offer By BZB Express

    • Supports High Resolutions - Up to 4K@120Hz YUV 4:4:4 with DSC function, extending up to 40m (132 feet)
    • Standards Compliant - Compatible with HDCP 2.3, HDCP 2.2, and HDCP 1.4
    • High Dynamic Range Video - Allows for the vivid display of HDR content
    • EDID and HDCP Bypass - Streamlines connectivity by bypassing EDID and HDCP protocols when necessary
    • Digital Stream Conversion (DSC) - Enables seamless conversion of digital streams, ensuring compatibility with DSC 1.2a standards
    • Compressed Audio Formats - Supports various compressed audio formats, including DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    BG-EXH-70UCWP-W BZBGEAR header
    BG-EXH-70UCWP-W product
    4K UHD 18Gbps HDMI/USB-C Wall Plate Switcher & HDBaseT
    Supports High Resolutions | Standards Compliant | High Dynamic Range Video

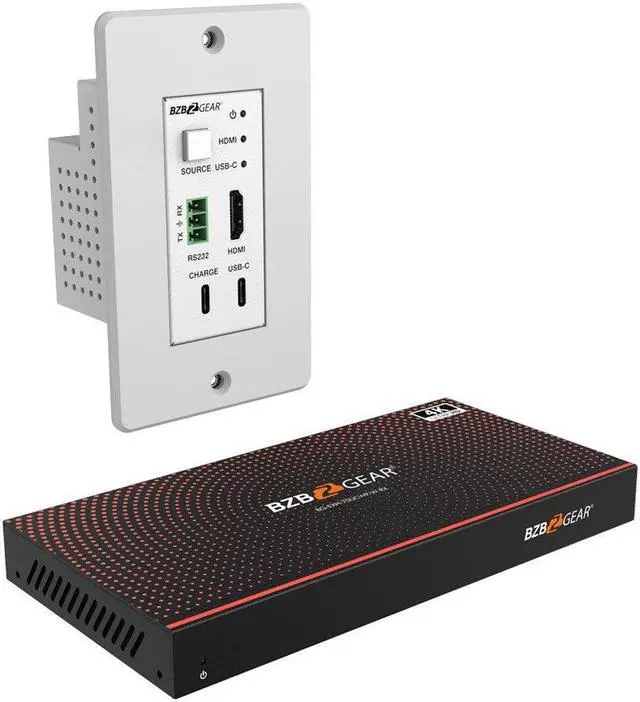

    Introducing the BG-EXH-70UCWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, a comprehensive solution for advanced signal transmission and distribution. This kit features a USB-C/HDMI Wall Plate Transmitter and an HDBaseT to HDMI Receiver, delivering exceptional performance and versatility for professional AV installations. Enclosed within a sleek US one-gang enclosure compatible with Decora-style wall plate openings, the transmitter functions as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and USB-C inputs.

    With support for video resolutions up to 4K2K@50/60Hz 4:4:4 and bidirectional RS-232 pass-through functionality, this kit ensures seamless integration and reliable control signal transmission. Furthermore, the transmitter can be remotely powered via Power Over Ethernet (POE) from the receiver or other HDBaseT-equipped devices, enhancing convenience and flexibility in installation.

    BG-EXH-70UCWP-W features
    BG-EXH-70UCWP-W warranty
    BG-EXH-70UCWP-W Supports High Resolutions & DSC icon
    Supports High Resolutions & DSC

    Up to 4K@120Hz YUV 4:4:4 with DSC function, extending up to 40m (132 feet); enables seamless conversion of digital streams, ensuring compatibility with DSC 1.2a standards

    BG-EXH-70UCWP-W HDCP Compliant & EDID Bypass icon
    HDCP Compliant & EDID Bypass

    Compatible with HDCP 2.3, HDCP 2.2, and HDCP 1.4; streamlines connectivity by bypassing EDID and HDCP protocols when necessary

    BG-EXH-70UCWP-W High Dynamic Range Video icon
    High Dynamic Range Video

    Allows for the vivid display of HDR content

    BG-EXH-70UCWP-W Compressed Audio Formats icon
    Compressed Audio Formats

    Supports various compressed audio formats, including DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD

    BG-EXH-70UCWP-W connection diagram
    Connection Diagram

    A tablet and a laptop connect over HDMI to the BG-EXH-70UCWP-W wall plate transmitter, which sends the selected signal over a CAT6 cable to the receiver, which connects over HDMI to a display.

    BG-EXH-70UCWP-W front and rear panels

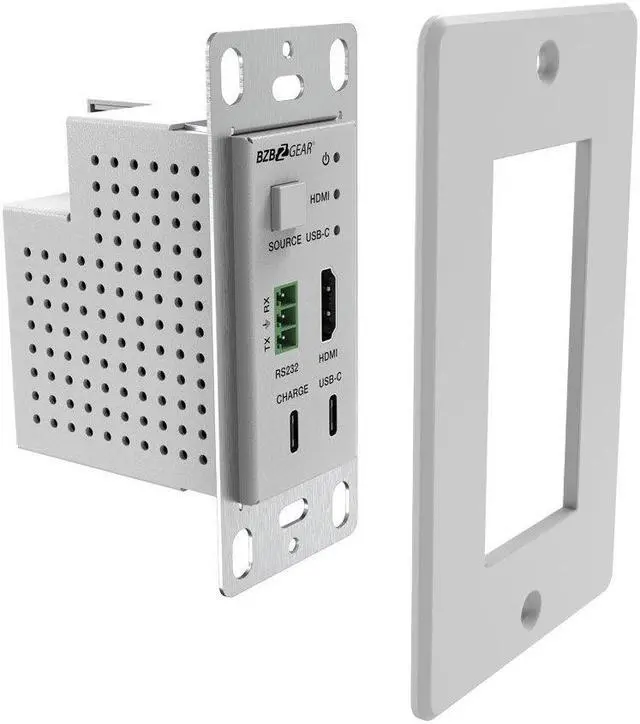

    Transmitter and Receiver

    1. Power LED - The power LED indicator will illuminate in green when the product is powered on

    2. HDMI LED

    3. USB-C LED

    4. HDMI port - HDMI input port

    5. USB-C port - USB-C signal input port

    6. CHARGE port - Connect this port to power supply

    7. RS-232 port - Connect to PC or control system

    8. SOURCE button - Used to switch HDMI / USB-C input signal

    9. HDBaseT OUT - Connect to the HDBaseT IN port of Receiver

    10. FW port - Firmware update port

    11. Power LED - When the product is powered on, the red LED indicator will be on

    12. DC 24V - DC 24V power supply port

    13. FW - Firmware update port

    14. HDBaseT IN - Connect to the HDBaseT OUT port of Transmitter

    15. HDMI OUT - HDMI output port

    16. HDMI IN - HDMI input port

    17. AUDIO OUT - Analog audio output port

    18. RS-232 port - Connect to PC or control system

    HDMI Compliance HDMI 2.0b
    HDCP Compliance HDCP 2.2
    DP Compliance Display Port 1.2a (Adapter required for Display Port)
    Video Bandwidth USB-C: 5.4 Gbps; HDMI: 18 Gbps
    Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
    Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
    Color Depth 8/10/12-bit (1080P@60Hz); 8-bit (4K@60Hz)
    HDR Support
    HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    Transmission Distance Max distance (1080P) : 230ft / 70m over CAT6/6a/7; Max distance (4K): 131ft / 40m over CAT6/6a/7
    ESD Protection Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge)
    Transmitter Inputs: 1x HDMI Type A [19-pin female]; 1x USB-C; Outputs: 1x HDBaseT Out [RJ45, 8-pin female]; 1x USB-C (only for charging); Controls: 1x RS-232 [3-pin phoenix connector]; 1x FW [Micro USB, Update port]
    Receiver Inputs: 1x HDMI IN [Type A, 19-pin female]; 1x HDBaseT IN [RJ45, 8-pin female]; Outputs: 1x HDMI OUT [Type A, 19-pin female]; 1x AUDIO OUT [Phoenix jack]; Controls: 1x RS-232 [3-pin phoenix connector]; 1x FW [Micro USB, Update port]
    Housing Metal Enclosure
    Color White
    Dimensions (W x D x H)

    Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm]; Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]; Receiver: 7.9in x 4.0in x 0.87in [200mm x 102.8mm x 22mm]

    Weight Wall plate: 0.43 lbs [197g], Receiver: 1.1 lbs [517g]
    Power Supply POE (only from Receiver to Transmitter)
    Power Consumption Wall plate: 7.92W (Max), Receiver: 6W (Max)
    OperatingTemperature 32 - 104 F / 0 - 40 C
    Storage Temperature -4 - 140 F / -20 - 60 C
    Relative Humidity 20 - 90% RH (no condensation)
    Package Contents 1x 18Gbps HDBaseT 70M with USB-C/HDMI Wall Plate Transmitter; 1 x HDBaseT to HDMI receiver; 1x 3pin-3.81mm Phoenix Connector (male); 1x User Manual

    Introducing the BG-EXH-70UCWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, a comprehensive solution for advanced signal transmission and distribution. This kit features a USB-C/HDMI Wall Plate Transmitter and an HDBaseT to HDMI Receiver, delivering exceptional performance and versatility for professional AV installations. Enclosed within a sleek US one-gang enclosure compatible with Decora-style wall plate openings, the transmitter functions as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and USB-C inputs.


    With support for video resolutions up to 4K2K@50/60Hz 4:4:4 and bidirectional RS-232 pass-through functionality, this kit ensures seamless integration and reliable control signal transmission. Furthermore, the transmitter can be remotely powered via Power Over Ethernet (POE) from the receiver or other HDBaseT-equipped devices, enhancing convenience and flexibility in installation.


    TX/RX Explained


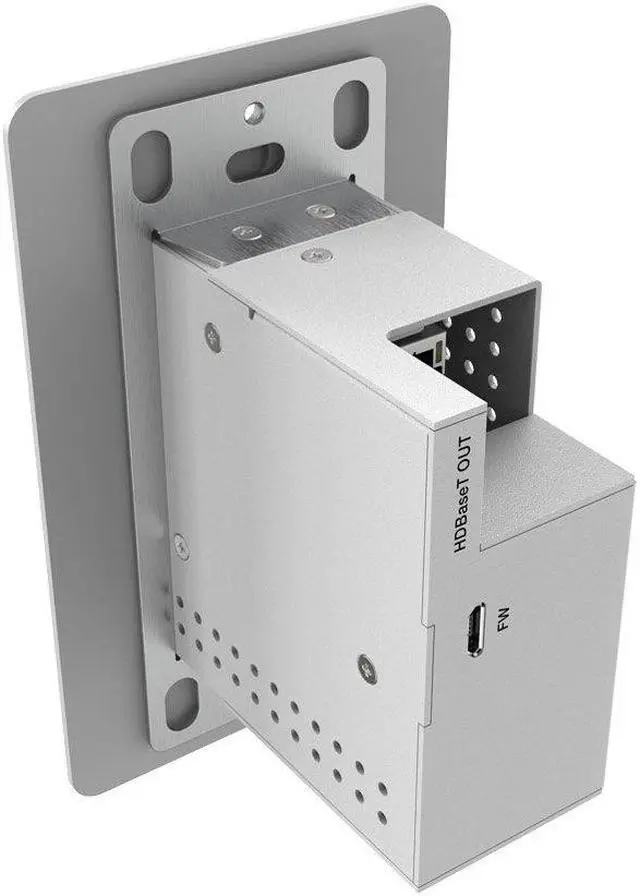

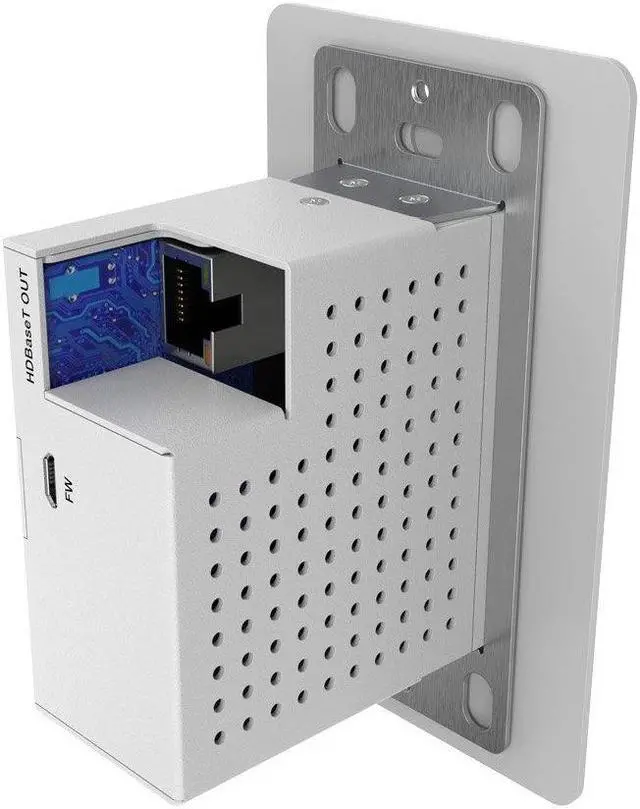

    Transmitter Overview:


    The USB-C/HDMI Wall Plate Transmitter in the BG-EXH-70UCWP-W kit represents the pinnacle of versatility and innovation in signal transmission technology. With HDMI and USB-C inputs, it accommodates a wide range of multimedia sources, ensuring compatibility with modern AV devices. Designed to seamlessly integrate into any environment, the transmitter features a one-gang enclosure suitable for Decora-style wall plate openings.


    Supporting resolutions up to 4K@120Hz YUV 4:4:4 with DSC function and extending transmission distances up to 40m (132 feet), it guarantees exceptional visual fidelity and flexibility in signal distribution. Additionally, the transmitter offers comprehensive features such as HDCP 2.3, HDR support, and EDID/HDCP bypass functionalities, making it ideal for demanding AV installations requiring high-performance signal transmission.


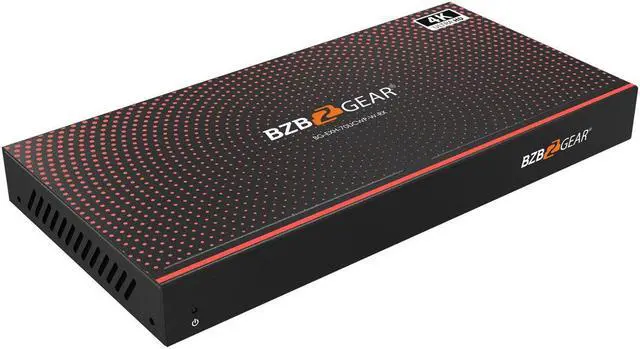

    Receiver Overview:


    The HDBaseT to HDMI Receiver included in the BG-EXH-70UCWP-W kit complements the transmitter's capabilities, providing seamless signal reception and distribution over extended distances. Designed for reliability and efficiency, the receiver efficiently receives signals from the transmitter via standard CAT6 cables, supporting resolutions up to 4K2K@50/60Hz 4:4:4 for stunning visual clarity. Its compact form factor and robust construction ensure durability and adaptability to various installation environments.


    With HDMI output, analog audio output, and bidirectional RS-232 control signal pass-through, the receiver offers versatile connectivity options and seamless integration with control systems. Furthermore, the receiver features a firmware update port for future compatibility enhancements, safeguarding your investment in AV infrastructure. Overall, the HDBaseT to HDMI Receiver delivers exceptional performance and reliability, making it an indispensable component of professional AV installations requiring high-definition signal distribution.


    Features:



    • Supports High Resolutions: Up to 4K@120Hz YUV 4:4:4 with DSC function, extending up to 40m (132 feet)

    • Standards Compliant: Compatible with HDCP 2.3, HDCP 2.2, and HDCP 1.4

    • High Dynamic Range Video: Allows for the vivid display of HDR content

    • EDID and HDCP Bypass: Streamlines connectivity by bypassing EDID and HDCP protocols when necessary

    • Digital Stream Conversion (DSC): Enables seamless conversion of digital streams, ensuring compatibility with DSC 1.2a standards

    • Compressed Audio Formats: Supports various compressed audio formats, including DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD
