BZBGEAR 4K UHD 18Gbps HDBaseT HDMI/MDP/RS-232 Wall Plate Transmitter/Receiver Kit up to 230ft

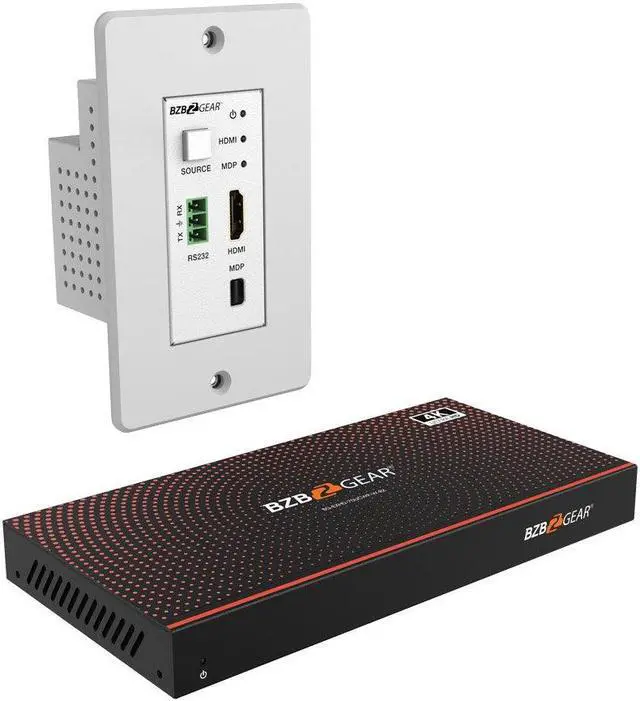

Introducing the BG-EXHD-70UCWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, complete with an MDP/HDMI Wall Plate Transmitter and an HDBaseT to HDMI Receiver. Designed for seamless integration into your AV setup, this kit offers advanced connectivity and transmission capabilities while maintaining a sleek aesthetic with its Decora-style wall plate design.

The wall plate serves as both a 2x1 switcher and an HDBaseT transmitter, accommodating HDMI and DisplayPort (DP) inputs. Supporting video resolutions of up to 4K2K@50/60Hz 4:4:4, ensures stunning clarity and detail in your visuals. Additionally, bidirectional RS-232 pass-through allows for convenient control signal transmission up to 131ft / 40m.

TX/RX Explained

Transmitter Overview:

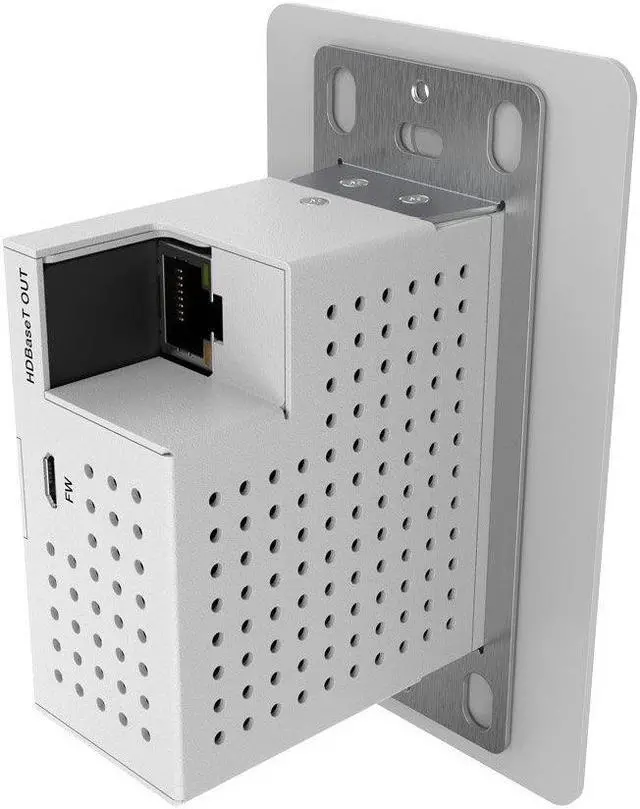

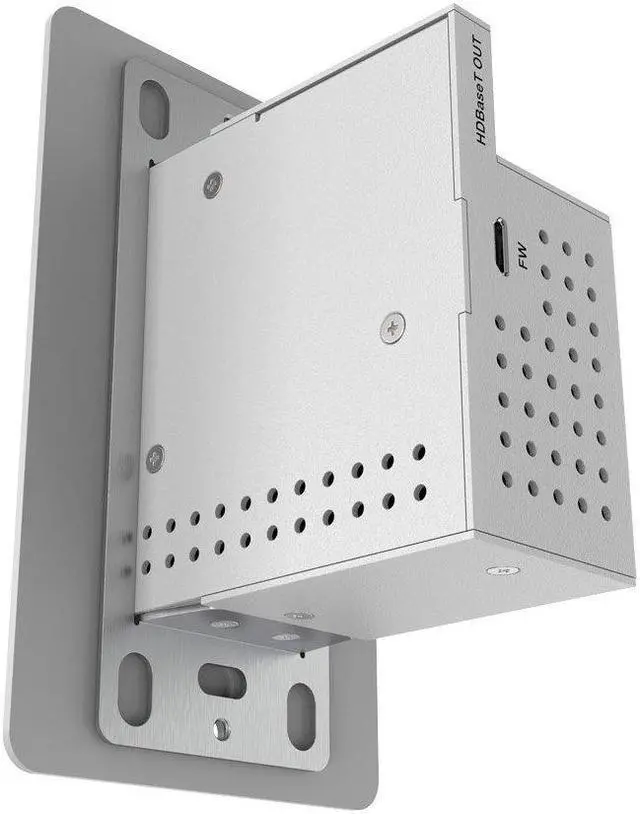

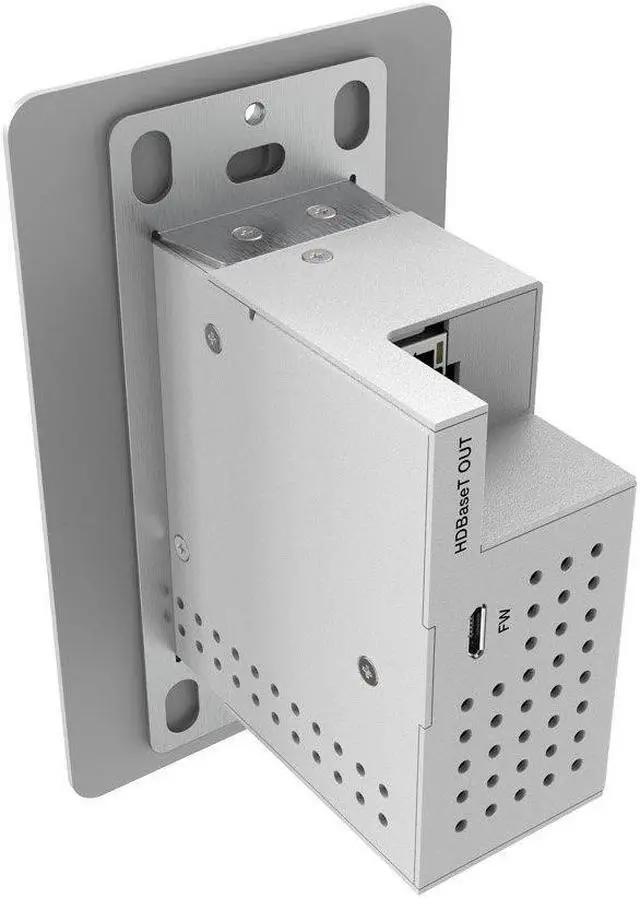

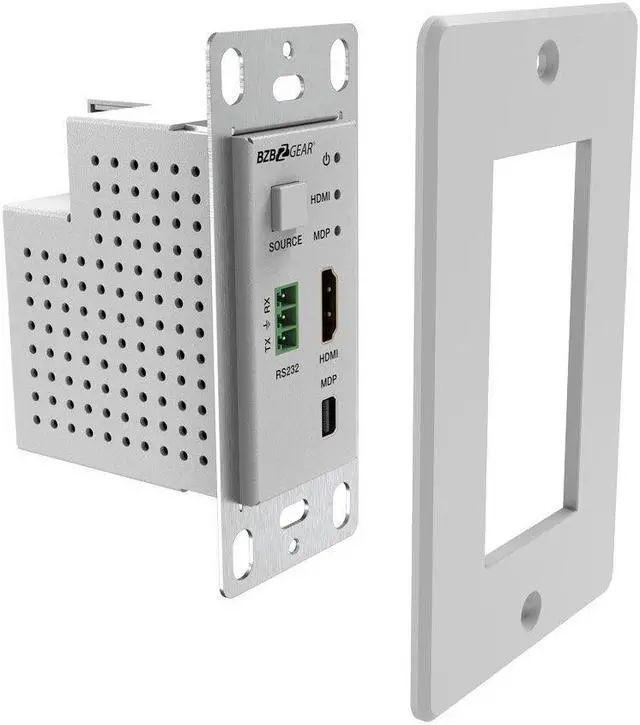

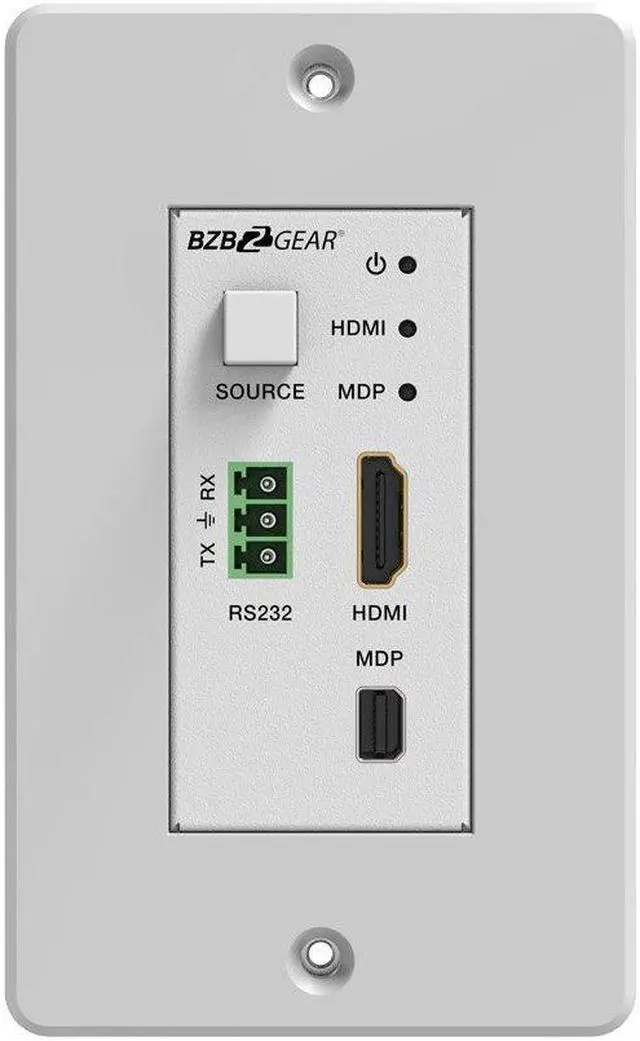

The MDP/HDMI Wall Plate Transmitter included in the BG-EXHD-70UCWP-W kit epitomizes versatility and sophistication in signal transmission. With dual HDMI and DisplayPort (DP) inputs, it caters to a wide array of source devices, ensuring compatibility across various multimedia platforms. Its discreet one-gang wall plate design seamlessly integrates into any environment while offering easy access to input ports.

Capable of delivering resolutions of up to 4K2K@50/60Hz 4:4:4, the transmitter guarantees impeccable visual fidelity, ideal for demanding applications requiring precise image reproduction. Bidirectional RS-232 pass-through extends control signal transmission up to 131ft / 40m, facilitating seamless integration with control systems for remote device operation. Moreover, its support for Power Over Ethernet (POE) ensures convenient powering from the receiver or other POE-enabled devices, simplifying installation and enhancing overall efficiency.

Receiver Overview:

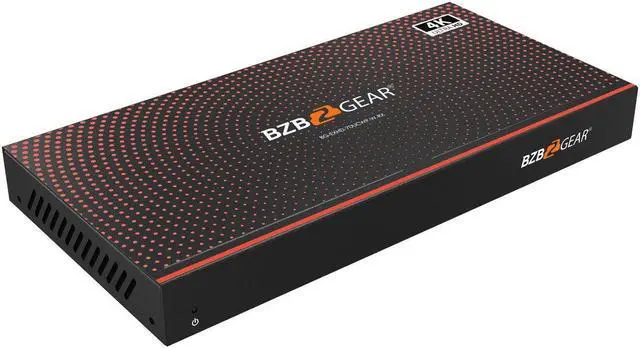

In the realm of signal reception and distribution, the HDBaseT to HDMI Receiver in the BG-EXHD-70UCWP-W kit stands as a paragon of reliability and versatility. Designed to seamlessly integrate into AV setups, it efficiently receives signals from the transmitter over extended distances using standard CAT6/6a/7 cables. Supporting resolutions up to 4K2K@50/60Hz 4:4:4, the receiver ensures vivid and immersive visuals, enriching the viewing experience.

With HDMI input and output ports, as well as an HDBaseT input port, it offers flexible connectivity options, catering to diverse display devices and multimedia sources. Bidirectional RS-232 control signal pass-through enables seamless integration with control systems, empowering users with remote device operation capabilities. Its compact form factor and robust construction make it adaptable to various installation scenarios, while the firmware update port ensures future compatibility and functionality enhancements, safeguarding your investment in AV infrastructure.

Features:

• Standards Compliance: This device is compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards


• Extended Video Transmission: The HDBaseT output extends video transmission distances. Achieve up to 230ft / 70m for 1080P@60 or 131ft / 40m for 4K@60 using a single CAT6/6a/7 cable


• Enhanced Visual Experience: Supports 3D, HDR10, and Dolby Vision for an immersive viewing experience


• Audio Format Support: Enjoy a variety of audio formats including LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD through HDMI


• Input Compatibility: Offers support for both HDMI and MDP inputs, ensuring versatility in connectivity


• Power over Ethernet: POE function is supported, transmitting power from Receiver to Transmitter for simplified setup and operation. (Note: POE function is only supported from Receiver to Transmitter)
