4K UHD HDMI/MDP/KVM Wall Plate HDBaseT Extender Kit
Standards Compatibility | Resolution Support | HDBaseT Output | HDR Support

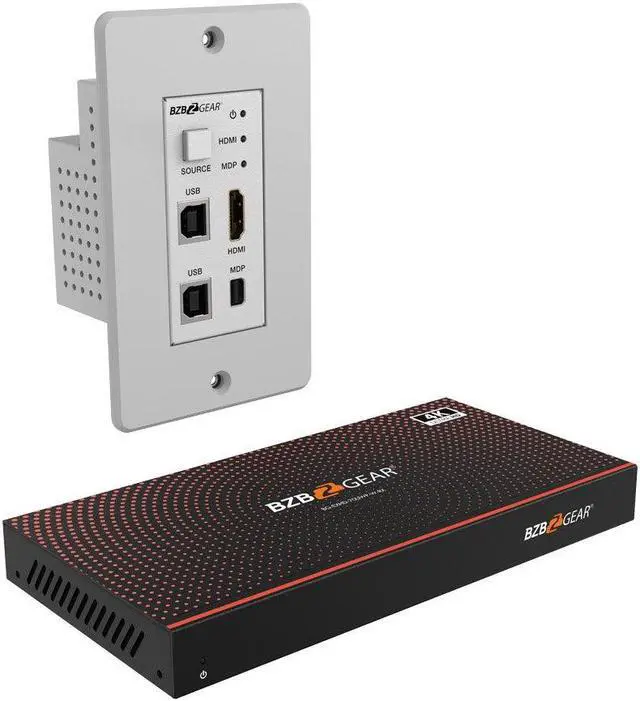

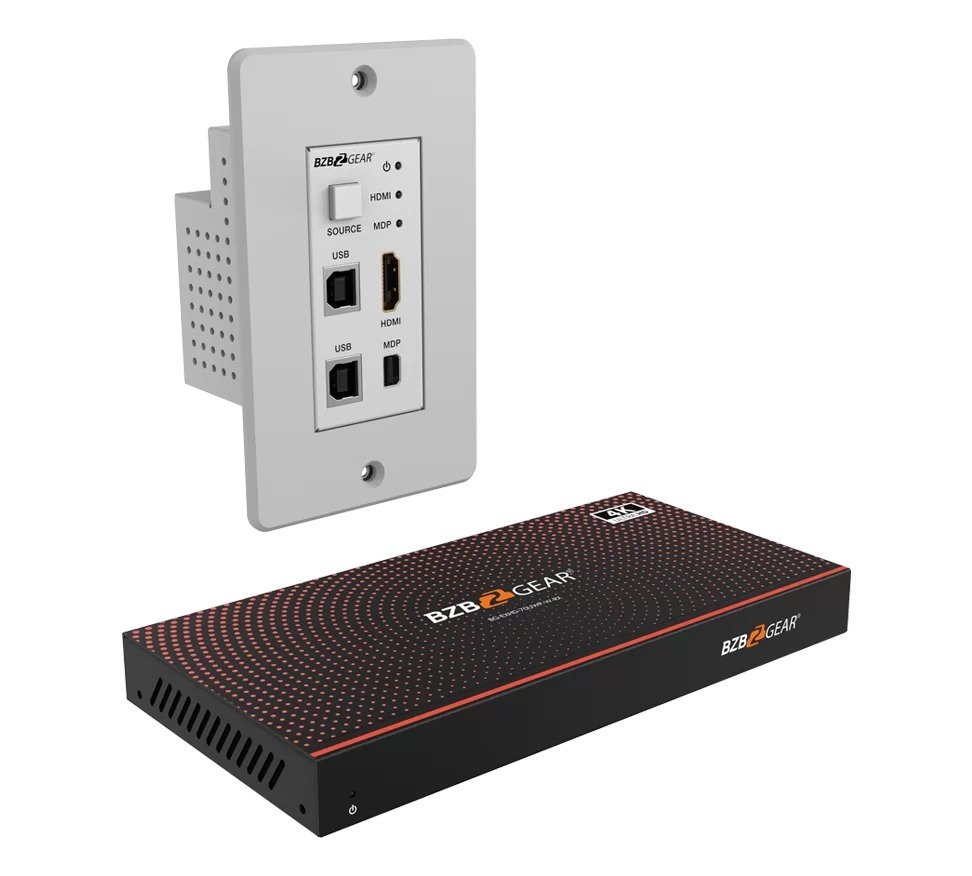

Introducing the BG-EXHD-70UWP-W, an innovative 18Gbps HDBaseT Wall Plate Kit designed for seamless connectivity and high-performance transmission in professional AV setups. This kit includes a Wall Plate Transmitter and an HDBaseT to HDMI Receiver, offering unparalleled versatility and reliability in signal distribution.

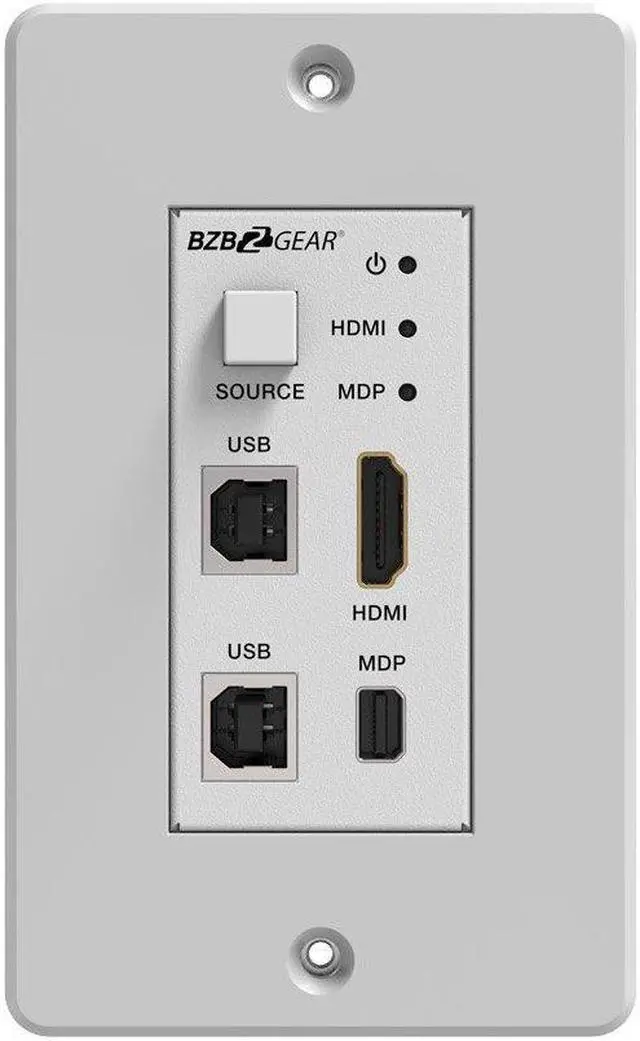

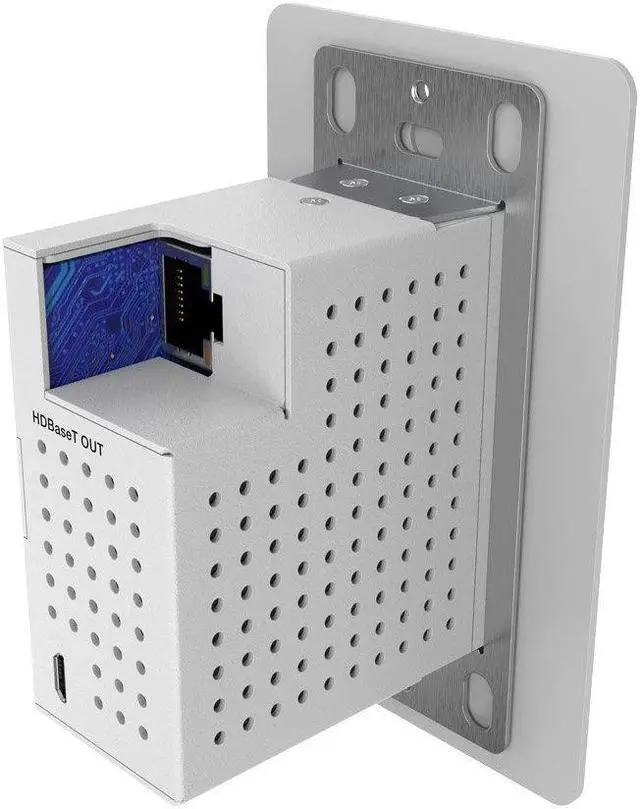

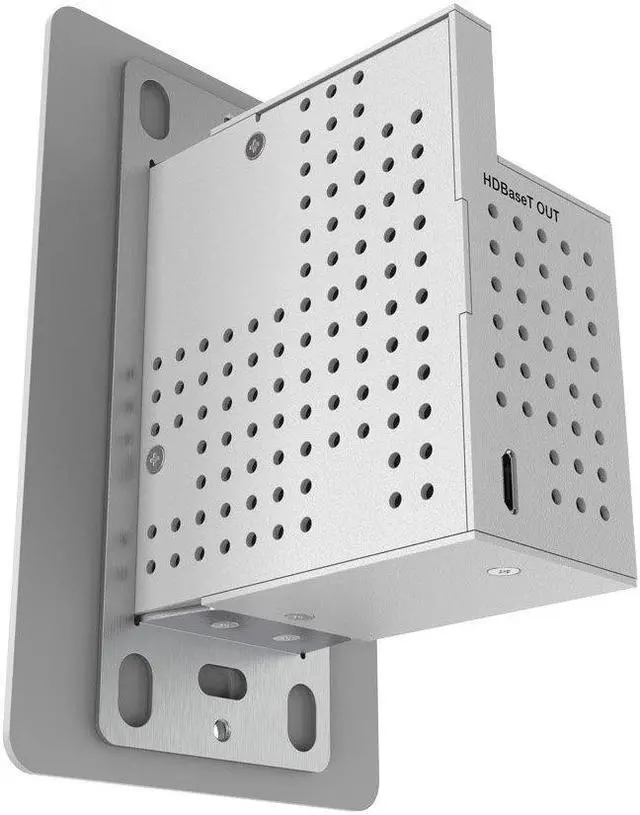

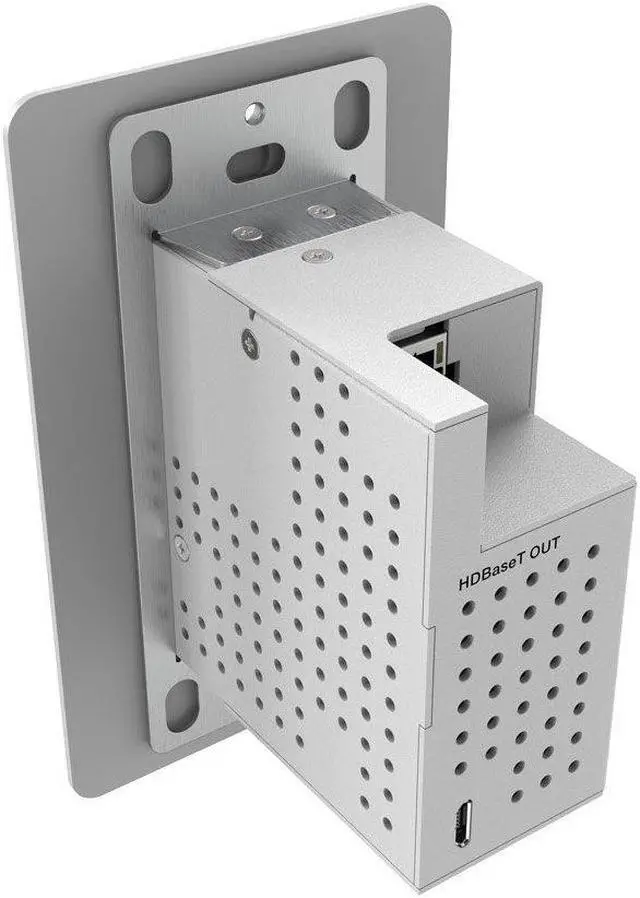

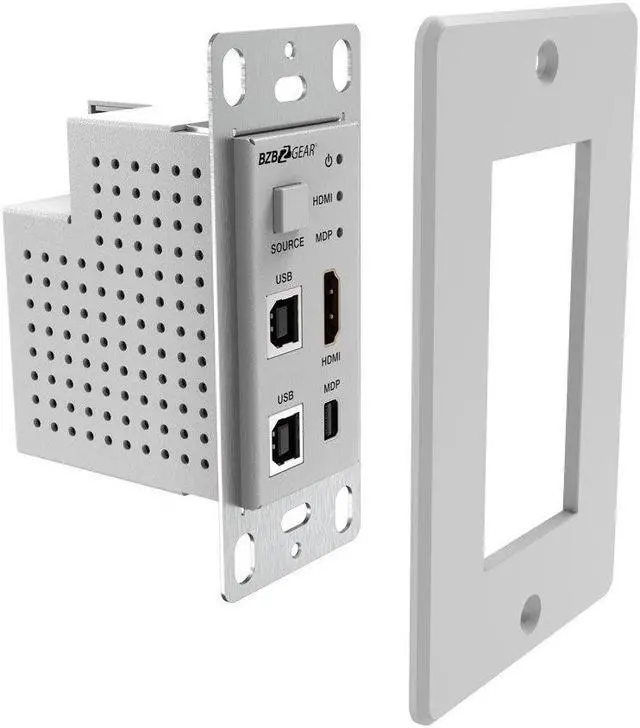

Designed to fit seamlessly into Decora-style wall plate openings, this kit features a sleek US one-gang enclosure. The Wall Plate Transmitter serves as a 2x1 switcher and HDBaseT transmitter, supporting HDMI and DisplayPort (DP) inputs while also integrating USB 2.0 KVM functionality.
Standards & Audio Formats
Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards; supported audio formats include Dolby Atmos, TrueHD, Digital+, DTS X, HD Master Audio, HD High-Resolution Audio, and 5.1; PCM 2-8Ch
Resolution & HDR Support
Capable of displaying video resolutions up to 4K/UHD@60Hz 4:4:4; supports HDR10 and HDR10+ formats
HDBaseT Output
Extends video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
POE Functionality
Supports POE function (only from Receiver to Transmitter)

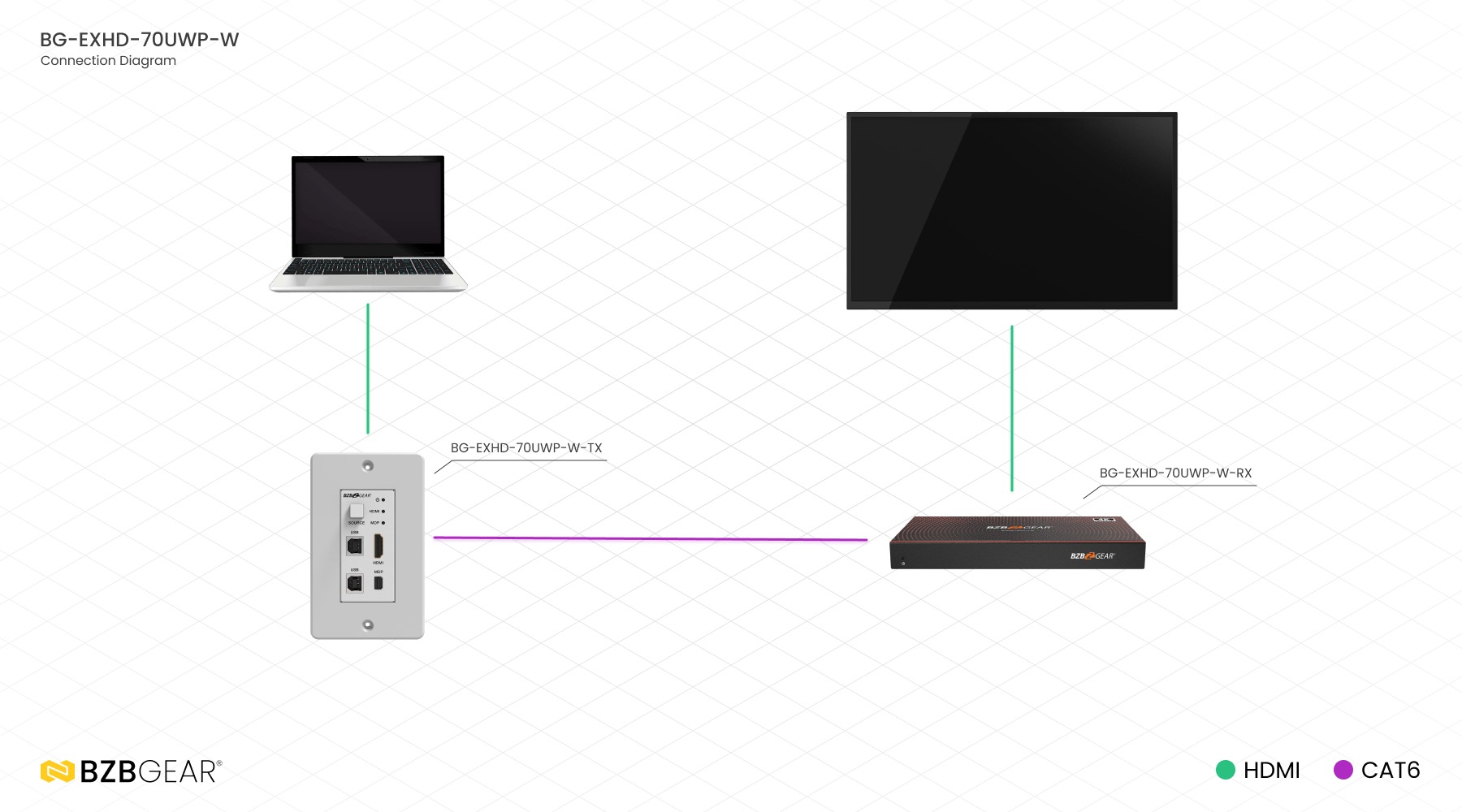

Connection Diagram
A laptop connects over HDMI to the wall plate transmitter, which sends the signal over a single CAT6 cable to the receiver, which connects over HDMI to a display.

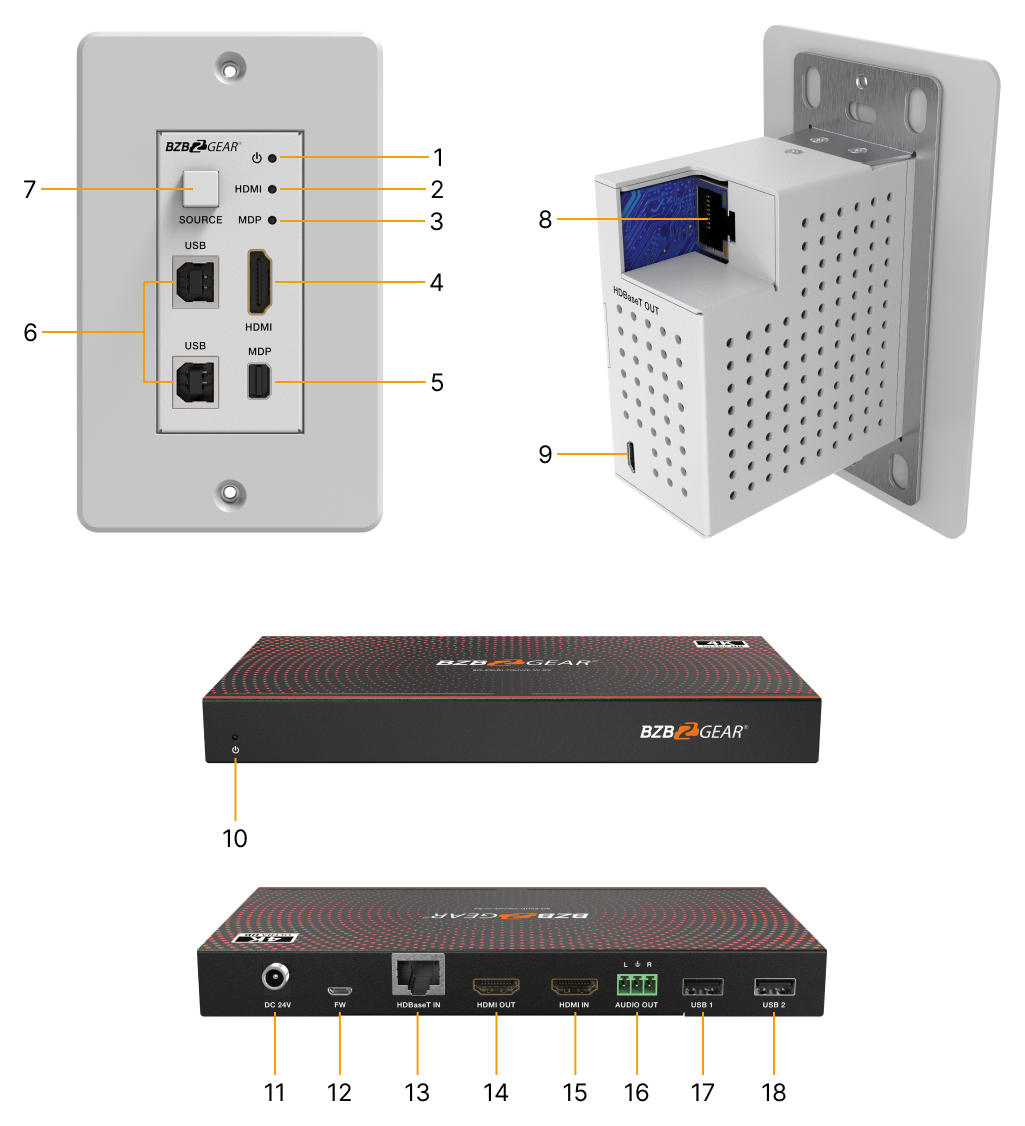

Transmitter and Receiver Interfaces
1. Power LED - The power LED indicator will illuminate in green when the product is powered on
2. HDMI LED
3. MDP LED
4. HDMI port - HDMI input port
5. MDP port - MDP signal input port
6. USB-B ports - Connect to the computer's USB port
7. SOURCE button - Used to switch HDMI / MDP input signal
8. HDBaseT OUT - Connect to the HDBaseT IN port of Receiver
9. Micro-USB - Firmware update port
10. Power LED - When the product is powered on, the red LED indicator will be on
11. DC 24V - DC 24V power supply port
12. FW - Firmware update port
13. HDBaseT IN - Connect to the HDBaseT OUT port of Transmitter
14. HDMI OUT - HDMI output port
15. HDMI IN - HDMI input port
16. AUDIO OUT - Analog audio output port
17. USB 1 port - USB port for KVM function
18. USB 2 port - USB port for KVM function
| HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a |
|---|---|
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR10, HDR10+ |
| HDMI Audio Formats | Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch |
| Transmission Distance | Max distance (1080p) : 230ft / 70m over CAT6/6a/7; Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7 |
| ESD Protection | Human body model - +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female]; 2x USB-B; 1x miniDP [20-pin female]; Output: 1x HDBaseT Out [RJ45, 8-pin female]; Control: 1x Micro USB [Update port] |

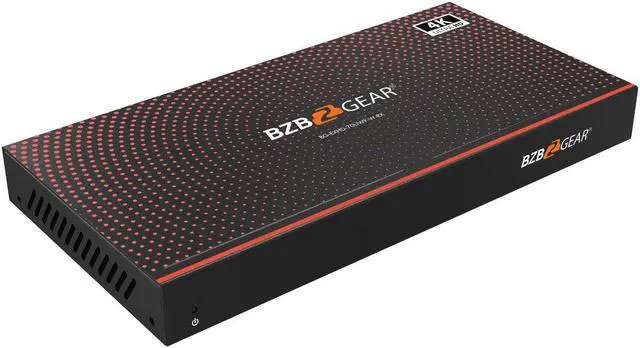

| Receiver | Inputs: 1x HDMI IN [Type A, 19-pin female]; 1x HDBaseT IN [RJ45, 8-pin female]; Outputs: 1x HDMI OUT [Type A, 19-pin female]; 1x AUDIO OUT [Phoenix jack]; Controls: 2x USB [USB A TYPE]; 1x FW [Micro USB, Update port] |
| Housing | Metal Enclosure |
| Color | White |
| Dimensions (W x D x H) | Wall plate: 1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm]; Faceplate: 2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]; Receiver: 7.9in x 3.9in x 0.91in [200mm x 98mm x 23mm] |
| Weight | Wall plate: 0.43 lbs [196g], Receiver: 1.1 lbs [511g] |
| Power Supply | POE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 9W (Max), Receiver: 11W (Max) |
| OperatingTemperature | 32 - 104 F / 0 - 40 C |
| Storage Temperature | -4 - 140 F / -20 - 60 C |
| Relative Humidity | 20 - 90% RH (no condensation) |
| Package Contents | 1x 18Gbps HDBaseT 70M with MDP/HDMI & KVM Function Wall Plate Transmitter; 1x HDBaseT to HDMI receiver; 1x User Manual |
