The BG-EXT-H70P is a high-performance HDMI extender designed to deliver uncompressed, zero-latency video and audio signals over long distances using a single CAT6/5e cable. Supporting resolutions up to 4K@30Hz (YUV 4:4:4) and fully compliant with HDMI 1.4, HDCP 1.4, and DVI 1.0 standards, this extender is an ideal solution for professional AV installations in conference rooms, classrooms, and large-scale display setups.
With transmission distances up to 230 feet (70 meters) for 1080p and 131 feet (40 meters) for 4K@30Hz over CAT6, the BG-EXT-H70P ensures reliable signal extension without compromising quality. It features an HDMI loop-out for local monitoring or cascading to additional extenders, EDID copy functionality for flexible compatibility, and one-way IR pass-through for convenient remote control. Power is delivered from transmitter to receiver via PoC (Power over Cable), simplifying installation with fewer cables.
Fully compliant with HDCP 1.4 and DVI 1.0 standards
Supports resolutions up to 4K@30Hz (YUV 4:4:4)
Up to 230 ft (1080p) / 131 ft (4K30) over CAT6, and 197 ft (1080p) / 115 ft (4K30) over CAT5e
Supports EDID copy from the receiver's display or the HDMI loop-out display for reliable signal negotiation
One-way PoC delivers power from the transmitter to the receiver, simplifying installation
Supports one-way IR signal transmission
Space-saving form factor for clean, flexible, and easy installation in tight spaces
HDMI loop-out port enables cascading to additional extenders or displays
An HDMI source device connects to the transmitter, whose HDMI loop-out feeds a local display. A single CAT cable links the transmitter to the receiver, which outputs HDMI to a second display.

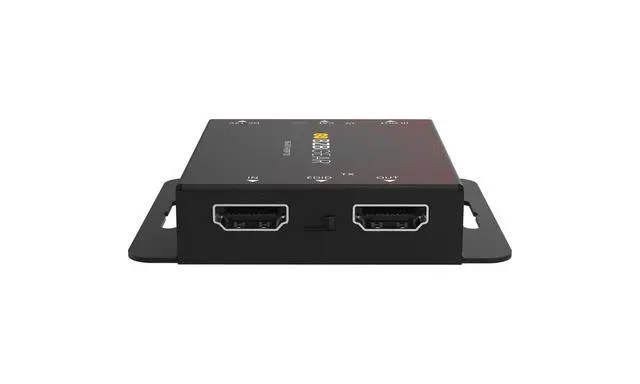

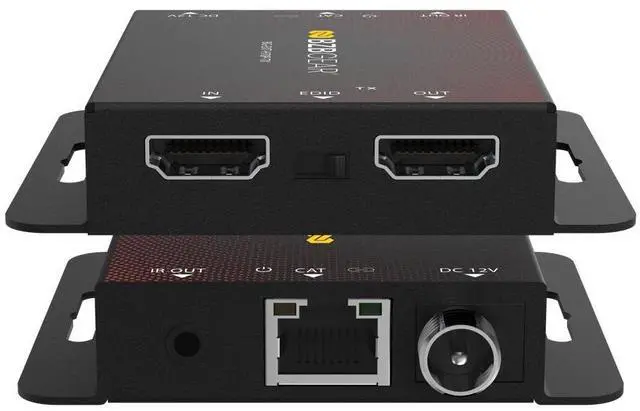

1. IN Port - HDMI input port. Connect to an HDMI source device such as a DVD player or set-top box
2. EDID DIP Switch - Used to select the EDID source: - Switch right - the extender copies the HDMI loop-out display's EDID to the source device. - Switch left - the extender copies the receiver display's EDID to the source device.
3. OUT Port - HDMI loop-out port. Connect to an HDMI display device such as an HDTV

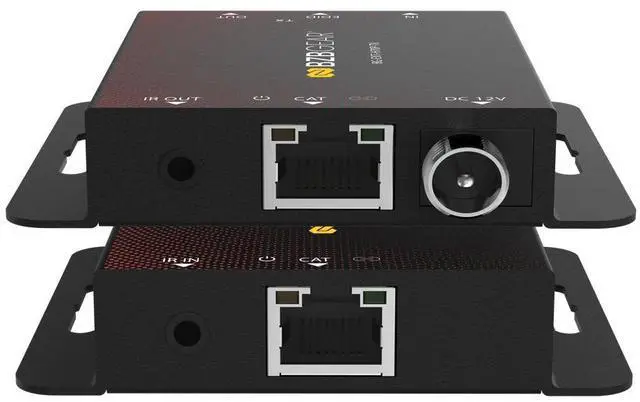

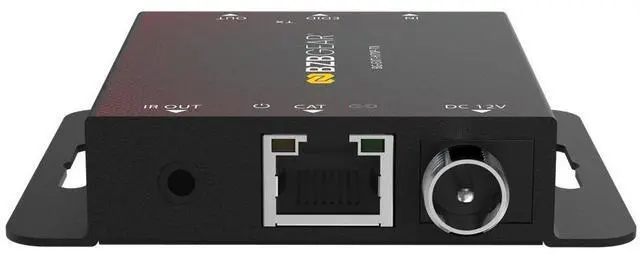

4. IR OUT Port - Connect to the IR blaster cable. Transmits IR signals received from the IR IN port on the receiver
5. CAT Port - CAT output port. Connect to the receiver's CAT input port using a CAT5E/6 cable
6. DC 12V - 12V/1A DC Power port

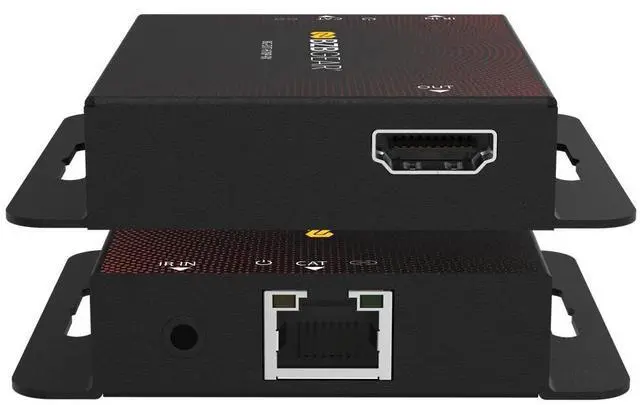

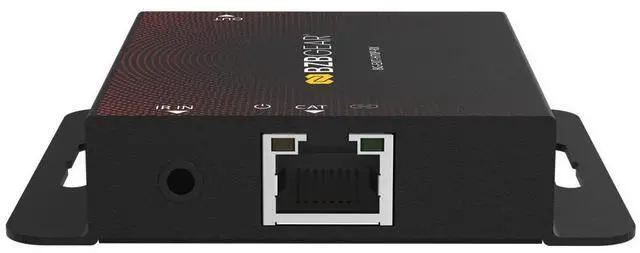

1. OUT port - HDMI signal output port. Connect to an HDMI display device such as an HDTV
2. IR IN port - Connect to an IR receiver cable. The IR signal will be transmitted to the IR OUT port on the transmitter
3. Power LED - Illuminates when the receiver is powered on
4. CAT port - CAT input port. Connect to the CAT output port of the transmitter using a CAT5E/6 cable
5. Digital Signal Indicator - Indicates HDMI signal and HDCP status: - On: HDMI signal with HDCP. - Flashing: HDMI signal without HDCP. - Off: No HDMI signal
| HDMI Compliance | HDMI 1.4 |
|---|---|
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Resolution | Up to 4K@30Hz |
| Audio Support | Up to 7.1CH HD audio |
| Input TMDS Signal | 3.3 volts |
| Input DDC Signal | 5.0 volts/P-P |
| ESD Protection | IEC 61000-4-2: +/-8kV (Air-gap discharge) & +/-4kV (Contact discharge) |
| Transmitter | Input: 1 x IN [HDMI Type A, 19-pin female]; Output: 1 x OUT [HDMI Type A, 19-pin female]; 1 x IR OUT [3.5mm Stereo Mini-jack]; 1 x CAT OUT [RJ45, 8-pin female] |
| Receiver | Input: 1 x IR IN [3.5mm Stereo Mini-jack]; 1 x CAT IN [RJ45, 8-pin female]; Output: 1 x OUT [HDMI Type A, 19-pin female] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (WxDxH) | 3.1in x 2.7in x 0.65in [79.5mm x 69mm x 16.5mm] |
| Weight | Transmitter: 0.29lb [132g], Receiver: 0.29lb [130g] |
| Power Supply | 12V/1A DC |
| Power Consumption | Transmitter: 1.86W, Receiver: 0.87W |
| Operating Temperature | 32 - 104 F / 0 - 40 C |
| Storage Temperature | -4 - 140 F / -20 - 60 C |
| Operating Humidity | 20% - 80% RH (no condensation) |
| Storage Humidity | 10% - 90% RH (no condensation) |
| Package Contents | 1x HDMI Transmitter; 1x HDMI Receiver; 1x IR Blaster Cable (1.5 meters); 1x IR Receiver Cable (1.5 meters); 1x 12V/1A DC Power Adapter; 1x User Manual |
