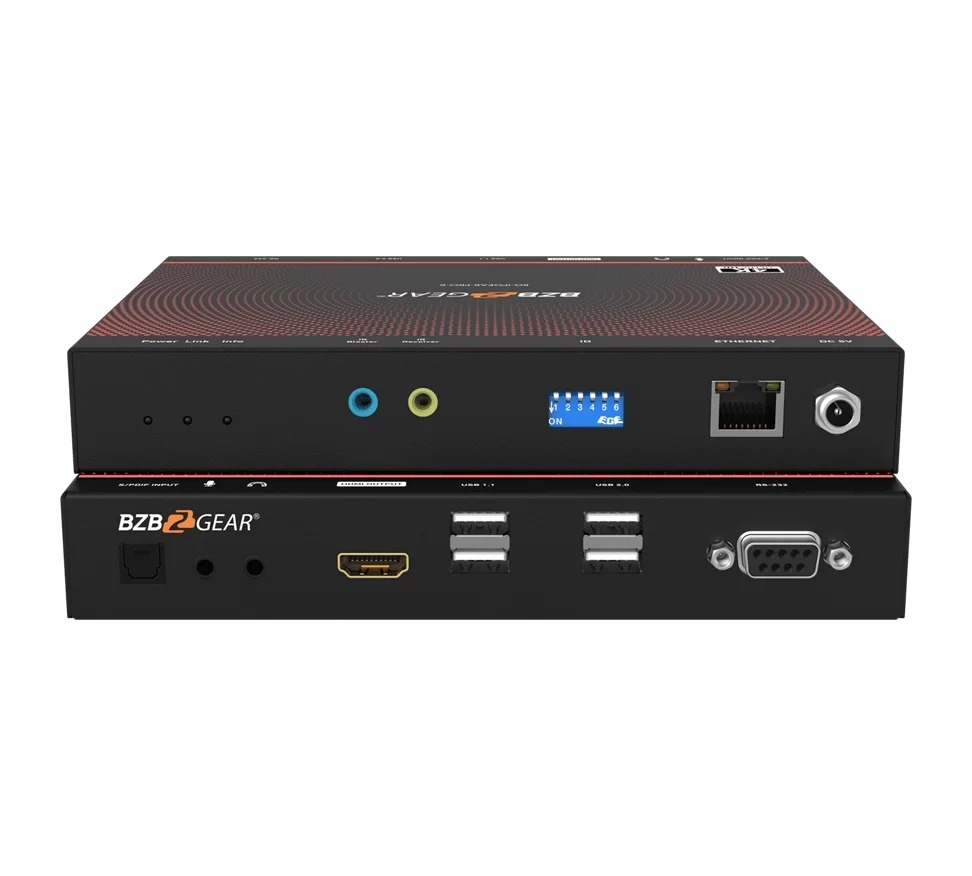

4K UHD HDMI 2.0 Over IP Multicast Receiver
4K@60Hz HDMI over IP | Scalable AV over IP | P2P, P2M & Multicast | Audio & KVM Extension
The BG-IPGEAR-PRO-R is a high-performance HDMI over IP receiver designed for scalable 4K UHD video distribution over standard Gigabit Ethernet networks. Supporting video resolutions up to 4K@60Hz, the system provides a flexible way to distribute HDMI video and audio throughout commercial, educational, government, and professional AV environments. With support for point-to-point, point-to-many, and multicast distribution, a single HDMI source can be routed to one or multiple displays across an IP network.
Designed for easy installation and system expansion, the IPGEAR-PRO system combines powerful AV distribution capabilities with integrated control and extension features. When paired with the BG-IPGEAR-PRO-C controller, connected devices can be automatically discovered and managed through a centralized interface, simplifying system configuration and operation.
4K@60Hz HDMI over IP
Distribute high-quality 4K UHD HDMI video up to 60Hz over a standard IP network
Scalable AV over IP
Add additional transmitters and receivers as your system expands for flexible, scalable deployment
P2P, P2M & Multicast
Support multiple distribution configurations, including one source to one display, one source to multiple displays, and multicast distribution
Audio & KVM Extension
Extend more than video with audio embedding/de-embedding, bi-directional IR, RS-232, and USB 2.0 KVM connectivity
Centralized Network Management
Devices can be automatically discovered and managed through a centralized control system, simplifying setup and operation
Custom Video Wall
Create and manage custom video wall configurations using the system's web interface or the free BZBGEAR Switch Control App
Power over Ethernet
Power over Ethernet (PoE)
Audio Embedding & De-Embedding
HDMI audio embedding and de-embedding
IR & RS-232 Extension
Bi-directional IR extension; RS-232 extension
USB 2.0 Hub
USB 2.0 hub for KVM extension and remote management
Centralized Device Discovery
Centralized device discovery and management with BG-IPGEAR-PRO-C
Web GUI Control
Web GUI control and configuration
TAA Compliant
TAA compliant
Scalable Network Architecture
Scalable network architecture
Compact Form Factor
Compact 180 x 142 x 28 mm (7 x 5.5 x 3.2 in.) form factor
Surface & Rack-Mount Support
Surface-mount bracket support; custom rack-mount support

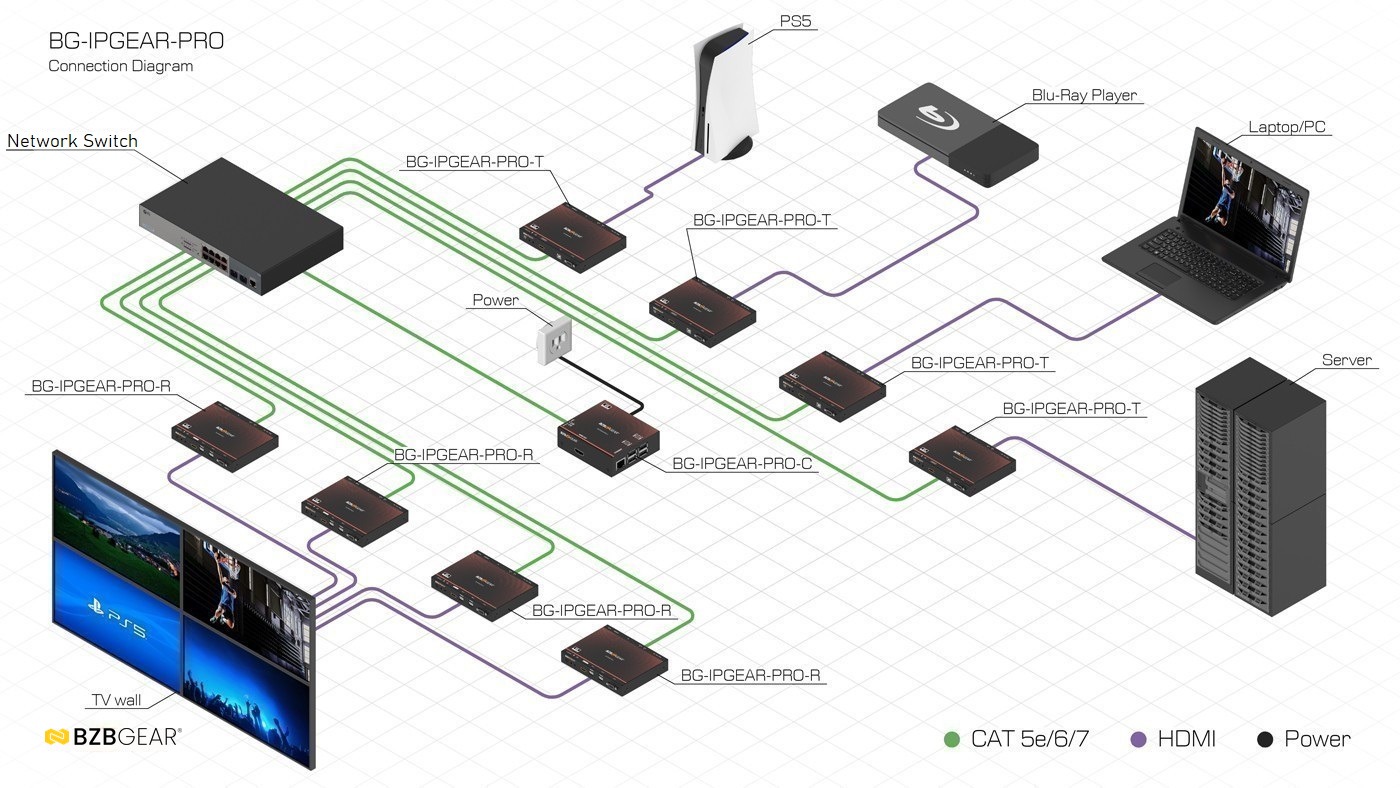

Connection Diagram
Sources such as a PS5, a Blu-ray player, a laptop/PC and a server connect through BG-IPGEAR-PRO-T transmitters to a network switch, which feeds BG-IPGEAR-PRO-R receivers driving a TV wall, with the BG-IPGEAR-PRO-C controller on the same network.

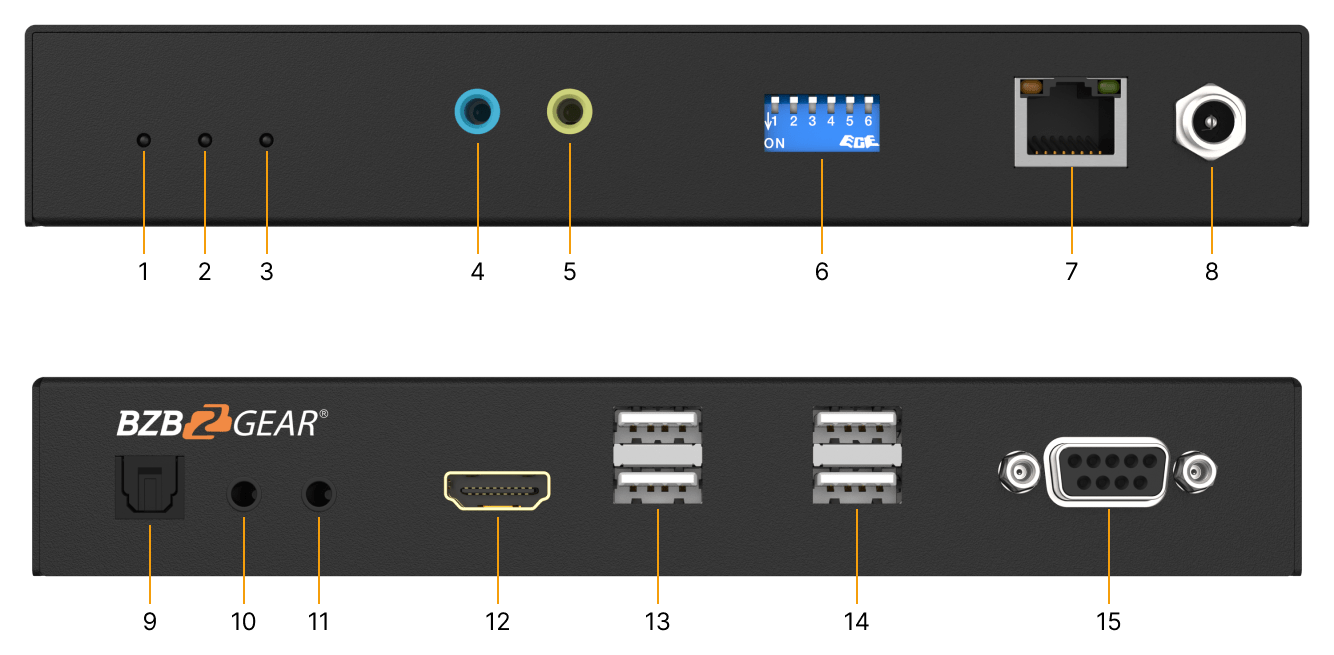

Front and Rear Panels
1. Link Indicator - [Blink] When the unit connects a Cat-5/5e/6 cable
2. System Indicator - [Blink] When the unit is connected with a power supply unit
3. Info indicator - When the user clicks the LED button in the software, the LED light will blink
4. IR Blaster - Infrared 3.5mm socket
5. IR Receiver - Infrared 3.5mm socket
6. ID (Dip Switch) - Video channel selection
7. Ethernet - RJ-45: Gigabit Ethernet port
8. Power - Connect to 5V DC power supply
9. S/PDIF Input - Optical audio input
10. Stereo In - 3.5mm stereo audio input
11. Stereo Out - 3.5mm stereo audio output
12. HDMI Output - Connects to an HDMI display with an HDMI cable
13. USB 1.1 - Connect to upstream USB host
14. USB 2.0 - Connect to a USB flash drive or other USB devices
15. RS-232 - Connect to PC serial port with a DB-9 male-male cable
| Model Name | BG-IPGEAR-PRO-R |
|---|---|
| Role of usage | Receiver [RX] |
| HDMI compliance | HDMI |
| HDCP compliance | Yes |
| Video support | Up to 4K2K@60 (4:4:4 8bits) |
| Latency | 2 frames (33 ms) maximum |
| HDMI over UTP transmission [24-bit] | Ultra HD (4K2K60) - 120m (396ft) [CAT.X] |
| Audio support | Surround sound (up to 7.1ch) or stereo digital audio |
| Input TMDS signal | 1.2 Volts [peak-to-peak] |
| Input DDC signal | 5 Volts [peak-to-peak, TTL] |
| ESD protection | Human body model - +/-15kV [air-gap discharge] & +/-8kV [contact discharge] |
| IR pass-thru | Full-duplex bi-directional |
| RS-232 support | Yes |
| Input | 1x RJ45 + 1x HDMI + S/PDIF |
| Output | 2x 3.5mm + 5x USB |
| In/ Out | 1x DIN9 |
| HDMI source control | Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders |
| IR remote control | Electro-optical characteristics: t = 25 deg / Carrier frequency: 20-60kHz |
| HDMI connector | Type A [19-pin female] |
| Min DIN connector | DIN-9 |
| RJ45 connector | WE/SS 8P8C with 2 LED indicators |
| 3.5mm connector | Analog audio / IR blaster & IR receiver |
| Housing | Metal enclosure |
| Dimensions [L x W x H] | 7.6" x 5.2" x 1.1" [194 x 133 x 28 mm] |
| Weight | 1.4 lbs [644g] |
| Fixedness | Wall-mounting case with screws |
| Power supply | 5V DC / 48V POE |
| Power consumption | 7 Watts [max] |
| Operation temperature | 32~104 F / 0~40 C |
| Storage temperature | -4~140 F / -20~60 C |
| Relative humidity | 20~90% RH [no condensation] |
| Package Contents | 1x BG-IPGEAR-PRO-R; 1x IR blaster cable or 1x IR receiver cable; 1x User Manual |
