The BG-USB3-LR100 USB 3.0 Extender is an essential tool for extending USB connections over long distances, capable of transmitting signals up to 100 meters (328 feet) using a single CAT6a cable. Designed for reliability and performance, this extender ensures high-speed data transfer with rates up to 5Gbps, making it ideal for various applications, including industrial settings and large-scale installations.
The transmitter features a USB 3.0 Type B input, FSYNC GPIO input, and RS-232 pass-through, while the receiver offers four USB 3.0 Type A outputs, FSYNC GPIO output, and RS-232 pass-through. This setup supports bi-directional 24V Power over Cable (PoC), simplifying power management and installation.
Extends USB 3.0 connections up to 100 meters (328 feet) over CAT6a cable
Provides USB 3.0 connectivity with data transfer rates up to 5Gbps
Compatible with USB 2.0 and USB 1.1 devices
Supports bi-directional 24V Power over Cable (PoC)
Easy plug-and-play setup with no driver or settings installation required
Includes RS-232 and FSYNC GPIO pass-through for camera applications
Hardware acceleration for isochronous and bulk transfer
USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
A laptop connects over USB to the BG-USB3-LR100 transmitter, and a single CAT6A cable links it to the receiver, whose four USB 3.0 ports serve devices such as the BG-CYCLOPS-PRO, BG-ADAMO-4K and two BG-OMNITALK-PRO units.

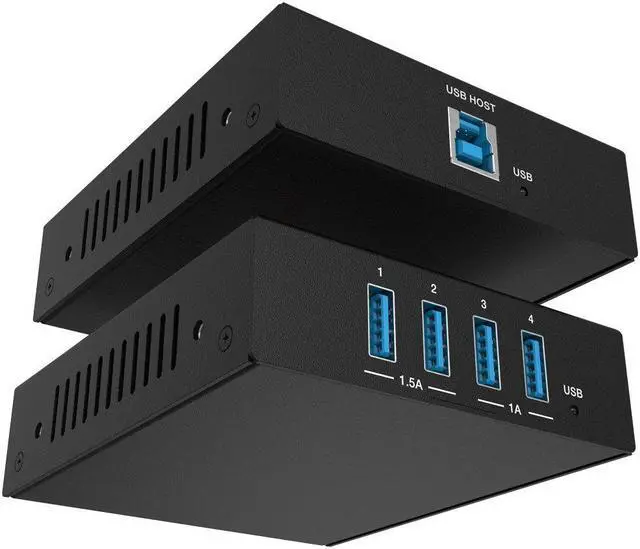

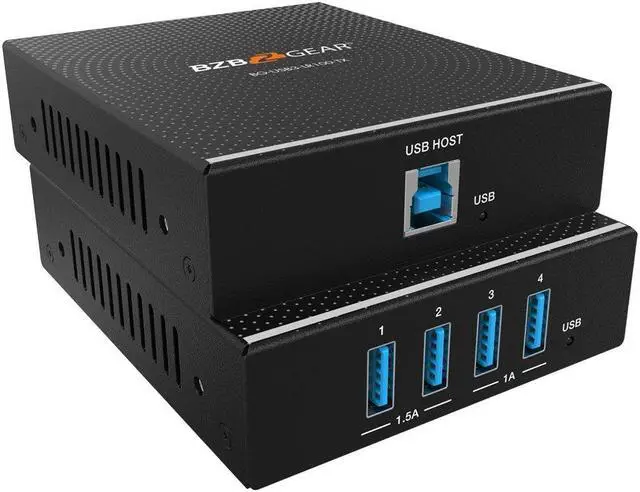

1. USB HOST - Host port, supporting USB 3.0
2. USB LED - USB signal indicator

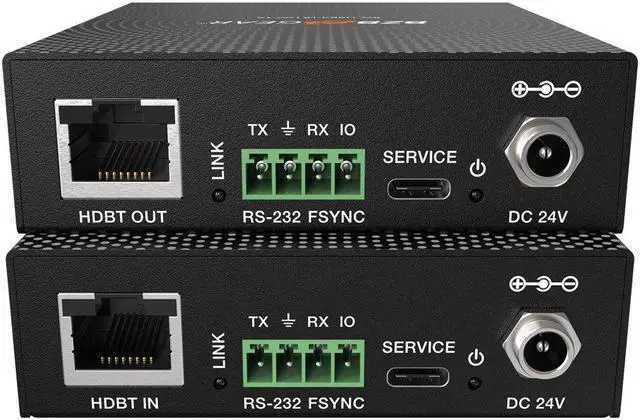

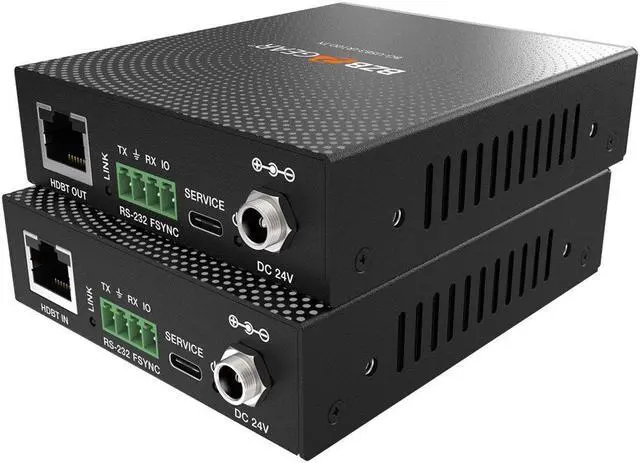

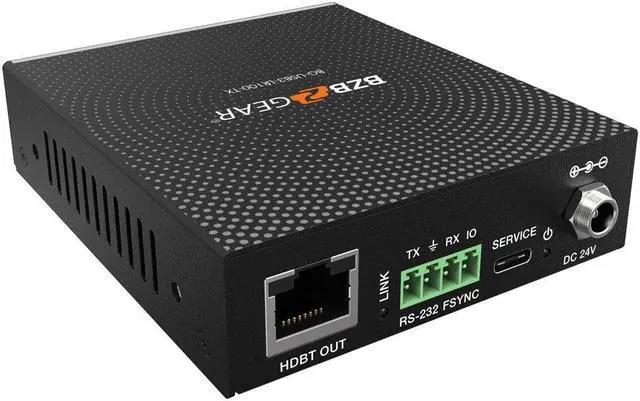

3. HDBT OUT - Connects to the HDBT IN port on the Receiver
4. LINK LED - Connection signal indicator
5. RS-232 - 3pin Phoenix connector
6. FSYNC
7. SERVICE - Firmware update port
8. POWER LED - The LED will be on when the Transmitter is powered on
9. DC 24V - DC 24V/2A power input port
10. USB 1/2 - Connect to USB devices
11. USB 3/4 - Connect to USB devices
12. USB LED - USB signal indicator
13. HDBT IN - Connects to the HDBT OUT port on the Transmitter
14. LINK LED - Connection signal indicator
15. RS-232 - 3pin Phoenix connector
16. FSYNC
17. SERVICE - Firmware update port
18. POWER LED - The LED will be on when the Receiver is powered on
19. DC 24V - DC 24V/2A power input port
| USB Protocol | USB 3.0 |
|---|---|
| Transmission Rate | Up to 5Gbps |
| Network Bandwidth | 10G |
| Transmission Distance | 100m/328ft over CAT6a (F/FTP) cable |
| ESD Protection | IEC 61000-4-2: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge) |
| Transmitter | Input: 1 x USB HOST [USB-B, 9pin Female]; Output: 1 x HDBT OUT [RJ45, Female]; Control: 1 x RS-232 [3pin-3.5mm Phoenix Connector]; 1 x FSYNC [1pin-3.5mm Phoenix Connector]; 1 x SERVICE [USB-C, Update Port] |
| Receiver | Input: 1 x HDBT IN [RJ45, Female]; Output: 4 x USB Devices [USB-A, 9pin Female]; Control: 1 x RS-232 [3pin-3.5mm Phoenix Connector]; 1 x FSYNC [1pin-3.5mm Phoenix Connector]; 1 x SERVICE [USB-C, Update Port] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | Transmitter / Receiver: 3.3in x 3.9in x 1in [85mm x 100mm x 25.5mm] |
| Weight | Transmitter: 0.56 lbs [253g], Receiver: 0.57 lbs [260g] |
| Power Supply | Input: AC 100~240V 50/60Hz, Output: DC 24V/2A |
| Power Consumption | PoC Power Supply: 40W (Max) |
| Operating Temperature | 32 F ~ 104 F / 0 C ~ 40 C |
| Storage Temperature | -4 F ~ 140 F / -20 C ~ 60 C |
| Relative Humidity | 20~90% RH (non-condensing) |
| Package Contents | 1x USB 3.0 Extender (Transmitter); 1x USB 3.0 Extender (Receiver); 1x 24V/2A Locking Power Supply; 2x 4pin-3.5mm Phoenix Connector (Male); 4x Mounting Ear; 8x Machine Screw (KM3*4); 1x User Manual |
