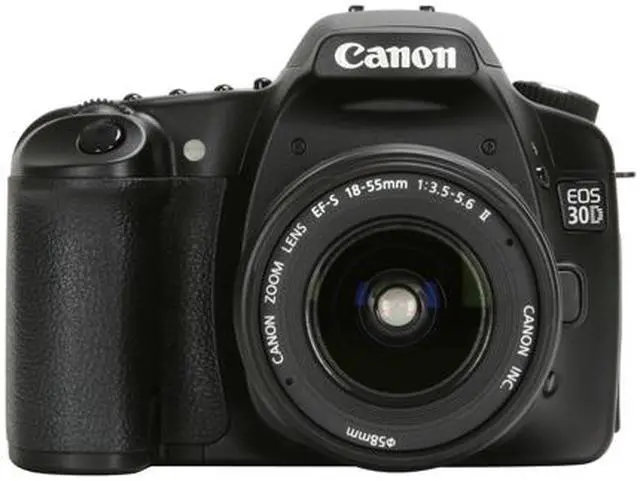

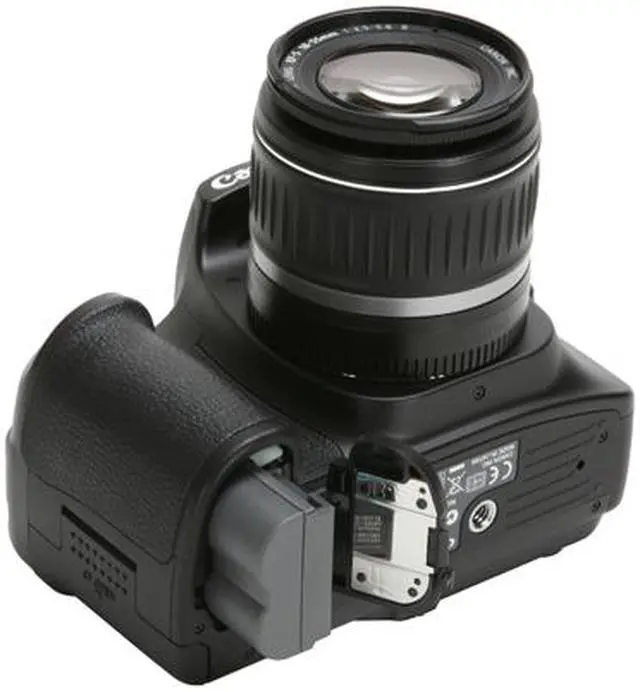

Canon's EOS 30D brings proven technology to a new level, giving you an brilliant photographic experience. Offering great image quality and overall durability, this addition to the EOS line incorporates a host of new features with Canon's highly acclaimed 8.2 MP sensor and DIGIC II processor. It includes enhanced features as a larger 2.5” LCD monitor, true spot metering, a durable new shutter mechanism and Canon's Picture Style feature.

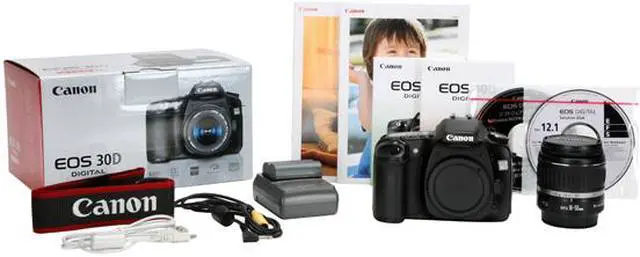

The kit has an EF-S 18-55mm lens that provides amazing clarity at the mid-range with sharper edges. Low-noise autofocus comes fast and precise, and you can quickly change settings even on the fly, allowing you to adapt to any situation. This is a great camera for the serious photographer, easily equal in control and features to the film SLRs you’re used to. Take the shot!
Canon's EOS 30D brings proven technology to a new level, giving you an brilliant photographic experience. Offering great image quality and overall durability, this addition to the EOS line incorporates a host of new features with Canon's highly acclaimed 8.2 MP sensor and DIGIC II processor. It includes enhanced features as a larger 2.5” LCD monitor, true spot metering, a durable new shutter mechanism and Canon's Picture Style feature.
The kit has an EF-S 18-55mm lens that provides amazing clarity at the mid-range with sharper edges. Low-noise autofocus comes fast and precise, and you can quickly change settings even on the fly, allowing you to adapt to any situation. This is a great camera for the serious photographer, easily equal in control and features to the film SLRs you’re used to. Take the shot!
8.2 Megapixel CMOS SensorCanon's large-area CMOS (complementary metal oxide semiconductor) sensor provides the most-in-class pixels for images with exceptional clarity and tonal range. With the same 3:2 ratio as film cameras, the APS-C size sensor (22.5 x 15.0mm) enables an effective viewing angle of 1.6x the normal EF Lens focal length. The EOS 30D's extensive ISO range (from 100 to 1600, plus ISO 3200 in extended mode) is selectable in 1/3-stop increments.
DIGIC II Image ProcessorThe Canon digital SLR-specific DIGIC II Image Processor enhances every aspect of image capture for images of exceptional quality. The onboard DIGIC II Image Processor ensures natural color reproduction, precise white balance in any lighting situation and unparalleled clarity. Consuming less energy, DIGIC II's sophisticated signal processing algorithms work at greater speeds. The entire processing chip - not just the software that drives it - is dedicated for a digital still camera.

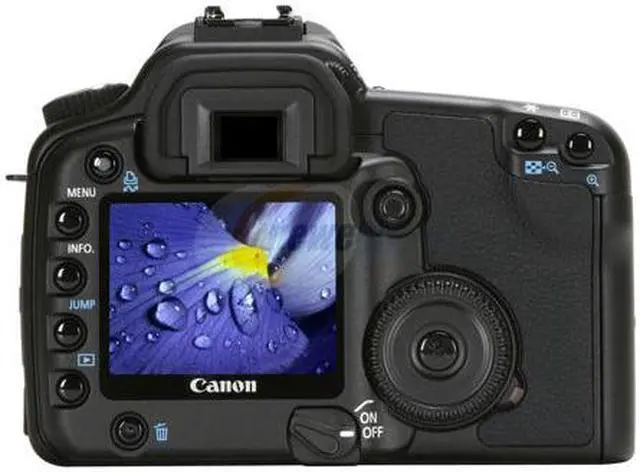

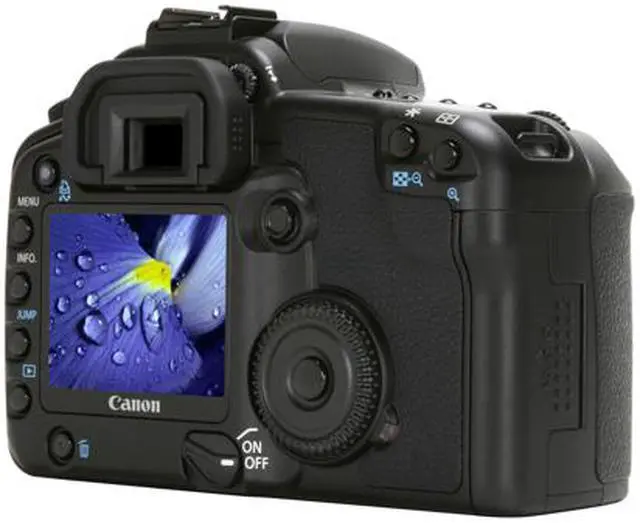

2.5 inch Large LCDThe EOS 30D has a brilliant 2.5 inch LCD monitor with approximately 230,000 pixels. Adopted from Canon's professional EOS SLRs, the LCD provides more information and greater viewing angles (170°) than many conventional units. The full-featured shot information screen can display the AF frame in use with an RGB histogram feature.
PictBridge SupportThe EOS 30D makes photograph printing easier than ever. Simply connect your EOS 30D to any PictBridge-compatible printer, select your image and print settings, and press the Direct Print button to start printing.
USB 2.0 Hi-Speed interfaceConnect the EOS 30D to a computer with a USB 2.0 Hi-Speed connection; upload images at speeds up to ten times faster than with the original EOS Digital Rebel.
Learn more about the Canon EOS 30D
Details
Color
Black
Model
Brand
Canon
Series
EOS
Model
EOS 30D
Details
Package Type
Single Lens Kit
Image Sensor
Image Sensor
CMOS
Image Sensor Size
0.89 x 0.59 in./22.5 x 15.0mm (APS-C size sensor)
Gross Pixels
8.5 MP
Effective Pixels
8.2 MP
Aspect Ratio
3:2 (Horizontal:Vertical)
Color Filter System
RGB primary color filters
Image Processor
DIGIC II
Resolution
3,504 x 2,336
White Balance
White Balance
Auto, Preset (Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash), Manual (Custom, or user-set Color Temperature)
Viewfinder
Viewfinder Type
Eye-level SLR with fixed pentaprism
Coverage
Approx. 95% horizontally and vertically (coverage against JPEG Large)
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with lenses up to EF 600mm f/4L USM)
Viewfinder Information
AF (AF points, focus confirmation light), Exposure (shutter speed, aperture, spot metering circle, exposure level, AE lock, exposure compensation, AEB level, bulb, ISO speed), Flash (flash ready, red-eye reduction lamp on, high-speed sync, FE lock, FEB shooting, flash exposure compensation, insufficient flash warning during FE lock), White balance correction, Maximum burst, CF card full warning, CF card error warning, No CF card warning
Depth-of-Field Preview
Enabled with depth-of-field preview button (with Speedlite 580EX, 430EX, MR-14EX or MT-24EX; pressing the depth-of-field preview button fires a modeling flash)
LCD Monitor
LCD
2.5" 230K
LCD Coverage
100%
Brightness Adjustment
5 levels provided
Focus
Focus Type
TTL-CT-SIR AF-dedicated CMOS sensor
Focusing Modes
Autofocus: One-Shot AF, Predictive AI Servo AF, AI Focus AF (automatic switching between One-Shot/Predictive AI Servo AF); Manual Focus (MF)
AF Points
9 AF points
AF-assist Beam
Intermittent firing of built-in flash (must be manually raised in P, Tv, Av, M and A-DEP Exposure modes)
Focusing Point Selection
Automatic selection, Manual selection
Exposure
Exposure Control
Program AE (shiftable), Shutter-priority AE, Aperture-priority AE, Auto Depth-of-field AE (non-shiftable), Full auto (non-shiftable), Programmed image control modes, Manual exposure, E-TTL II autoflash program AE
Exposure Compensation
(1) User-set with multi-controller (2) AEB (Auto Exposure Bracketing) Bracketing range: +/- 2 stops in 1/3- or 1/2-stop increments
Metering System
Max. aperture TTL metering with 35-zone SPC (1) Evaluative metering (linked to all AF points) (2) Partial metering (approx. 9% at center of viewfinder) (3) Spot metering (approx. 3.5% at center of viewfinder) (4) Center-weighted average metering
ISO Sensitivity
equivalent to ISO 100-1,600 (in 1/3-stop increments, ISO speed can be expanded to ISO 100-3,200)
AE Lock
Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved User-set: Applied with AE lock button
Shutter
Shutter Type
Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled
Shutter Speed
1/8000 to 30 sec. (1/3- and 1/2-stop increments), X-sync at 1/250 sec.
Self-timer
10 sec. delay, 2 sec. delay with C.Fn-12-1 (mirror lockup)
Remote Control Support
Remote control with N3-type terminal
Flash
Flash Type

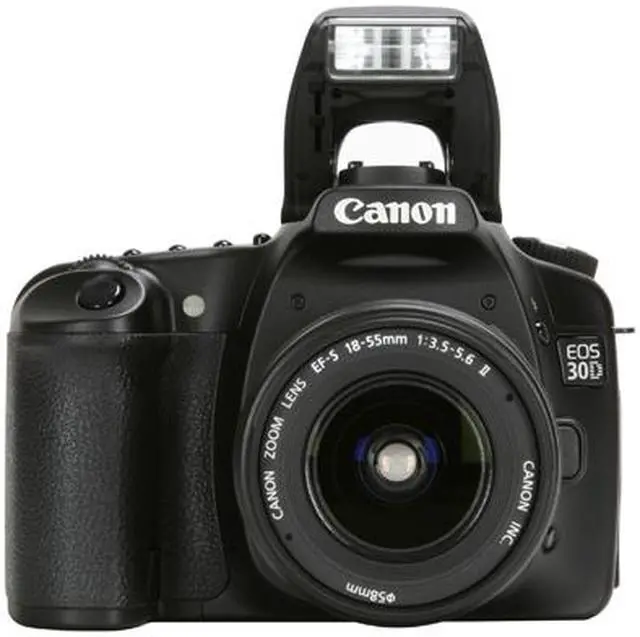

Auto pop-up, retractable, built-in flash in the pentaprism
Flash Range
17mm lens focal length (equivalent to 27mm in 35mm format)
