Model

Brand

Canon

Series

EOS

Model

EOS REBEL T3

Part

5157B002

Details

Color

Black

Package Type

Single Lens Kit

Image Sensor

Image Sensor

CMOS

Image Sensor Size

22.0 mm x 14.7 mm

Gross Pixels

12.6 MP

Effective Pixels

12.2 MP

Aspect Ratio

3:2 (Horizontal:Vertical)

Color Filter System

RGB primary color filters

Dust Cleaning System

(1) Manual cleaning

(2) Dust Delete Data acquisition and appending

Resolution

(1) Large: Approx. 12.20 Megapixels (4272 x 2848)
(2) Medium: Approx. 6.30 Megapixels (3088 x 2056)
(3) Small: Approx. 3.40 Megapixels (2256 x 1504)
(4) S2: Approx. 2.50 Megapixels (1920 x 1280)
(5) S3: Approx. 0.35 Megapixels (720 x 480)
(6) RAW: Approx. 12.20 Megapixels (4272 x 2848)
Exact file sizes depend on the subject, ISO speed, Picture Style, etc.

White Balance

White Balance

Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash, Custom (Custom WB)

Viewfinder

Viewfinder Type

Eye-level SLR (with fixed pentamirror)

Coverage

Vertical/Horizontal approx. 95% (TD)

Magnification

Approx. 0.8x / 22.4 degree (with 50mm lens at infinity, -1 m-1 (dpt))

Eyepoint

Approx. 21 mm (At -1m-1 from the eyepiece lens center)

Dioptric Adjustment

Adjustable from approx. -2.5 to +0.5 m-1 (dpt)

Focusing Screen

Fixed

Mirror

Quick-return half mirror (transmittance: reflectance ratio of 40:60)

Viewfinder Information

1) AF information (AF points, focus confirmation light)
2) Exposure information (Shutter speed, aperture, ISO speed, AE lock, exposure level, exposure warning)
3) Flash information (Flash ready, flash exposure compensation, high-speed sync, FE lock, red-eye reduction light)
4) Image information (Highlight tone priority, Monochrome shooting, maximum burst, white balance correction, SD card information)

Depth-of-Field Preview

No depth-of-field preview button (Enabled with C.Fn-8-5 and pressing SET)

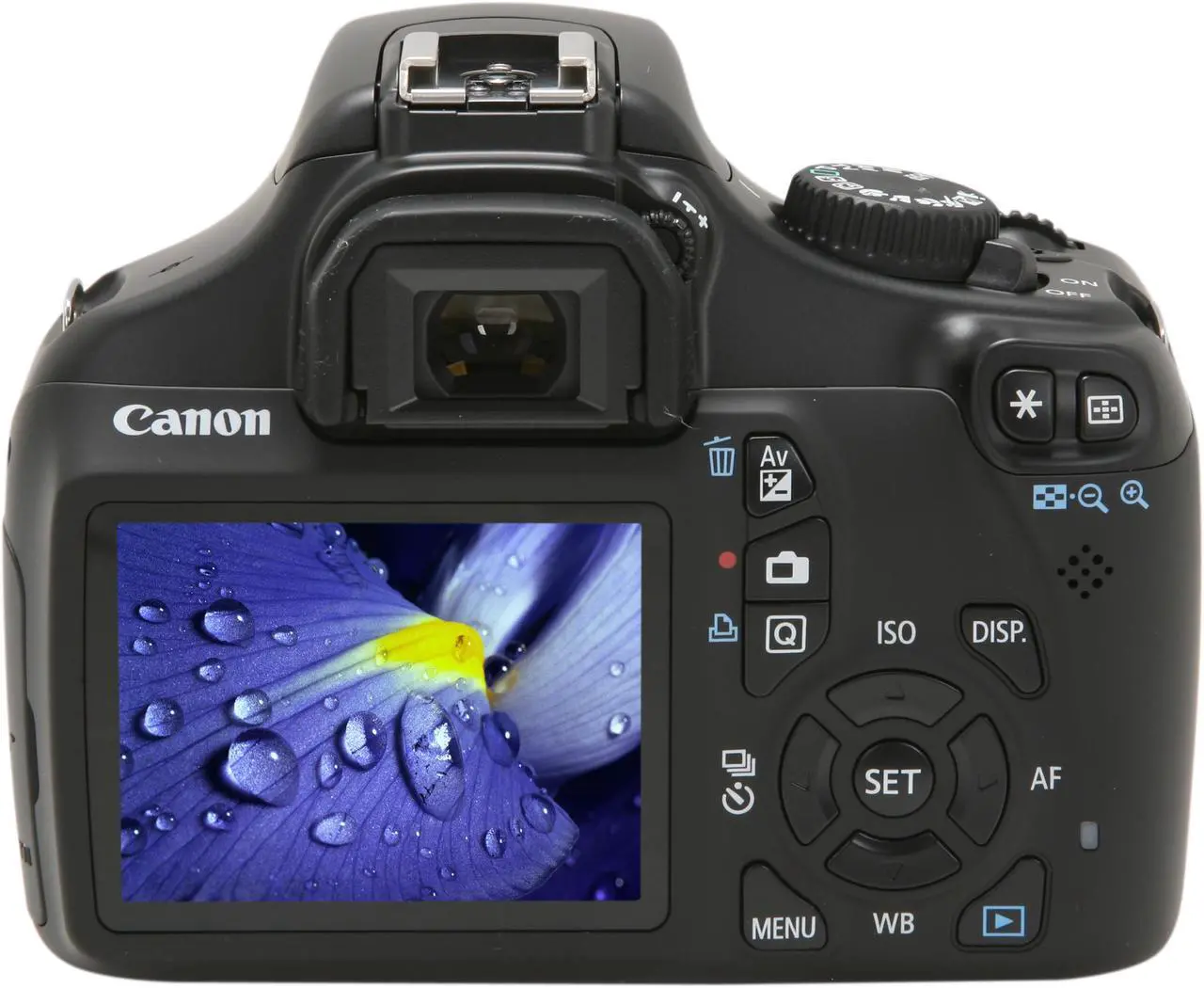

LCD Monitor

LCD

2.7" 230k

LCD Coverage

Approx. 99%
Viewing Angle: 170 degree

Brightness Adjustment

Adjustable to one of seven brightness levels

Focus

Focus Type

TTL-CT-SIR AF-dedicated CMOS sensor

Focusing Modes

(1) Autofocus:
One-Shot AF
Predictive AI Servo AF
AI Focus AF (Switches between One-Shot AF and AI SERVO AF automatically)

(2) Manual focus (MF)

AF Points

9 Points (center AF point is cross-type vertical-line sensitive f/5.6)

AF-assist Beam

1) Intermittent firing of built-in flash.
2) Effective range: Approx. 4 m/13.1 ft at center, approx. 3.5 m/11.5 ft at periphery.

Exposure

Exposure Control

(1) Program AE (program-shift possible)
(2) Shutter-priority AE
(3) Aperture-priority AE
(4) Manual exposure
(5) Automatic depth-of-field AE
(6) Full Auto
(7) Flash Off
(8) Creative Auto
(9) Program AE with ambience selection
(10) E-TTL II autoflash program AE

Exposure Compensation

(1) Manual: +/-5 stops in 1/3- or 1/2-stop increments
(2) AEB : +/-2 stops in 1/3- or 1/2-stop increments

Metering System

63-zone SPC TTL metering with selectable modes

ISO Sensitivity

Auto, ISO 100 - 6400 (in whole-stop increments)
In Creative Zone modes, the maximum ISO speed (ISO 400, 800, 1600, 3200, or 6400) for ISO Auto can be set.
With C.Fn-5-1 (Highlight tone priority), ISO 200 or higher will be set.
No ISO speed expansion.

AE Lock

Auto AE Lock: Applied in One-Shot AF mode with evaluative metering when focus is achieved.
Manual: By AE lock button

Shutter

Shutter Type

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled.
Electronic 1st curtain. Only 2nd curtain mechanically controlled.

Shutter Speed

1/4000 to 1/60 sec., X-sync at 1/200 sec.
1/4000 to 30 sec., Bulb (Total shutter speed range. Available range varies by shooting mode.)
Settable in 1/3- or 1/2-stop increments.

Self-timer

10-sec. or 2-sec. delay

Remote Control Support

Compatible with Remote Switch RS-60E3. There is no wireless remote control sensor.

Flash

Flash Type

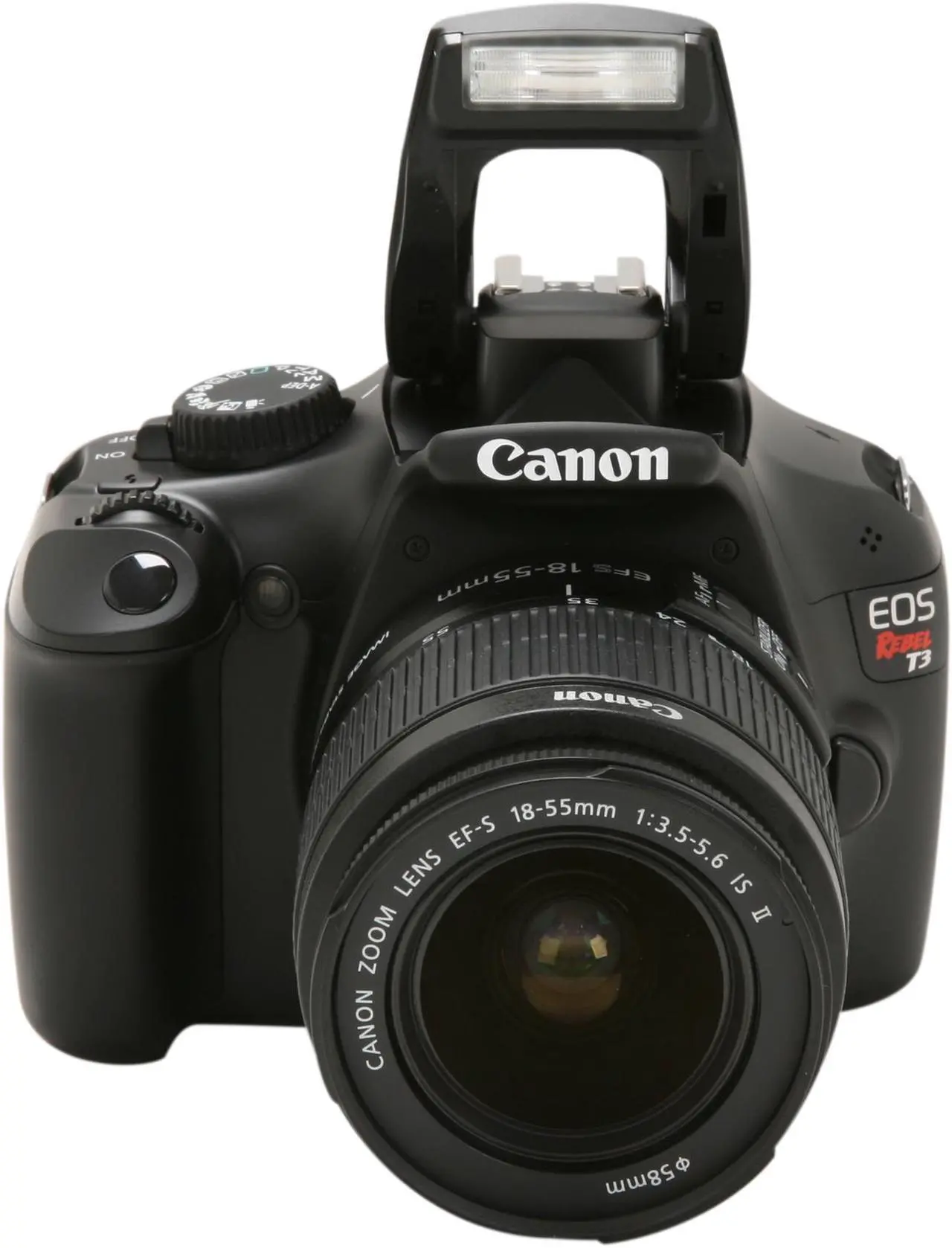

Auto pop-up, retractable, built-in flash in the pentaprism

Flash Mode

Built-in Flash

Flash Range

Up to 17mm focal length (equivalent to approx. 28mm in 135 format)

Flash Exposure Compensation

Up to +/-2 stops in 1/3- or 1/2-stop increments

Drive System

Drive Modes

(1) Single shooting
(2) Continuous shooting
(3) 10-sec. self-timer
(4) 2-sec. self-timer
(5) Continuous shooting after 10-sec. self-timer (2 to 10 shots)

Continuous Shooting Speed

(1) JPEG: Max. approx. 3.0 fps
(2) RAW: Max. approx. 2.0 fps
(3) RAW+JPEG: Approx. 0.8 fps (averaged value)

Maximum Burst

(1) JPEG: 830 shots
(2) RAW: 5 shots
(3) RAW+JPEG: 1 shot

Function

Live View Function

Shooting Modes: Still photo shooting and video shooting

Focusing:
1) Autofocus
2) Manual Focus

Metering Modes: Real-time Evaluative metering with image sensor

Metering Range: EV 0 - EV 20 (At 23 degree C/73 degree F, 50mm f/1.4 lens, ISO 100)

Grid Display:
(1) Grid 1: Pair of vertical and horizontal lines
(2) Grid 2: 5 vertical and 3 horizontal lines

Exposure Simulation: Provided

Playback

Display Format:
(1) Single image display: Single image, basic information, detailed information, histogram display
(2) Index display: 4-image index and 9-image index.
(3) Jump display (Image jump w/ Main Dial): 1/10/100 images, shooting date, by folder, movies, stills, rating

Highlight Alert: On the detailed information and histogram displays, highlight areas with no image data will blink.

Recording System

Color Space

sRGB, Adobe RGB

Recording Media

SD / SDHC /SDXC Card

Movie

Movie Format

MOV (image data: H.264; audio: Linear PCM (monaural))

Lens

Compatible Lenses

Canon EF lenses including EF-S lenses

Lens Mount

Canon EF Mount

Lens Spec

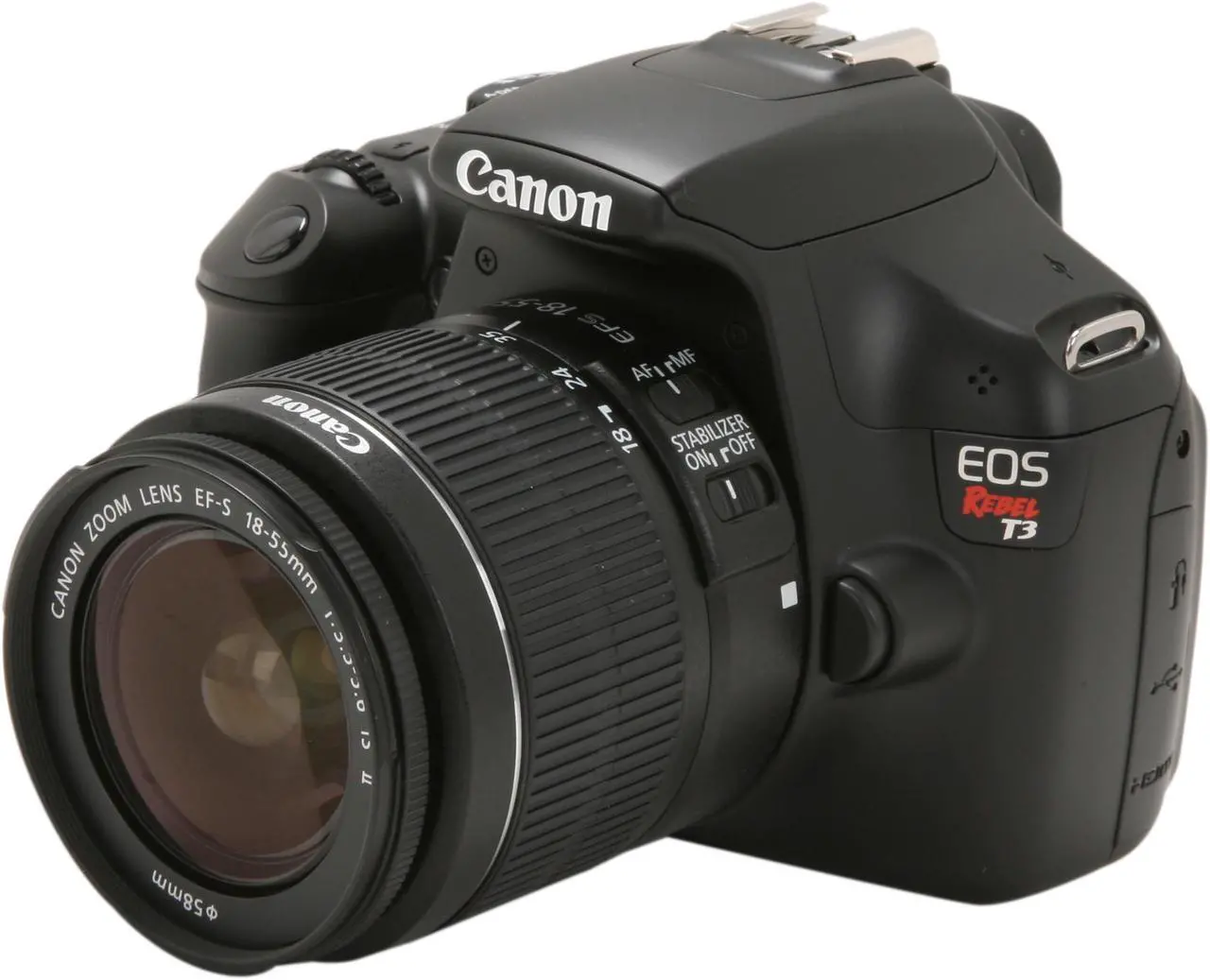

EF-S 18-55mm f/3.5-5.6 IS Type II Lens

Interface

USB

Yes

HDMI

Yes

Power Source

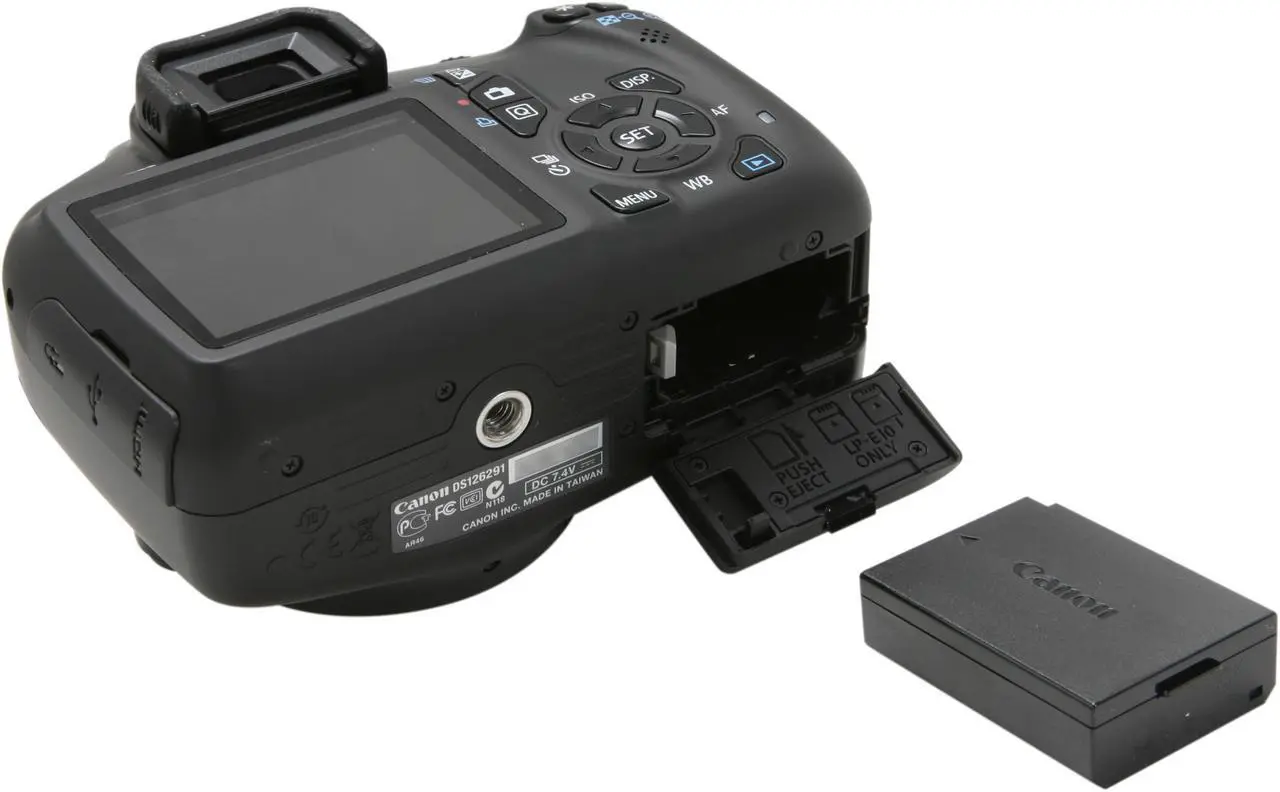

Battery

Battery Pack LP-E10 x 1

Feature

Features

12.2 Megapixel CMOS (APS-C) sensor and DIGIC 4 Image Processor for high image quality and speed

Additional Information

Date First Available

May 19, 2011
