Canon VIXIA HF G40 Full HD Camcorder

Canon VIXIA HF G40 Full HD Camcorder

Compact design. High-end performance. User-friendly. The new Canon VIXIA HF G40 camcorder is the ideal tool for advanced amateur filmmakers, wedding videographers and student reporters.

Engineered with the state-of-the-are components – Genuine Canon 20x High Definition Optical Zoom lens, highly sensitive HD CMOS Pro Image Sensor with improved low-light performance and DIGIC DV 4 Image Processor, it provides sharp, crystal-clear, stable Full HD video with beautiful highlight and shadow detail in virtually every lighting situation. For fluid use in numerous situations, it offers a 3.5-inch touch-capacitive screen, plus a tiltable electronic viewfinder. A host of manual controls are complemented by two modes: Wide DR Gamma and Highlight Priority, which help capture color and detail virtually consistent with how they're seen by the naked eye. Creative options are expanded with a new interval recording option that can capture fast motion of up to 1200x the original speed. The built-in dual-band Wi-Fi technology makes it easy to share your videos.

Genuine Canon 20x High Definition Optical Zoom Lens

The VIXIA HF G40 camcorder features a Genuine Canon 20x HD Video Lens offering a 35mm equivalent of 26.8–576mm with a minimum object distance of just 23.6 inches (60cm). Incorporating advanced elements and coatings, it helps reduce flare, ghosting and other distracting effects, delivering sharp, clear images with minimal distortion.

The VIXIA HF G40 features an 8-blade Circular Aperture, which helps reduce the "starburst" effect found in camcorders with non-circular apertures. The result is that points of light in out-of-focus areas, usually the background of your shot, are beautifully circularly blurred, creating an authentic and artistic feel. The professional touch of a manual focus ring allows accurate and precise control. For extra flexibility, the manual focus ring can be easily set to control zoom instead.

New, Advanced HD CMOS Pro Image Sensor with Improved Low-light Performance

New, Advanced HD CMOS Pro Image Sensor

For incredibly sharp and detailed high-definition video recording, the VIXIA HF G40 camcorder features a reengineered, 1/2.84-inch, 2.91 Megapixel HD CMOS Pro Image Sensor that captures approximately 2136 x 1362 pixels. Thanks to the sensor's enhanced sensitivity, the VIXIA HF G40 helps provide vivid, accurate recording through an improved signal-to-noise ratio.

Improved Low-light Performance

Featuring an improved, low-luminance noise rating of +3 dB, the VIXIA HF G40 camcorder is able to capture clearer, sharper images in lower light, with even better detail.

1080/60p Recording in MP4

Full HD 1080p Recording

The VIXIA HF G40 camcorder gives you high-quality recording whether you're capturing MP4 or AVCHD files. 1080/60p recording captures twice the amount of information as 60i. With images captured at a rate of up to 60 frames per second, diagonal noise is virtually eliminated, so even fast moving subjects show up crisply with motion and patterns clearly recorded. This greater sense of detail and faithful rendering of moving edges, plus enhanced color and fine tonal gradation, gives your video everything Full HD has to offer. With the VIXIA HF G40 you can record in internet-ready, easy-to-share MP4 format at up to 35 Mbps. The VIXIA HF G40 also features a maximum bit rate of 28 Mbps for AVCHD recording, the highest in the AVCHD standard. So, regardless of the format you're shooting or viewing, image quality is outstanding.

Native 24p Progressive Mode

The VIXIA HF G40 camcorder features the Native 24p Progressive Mode, which allows up to 24 frames per second to be captured and recorded (instead of the standard 60i) – a look that is evocative of traditional cinematic quality, and a must for serious filmmaking work.

Dual and Relay Recording

Dual Recording and built-in transcoding help ensure that you'll have the right format available for your needs. Using the power of the DIGIC DV 4 Image Processor, the VIXIA HF G40 camcorder can simultaneously record video in AVCHD format to one SD card, and in MP4 format to the other SD card [1]. The camcorder also has a built-in transcoding function that converts AVCHD files to MP4s, making them easy to upload to the Web or save to an SD card.

Dual slots on the VIXIA HF G40 camcorder enable Relay Recording. The camcorder automatically switches to the second memory card when the first becomes full, so there's no need to worry about running out of recording time during a thrilling, once-in-a-lifetime shot.

Note:[1]. Simultaneous recording is not supported when using MP4 (35 Mbps), AVCHD Progressive (28 Mbps) or Cinema-Look Filters.

Superb Image Reproduction

The VIXIA HF G40 camcorder represents Canon's Full HD System, delivering truly excellent image quality and reproduction for most any application. With its 20x Optical Zoom HD Video lens, its new HD CMOS Pro Image Sensor and the powerful DIGIC DV 4 Image Processor working together to capture and process the images at hand, the VIXIA HF G40 is positioned to deliver HD video that is nothing short of stunning.

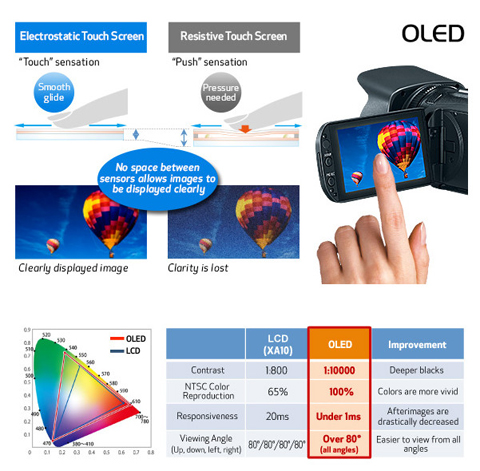

3.5-inch OLED Viewscreen with 10,000:1 Contrast Ratio

OLED 3.5" Capacitive Touch Display

The touch-sensitive Organic Light-Emitting Diode (OLED) panel on the VIXIA HF G40 supports capacitive touch responsiveness, 10,000:1 contrast ratio, and 1,230,000 dots of resolution. Touch operation also affords more fluid control of camera functions like Touch and Track, Touch Focus and Touch Exposure.

Electronic Viewfinder

The VIXIA HF G40 features a 0.24-inch, approximately 1.56 million-dot color electronic viewfinder with approximately 100% field of view coverage for detailed, accurate composition judgment. The viewfinder can be tilted up to 45° from its normal resting position to enable a great amount of shooting freedom. Settings can be adjusted with a handy joystick so you don't have to stop looking through the viewfinder. And, because it is positioned where your thumb naturally rests while holding the camera, you can shoot and adjust easily – even with one hand!

Advanced Display Features: Zebra, Color Bars and Test Tone.

Videographers with exacting needs will appreciate the VIXIA HF G40 camcorder's range of functions designed to pinpoint focus adjustment and exposure control while helping you get professional-level quality from the camcorder. Zebra pattern indicates “blown out” or high brightness areas to help you set proper exposure. Color bars and test tone can be selected and recorded in order to adjust video and audio quality.

Wide DR Gamma (600%)

For natural and realistic-looking image capture that faithfully represents the scene at hand, the VIXIA HF G40 camcorder features a Wide DR Gamma mode. By suppressing overexposure in high brightness areas of the composition, this mode helps achieve a wide dynamic range of 600% to produce virtually seamless tone gradations, resulting in smooth detail, accurate color and virtually no blown-out highlights.

Highlight Priority Mode

VIXIA HF G40 camcorder has a new Highlight Priority mode that achieves effects similar to HDR modes in other camcorders. By reducing the mid- to high-brightness compression of the standard gamma mode, the Highlight Priority mode helps to prevent loss of detail in high brightness areas. Designed for display on a bright LCD TV, videos captured in Highlight Priority mode should be shown at a high brightness setting to help ensure accurate portrayal of the effect.

View Assist for Highlight Priority Mode

When using the VIXIA HF G40 camcorder in Highlight Priority mode, the View Assist function increases brightness and medium tone gamma in the camera's viewfinder or OLED panel. This allows images to be displayed with the brightness and gradation with which they are being recorded or reviewed, helping to ensure the subjects look natural and realistic.

Intelligent Optical Image Stabilization System with Powered and Dynamic Modes and Auto On/Off

Canon's sophisticated SuperRange Optical Image Stabilizer corrects camera shake instantly, so even handheld video taken at long focal lengths can be sharp and steady. The power of Canon's DIGIC DV 4 Image Processor has made possible a versatile Dynamic Image Stabilization mode. In addition to providing continuous adjustment throughout the entire zoom range to correct a broad range of motion, with extra compensation applied at wide-angle focal lengths, the system stabilizes rotational camera shake. Controlling rotational camera shake – horizontal, vertical and roll axis – helps ensure smooth, virtually distortion-free video, even when you're walking while shooting.

Provides Full Manual Control

Custom Key and Dial

A Custom Key and Dial feature allows you to assign functions to an easily accessible key and adjust the settings with a control dial. The functions include:

• Tv/Av: Use the dial to adjust shutter speed (Tv mode) or aperture (Av mode), as needed. In this mode the key has no effect.
• Manual exposure: When manual control is selected, the dial can adjust aperture, shutter speed or gain. Select items to adjust, such as aperture or other settings, with the key.
• Exposure Lock can be set on or off as can the AGC Limit.

Compositional Aids

With the Level Marker feature, it's easy to keep the camcorder level for more accurate framing. The Grid Marker provides a reference grid in your viewfinder. Depending on the background color of your shot, you can choose between two different colors (white or gray) for better viewing contrast.

Gain Control

Gain may be manually set from 0 dB to 24 dB in 1 dB increments. Additionally, Auto Gain Control Limit allows you to set the maximum gain limit for the image sensor's sensitivity. With this function, brightness and noise can be balanced as required, and image quality can be maximized in low-light situations.

Power Zoom

Power zoom is available in Variable and Constant settings in 3 modes: Fast (approx. 1.9–60 seconds), Normal (approx. 2.5–180 seconds) and Slow (approx. 4.0–285 seconds). To provide added control, there are 16 predefined steps in Constant mode.

Built-in Wi-Fi Technology with FTP Transfer Capability

Built-in, dual-band (5 GHz/2.4 GHz) Wi-Fi technology lets you share your HD video easily, and in a number of different ways. Connect with compatible networks, wireless hotspots and iOS mobile devices by using the free Canon Movie Uploader app [2]. Transfer files to selected FTP servers for back up or when a quick transfer is necessary. Share videos over the internet with CANON iMAGE GATEWAY[3] – an online photo storage service that lets you upload to social networking sites. Watch videos stored on the camera's memory cards directly on your living room TV, or use your PC or mobile device to browse remotely through the previously recorded videos stored on your camcorder, without connecting a cable[4]. The Remote Browse function uses a standard Web browser and does not require a special app.

Additionally, Wi-Fi technology allows remote control of key camcorder controls, such as recording start/stop and zoom (in three different speeds), exposure functions (iris, shutter speed, gain and more) and focus settings, adding another level of freedom to your shooting abilities.

Note:

[2]. This software enables you to upload images to social network sites. Compatible with iOS version 5/6/7 or later for select devices. MP4 60p and AVCHD recordings are not supported for this function.

[3]. One-time registration is required on CANON iMAGE GATEWAY online photo album.

[4]. Compatible with iOS version 5/6 or later and Android version 4.0 or later for select devices. AVCHD recording is not supported for this function. On iOS devices, MP4 60p recording is not supported; only the playback function is available.

Ergonomic, Portable Footprint with Multiple Connectivity Options

Weighing approximately two pounds including the battery and lens hood, the VIXIA HF G40 camcorder is ideal for high-action shoots when both speed and mobility are essential, and where keeping a low profile is an added benefit. Though small in size, this camcorder sacrifices nothing when it comes to professional functionality. It features a “seesaw” style zoom lever, manual focus/zoom ring and joystick for easy control and an electronic viewfinder that can tilt up to 45° for low-angle shooting. It also has five Assign Buttons to help it fit to your operational needs.

Additionally, the VIXIA HF G40 camcorder provides immense creative freedom when it comes to inputs and outputs, including: HDMI mini connector, composite video output, USB Hi-Speed terminal, microphone input, headphone jack, remote control terminal, and mini advanced accessory shoe. It’s also compatible with optional Canon WM-V1 Wireless Microphone.

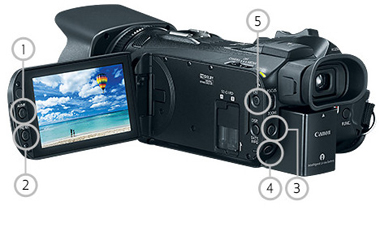

Button 1 is preset as AF/MF; Button 2 is preset as Pre REC; Button 3 has no preset;Button 4 has no preset; Button 5 is preset as Rec Review

High-capacity Battery Included

The VIXIA HF G40 camcorder is powered by a high-capacity battery pack. The rechargeable lithium-ion battery not only lets you shoot for a long time, but features intelligent technology that accurately indicates remaining battery time for extra insurance that you won't miss an important shooting opportunity.
