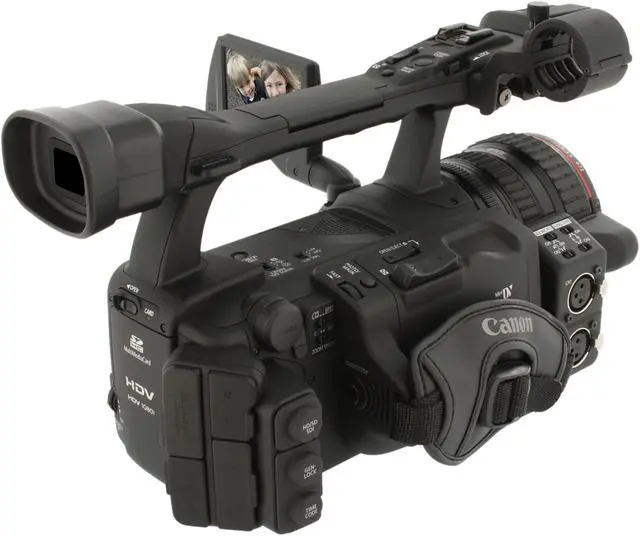

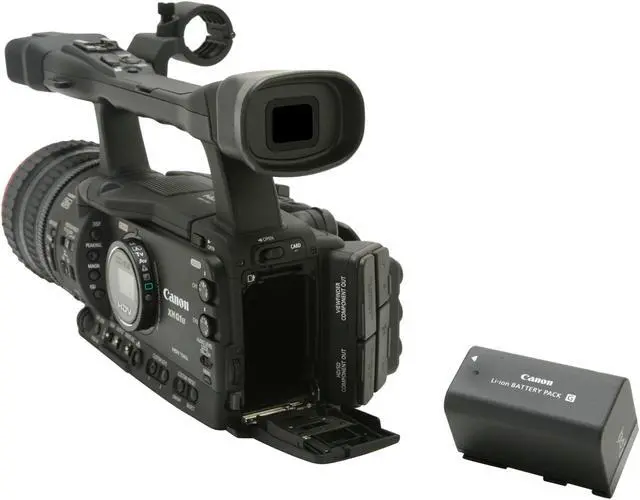

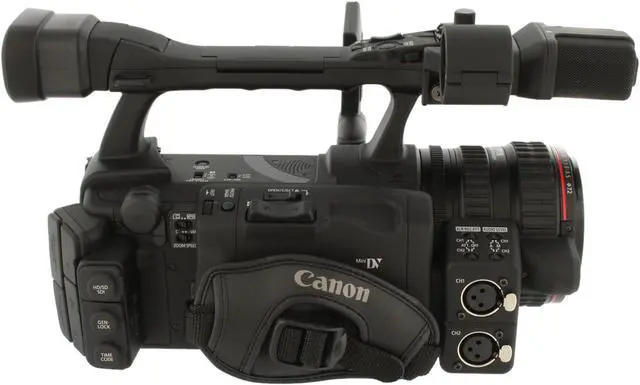

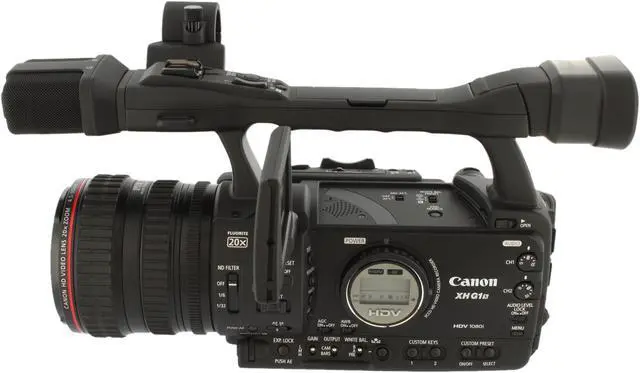

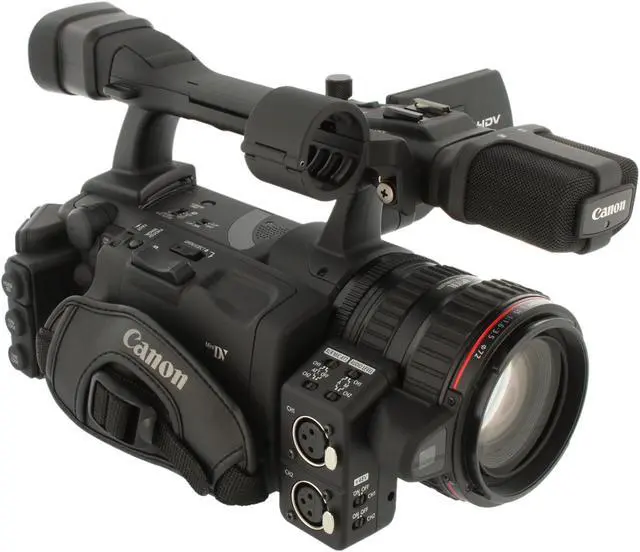

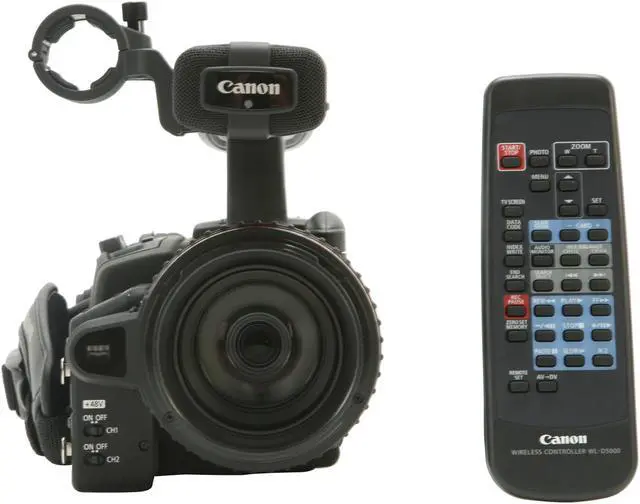

Canon XH G1S Black 1/3" 3CCD 2.8" 207K HDV Camcorder w/ Canon 20x HD Video Lens with Professional L-Series Fluorite

Be the first to review this product...
  • 20X Optical Zoom
  • 1/3" 3CCD
  • 2.8" 207K LCD
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Canon XH G1S

Model
Brand Canon
Model XH G1S
Details
Type Professional Camcorder
Color Black
Viewfinder 0.57" Widescreen, 269K
LCD 2.8" 207K
Focusing System TTL-video signal sensing system autofocus. Manual focusing possible.
Minimum Focusing Distance: 20mm (wide macro), 1m (entire zoom range)
Minimum Illumination NTSC: 6 lux (Shutter speed 1/60, Gain 18 dB)
PAL: 5 lux (Shutter speed 1/50, Gain 18 dB)
Manual mode (when Gain 18 dB, f/1.6, 60i/50i are selected)
NTSC: 0.4 lux (Shutter speed 1/4), PAL: 0.3 lux (Shutter speed 1/3) (when 60i/50i is selected)
Image Sensor
Image Sensor 1/3" 3CCD
Optic
Optical Zoom 20X
Filter Diameter 72mm
Image Stabilization SuperRange Optical (Lens Shift)
Recording
Recording Media Tape
Memory Card Support SD / SDHC / MMC Card
Video Recording HDV: HDV1080i; DV: DV specifications
Two rotating heads, helical scan azimuth recording, (Consumer VCR SD specifications)

HDV/DV: SP mode 80 min. DV:LP; 120 min.

Frame Rate: 60i, 24F, 30F
Audio Recording HDV: 2-channel recording MPEG1 Audio Layer II: (Sampling frequency 48 kHz, bit rate 384 kbps)
DV: 2-channel recording PCM digital recording: 16 bits (48 kHz), 12 bits (32 kHz, 12 bits selectable)
Terminals
Connectors Genlock Terminal: BNC Connector (input only)

HD/SD-SDI Terminal:
BNC Connector (output only)
SD-SDI: compliant with SMPTE 259M, 272M, RP 188 (LTC)
HD-SDI: compliant with SMPTE 292M, 299M, RP 188 (LTC)

Timecode Terminals: BNC Connector (input and output)

DV Terminal: HDV/DV Special 6-pin connector (IEEE1394 compatible); both input/output

Video Terminal
(a) Also serves as RCA pin jack (yellow); both input/output
(b) Also serves as BNC connector; output

XLR 3-pin jack (2 systems); Switchable between MIC/LINE
Features
Features Genuine Canon 20x HD Video Lens with Professional L-Series Fluorite
DIGIC DV ll HD Image Processor
The XH G1S's design gives you equally impressive operational performance. The design lets you operate the zoom using the lens barrel ring, the control on the camera's grip, or the control on the camera's handle. When using the zoom ring on the lens, you can control the speed of your zoom by varying the angle of the ring, or by varying the speed at which you rotate the ring. When using the grip control, you can zoom at 16 different speeds; or you can use the control to operate at a single zoom speed which you preset. When using the handle zoom control, you can operate the zoom at a single speed which you preset. You can also select high-speed zoom to increase the zoom speed when using either the grip or handle control. And, because the lens is designed with a zoom ring, you can operate zoom, focus and aperture using a single hand.
Starting with the superb Canon Genuine Canon 20x HD lens with Professional L Series Fluorite, the XH G1S adds 3CCDs, each of which is at 1440 x 1080 pixels. It also means you can be sure that your shooting in the field will be the best it can be with Canon's SuperRange Optical Image Stabilization. It corrects for a wide range of camera movement and vibration, and combined with Instant AF (Auto Focus) you'll get ultra-quick, accurate focus. The DIGIC DV II HD image processor finishes the picture with improved color reproduction and noise reduction - for a final result that delivers excellent image quality.
Dimensions & Weight
Dimensions (WxHxD) & Weight 6.4" x 7.6" x 15.5"
5.4 lbs. (fully loaded)
Additional Information
First Listed on Newegg April 15, 2009
