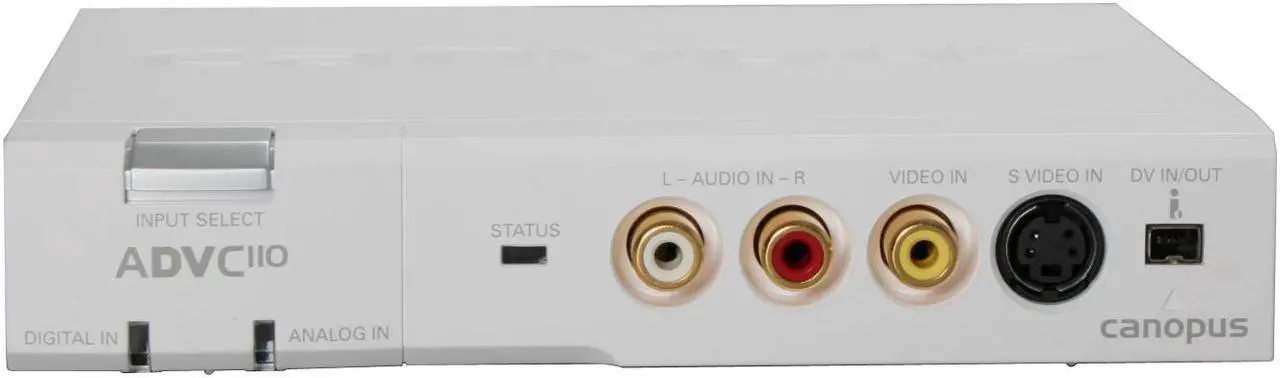

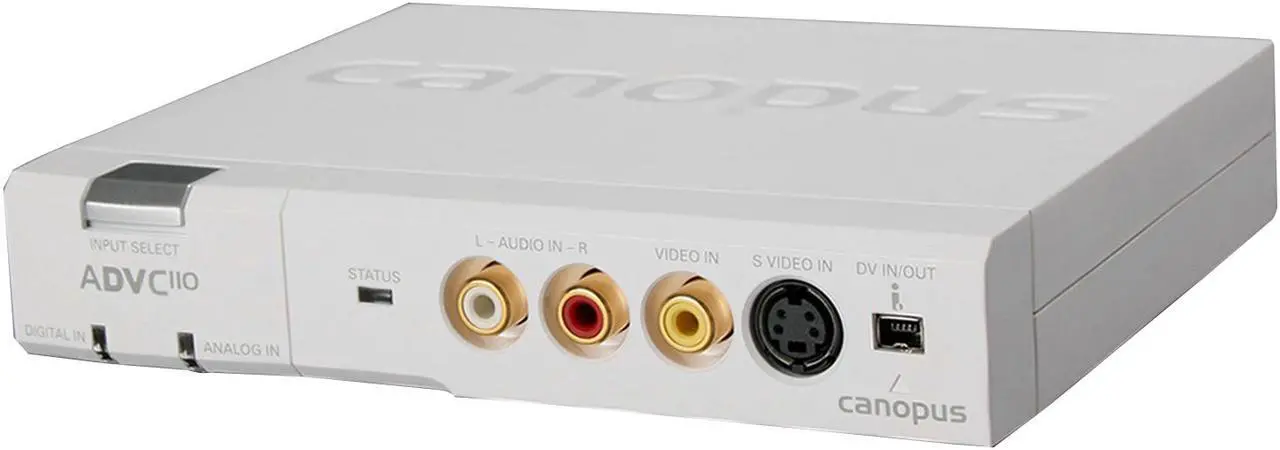

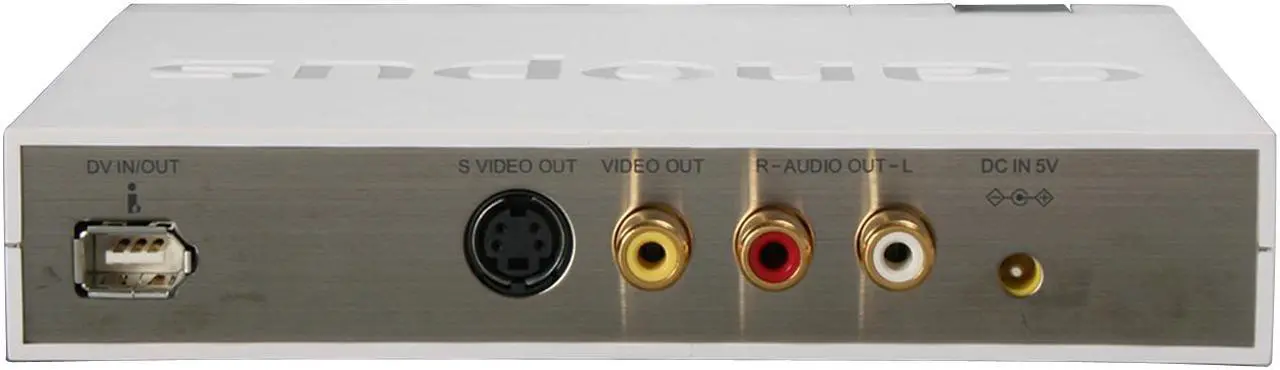

Canopus' ADVC110 is a one box video conversion system that makes transferring files easy. The front panel has a 4 pin FireWire port plus S-Video and composite inputs along with RCA audio in ports. The back panel has a 6 pin FireWire port, plus S-Video and composite outs plus RCA audio outs. Push the input select button to switch between analog and digital in. Then send the signal to a recording console or computer.
The ADVC110 is compatible with all analog and digital video cameras, decks and editing systems so you can pack the compact unit into your carry case and work anywhere. It also works with any Mac or PC that has a 6 pin FireWire port and is compatible with leading editing and DVD authoring packages.
Canopus' ADVC110 is a one box video conversion system that makes transferring files easy. The front panel has a 4 pin FireWire port plus S-Video and composite inputs along with RCA audio in ports. The back panel has a 6 pin FireWire port, plus S-Video and composite outs plus RCA audio outs. Push the input select button to switch between analog and digital in. Then send the signal to a recording console or computer.
The ADVC110 is compatible with all analog and digital video cameras, decks and editing systems so you can pack the compact unit into your carry case and work anywhere. It also works with any Mac or PC that has a 6 pin FireWire port and is compatible with leading editing and DVD authoring packages.
Intelligent UsabilityThe Canopus ADVC110 features intelligent usability for easy setup and connection in any video environment. Analog and DV signals pass through via front and rear connectors with neatly managed cables.
Proven DV Codec TechnologyThe Canopus ADVC110 features an innovative Canopus DV codec chip, providing industry-leading picture quality preservation during analog-to-DV and DV-to-analog conversion.
IEEE 1394 InterfaceThe Canopus ADVC110 features an IEEE 1394 FireWire port for optimum data transfer speeds enabling real-time DVD encoding and hot-swappable, plug-and-play features to ensure convenient connections to your computer.
Learn more about the Grass Valley ADVC110
Model
Brand
Canopus / Grass Valley
Model
ADVC110
Performance
Format
Video Formats NTSC: 720x480 @ 29.97fps PAL/SECAM: 720x576 @ 25fps
Digital Video Input/Output 1 x 4-pin FireWire (100Mbps) 1 x 6-pin FireWire (100Mbps)
Connection
S-Video
1 Input/1 Output
Composite
1 Input/1 Output
Analog Aduio
1 x stereo (RCA) Input 1 x stereo (RCA) Output
Compatibility
System Requirements
Windows PC: Windows 2000 (requires Service Pack 3 or higher, Windows XP Home, Windows XP Professional (Service Pack 1 or higher), Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Business, Windows Vista Ultimate (Service Pack 1 or higher), Windows 7 Home Premium, Windows 7 Professional, Windows 7 Ultimate, DirectX 8.0 or higher
Mac: Mac OS X (10.2.7/10.2.8/10.3/10.4.x/10.5/10.6)
Power
Power Supply
Power Source: IEEE 1394 bus powered or DC5V from EIAJ#2 DC jack
Specification
Specification
Conversion: IEEE-1394 Digital A/V to Analog A/V Composite and Y/C video and stereo unbalanced audio
Feature
Feature
Connects to all widely used DV and analog video equipment
Compatible with Windows and Mac OS DV editing systems
Compatible with leading editing and DVD authoring applications including Grass Valley EDIUS, Final Cut Pro, Adobe Premiere Pro, Vegas, iLife, Ulead MediaStudio Pro, and Windows Movie Maker
Audio-only conversion support
No need to install drivers or any software applications
Powered by IEEE 1394 FireWire connector*
NTSC and PAL compatible
Color bar reference signal generator
*The ADVC-PSU5V AC Adaptor Kit (sold separately) is required when connecting ADVC110 to a 4-pin IEEE 1394 FireWire port.
Dimensions & Weight
Dimensions
5.75"W x 4.72"D x 1.07"H
Weight
2.2 lbs.
Package Contents
Package Content

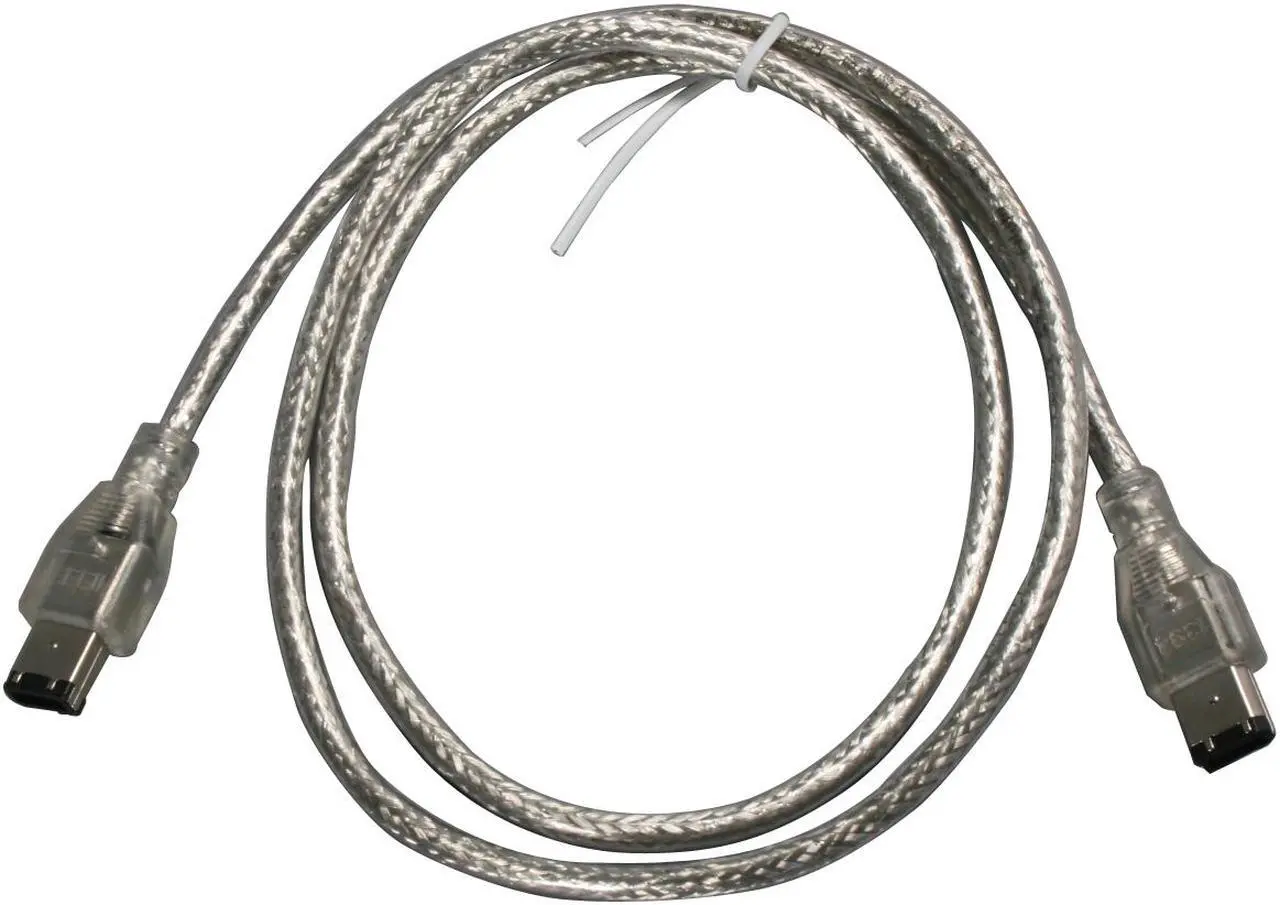

Converter IEEE-1394a (6 pin - 6 pin) Cable User Manual
