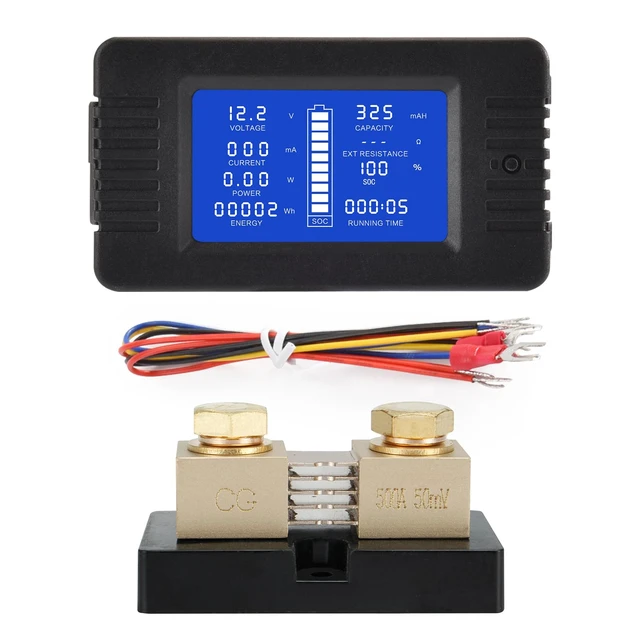

Main image of CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Alt view image 2 of 7 - CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Alt view image 3 of 7 - CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Alt view image 4 of 7 - CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Alt view image 5 of 7 - CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Alt view image 6 of 7 - CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Alt view image 7 of 7 - CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Shop All No Sew Products | Visit VFDGHTA Store

CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-500A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery

Be the first to review this product...

9 Measurement Functions.One interface displays nine parameters including Voltage(0-200V), Current(0-500A), Power(0-60000W), Impedance(0-1000), Internal Resistance(0-999m), Capacity(0-1000AH), SOC, Energy (0-9999kWh) and Running time(0-999h).(500A 50mV shunt included in package))
Better Visual Experience. Full view LCD screen, 360°viewing without dead angle, with backlight function, it is clearly visible whatever day or night.
No Screw & Easy Installation - With the installation design of the pressing terminal, it is easy and convenient to install and remove the wires without the screws.
Accurate Measurement. High precision chip control, accurate data, efficient and stable operation, safe and reliable welding process, measurement accuracy reaches 1%.
Wide Application - Wildly used in the automobile, solar energy system, industrial assembly line, etc.

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

DC Multifunction Battery Monitor Meter

The PZEM-015 DC multifunction battery monitor meter is mainly used to test all kinds of battery’s voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, SOC, energy,running time, and display the measurement data through LCD screen.

Specification

Power consumption
Normal working state: 0.03-1.2 W
Sleeping state: 0.5mW-0.5W
The power consumption is related to the test voltage valve,the higher the voltage,the greater the power consumption.
Working temperature-20’C ~ +60’C.

Display interface is large-screen LCD, it can display nine parameters at the same time

Voltage: Measuring range: 0-200V;Minimum Resolution: 0.01V (when the test voltage is <8V, please use the independent power supply mode)
Current: Measuring range: 0-500A. The starting test current: 20mA
Power: Measuring range: 0-20000W, Starting measure power: 0.2W
Impedance: Measuring range: 0-1000O
SOC Percentage Display:Displays the percentage of power remaining
Capacity: Measuring range: 0-1000AH.
SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.
Energy:Measuring range: 0~9999kWh.Over the test range will become zero.Note:1Wh=0.001kWh=0.001 Kilowatt
Running time:Measuring range: 0 ~ 999 hour (without load the time will not accumulate)

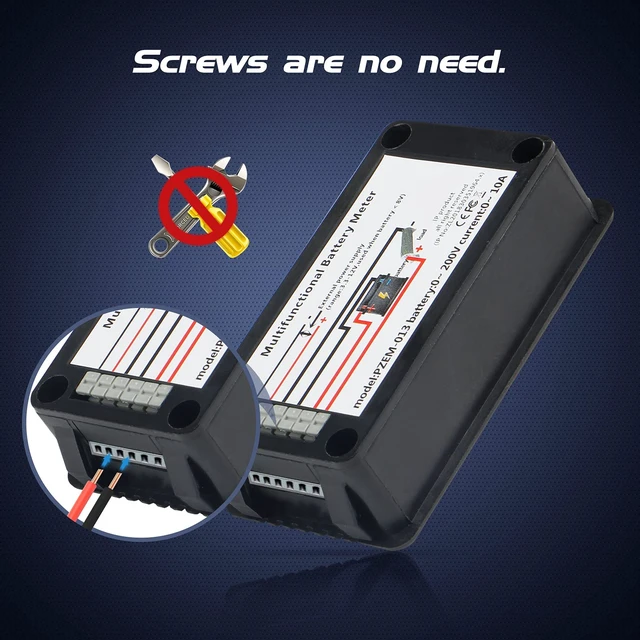

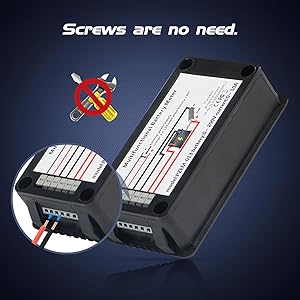

screw

No Screws Design

Push-on terminal,no need screws to connect

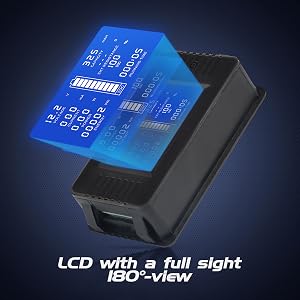

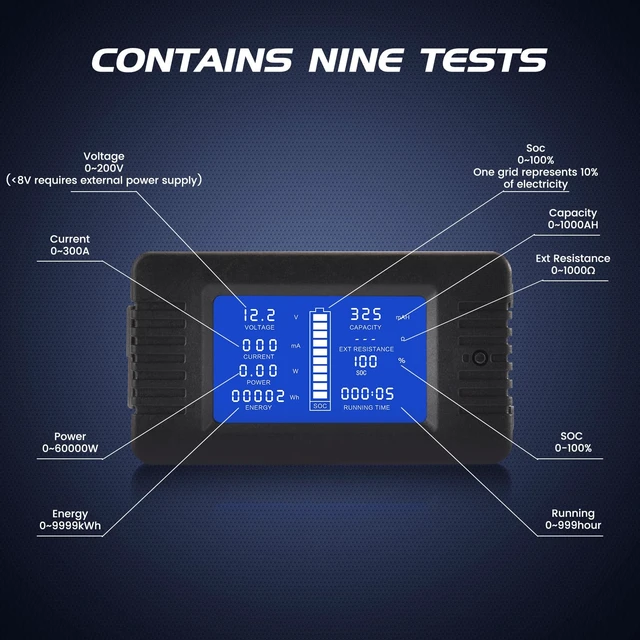

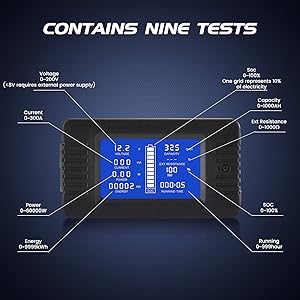

DC multifunction contain 9 tests

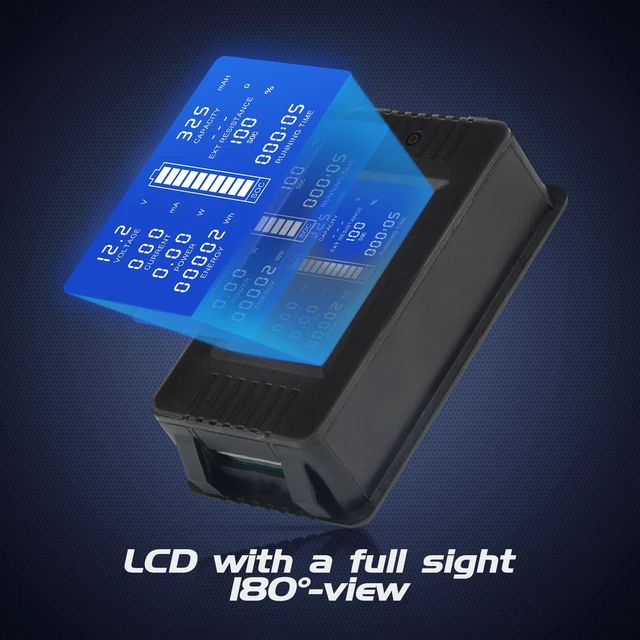

LCD Dispaly

Large-screen
LCD with a full sight 180°-view
The blue backlight can be turened on/off manually

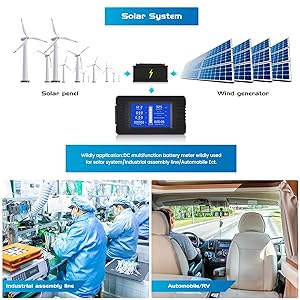

application

Widly Application

DC Multifunction Battery Monitor Meter widly used for solar penel,wind generator,industrial assebly line,automobile/RV,etc.

CGELE is a professional manufacturer of electrical products and pneumatic products, including circuit breakers, solid state relays, air conditioning contactors, terminal blocks, air hoses, pneumatic fittings, solenoid valves and so on. We are committed to providing our customers with high quality products and services to meet their various usage needs.
CGELE Meter and Shunt
CGELE Solid State Relay
CGELE Circuit Breaker
CGELE Hvac Contactor
CGELE Temperature Control
CGELE Pneumatic Tube
CGELE Pneumatic Fittings
CGELE Cable Gland

DC Multifunction Battery Monitor Meter

Specification

Power consumption
Normal working state: 0.03-1.2 W
Sleeping state: 0.5mW-0.5W
The power consumption is related to the test voltage valve,the higher the voltage,the greater the power consumption.
Working temperature-20’C ~ +60’C.

Display interface is large-screen LCD, it can display nine parameters at the same time

Voltage: Measuring range: 0-200V;Minimum Resolution: 0.01V (when the test voltage is <8V, please use the independent power supply mode)
Current: Measuring range: 0-500A. The starting test current: 20mA
Power: Measuring range: 0-20000W, Starting measure power: 0.2W
Impedance: Measuring range: 0-1000O
SOC Percentage Display:Displays the percentage of power remaining
Capacity: Measuring range: 0-1000AH.
SOC: Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.
Energy:Measuring range: 0~9999kWh.Over the test range will become zero.Note:1Wh=0.001kWh=0.001 Kilowatt
Running time:Measuring range: 0 ~ 999 hour (without load the time will not accumulate)

screw

No Screws Design

Push-on terminal,no need screws to connect

DC multifunction contain 9 tests

LCD Dispaly

Large-screen
LCD with a full sight 180°-view
The blue backlight can be turened on/off manually

application

Widly Application

DC Multifunction Battery Monitor Meter widly used for solar penel,wind generator,industrial assebly line,automobile/RV,etc.

CGELE is a professional manufacturer of electrical products and pneumatic products, including circuit breakers, solid state relays, air conditioning contactors, terminal blocks, air hoses, pneumatic fittings, solenoid valves and so on. We are committed to providing our customers with high quality products and services to meet their various usage needs.
CGELE Meter and Shunt
CGELE Solid State Relay
CGELE Circuit Breaker
CGELE Hvac Contactor
CGELE Temperature Control
CGELE Pneumatic Tube
CGELE Pneumatic Fittings
CGELE Cable Gland

CGELE Battery Monitor Meter

Voltage

Measuring range: 0-200V

Display format: <10V, display 9.99V; <100V, display 99.9V; 100V, display

199V

Minimum Resolution: 0.01V

Measurement accuracy: 1%

Current

Measuring range: 0-500A

Display format: <1A, display 999mA; <10A, display 9.99A; <100A, display

99.9A; 100A, display 199A

Minimum resolution: 1mA

Measurement accuracy: 1%

Power

Measuring range: 0-60000W

Display format: <10W, display 9.99W; <100W, display 99.9W; <1000W,

display 999W; <10000W, display 9.99kW; 10000W, display 19.9kW

Minimum resolution: 0.01W

Measurement accuracy: 1%

Impedance

Measuring range: 0-1000

Display format: <100, display 99.9; 100, display 999

When over the test range or the current is zero ,it displayed "---".

Minimum resolution: 0.1

Measurement accuracy: 1%

Internal Resistance

Measuring range: 0-999m

Display format: 999m, when over the test range or the current is zero, it

display ---.

Minimum resolution: 1m

Measurement accuracy:1%

Display format: <1AH display 990mAH; <10AH display 9.90AH;

<100AH display 99.9AH;<1000AH display 999AH;

Minimun resolution: 1 mAH

Measurement accuracy:1%

Energy

Measuring range: 0-9999kWh

Display format: <1kWh display 999Wh;<10kWh display 9.99kWh; <100kWh

display 99.99kWh;<1000kWh display 999.99kWh;1000kWh display

9999kWh

Minimum resolution: 1Wh

Measurement accuracy:1%

Running time

Measuring range: 0-999 hour

Display format: 0:00:00 -999:59

Notice

1. This module is suitable for indoor, please do not use outdoor

2. Applied load should not exceed the rated voltage, current.

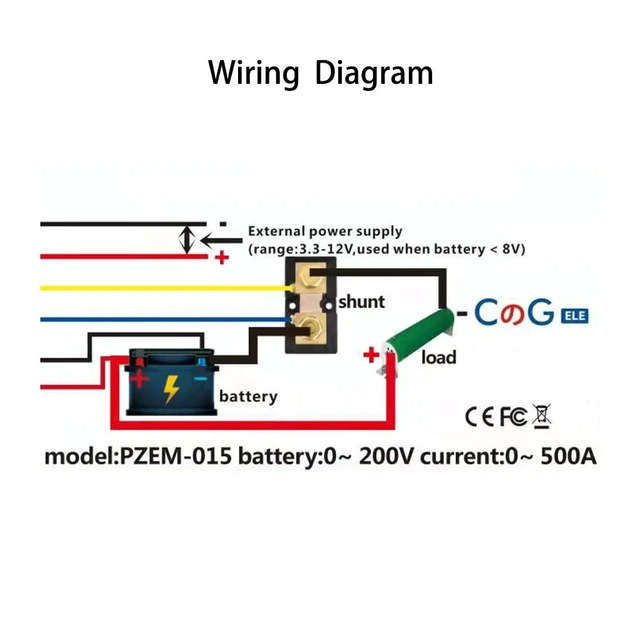

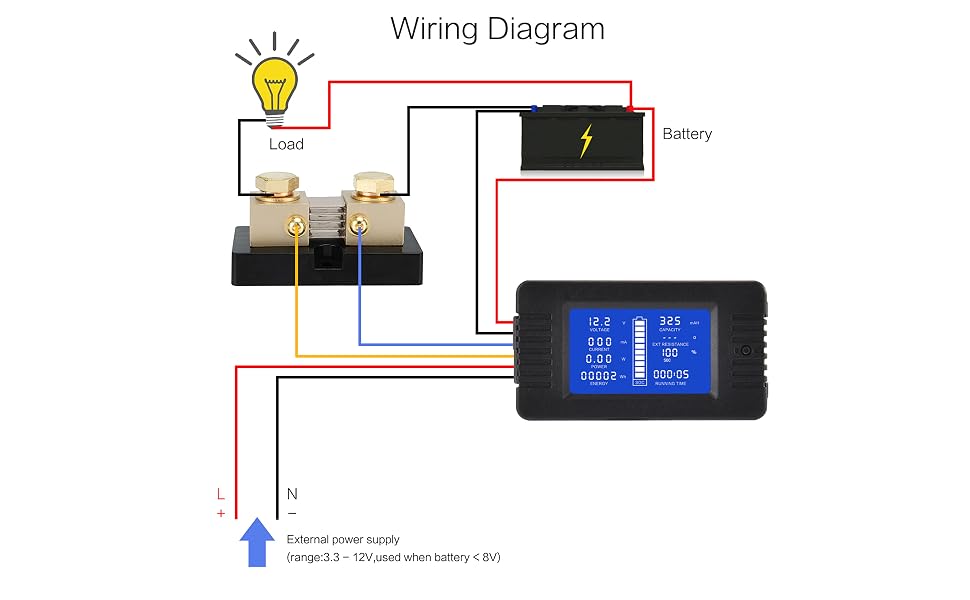

3. Wiring order can't be wrong

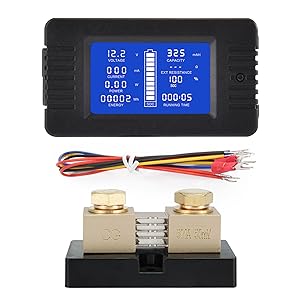

Package

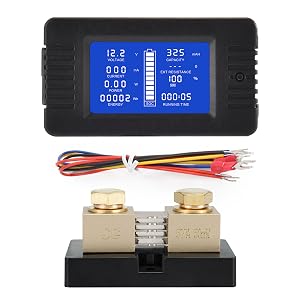

1 * Battery Monitor Meter

1 * DC 500A Shunt

6 * Wire

1 * Instruction manual

Model
Brand	CGELE
Model	CGELE
Part Number	CGELE

Details
Type	Multimeter
Equipment Type	Multimeter, Ammeter, Voltmeter

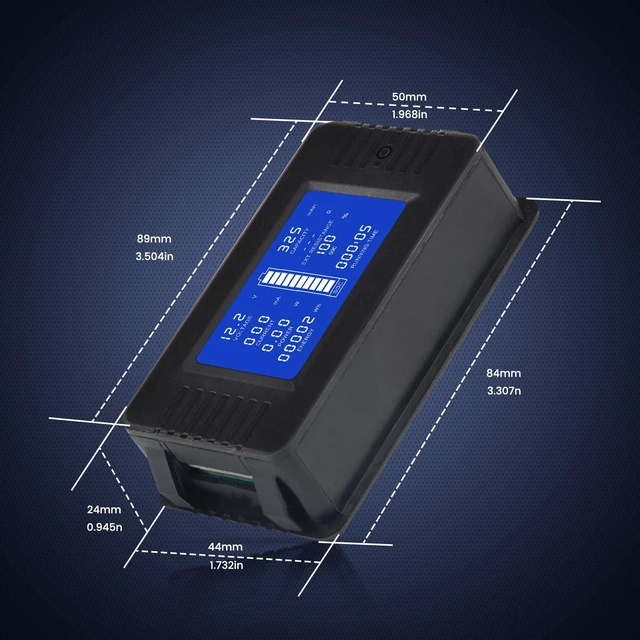

Size/Dimensions	6.4008 cm x 12.9032 cm x 14.3002 cm
Range	DC 100A Battery Meter
Bandwidth	Compact, RV, Car, Solar System
Sampling Rate	Compact
Display Type	Compact
Scope Channels	1
Application	Multimeter, Ammeter, Voltmeter
Color	Black
Number of Digits	Compact
Material	Plastic
Gauge Glass Type	Compact
Seal Material	Plastic, Metal
Display Size	Compact
Power Source	Battery Powered
Interface	Compact
Data Storage	Compact
Data Hold	Compact
Count Modes	Count
Operating Frequency	Compact, not_applicable
Working Distance	DC 500A Battery Meter
Number of Functions	Compact

Features
Features	Ammeter, Multimeter, Voltmeter, DC 100A Battery Meter, Battery Powered, false
