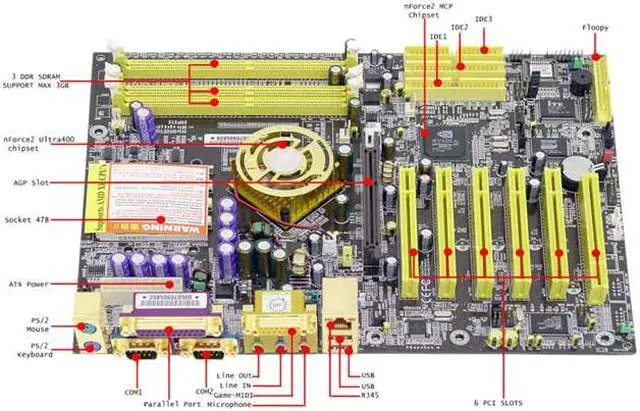

CHAINTECH 7NJS Ultra ZENITH 462(A) NVIDIA nForce2 Ultra 400 ATX AMD Motherboard

(14) Write a Review
  • NVIDIA nForce2 Ultra 400
  • Athlon XP / Athlon / Duron
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (14)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Chaintech Inc. 7NJS Ultra ZENITH

Model
Brand CHAINTECH
Model 7NJS Ultra ZENITH
Supported CPU
CPU Socket Type 462(A)
CPU Type Athlon XP / Athlon / Duron
FSB 400/333 MHz
Chipsets
Chipset NVIDIA nForce2 Ultra 400
South Bridge NVIDIA nForce2 MCP-T
Memory
Number of Memory Slots 3x184pin
Memory Standard DDR 400
Maximum Memory Supported 3GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Express x16 None
PCI Slots 5 x PCI Slots
Other Slots 1x ACR
Storage Devices
PATA 3 x ATA100 6 Dev Max.
SATA RAID 0/1
Additional RAID Controller Promise PDC20376
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset C-Media 8738
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 100Mbps
Rear Panel Ports
Back I/O Ports 1 x LPT (Parallel Port) / 2 x COM (Serial Port) / 2 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks
PS/2 2
COM 2
LPT 1
USB 1.1/2.0 2 x USB 2.0
Game/MIDI Ports 1
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 305 x 230mm
Features
Features Award system BIOS support PnP, APM, DMI, ACPI, & Multi-device booting features
Additional Information
First Listed on Newegg June 10, 2003
