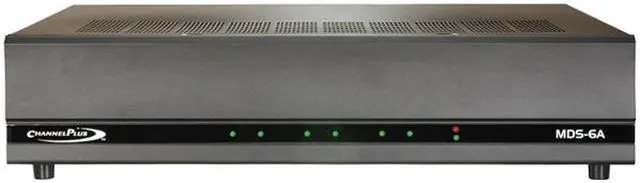

Channel Plus MDS-6A KIT #1 Music Distribution System Kit

Be the first to review this product...
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Channel Plus MDS-6A KIT #1

Model
Brand Channel Plus
Model MDS-6A KIT #1
Details
Type Pro Audio - Systems
Audio Six audio sources selectively switched to six speaker zones

12 channels (6 left & right pairs) x 40 watts per channel amplifier power

Front panel speaker zone on/off status indicators

Removable speaker terminals with wire lock levers (no tools required)

User feedback to all back-lighted system keypads

RJ-45 connection to each keypad with Cat-5 cable

IR target built-in to each keypad

IR remote control of audio sources with six source-specific, routed IR output ports

Frequency response 20 Hz to 20 kHz ±1 dB

Total harmonic distortion @ 1 kHz 0.02%

Signal-to-noise ratio greater than 95 dB

Zone-to-zone crosstalk isolation greater than 70 dB
Features

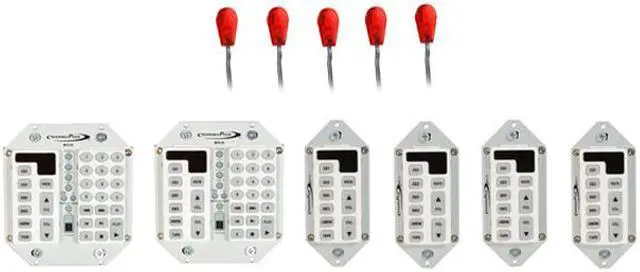

Features The Model MDS-6A Kit #1 Music Distribution System Kit offers the basic components needed to assemble a six room music distribution system. The kit includes: (1) - Model MDS-6A Music Distribution System amplifier, (4) - Model MCS-1A Speaker Zone Control Keypads, (2) - Model MCS-2A Multi-function Speaker Zone Control Keypads, (6) - Model 2171 Single-head IR Emitters

The kit provides six rooms of amplified music distribution from the Model MDS-6A amplifier; four basic speaker zone controllers with the Model MCS-1A keypads, two full-featured speaker zone controllers with the Model MCS-2A keypads, and IR control of six audio source components with the Model 2171 single-head IR emitters.
Dimension & Weight
Dimensions 17.0" x 12.5" x 4.0"
Weight 21 lbs.
Additional Information
First Listed on Newegg September 05, 2007
