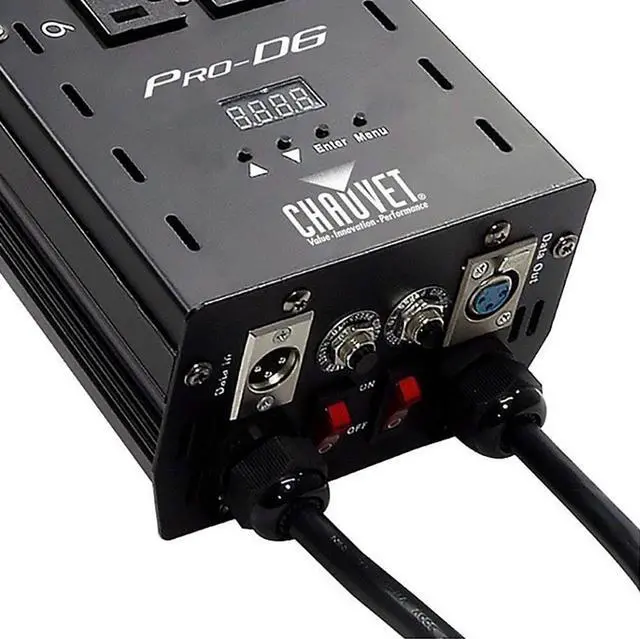

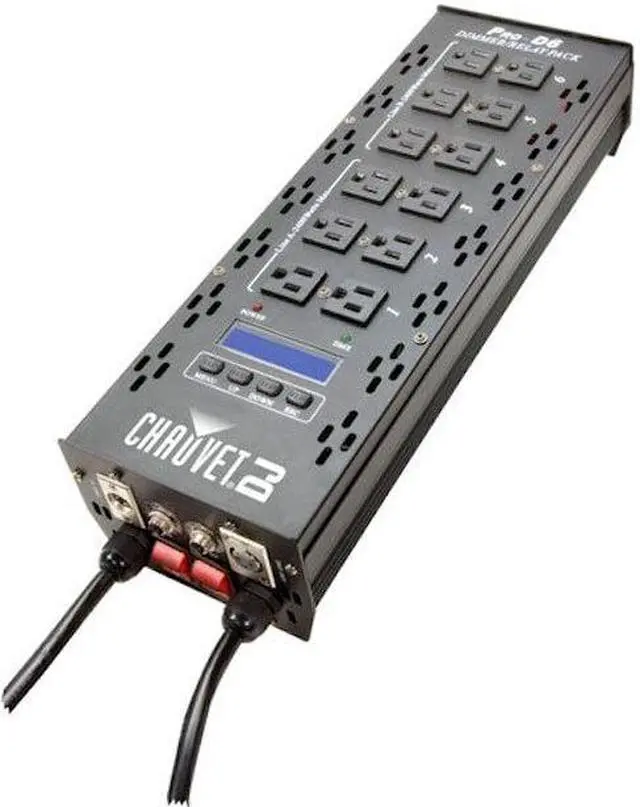

CHAUVET DJ Pro D6 6-Channel DMX-512 Dual 20A Power Dimmer Switch Relay Pack

The Pro-D6 from Chauvet DJ is a 6-channel DMX-512 dimmer/switch pack that is designed to work on multiple voltages (115V and 230V) simultaneously. This is accomplished as the dimmer/relay pack comes fitted with 20 amp connectors. The Pro-D6 offers variable electronic dimming and each channel can be set as either dimmer or relay.

Includes
6-channel DMX dimmer/relay pack
Set each channel to any DMX address
Features a variable electronic dimmer (0 to 100%)
Includes 2 Edison plugs per channel

Features:

6-channel DMX dimmer/relay pack
Increase control by setting each channel to any DMX address
Increase flexibility by setting each channel as either a dimmer or relay
Features a variable electronic dimmer (0 to 100%)
Optional square, switch or linear dimming curves for each channel
Dual 20 A power lines (requires 2 separate circuits on the same phase)
Increase options with an individual switch, circuit breaker and plug per line
Accommodates different input voltages simultaneously
Includes 2 Edison plugs per channel

Specifications:

DMX Channels: 6
DMX Connectors: 3-pin
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight: 9.3 lb (4.2 kg)
Size: 18 x 5.8 x 3.8 in (457 x 147 x 97 mm)
Approvals: CE
Output: 10 A (per channel), 20 A (per power line), 40 A (max)
Breaker Size: 20A 250V
