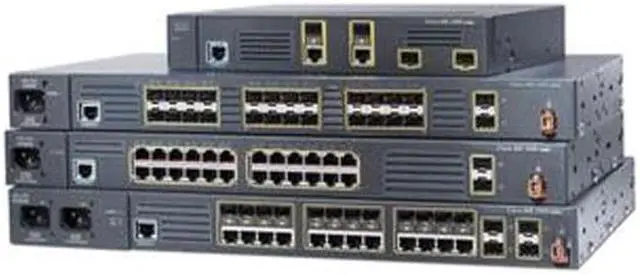

Main image of CISCO ME 3400 Series ME-3400G-2CS-A Managed AC Ethernet Access Switch

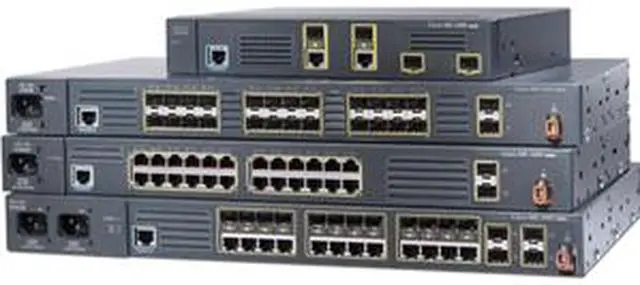

Alt view image 2 of 2 - CISCO ME 3400 Series ME-3400G-2CS-A Managed AC Ethernet Access Switch

Shop All Cisco Systems, Inc. Products

CISCO ME 3400 Series ME-3400G-2CS-A Managed AC Ethernet Access Switch

Be the first to review this product...

Managed

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The Cisco ME-3400G-2CS-A Ethernet Access Switch is a next-generation Layer 2 and Layer 3 customer-located device purposely built for service providers. Its design is based on the experience learned from today's most widely deployed access switches, the Cisco Catalyst 2950 Series and Catalyst 3550 Series.

Model
Brand	CISCO
Series	ME 3400 Series
Model	ME-3400G-2CS-A

Format & Standards
Format	Rackmount
Standards	IEEE 802.1s IEEE 802.1w CISCO-PORT-QOS-MIB IEEE 802.1x IEEE 802.3ad IEEE 802.3ah IEEE 802.1ag IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS classification IEEE 802.1Q VLAN IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X
Network Management Type	Managed

Ports & Interface
Primary Ports	2 x RJ45
Primary Port Speed	10M/100M/1000M

Data Transmission
VLAN Support	Yes

Details
Protocols	IP routing: Static, RIP versions 1 and 2, EIGRP, OSPF, BGPv4, PIM-SM, and PIM-DM (metro IP access only) IPv6: MLD Snooping v1 and v2 IPv6: RIP, OSPFv3, static routes Management: SNMP versions 1, 2, and 3
Security	UL 60950, Third Edition UL to CAN/CSA 22.2 No.60950, Third Edition TUV/GS to EN 60950 with Amendment A1-A4 and A11 CB to IEC 60950 with all country deviations NOM to NOM-019-SCFI AS/NZS 3260, TS001 CE Marking CLEI Coding
SNMP	Yes
QoS	Yes
Cabling	10/100 Ports: - 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) cabling SFP Ports: - 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling, 10/100/1000BASE-T operation in host systems with SGMII interface - 100BASE-FX and -LX: Duplex LC receptacle fiber connectors (multimode and single mode) - 100BASE-BX: Single-fiber LC receptacle connector (single-mode fiber) - 100BASE-EX and -ZX: Single mode fiber, which respectively spans up to 40 kilometers long and 80 kilometers long - 1000BASE-BX: Single-fiber LC receptacle connector (single-mode fiber) - 1000BASE-EX: Single Mode Fiber with DOM support - 1000BASE-SX, -LX/LH, and -ZX and CWDM and DWDM: Duplex LC receptacle fiber connectors (multimode and single-mode fiber) - Cisco Catalyst 3560 SFP Interconnect Cable - Management console port: RJ45-to-DB9 cable for PC connections
LEDs	Per-port status LEDs: Link integrity, port disabled, and activity indications System-status LED

Power Supply
Power	Power consumption: 15W (typical), 20W (maximum), 68 Btus per hour AC input voltage and frequency: 100 to 240 VAC, 0.5 to 0.25A, 50 to 60 Hz

Dimensions & Weight
Dimensions	1.73 x 10.6 x 7.1 in. (4.4 x 26.9 x 18.2 cm)
Weight	3.5 lbs (1.6 kg)

Environmental
Temperature	0°C to 50°C (32°F to 122°F)
Humidity	5% - 95%, Non-condensing

Features
Features	2 dual-purpose (10/100/1000 and SFP) ports 2 SFP-based Gigabit Ethernet and 100BASE-X ports AC power supplies 6.5-mpps forwarding rate 1-RU small form-factor multilayer switch Intelligent Ethernet demarcation switch 3 Cisco IOS Software feature image options (METROBASE, METROACCESS, and METROIPACCESS)

Additional Information
First Listed on Newegg	October 11, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-553-6387
