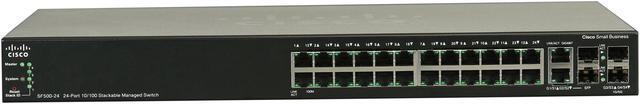

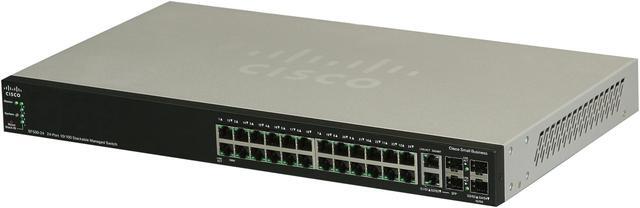

Cisco Small Business 500 Series SF500-24-K9-NA Managed Stackable Ethernet Switch

OPEN BOX Product Type
OUT OF STOCK.
  • 16K MAC Address Table
  • 8MB Buffer Memory
  • Managed
LOADING...
Specs

Learn more about the Cisco Systems, Inc. SF500-24-K9-NA

Model
Brand Cisco Small Business
Series 500 Series
Model SF500-24-K9-NA
Format & Standards
Format Rackmount
Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management Type Managed
Ports & Interface
Primary Ports 24 x RJ45 + 4 x Gigabit Ethernet
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
MAC Address Table 16K
VLAN Support Yes
Jumbo Frames Yes
Details
Buffer Memory 8MB
Security SSH
SSL
IEEE 802.1X
STP BPDU Guard
STP Root Guard
DHCP snooping
IP Source Guard (IPSG)
Dynamic ARP Inspection (DAI)
Secure Core Technology(SCT)
Port security
RADIUS/TACACS+
RADIUS accounting
Storm control
DoS prevention
Congestion avoidance
Multiple user privilege levels in CLI
ACLs
Stackable Yes
SNMP Yes
QoS Yes
LACP Yes
Layer 2-3
Port Mirroring Yes
Cabling Unshielded twisted pair (UTP) Category 5 or better; Fiber options (SMF and MMF); Coaxial SFP+ for stacking purposes
LEDs System, Link/Act, Speed
Button Reset button
Power 100-240V, 47-63 Hz, internal, universal
Features
Features Interface:
24 10/100 ports
4 Gigabit Ethernet (2 combo* Gigabit Ethernet + 2 1GE/5GE SFP)

Switching Capacity (Gbps): 28.8

Capacity in mpps (64-byte packets): 9.52

Green Power (mode)

Flash: 32 MB

800 MHz ARM CPU memory: 256 MB

*Each combo mini-GBIC port has one 10/100/1000 copper Ethernet port and one mini-GBIC/SFP Gigabit Ethernet slot, with one port active at a time.
Dimensions & Weight
Dimensions 440 x 44 x 257 mm
Weight 3.09 kg
Environmental
Temperature 0ºC to 40ºC (32ºF to 104ºF)
Humidity 10% - 90%, Non-condensing
Group
Model SF500-24-K9-NA
Additional Information
Date First Available May 12, 2014
