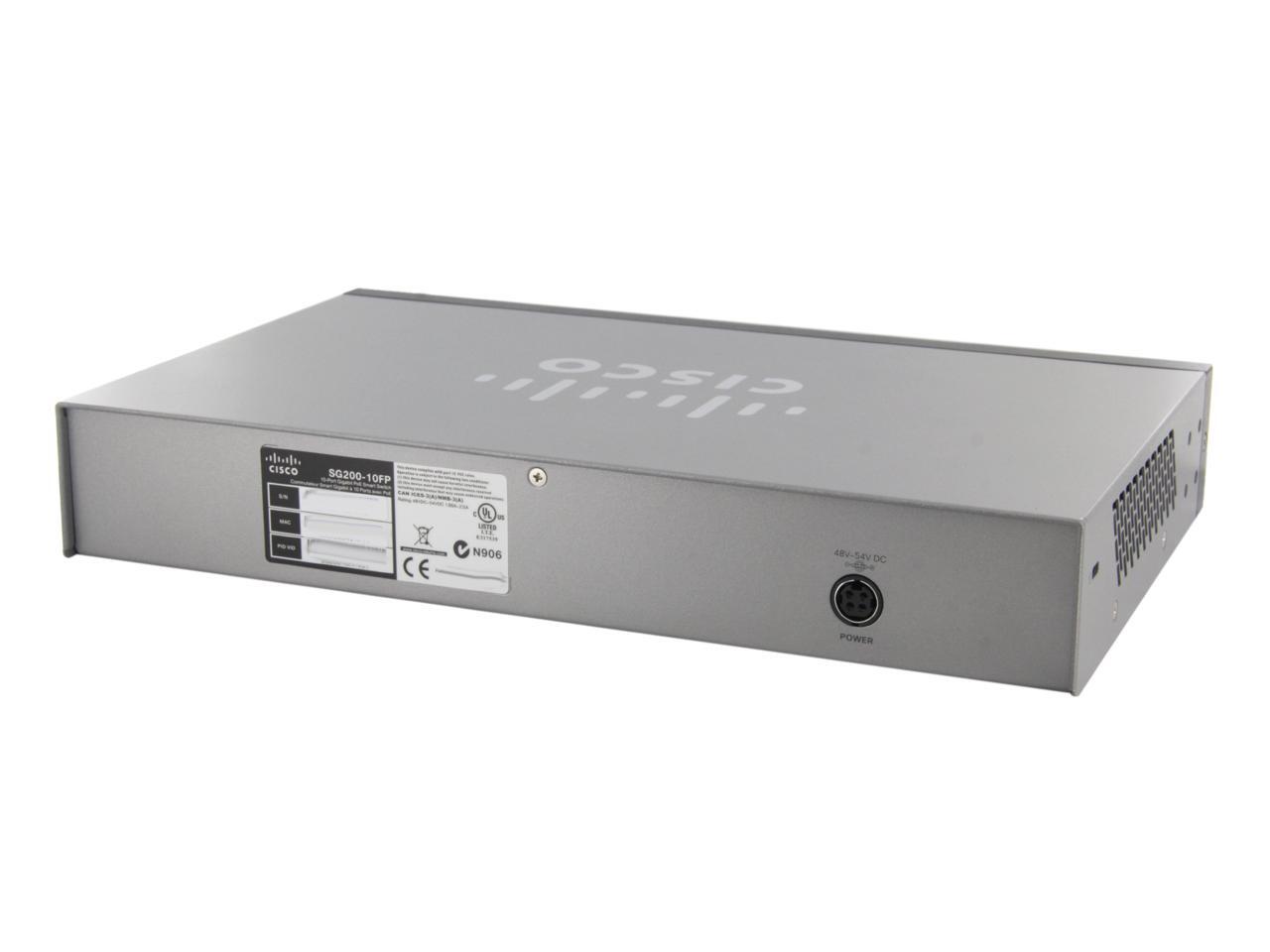

Main image of Cisco SG200-10FP 10-Port PoE Smart Switch

100%

Alt view image 2 of 6 - Cisco SG200-10FP 10-Port PoE Smart Switch

Alt view image 3 of 6 - Cisco SG200-10FP 10-Port PoE Smart Switch

Alt view image 4 of 6 - Cisco SG200-10FP 10-Port PoE Smart Switch

Alt view image 5 of 6 - Cisco SG200-10FP 10-Port PoE Smart Switch

Alt view image 6 of 6 - Cisco SG200-10FP 10-Port PoE Smart Switch

360^°

Shop All Cisco Systems, Inc. Products

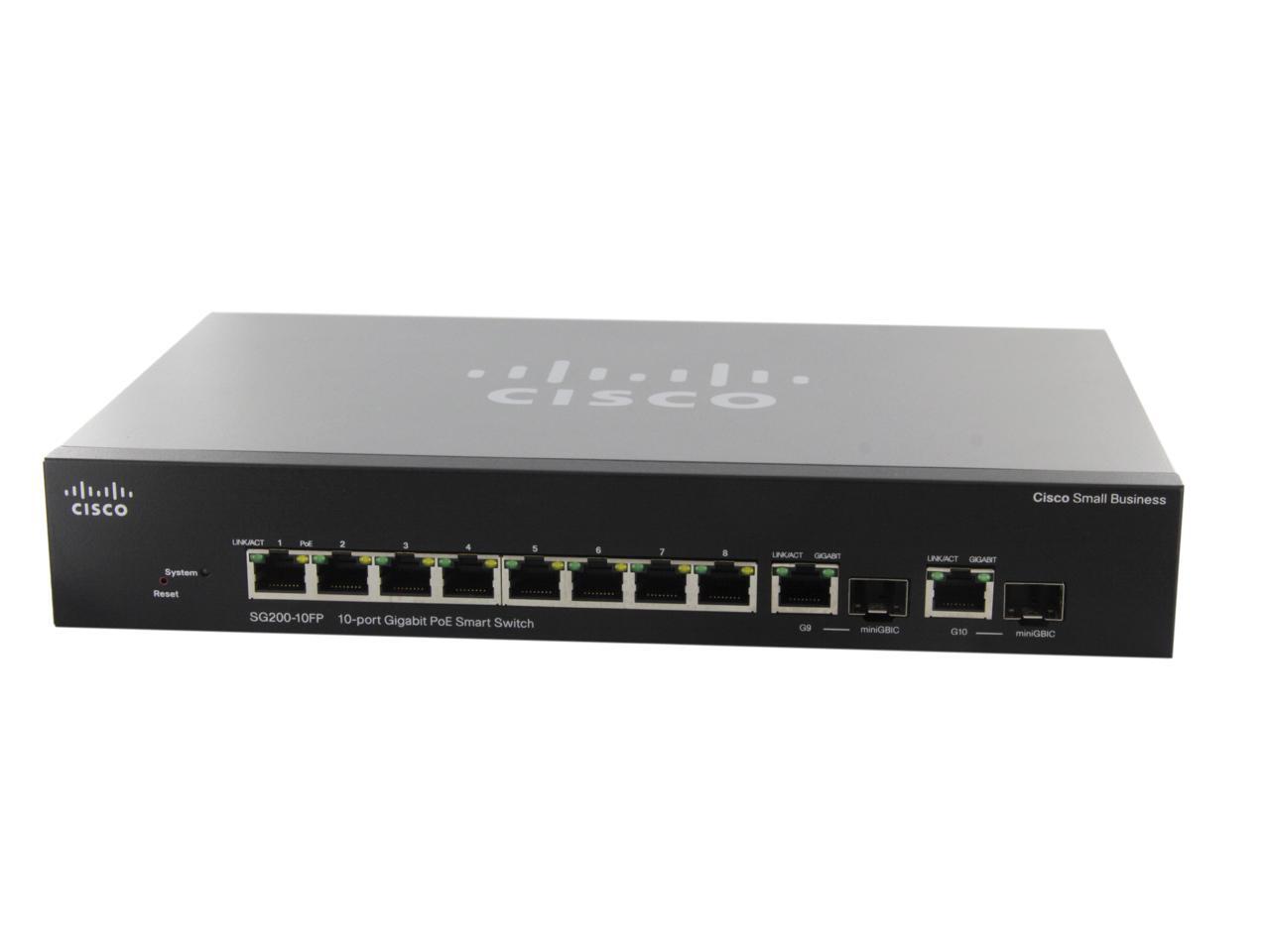

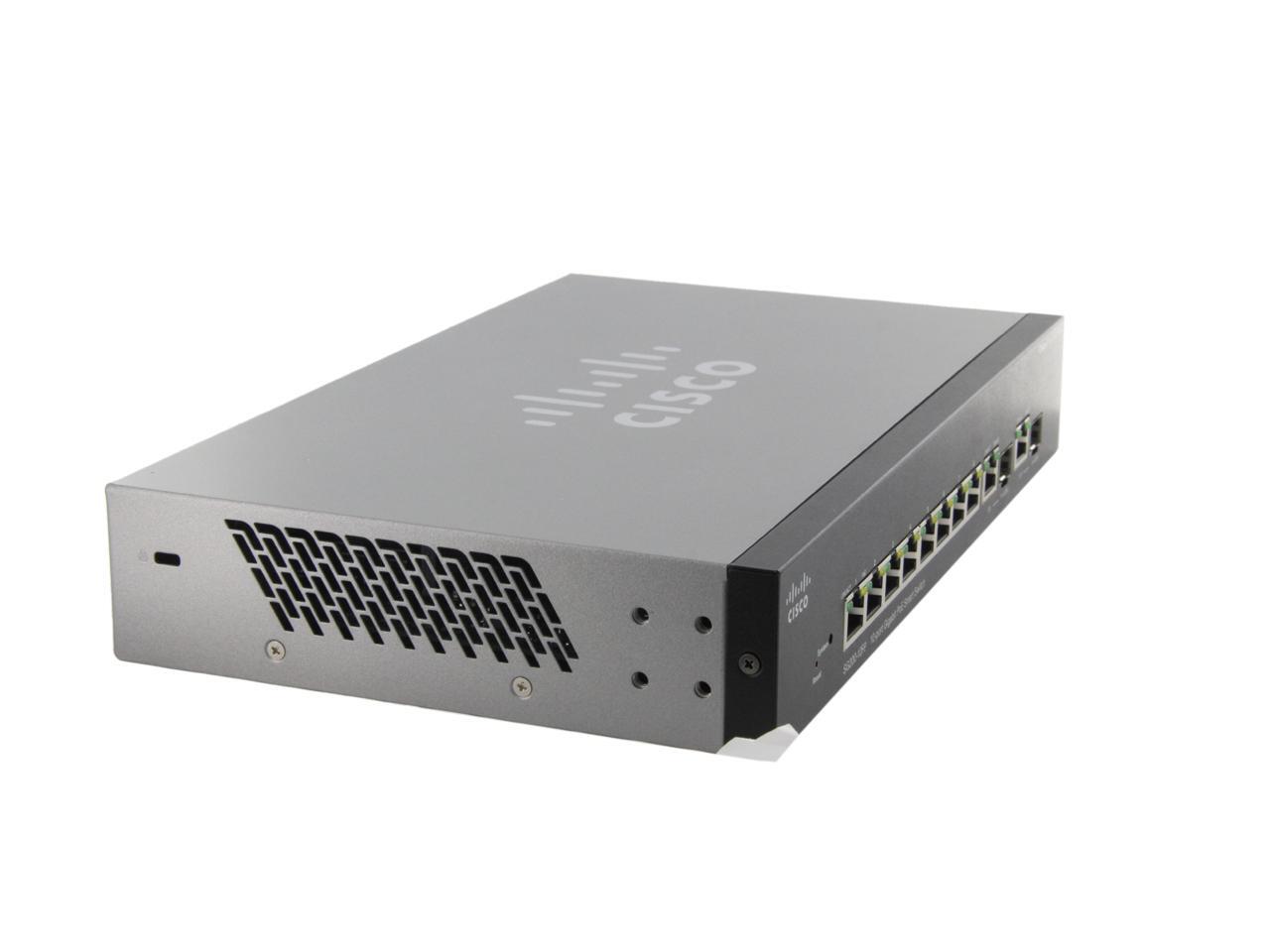

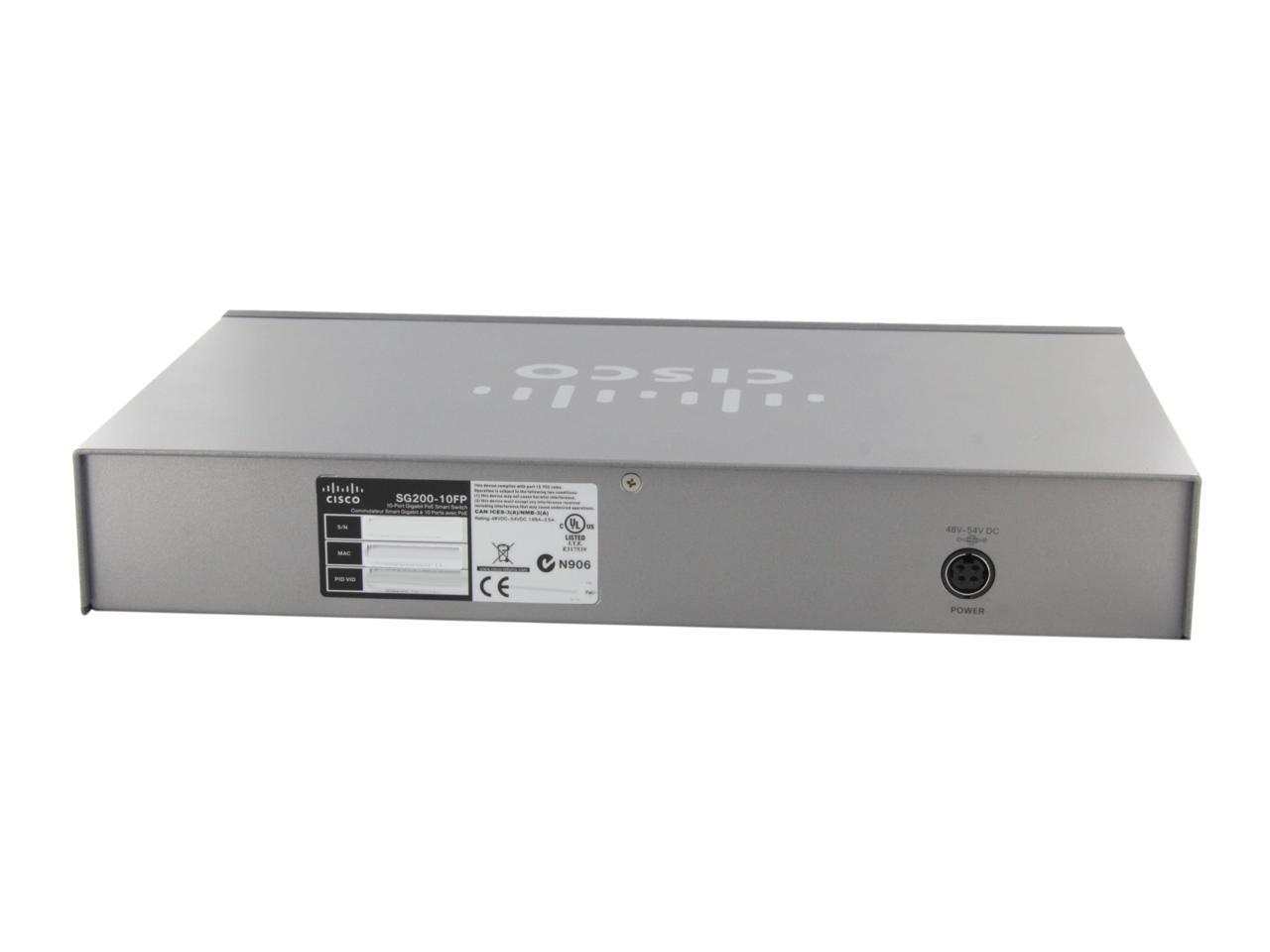

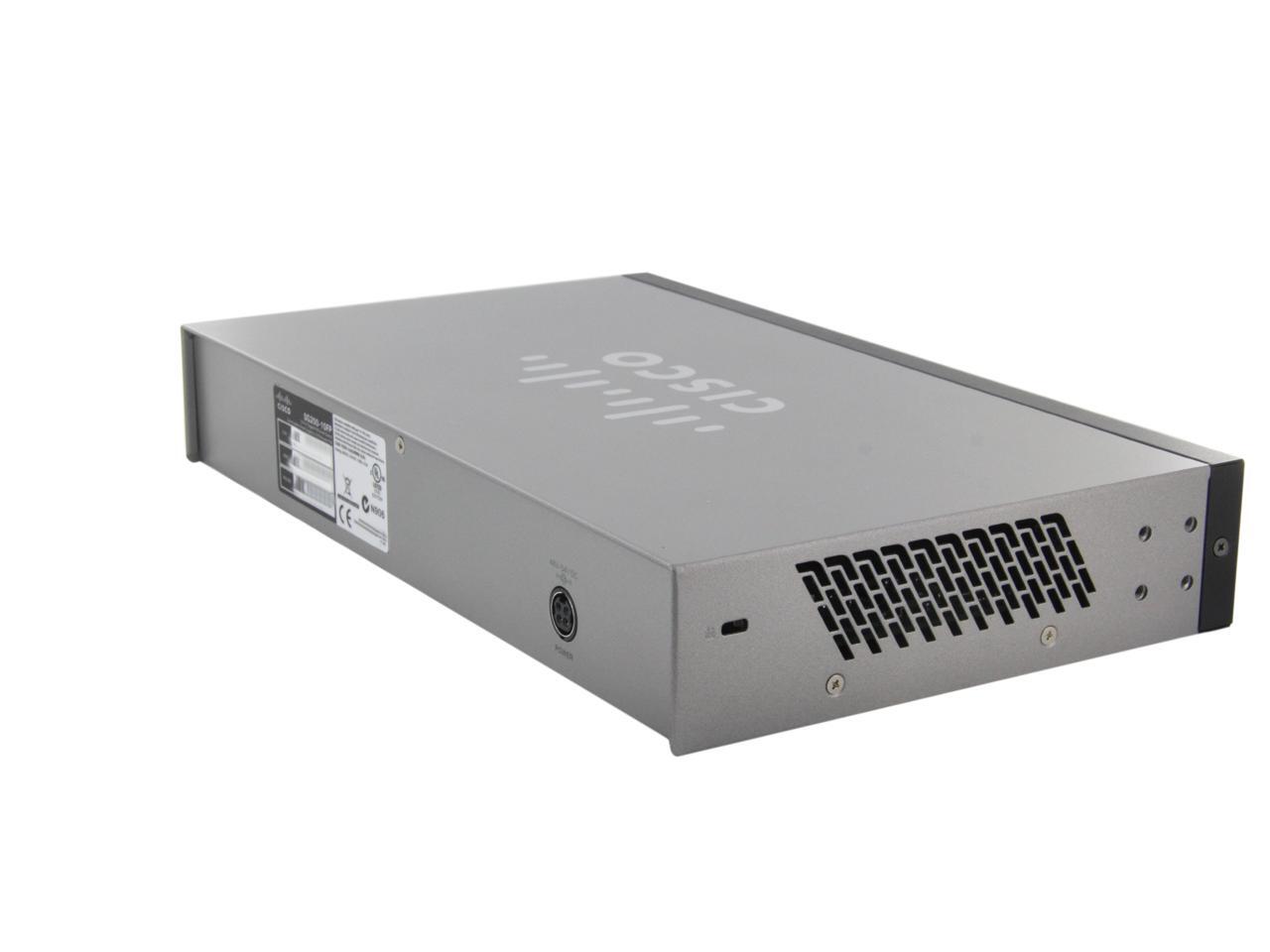

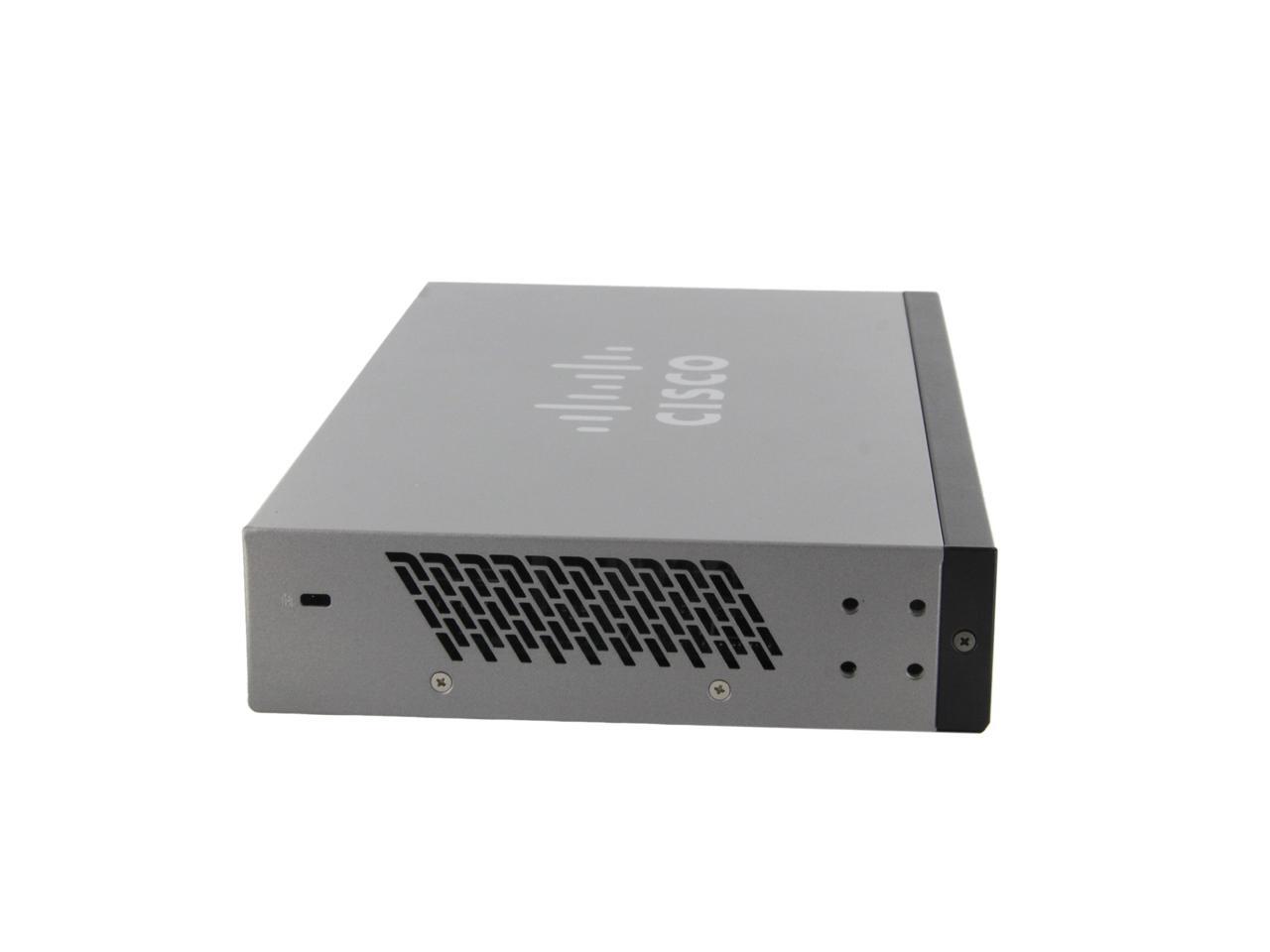

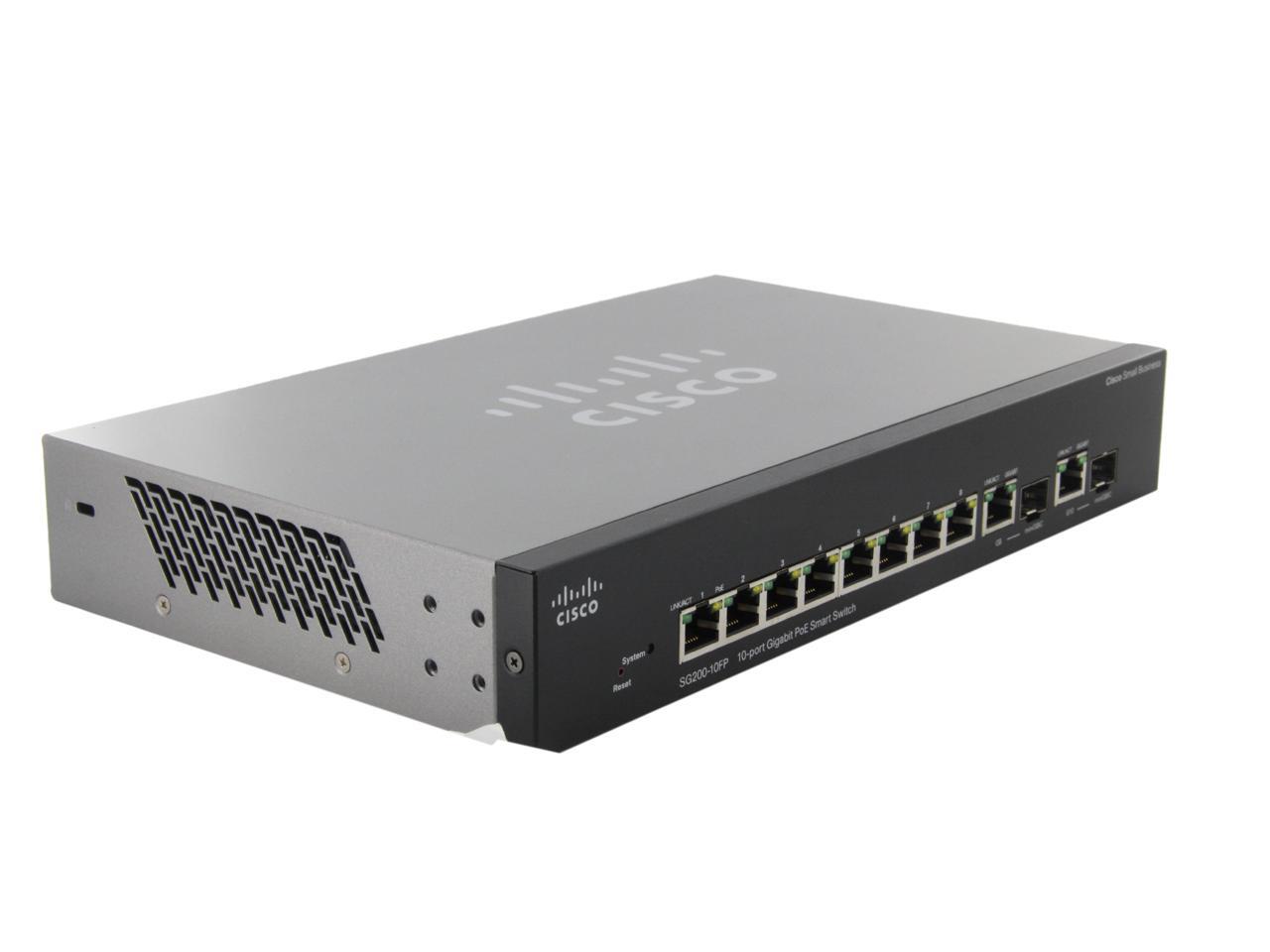

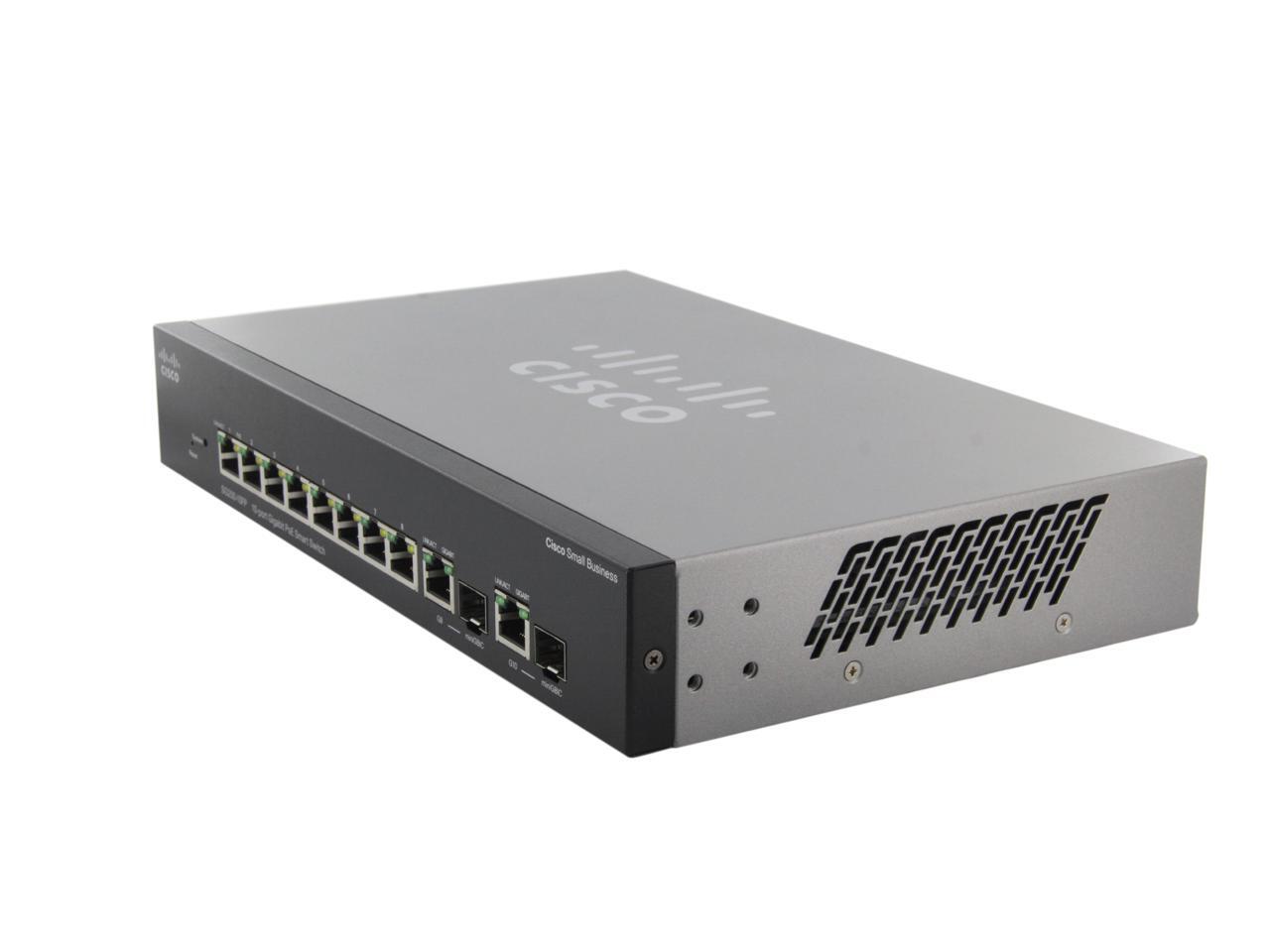

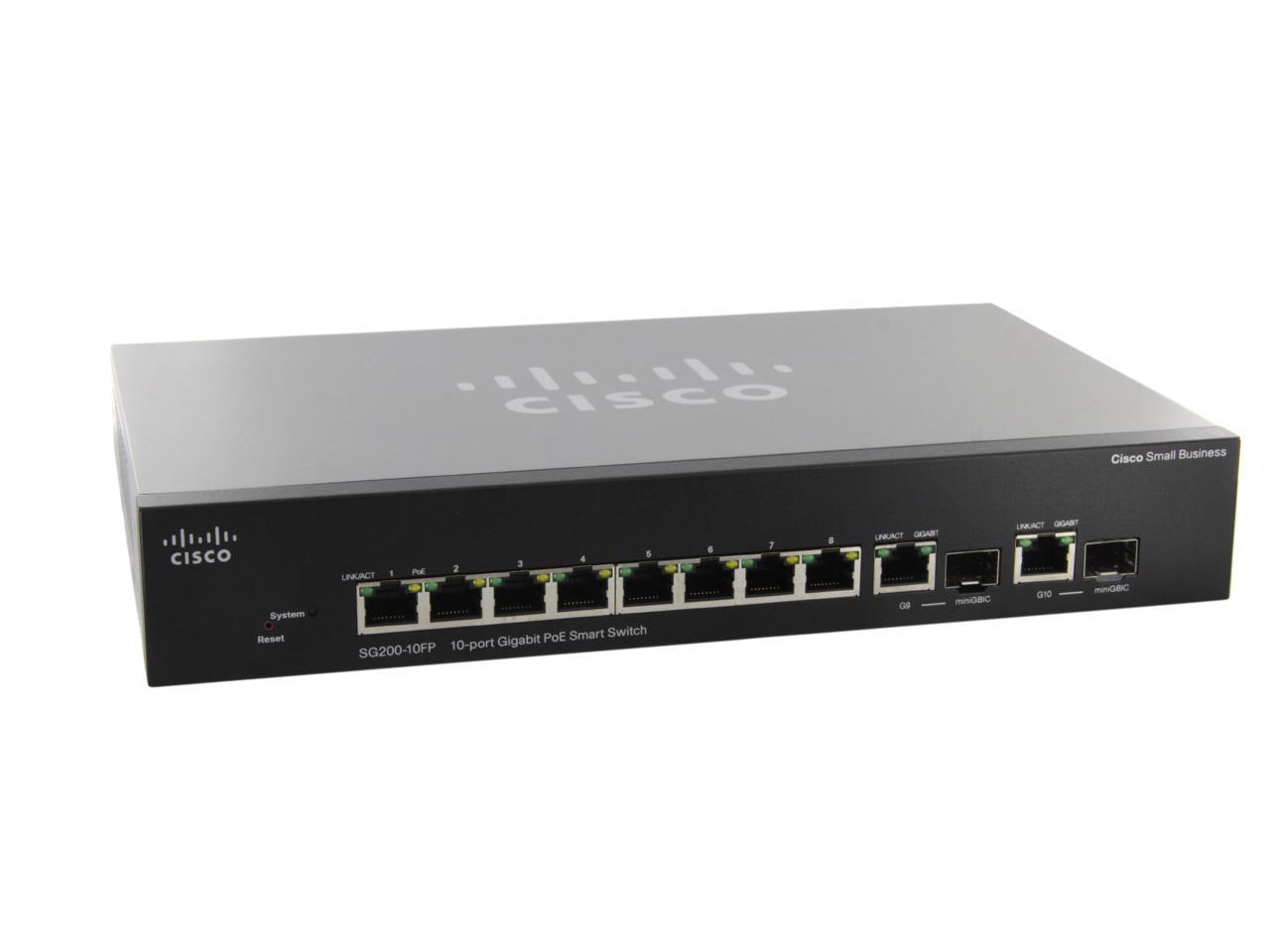

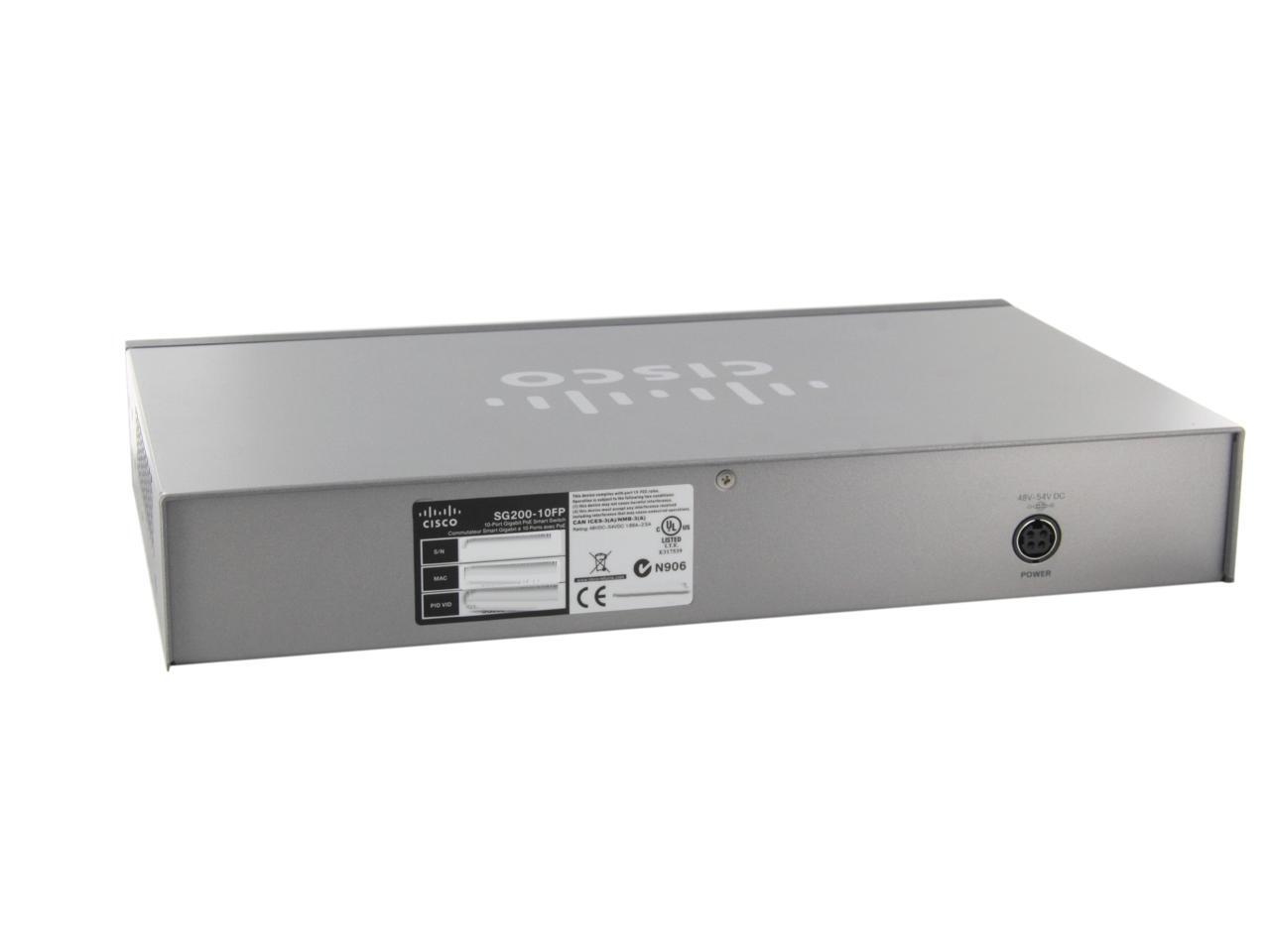

Cisco SG200-10FP 10-Port PoE Smart Switch

Be the first to review this product...

Packet Buffer: 4MB Buffer Memory
Smart
PoE
Format: Desktop

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	Cisco Small Business
Model	SG200-10FP

Format & Standards
Format	Desktop
Network Management Type	Smart

Ports & Interface
Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
VLAN Support	Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs). 16 VLANs supported in SG200-08 and SG200-08P Port-based and 802.1Q tag-based VLANs Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS

Details
Buffer Memory	Packet Buffer: 4MB
Security	IEEE 802.1X(Authenticator role): 802.1X: RADIUS authentication, MD5 hash Port security: Locks MAC addresses to ports, and limits the number of learned MAC addresses Storm control: Broadcast, multicast, and unknown unicast DoS prevention: DoS attack prevention
PoE	Yes
SNMP	SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)
QoS	Yes
LACP	Port grouping Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) Up to 4 groups Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
Port Mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported
Module Support	Yes
Cabling	Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T / 100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T
LEDs	System, Link / Act, PoE, Speed
Button	Reset button
Power	(external) 100V-240V, 2.5A, 50-60 Hz

Features
Features	Switching capacity and forwarding rate: 14.88 mpps / 20 Gbps Spanning Tree Protocol (STP) Standard 802.1d STP support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND) IPv6 stateless address auto-configuration Path maximum transmission unit (MTU) discovery Duplicate address detection (DAD) Internet Control Message Protocol (ICMP) version 6 IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) support IPv6 QoS: Prioritize IPv6 packets in hardware Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring

Dimensions & Weight
Dimensions	1.45" x 11.00" x 6.70"
Weight	2.78 lbs.

Group
Model	SG200-10FP-NA

Additional Information
First Listed on Newegg	December 13, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): Lifetime
Limited Warranty period (labor): Lifetime
