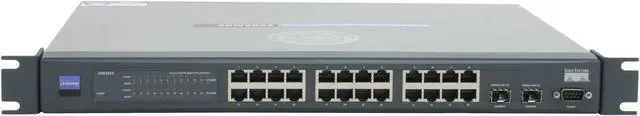

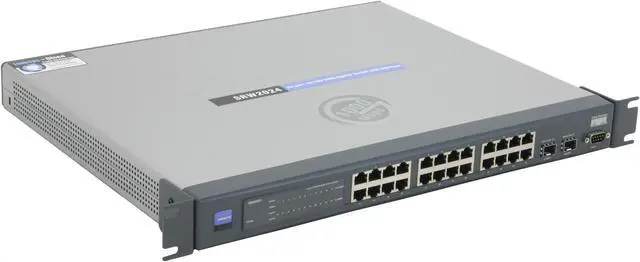

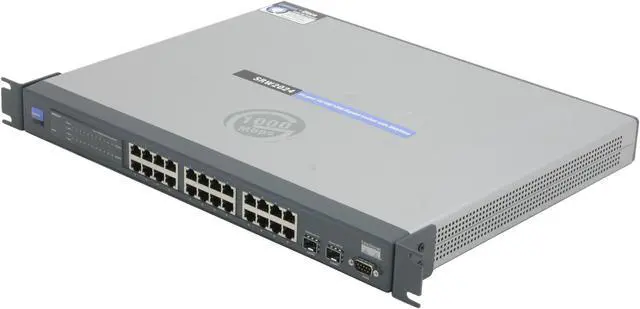

24 x 10/100/1000 RJ-45 ports and 2 shared MiniGBIC slots
Primary Port Speed
10/100/1000Mbps
Data Transmission
MAC Address Table
8K
Switching Method
Store and Forward
VLAN Support
Yes
Jumbo Frames
Up to 9KB
Buffer Memory
2MB
Details
Cabling
Cat5e or better
LEDs
System, Link/Activity, Gigabit
Power Supply
Power
100-240V 0.5A
Dimensions & Weight
Dimensions
16.9" x 1.8" x 13.8"
Weight
7.35 lbs.
Environmental
Temperature
0°C to 50°C (32°F to 122°F)
Humidity
20% - 95%, Non-condensing
Features
Features
Auto MDI/MDI-X supports cable detection on all 10/100/1000 Copper ports Provides flow control mechanism to ensure zero packet loss. Uses backpressure for half-duplex operation and IEEE802.3x for full duplex operation. Provides Store-and-Forward switching mechanism Provides non-blocking switching performance Provides Multicasting, Broadcasting and Flooding Control Four egress queues on all switch ports. Support for strict priority and weighted round-robin (WRR) CoS policies Traffic classification based on Port#, VLAN priority in VLAN tagging packet Supports 802.1q Tagged based VLAN for support of up to 64 VLANs Supports up to 8 trunking groups Load sharing among trunk ports based on MAC address Port Mirroring to monitor the traffic of Mirrored ports ACL to limit the interface and IP domain to manage the switch Web-based configuration makes installation and setup easy
Minimum Requirements: Cat5 Ethernet Network Cable TCI/IP Protocol installed on each computer within the network Network Adapter installed in each computer Network Operating System (e.g. Windows, Linux, MacOS X)
Packaging
Package Contents

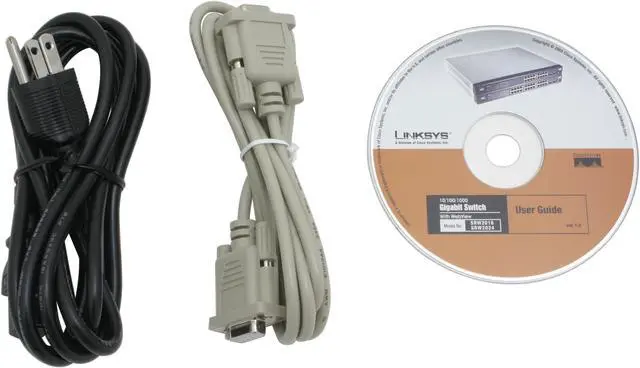

SRW2024 Power Cord Serial Cable Resource Disk
Additional Information
First Listed on Newegg
July 14, 2005
