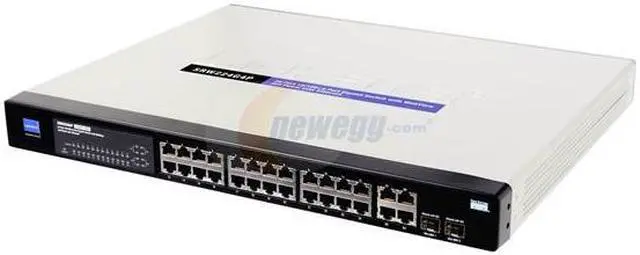

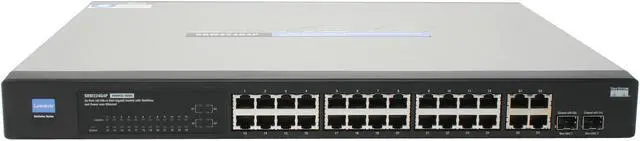

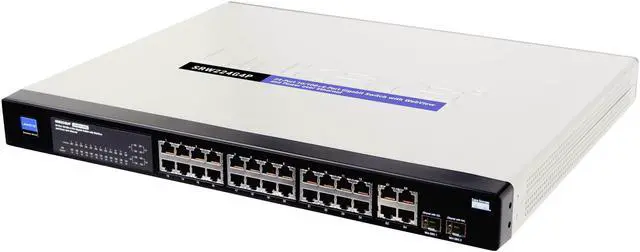

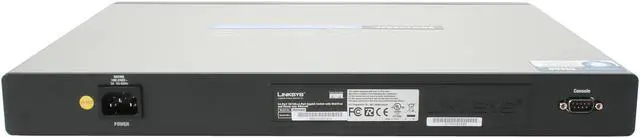

Cisco Small Business SRW224G4P Switch

OUT OF STOCK.
  • 8K MAC Address Table
Specs
Reviews

Learn more about the Cisco Systems, Inc. SRW224G4P

Model
Brand Cisco Small Business
Model SRW224G4P
Format & Standards
Standards 802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet,
802.3ab 1000BASE-T Gigabit Ethernet
802.3z Gigabit Ethernet
802.3x Flow Control
Ports & Interface
Primary Ports 24 x RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T with 2 shared SFP slots and 2 giga ports
Primary Port Speed 10/100Mbps + 1000Mbps
Data Transmission
MAC Address Table 8K
VLAN Support Number of VLANs: 256
Port-based and 802.1q based VLANs
Management VLAN
Jumbo Frames Supports frames up to 10K byte frames
Details
Security IEEE 802.1X:
802.1X - RADIUS Authentication. MD5 Encryption
ACLs - Drop or rate limit based on:
Source and destination MAC address
Source and destination IP address
Protocol
ToS/DSCP
Port
VLAN
Ethertype
Cabling UTP CAT 5 or better for 10BASE-T/100BASE-TX
UTP CAT 5e or better for 1000BASE-T
LEDs Power, Link/Act, Speed
Power 100-240V 0.5A
Features
Features Switching Capacity: 12.8 Gbps, non-blocking
Web User Interface: Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)
SNMP: SNMP version 1, 2, 3 with support for traps
SNMP MIBs: RFC1213 MIB-2, RFC2863 Interface MIB, RFC2665 Ether-like MIB, RFC1493 Bridge MIB, RFC2674 Extended Bridge MIB (P-bridge, Q-bridge), RFC2819 RMON MIB (groups 1,2,3,9 only), RFC2737 Entity MIB, RFC 2618 RADIUS Client MIB
RMON: Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis
Firmware Upgrade: Web browser upgrade (HTTP), TFTP upgrade
Port Mirroring: Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe
RFC854 Telnet (Menu-driven configuration)
Secure Shell (SSH)* and Telnet Management (SSHv2)
Telnet client
SSL security for Web UI
Switch audit log
DHCP client
BootP
SNTP
Xmodem upgrade
Cable diagnostics
PING
Dimensions & Weight
Dimensions 17.3" x 13.7" x 1.8"
Weight 8.9 lbs.
Environmental
Temperature 0ºC to 45ºC (32ºF to 113ºF)
Humidity 20 to 95%
Packaging
Package Contents SRW224G4P
User Guide
Resource Disk
Power Cord
Screws
Console Cable
Additional Information
Date First Available April 09, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
