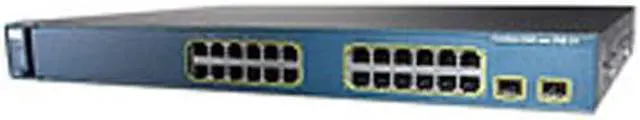

Main image of CISCO CATALYST 3560 WS-C3560-24TS-E 10/100Mbps + 1000Mbps Switch 24 Ethernet 10/100 ports and 2 Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet ports Up to 12,000 MAC Address Table 128 MB DRAM
32 MB Flash memory Buffer Memory

Shop All Cisco Systems, Inc. Products

CISCO CATALYST 3560 WS-C3560-24TS-E 10/100Mbps + 1000Mbps Switch 24 Ethernet 10/100 ports and 2 Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet ports Up to 12,000 MAC Address Table 128 MB DRAM 32 MB Flash memory Buffer Memory

Be the first to review this product...

Up to 12,000 MAC Address Table
128 MB DRAM 32 MB Flash memory Buffer Memory

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Cisco Catalyst 3560 Switch Includes 24 X 10/100 Fast Ethernet Ports - 2 X Sfp Expansion Slots - Enhanced The Cisco Catalyst 3560 Series Is A Line Of Fixed-Configuration Enterprise-Class Switches That Include Ieee 802.3Af And Cisco Pre-Standard Power

Model
Brand	CISCO
Series	CATALYST 3560
Model	WS-C3560-24TS-E

Format & Standards
Standards	IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3ad IEEE 802.3af IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification 1000BASE-X (SFP) 1000BASE-SX 1000BASE-LX/LH 1000BASE-ZX 1000BASE-CWDM SFP 1470 nm 1000BASE-CWDM SFP 1490 nm 1000BASE-CWDM SFP 1510 nm 1000BASE-CWDM SFP 1530 nm 1000BASE-CWDM SFP 1550 nm 1000BASE-CWDM SFP 1570 nm 1000BASE-CWDM SFP 1590 nm 1000BASE-CWDM SFP 1610 nm RMON I and II standards SNMPv1, SNMPv2c, and SNMPv3

Ports & Interface
Primary Ports	24 Ethernet 10/100 ports and 2 Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet ports
Primary Port Speed	10/100Mbps + 1000Mbps

Data Transmission
MAC Address Table	Up to 12,000
VLAN Support	Yes
Jumbo Frames	Up to 1546 bytes
Buffer Memory	128 MB DRAM 32 MB Flash memory

Details
Security	IEEE 802.1x allows dynamic, port-based security, providing user authentication. IEEE 802.1x with VLAN assignment allows a dynamic VLAN assignment for a specific user regardless of where the user is connected. IEEE 802.1x with voice VLAN permits an IP phone to access the voice VLAN irrespective of the authorized or unauthorized state of the port. IEEE 802.1x and port security are provided to authenticate the port and manage network access for all MAC addresses, including those of the client. IEEE 802.1x with an ACL assignment allows for specific identity-based security policies regardless of where the user is connected. IEEE 802.1x with Guest VLAN allows guests without 802.1x clients to have limited network access on the guest VLAN. CISCO security VLAN ACLs (VACLs) on all VLANs prevent unauthorized data flows from being bridged within VLANs. CISCO standard and extended IP security router ACLs (RACLs) define security policies on routed interfaces for control- and data-plane traffic. Port-based ACLs (PACLs) for Layer 2 interfaces allow application of security policies on individual switch ports. Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address. Unknown unicast and multicast port blocking allows tight control by filtering packets that the switch has not already learned how to forward. SSHv2, Kerberos, and SNMPv3 provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSHv2, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions. Private VLAN provides security and isolation between switch ports, helping ensure that users cannot snoop on other users' traffic. Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the CISCO Secure Intrusion Detection System (IDS) to take action when an intruder is detected.
Cabling	10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling 10BASE-T PoE ports: RJ-45 connectors, two-pair Category 3, 4, or 5 UTP cabling power pins 1,2 (negative) and 3,6 (positive) 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling 100BASE-TX PoE ports: RJ-45 connectors, two-pair Category 5 UTP cabling, power on pins 1,2 (negative) and 3,6 (positive) 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-SX, -LX/LH, -ZX, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber) CISCO Catalyst 3560 SFP Interconnect Cable: two-pair shielded cabling, 50 cm Management console port: RJ-45-to-DB-9 cable for PC connections; for terminal connections, use RJ-45- to-DB-25 female data-terminal-equipment (DTE) adaptor (can be ordered separately from CISCO; part number ACS-DSBUASYN=)
LEDs	Per-port status LEDs: Link integrity, disabled, activity, speed, full-duplex indications, PoE applied, PoE error, and PoE disabled indications System-status LEDs: System, RPS, link status, link duplex, link speed, and PoE indications

Power Supply
Power	100-240 VAC (autoranging), 1.3-0.8A, 50-60 Hz

Dimensions & Weight
Dimensions	17.5" x 11.8" x 1.7"
Weight	8.5 lbs.

Environmental
Temperature	0°C to 45°C (32°F to 113°F)
Humidity	10 to 85% (noncondensing)

Features
Features	RU fixed-configuration, multilayer switch Enterprise-class intelligent services delivered to the network edge IP Services license (formerly EMI) installed Advanced IP routing Advanced QoS Granular Rate Limiting

Disclaimer
Disclaimer	For most updated manufacturer warranty, please go to www.cisco.com.
Registration Phone	1-800-Go-Cisco

Additional Information
First Listed on Newegg	January 08, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 90 days
Limited Warranty period (labor): 90 days
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Website
Support Phone: 1-800-553-6387
