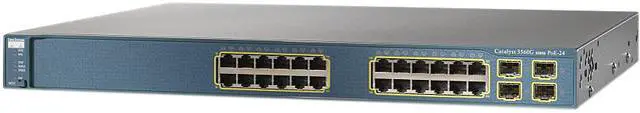

Main image of CISCO CATALYST 3560 WS-C3560G-24PS-S Switch /w PoE (Grade-A)

Shop All Cisco Systems, Inc. Products

CISCO CATALYST 3560 WS-C3560G-24PS-S Switch /w PoE (Grade-A)

REFURBISHED

Be the first to review this product...

up to 12,000 MAC Address Table
128 MB DRAM
32 MB Flash memory Buffer Memory
PoE

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Cisco Catalyst 3560 Series |Â 24 Port | Gigabit Ethernet | PoE | IP Base | 370WÂ | WS-C3560G-24PS-SThe WS-C3560G-24PS-S and WS-C3560G-48PS-S switches are part of the Cisco Catalyst 3560G family of switches. These fixed-configuration, Gigabit Ethernet switches are an excellent and scalable option for small enterprise LAN access or branch-office environments. These PoE switches feature (24) or (48) Gigabit Ethernet ports as well as (4) additional SFP ports. WS-C3560G-24PS-S : Ports:(24) x 10/100/1000 + 4 SFPModel # WS-C3560G-24PS-S Form Factor Desktop, Rack Mountable Rack Units 1RU Software IP Base Subtype Gigabit Ethernet Flash Memory 32 MB PoE Budget 370W Network Module Slots 0 Total VLANs 1,024 Fans Internal Acoustic Noise 38-44 dBa Power Supply Rated Maximum 540W Measured 100% Throughput Power Consumption: Switch Power 96W Measured 100% Throughput Power Consumption: Total Output 325 BTU/hr Dimensions:1.73 x 17.5 x 11.8 inManufacturer Cisco Power Over Ethernet (PoE) PoE RAM 128 MB Jumbo Frame Support 9,018 byte MAC Address Table Size 12,000 Stackable No Forwarding Bandwidth 38.7 mpps AC Input Voltage 100-240 VAC DC Input Voltage 14A Product Line Cisco Catalyst Weight:11.3 lbsMTBF:224,100 hoursPower Rating 0.52 kVa Measured 5% Throughput Power Consumption: Switch Power 86W Measured 5% Throughput Power Consumption: Total Output 293 BTU/hr AC Input Voltage 100-240VAC Environmental Parameters: Min Operating Temperature 32Â° F Max Operating Temperature 113Â° F Humidity 10 to 85% noncondensing Min Storage Temperature -13Â° F Max Storage Temperature 158Â° F Standard Features: Dynamic Host Configuration Protocol (DHCP) Autonegotiation Dynamic Trunking Protocol (DTP) Port Aggeration Protocol (PAgP) Link Aggeration Protocol (LACP) Automatic Media-Department Interface Crossover (MDIX) Switching Database Manager Local Proxy Address Resolution Protocol (ARP) Multicast VLAN Registration (MVR) Unidirectional Link Detection Protocol (UDLD) VLAN1 MinimizationÂ Internet Group Management Protocol (IGMP) Voice VLAN Cisco VLAN Trunking Protocol (VTP) Layer 2 Trace Route Trivial File Transfer Protocol (TFTP) Network Timing PRotocol (NTP) Private VLANs Access Control Lists (ACL's) Secure Shell (SSH) ProtocolÂ MAC Address Notification Bridge Protocol Data Unit (BPDU) IGMP Filtering IEEE 802.1s/w Rapid Spanning Tree Protocol (RSTP) Cisco Hot Standby Router Protocol (HSRP) 802.1p Class of Service Accessories: CAB-RPS2300= New CAB-RPS2300= Refurbished GLC-SX-MM New GLC-SX-MM Refurbished GLC-SX-MM Compatible/3rd Party GLC-LH-SM New GLC-LH-SM Refurbished GLC-LH-SM Compatible/3rd Party CAB-SFP-50CM Refurbished CAB-SFP-50CM Compatible/3rd Party RCKMNT-1RU Media:

Model
Brand	CISCO
Series	CATALYST 3560
Model	WS-C3560G-24PS-S

Format & Standards
Standards	IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3ad IEEE 802.3af IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification 1000BASE-X (SFP) 1000BASE-SX 1000BASE-LX/LH 1000BASE-ZX 1000BASE-CWDM SFP 1470 nm 1000BASE-CWDM SFP 1490 nm 1000BASE-CWDM SFP 1510 nm 1000BASE-CWDM SFP 1530 nm 1000BASE-CWDM SFP 1550 nm 1000BASE-CWDM SFP 1570 nm 1000BASE-CWDM SFP 1590 nm 1000BASE-CWDM SFP 1610 nm RMON I and II standards SNMPv1, SNMPv2c, and SNMPv3

Ports & Interface
Primary Ports	24 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	up to 12,000
VLAN Support	Yes
Jumbo Frames	Yes

Details
Buffer Memory	128 MB DRAM 32 MB Flash memory
Security	IEEE 802.1x allows dynamic, port-based security, providing user authentication. IEEE 802.1x with VLAN assignment allows a dynamic VLAN assignment for a specific user regardless of where the user is connected. IEEE 802.1x with voice VLAN permits an IP phone to access the voice VLAN irrespective of the authorized or unauthorized state of the port. IEEE 802.1x and port security are provided to authenticate the port and manage network access for all MAC addresses, including those of the client. IEEE 802.1x with an ACL assignment allows for specific identity-based security policies regardless of where the user is connected. IEEE 802.1x with Guest VLAN allows guests without 802.1x clients to have limited network access on the guest VLAN. CISCO security VLAN ACLs (VACLs) on all VLANs prevent unauthorized data flows from being bridged within VLANs. CISCO standard and extended IP security router ACLs (RACLs) define security policies on routed interfaces for control- and data-plane traffic. Port-based ACLs (PACLs) for Layer 2 interfaces allow application of security policies on individual switch ports. Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address. Unknown unicast and multicast port blocking allows tight control by filtering packets that the switch has not already learned how to forward. SSHv2, Kerberos, and SNMPv3 provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSHv2, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions. Private VLAN provides security and isolation between switch ports, helping ensure that users cannot snoop on other users' traffic. Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the CISCO Secure Intrusion Detection System (IDS) to take action when an intruder is detected.
PoE	Yes
Layer	3
Cabling	10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling 10BASE-T PoE ports: RJ-45 connectors, two-pair Category 3, 4, or 5 UTP cabling power pins 1,2 (negative) and 3,6 (positive) 100BASE-TX ports: RJ-45 connectors, two-pair Category 5 UTP cabling 100BASE-TX PoE ports: RJ-45 connectors, two-pair Category 5 UTP cabling, power on pins 1,2 (negative) and 3,6 (positive) 1000BASE-T ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-T SFP-based ports: RJ-45 connectors, four-pair Category 5 UTP cabling 1000BASE-SX, -LX/LH, -ZX, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber) CISCO Catalyst 3560 SFP Interconnect Cable: two-pair shielded cabling, 50 cm Management console port: RJ-45-to-DB-9 cable for PC connections; for terminal connections, use RJ-45- to-DB-25 female data-terminal-equipment (DTE) adaptor (can be ordered separately from CISCO; part number ACS-DSBUASYN=)
LEDs	Per-port status LEDs: Link integrity, disabled, activity, speed, full-duplex indications, PoE applied, PoE error, and PoE disabled indications System-status LEDs: System, RPS, link status, link duplex, link speed, and PoE indications
Power	100-240 VAC (autoranging), 8.0-4.0A, 50-60Hz

Features
Features	1RU fixed-configuration, multilayer switch Enterprise-class intelligent services delivered to the network edge IEEE 802.3af and CISCO prestandard IP Base license (formerly SMI) installed Basic RIP and static routing, upgradeable to full dynamic IP routing Advanced QoS Granular Rate Limiting

Dimensions & Weight
Dimensions	17.5" x 14.9" x 1.7"
Weight	13.5 lbs.

Environmental
Temperature	0ºC to 45ºC (32ºF to 113ºF)
Humidity	10 to 85% (noncondensing)

Group
Case	Metal Case
Class	24-Port PoE w/ GbE Uplink
Version	N/A

Additional Information
Date First Available	March 07, 2014
