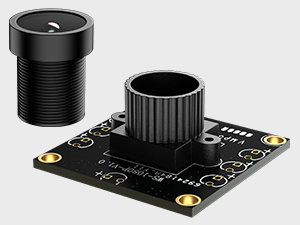

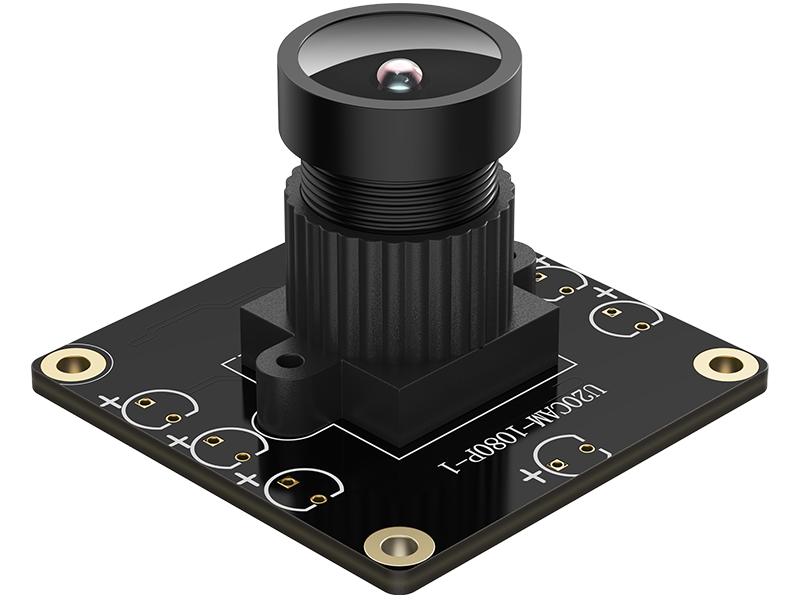

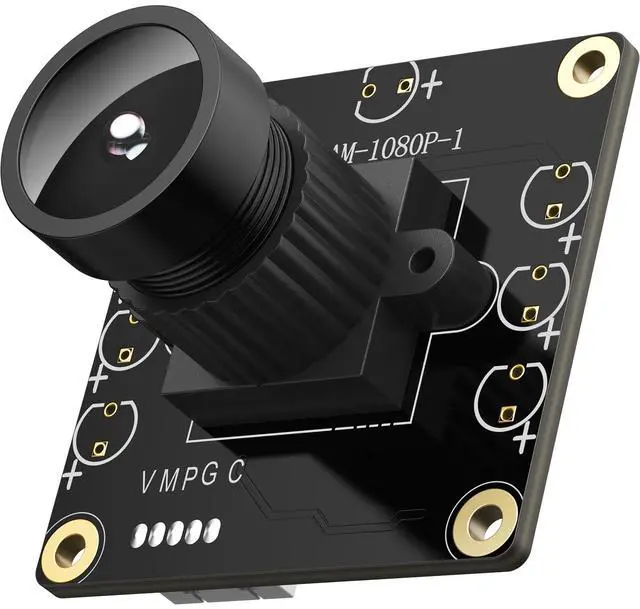

U20CAM-1080P UVC Standard Camera
- High cost performance camera, You no longer need pay high costs for your lightweight camera application. The video output support up to 1080P x 30fps video output, could fulfill many video applications.

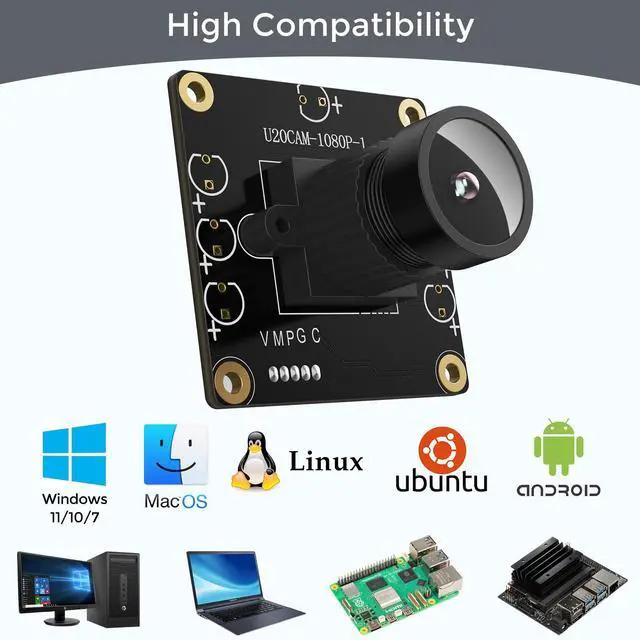

- U20CAM-1080P is a native driver camera devices on most system, Windows11/10/7, Linux, Mac Os and other derived systems. Based on the UVC standard, so it could be supported by many ready-made camera application.
- Support hot plug into the USB port of your computer, notebook, Raspberry Pi, Jetson nano and all single board computer. Plug and play device, no additional power supply and driver installation requirement.

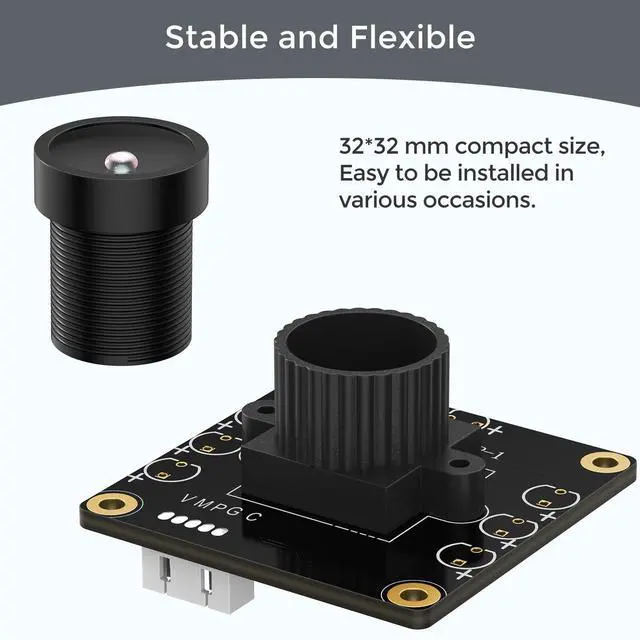

- Features with 32*32mm compact sizes and on-Board 4 screw holes, it’s very easy to be installed in various occasions and be hidden.

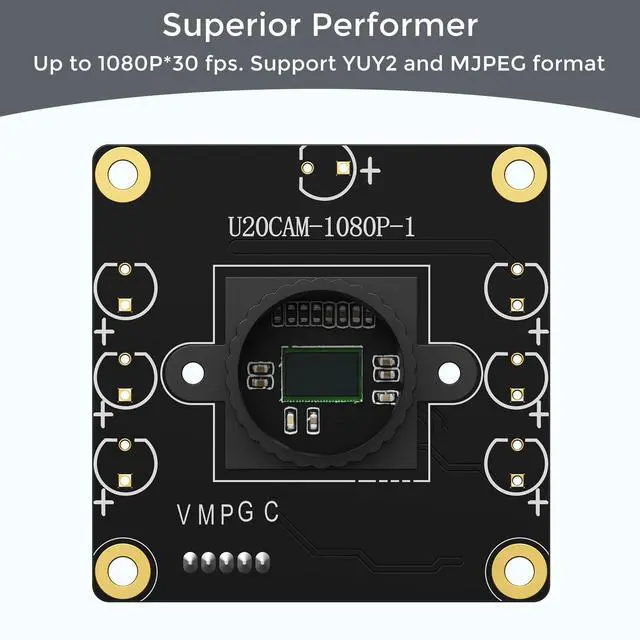

Superior Performer
Up to 1080P*30 fps. Support YUY2 and MJPEG format.

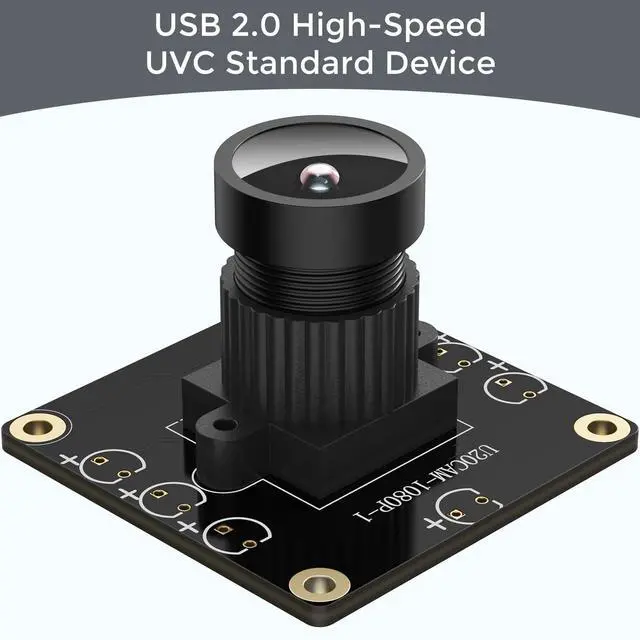

USB 2.0 Port
Plug and Play USB 2.0 High-speed and UVC standard device.

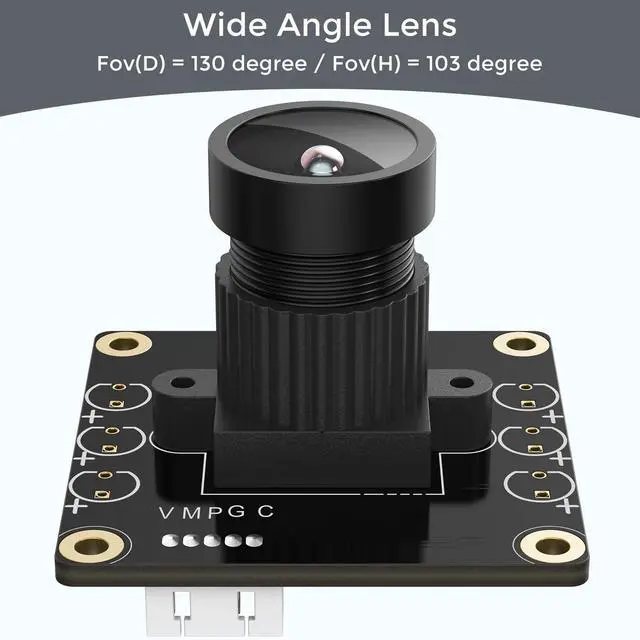

Wide Angle Lens
Features a wide angle len:
- Fov(D) = 130 degrees
- Fov(H) = 106 degree.

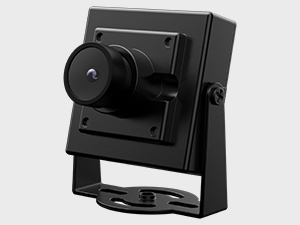

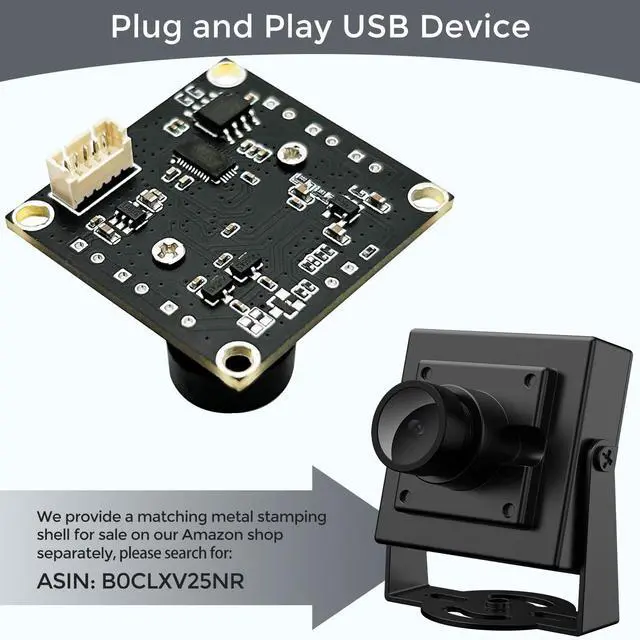

Optional Aluminum Alloy Case
If you need a solid housing cover case, please refer to B0CLXV25NR.
USB2.0 UVC Camera
 720P USB2.0 UVC Camera |  1080P USB2.0 UVC Camera |  OV9281 USB2.0 UVC Camera |  Aluminum Alloy Case | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
USB Port | 2.0 | 2.0 | 2.0 | 2.0 |
Resolution | 1280*720 | 1920*1080 | 1280*800 | / |
For Raspberry Pi | ? | ? | ? | ? |
For Jetson Nano | ? | ? | ? | ? |
For Desktop | ? | ? | ? | ? |
For Notebook | ? | ? | ? | ? |
For Tablet PC | ? | ? | ? | ? |
Windows 11/10/7 | ? | ? | ? | ? |
Mac OS | ? | ? | ? | ? |
Linux | ? | ? | ? | ? |
Ubuntu | ? | ? | ? | ? |
Android | ? | ? | ? | ? |
WHO WE ARE?
INNOMAKER was founded in Shenzhen the city of makers in China, created by a group of passionate open source hardware fans, including professional Embedded Development Engineers, experienced technicians and excellent production managers. We love open source hardwares, maker cultural and passionate life, so we get together here for a common struggle of dream.
USB to CAN Module
Industrial Camera Module
HiFi Audio Hat
U20CAM-1080P UVC Standard Camera
- High cost performance camera, You no longer need pay high costs for your lightweight camera application. The video output support up to 1080P x 30fps video output, could fulfill many video applications.
- U20CAM-1080P is a native driver camera devices on most system, Windows11/10/7, Linux, Mac Os and other derived systems. Based on the UVC standard, so it could be supported by many ready-made camera application.
- Support hot plug into the USB port of your computer, notebook, Raspberry Pi, Jetson nano and all single board computer. Plug and play device, no additional power supply and driver installation requirement.
- Features with 32*32mm compact sizes and on-Board 4 screw holes, it’s very easy to be installed in various occasions and be hidden.
Superior Performer
Up to 1080P*30 fps. Support YUY2 and MJPEG format.
USB 2.0 Port
Plug and Play USB 2.0 High-speed and UVC standard device.
Wide Angle Lens
Features a wide angle len:
- Fov(D) = 130 degrees
- Fov(H) = 106 degree.
Optional Aluminum Alloy Case
If you need a solid housing cover case, please refer to B0CLXV25NR.
| Sensor Size | 1/3 Inch |
|---|---|
| Resolution | 1920*1080 |
| Image Color | Colours |
| Shutter type | Rolling shuttere |
| F(N) /Aperture | 2.3 |
| Focal Length | 2.8 |
| Lens Diameter | M12 |
| FOV | FOV-D: 130 Degree, FOV-H: 106 Degree |
| Communication Interface | USB 2.0 Hgih-Speed |
| Communication Standard | UVC 1.0.0 |
| Supported format | YUY2, MJPEG |
| Supported Frame rate | 30 fps |
| Supported Resolution | MJPES Output resolutions: 1920*1080@30fps, 1280x960@30fps, 1280x720@30fps, 1024x576@30fps, 800x600@30fps, 640x480@30fps, 640x320@30fps. YUY2 Output resolutions: 1920*1080@ 5fps, 1280x720@10fps, 640x480@30fps, 640x360@30fps |
| Auto Parameters | White Balance(Manual Option), Exposure(Manual Option) |
| Controllable Parameters | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain, Exposure, PowerLine Frequency, Low Light Compensation |
| Support System | Windows, Linux, Mac Os, Android |
USB2.0 UVC Camera
720P USB2.0 UVC Camera | 1080P USB2.0 UVC Camera | OV9281 USB2.0 UVC Camera | Aluminum Alloy Case |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| USB Port | |||
| 2.0 | 2.0 | 2.0 | 2.0 |
| Resolution | |||
| 1280*720 | 1920*1080 | 1280*800 | / |
| For Raspberry Pi | |||
| ? | ? | ? | ? |
| For Jetson Nano | |||
| ? | ? | ? | ? |
| For Desktop | |||
| ? | ? | ? | ? |
| For Notebook | |||
| ? | ? | ? | ? |
| For Tablet PC | |||
| ? | ? | ? | ? |
| Windows 11/10/7 | |||
| ? | ? | ? | ? |
| Mac OS | |||
| ? | ? | ? | ? |
| Linux | |||
| ? | ? | ? | ? |
| Ubuntu | |||
| ? | ? | ? | ? |
| Android | |||
| ? | ? | ? | ? |
