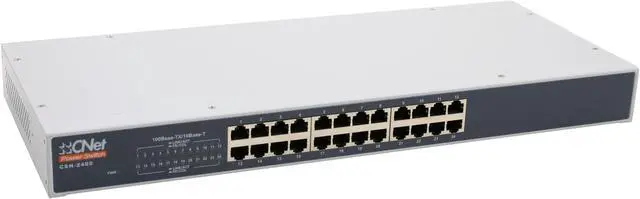

CNet CSH-2400 Switch

  • 8K MAC Address Table
  • 1.25Mbit Buffer Memory
Specs
Reviews

Learn more about the CNet Technology CSH-2400

Model
Brand CNet
Model CSH-2400
Format & Standards
Standards IEEE802.3, IEEE802.3u, IEEE 802.3x
Ports & Interface
Primary Ports 24 x RJ45
Primary Port Speed 10/100Mbps
Data Transmission
MAC Address Table 8K
Switching Method Store and Forward
VLAN Support No
Details
Buffer Memory 1.25Mbit
Cabling 10BASE-T Category 3,4 or 5 TP
100BASE-TX Category 5 TP
LEDs One LED displays Power status
One LED per port displays Link/ACT status
Power Full range Auto-Switching
Input voltage: 100 ~ 240 +/-10% VAC/ 50 ~ 60 Hz
Power Consumption: 13.2 watt max
Features
Features Each Port Creates an Independent Network Segment.
Support IEEE 802.3x Flow-control for Full-duplex and Back Pressure Flow Control for Half-duplex.
Bridging Capability for 100Mbps and 10Mbps Segments.
All Ports Support Auto-MDI/MDI-X and Auto-negotiation Functions.
Dimensions & Weight
Dimensions 17.4" x 5.1" x 1.7"
Environmental
Temperature 0ºC to 45ºC (32ºF to 113ºF)
Humidity 10% - 90%, Non-condensing
Packaging

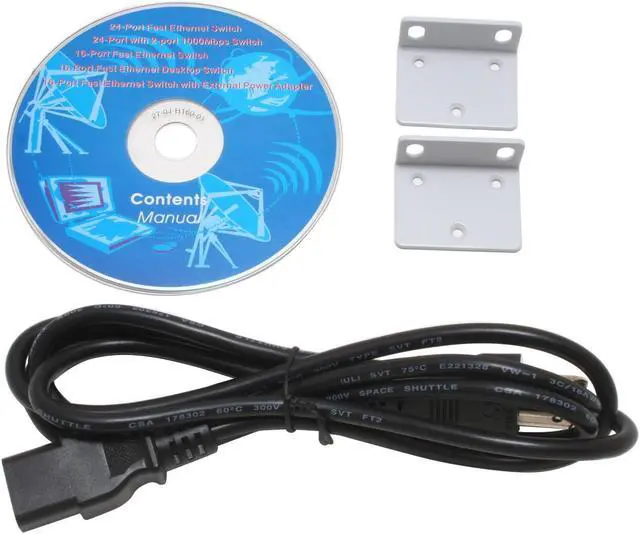

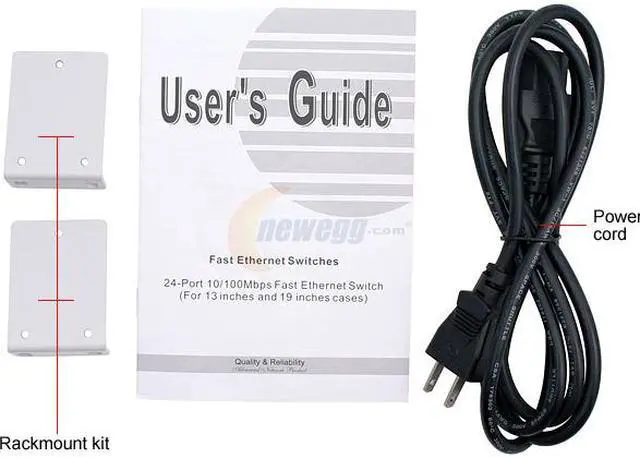

Package Contents CSH-2400
User Guide
Rack mount kit
Power Cord
Additional Information
Date First Available February 22, 2005
