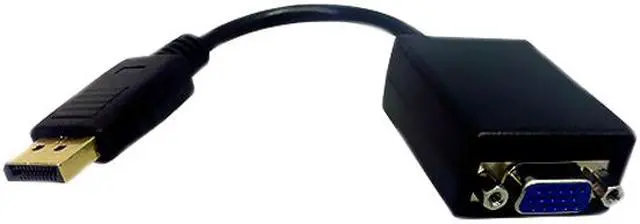

Keep your existing display while using a DisplayPort source. With the DP2VGAF (DisplayPort to VGA) adapter you can connect your DisplayPort source to a VGA display. This adapter supports resolutions up to 1920x1200 and allows you to take full advantage of your VGA capable display.Cable Type: DisplayPort/VGAConnector on First End: 1 x DisplayPort Male DisplayPort 1.1 Audio/VideoConnector on Second End: 1 x 15-pin HD-15 Female VGADevice Supported: Audio/Video DeviceWeight (Approximate): 3.20 ozGreen Compliant: YesGreen Compliance Certificate/Authority: RoHSLimited Warranty: Lifetime
Keep your existing display while using a DisplayPort source. With the DP2VGAF (DisplayPort to VGA) adapter you can connect your DisplayPort source to a VGA display. This adapter supports resolutions up to 1920x1200 and allows you to take full advantage of your VGA capable display.
Learn more about the Comprehensive Cable and Connectivity DP2VGAF
Model
Brand
Comprehensive
Model
DP2VGAF
Details
Type
DisplayPort to VGA
Color
Black
Cable Length
8"
Specifications
Performance Grade: Good
Resolution: Supports PC resolutions up to 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
Versions Supported: DisplayPort 1.1 input and VGA output
Power requirements: Powered from DisplayPort source
Construction: The DP to VGA adapter uses an integrated chip to provide an active digital to analog conversion
Weight Lbs: 0.2
RoHS Compliant: Yes
Connectors
Connector A
1x VGA female
Connector B
1x DisplayPort male
Features
Features
Display resolution up to: 1920x1200(WUXGA-R), 60Hz, 8bpc: 154MHz;1920x1080P, 60Hz, 10bpc: 144MHz
DisplayPort ver1.1: DP two lanes or DP one lane
RGB analog video (VGA port)output: Configured for 700mV voltage swing
Automatic sink detection and standby mode
Spread spectrum (de-spreading) for EMI reduction
EDID Pre-fetch (VGA EDID Conversion)
Sink detection based on DDC return
Measured power: Active 1.4W, Standby 100mW
Power supply: +3.3V (From DisplayPort)
RoHS Compliant
Additional Information
Date First Available
December 14, 2018
