hec HEC500TEWX 500 W ATX12V Ver2.2 80 PLUS Certified Active PFC Power Supply - OEM

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Compucase HEC500TEWX

General
Brand	hec
Model	HEC500TEWX

Details
Type	ATX12V Ver2.2
Maximum Power	500 W

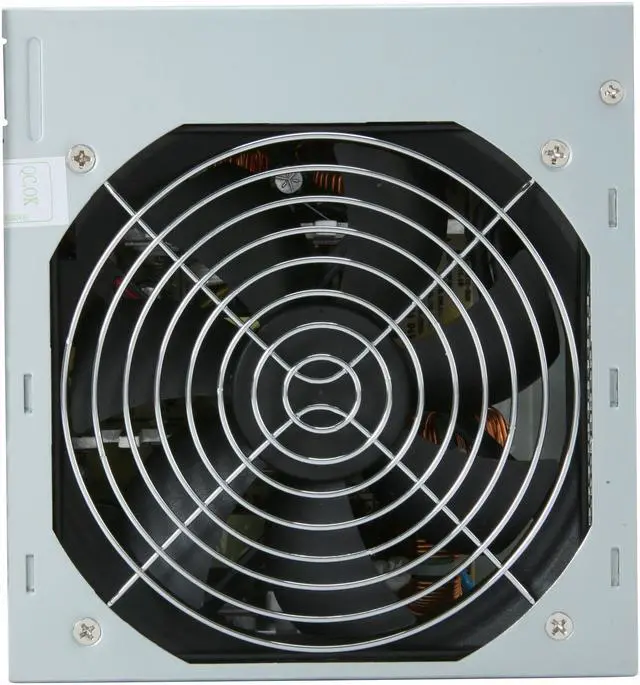

Fans	1 x 120mm Ball Bearing Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SATA Power Connector	4
Hold-up Time	16.6ms min.
Efficiency	87%
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Overload Protection	Yes
Input Voltage	100 - 120 V / 200 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	10A @ 115V, 5A @ 230V

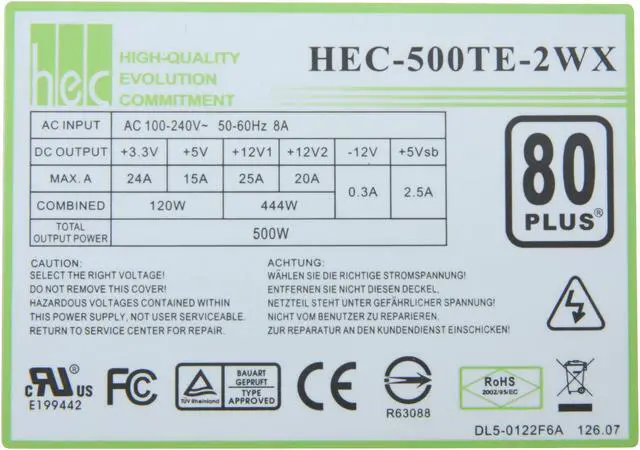

Output	+3.3V@24A, +5V@15A, +12V1@25A, +12V2@18A, -12V@0.3A, +5VSB@2.5A
MTBF	>100,000 Hours

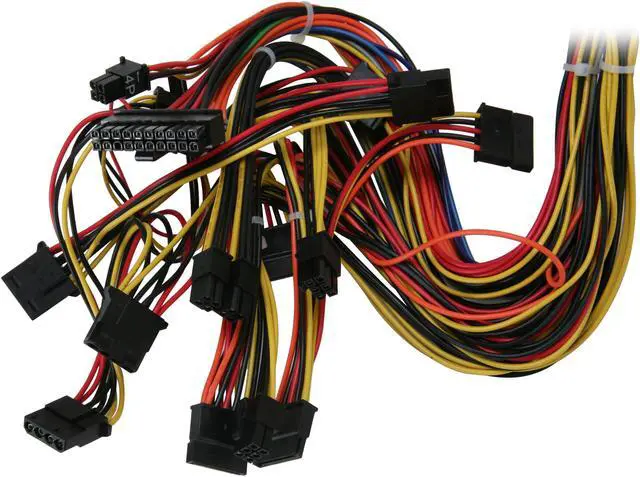

Connectors	20+4 Pin Main Power Connector 6x Peripheral 1x Floppy 4x SATA 2x PCI-E 1x 8 pin (4+4 pin)

Features
Features	Very high efficiency (> 87%) = better power consumption and less heat 120mm ultra quiet fan keep PC cool and quiet Intel ATX 12V Ver. 2.2 compliance supports the latest processors and platforms including BTX form factor TC Function (Thermal Control) OPP / OVP / SCP / UVP Meet EN60950 Requirement Complies With FCC Part 15J Class B 115Vac Operation Meet UL 1950, CISPR22.2 Level 3 Requirement 100% Hi-Port & Function Tested 100% Burn-In Under High Ambient Temperature (50°C)

Additional Information
Date First Available	May 27, 2009
