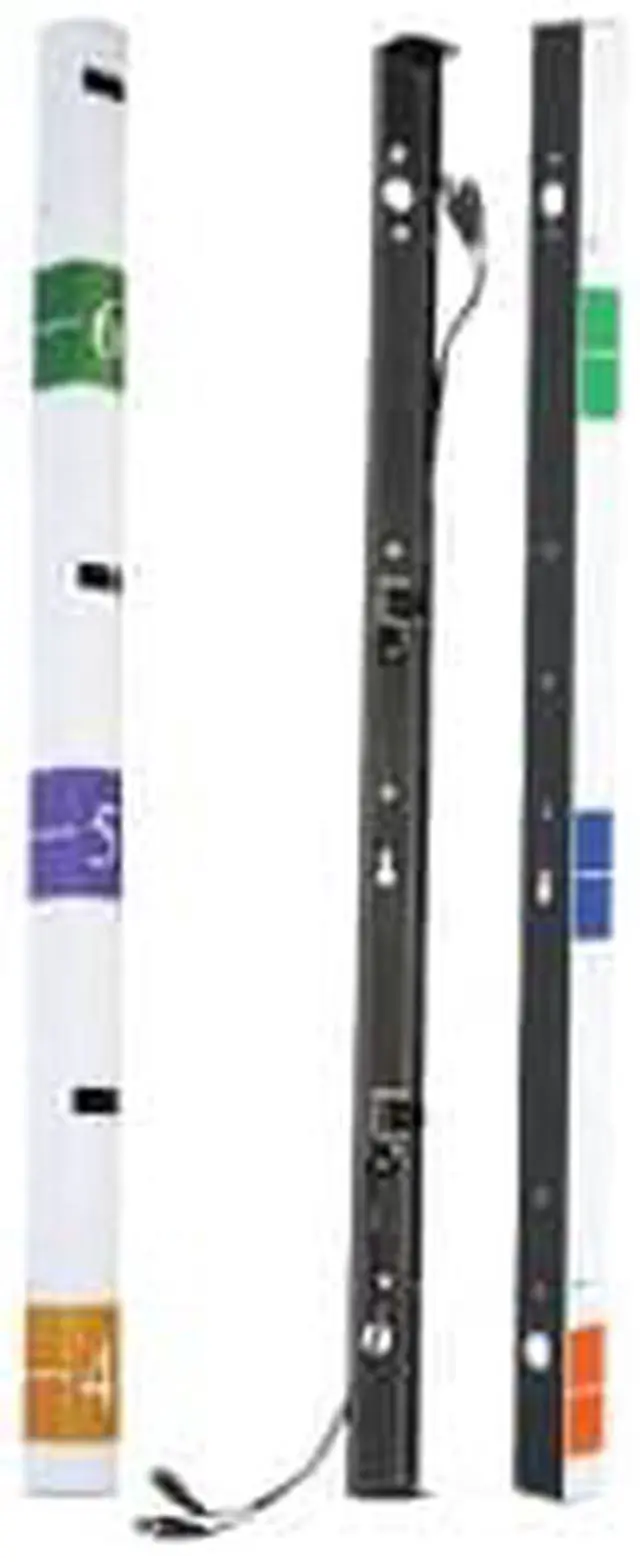

Computar Ganz High Quality CCTV Height Strip Camera HSW-H30

Height strip cameras are designed to supplement standard surveillance cameras by capturing facial images and the subject’s height.


While the ceiling cameras capture the subject’s height as he or she passes the height strip, the onboard Height Strip camera captures facial images. Businesses that install height strip tape without an onboard camera run the risk of failing to capture facial images of subjects wearing a hat or hood. The camera’s 3.0mm IR corrected wide-angle lens provides a 78° horizontal field of view. The camera can be turned 22° left and right of center to capture the desired view.

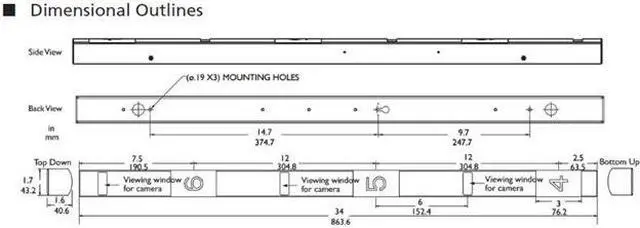

The Height Strip Camera is sized to fit most standard door frames (1.75” width) and has cable entry through the top, bottom or rear of the unit allowing it to be installed in a wide variety of environments. Additional cameras can be added and the unit can be mounted between two doors to cover both entrance and exit with a single unit. Side-facing cameras can be installed to provide a profile shot across a doorway while the other onboard cameras face into the business.





650 TVL color camera with 3mm wide angle lens
Holds up to 5 cameras; 2 side-facing & 3 front-facing
Two piece construction for easy installation
Fits most standard door frames
Durable aluminum construction
Highly visible color coded height levels
Curved surface permits increased viewing angle
Wrap-around labels visible from side
12VDC, 93mA per camera
1 onboard camera included with base model

Made in Japan

3 Year manufacturer Warranty
