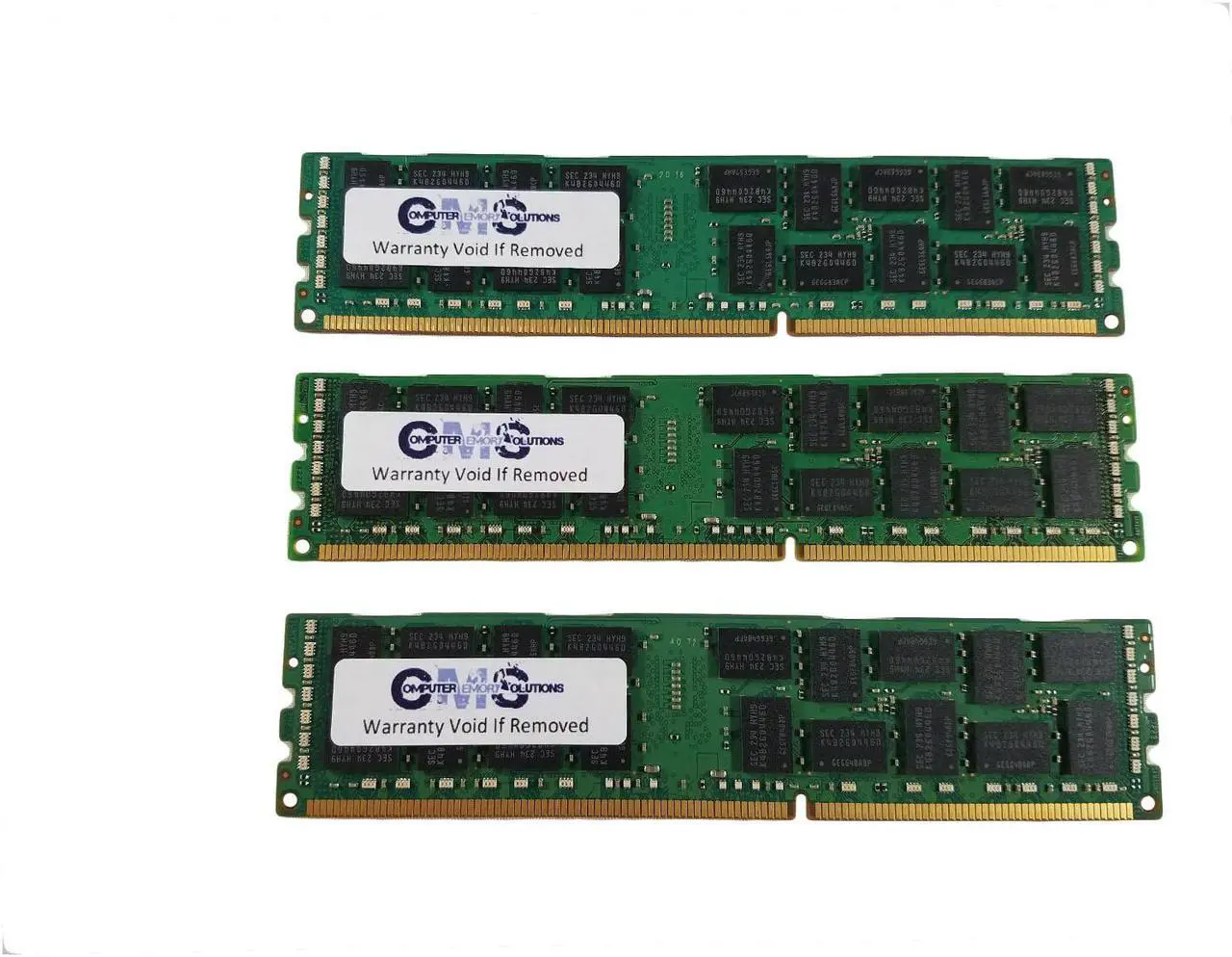

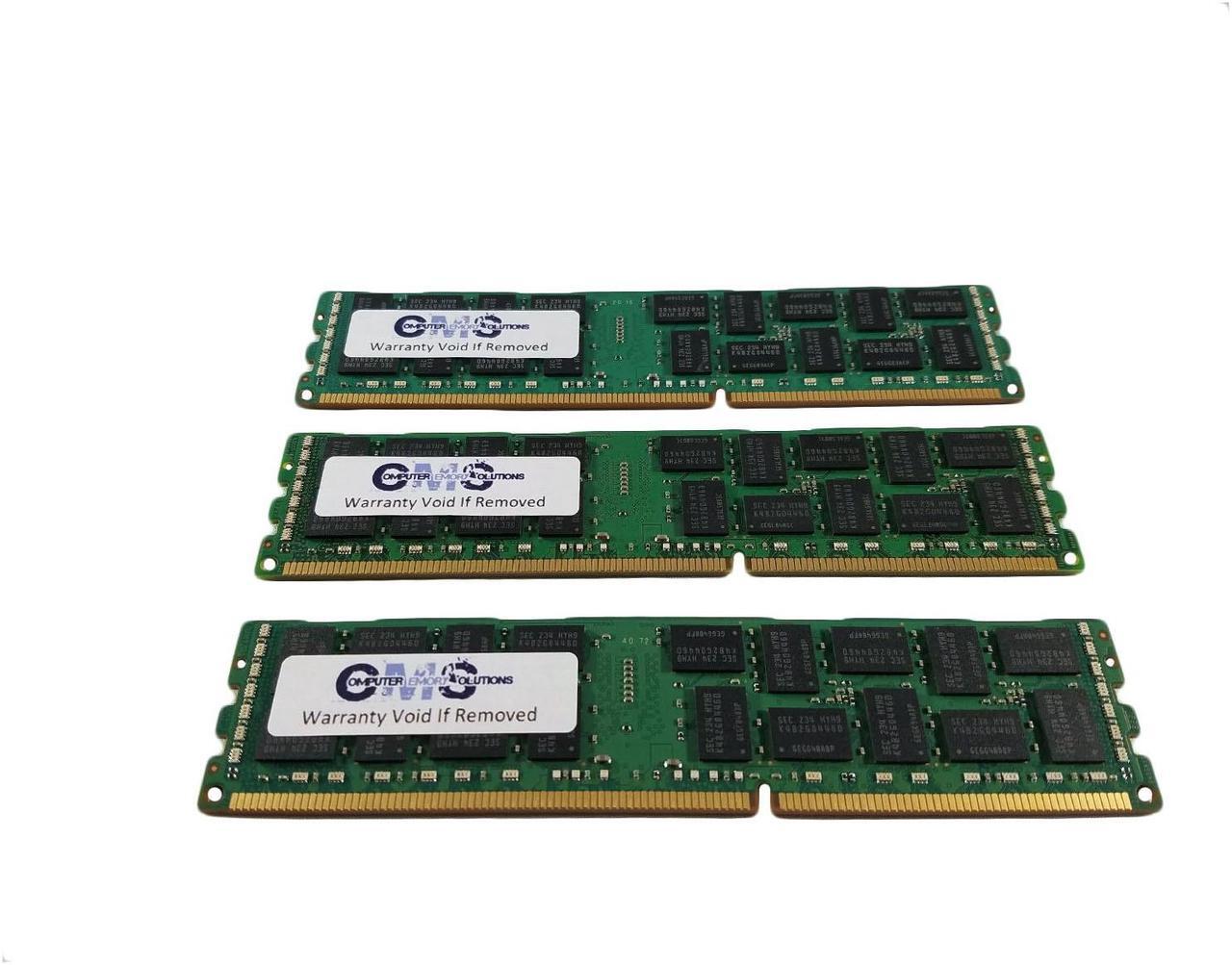

CMS 24GB (3X8GB) DDR3 10600 1333MHZ ECC REGISTERED DIMM Memory Ram Upgrade Compatible with HP/Compaq® Workstation Z600 C2 Series Only Ecc Reg For Server Only - B105

3PCS OF 8GB 1333MHz ECC REGISTER THIS KIT IS FOR A TRIPLE CHANNEL MODE Lifetime Warranty. by Computer Memory Solutions Brand Computer Memory Solutions We don't use OEM or Generic parts to avoid incompatibility.
Compatible with: HP Workstation Z600 C2-based systems will have the ID ô0B54h.
ö Only Maximum Memory: 24 GB ECC-UDIMM with 2 CPUs 48 GB RDIMM with 2
CPUs Expansion: 3 Sockets (1 bank of 3) per CPU 6 Sockets total MODULES MAY BE INSTALLED ONE AT A TIME; however, for optimum performance install modules across all three memory channels for triple channel memory interleaving.
Notes: Supported DIM
Ms The HP Z600 Workstation supports: ò Unbuffered 1-GB, 2-GB, and 4-GB single- and dual- rank PC3-10600E 1333 MHZ ECC DIM
Ms ò Registered 4-GB and 8-GB dual-rank PC3-10600R 1333 MHz DIM
Ms ò Support for Registered DIM
Ms requires a system board with the C2 revision of the Intel « 5520 chipset. To determine if a specific HP Z600 system has the
C2 revision of the chipset:
1. Use the BIOS setup menu to access the ôBoot Block Dateö from the ôSystem Information Menu. ö All B3-based systems will have a ô1/30/09ö date and C2-based systems will have a ô01/07/10ö date. 2. HP Performance Advisor software can be used to determine the PCA ID, which is reported by Performance Advisor under ôSystem configurationö and ôBaseboard ID. ö All B3-based systems will have the ID ô0AE8hö and all C2-based systems will have the ID ô0B54h. ö ò Unbuffered and Registered DIM
Ms cannot be mixed in a system
