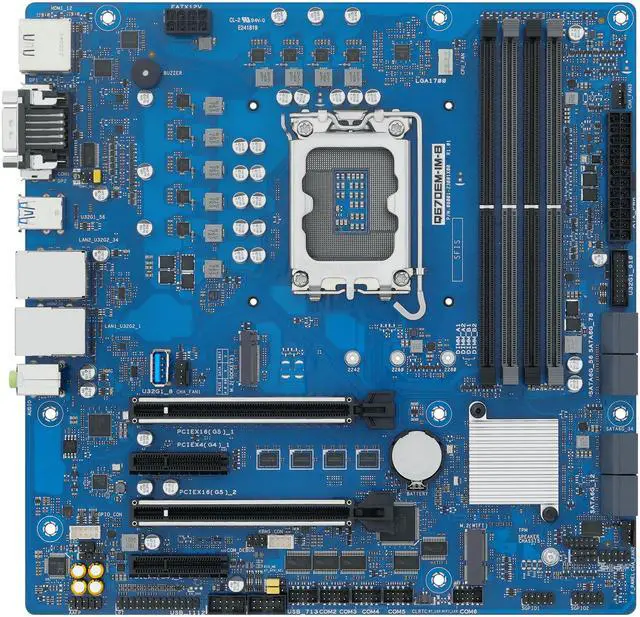

    CONTEC GMB-MQ67010 Industrial Motherboard / Micro-ATX / Intel 14th Gen (Raptor Lake-S + Q670E) / 2x PCIe (x16) / 2x PCIe (x4)

    Be the first to review this product...
    • LGA 1700 socket for Intel 12 / 13 / 14th Gen Core Processor (up to 125W)
    • Intel Q670E Chipset with support for vPro Technology
    • 4x DDR5-4400 U-DIMM sockets (up to 128GB)
    • 2x PCIe 5.0 x16 sockets (support for dual-wide graphic card), 2x PCIe 4.0 x4 sockets
    • 2x DisplayPort, 2x HDMI
    • 8x SATA 3.0 (supports RAID 0,1,5, and 10)
    • 2x RJ45 GbE LAN
    • 6x USB 3.2, 1 x serial port
    • ATX power input for reliable power supply
    View Data Sheet Details
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the CONTEC GMB-MQ67010

    Model
    Brand CONTEC
    Model GMB-MQ67010
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type 12th Gen Intel Core i3 / 12th Gen Intel Core i5 / 12th Gen Intel Core i7 / 12th Gen Intel Core i9 / 13th Gen Intel Core i3 / 13th Gen Intel Core i5 / 13th Gen Intel Core i7 / 13th Gen Intel Core i9 / 14th Gen Intel Core i3 / 14th Gen Intel Core i5 / 14th Gen Intel Core i7 / 14th Gen Intel Core i9 / Intel Celeron / Intel Pentium
    CPU Features Max. 125W TDP
    Chipsets
    North Bridge Intel Q670E
    Memory
    Memory Slots 4 x DDR5 288-pin
    Memory Standard DDR5 4400
    Maximum Memory Supported 128GB
    Expansion Slots
    PCI Express 5.0 x16 1 x PCIe 5.0 x16 Slot (1 x16 mode/ 2 x8 mode)
    1 x PCIe 5.0 x16 Slot (x8 mode)
    PCI Express x4 2 x PCIe 4.0 x4 Slot (x4 mode)
    Storage Devices
    SATA 8 x SATA 6.0Gb/s
    SATA RAID 0/1/5/10
    M.2 1 x M.2 M key, Type 2242/2260/2280 (PCIex4) supports NVMe
    Onboard Audio
    Audio Chipset Realtek ALC897
    Onboard LAN
    LAN Chipset Intel I210
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Intel I219
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports

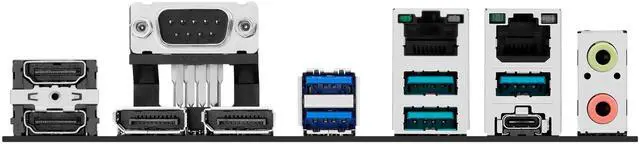

    Back I/O Ports 1 x COM (Serial Port) / 1 x USB 3.2 Gen 2 Type-C / 2 x DisplayPort / 2 x HDMI / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A / 3 x USB 3.2 Gen 2 Type-A
    Onboard Ports
    Other Connectors COM Header: 5x COM Header (RS232)
    SGPIO Header: 2x Header
    USB3.2 Gen1: 1 x Header Support Additional, 2 x USB3.2 Gen1 Ports,: 1 x vertical connector
    USB2.0: 2x Header Support Additional, 4 x USB2.0 Ports
    CPU Fan/ Chassis Fan: 1 x Header (PWM Mode) / 3 x Header (PWM Mode)
    Front Panel Audio (AAFP): 1 x Header
    System Panel: 1 x Header
    Chassis Intrusion: 1 x Header
    Speaker connector: 1 x Header
    I2C Header: 1 x Header
    Clear CMOS: 1 x Header
    COM Debug: 1 x Header
    LPT port header: 1 x Header
    Buzzer: 1
    PS/2: 1 x Header
    SPDIF: 1 x Header
    GPIO: 1 x Header (8 Bit)
    DIS ME jumper: 1 x Header
    AT/ATX Select Header: 1 x Header
    Power connector: 1 x 24-pin ATX Power connector, 1 x 8-pin ATX 12V Power connector
    Dimensions
    Form Factor Micro ATX
    Dimensions (W x L) 9.6" x 9.6"
    Packaging
    Package Contents 1 x IO Shield
    1 x SATA III CABLE
    2 x M.2 SCREWPACK
    Additional Information
    First Listed on Newegg October 01, 2025
