$309.99
Add to PC build list
Make an offer
Add to wish list(Found on 2 wish lists)
Sold by Newegg
Shipped by Newegg
Best Sellers
- $430.00
- + Special Shipping

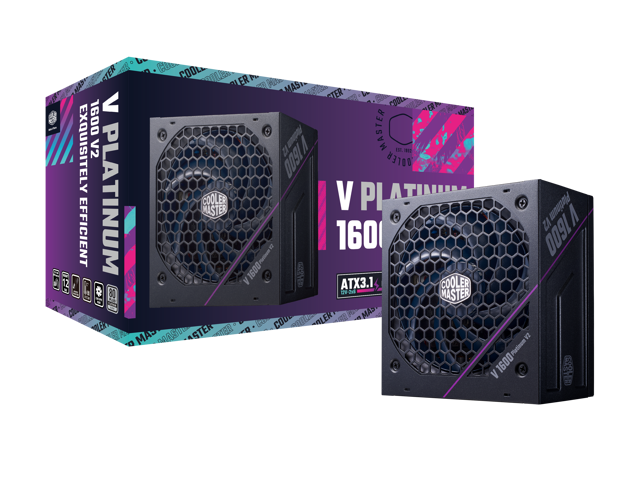

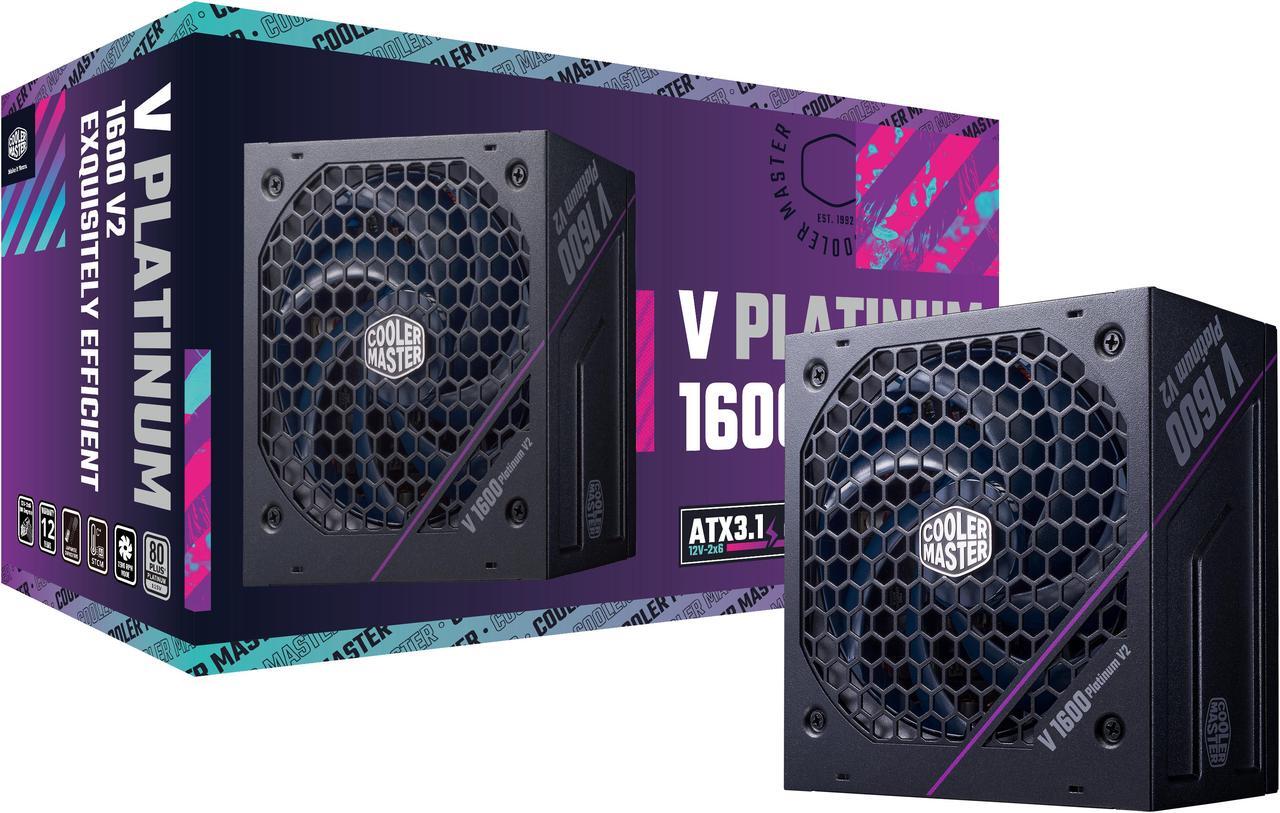

Cooler Master V Platinum 1600W V2 ATX 3.1 Full Modular PSU, 80+ Platinum, Dual 90° 12V-2x6 For Dual RTX 4000 Support , Purple Anodic-Coated Heat Sink, Mobius Fan, 12-Year Warranty (MPZ-G002-AFAP-BUS)
- Advanced Heat Dissipation: The purple anodized heat sink with bevel cuts effectively lowers temperatures by concentrating the flow field and enhancing heat dissipation.
- Dual Durable 90° 12v-2X6 Cables: Featuring a 90° 12V-2x6 PCIe 5.0 connector, for improved electrical durability and safety.
- ATX 3.1 Cables: The ATX 3.1 delivers up to 600W per connector, for an impressive 1200W output.
- Fully Modular: Modular cables reduce clutter but also enhance airflow, leading to improved overall efficiency.
- Mobius Fan: An advanced oil reflow, ring blade design, and accelerated air vents, this setup excels in noise reduction and thermal performance.
- Oil Reflow: The recirculating oil in the sealed bearing provides constant lubrication, reducing friction.
- Loop Dynamic Bearing: The design features a thick oil coating and lubrication for stable performance.
- Zero Speed Mode: Featuring lower noise level output and improved airflow thanks to a higher RPM.
+
+
Specs
Reviews (4)
Learn more about the Cooler Master MPZ-G002-AFAP-BUS
| Brand | Cooler Master |
|---|---|
| Model | MPZ-G002-AFAP-BUS |
| Color | Black |
|---|---|
| Type | ATX 12V Ver. 3.1 |
| Maximum Power | 1600 W |
| Fans | 135mm LDB (Mobius FAN) |
| PFC | Active |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 16ms |
| Efficiency | > = 92% @ Typical Load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| Protection | OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush Protection |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12~6A |
| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], +12V@3A |
| MTBF | >100,000 Hours |
| Approvals | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| Connectors | ATX 24 Pin x1 = 1x (650mm) EPS 4+4 Pin x1 = 1x (650mm) EPS 8 Pin x1 = 1x (650mm) SATA X16 = 2x (500+120+120+120mm) Peripheral 4 Pin x4 = 1x (500+120+120+120mm) PCI-e 6+2 Pin X5 = 5x (500mm) 12VHPWR X2 = 2x (650mm) |
| Features | • Advanced Heat Dissipation: The purple anodized heat sink with bevel cuts lowers temperatures more effectively than traditional designs by concentrating the flow field and enhancing heat dissipation. • Dual Durable 90° 12v-2X6 Cables: Featuring a 90° 12V-2x6 PCIe 5.0 connector, offering enhanced electrical durability and improved safety. • ATX 3.1 Cables: Featuring ATX 3.1 compatibility, capable of delivering up to 600W for an impressive 1200W output. •m80+ Platinum Efficiency: Interleaved PFC minimizes power loss, improves efficiency by reducing current, interference, and output capacitor ripple. • Fully Modular: Modular cables not only reduce clutter but also enhance airflow, leading to improved overall efficiency. • Mobius Fan: With an ultra-quiet Mobius fan, advanced oil reflow, ring blade design, and accelerated air vents, this setup excels in noise reduction and thermal performance. • Oil Reflow: The oil circulates back to the sealed bearing, providing constant lubrication to reduce friction and extend the fan's lifespan. • Loop Dynamic Bearing: A loop dynamic bearing design utilizes a thick oil coating and lubrication, enabling stable performance. • Zero Speed Mode: A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM |
|---|
| Dimensions | 6.29 x 5.91 x 4.39" |
|---|---|
| Weight | 3.968 lbs. |
| Package Content | V Platinum 1600 V2 Connectors Power Cord 4x screws Manuel |
|---|
| Date First Available | May 10, 2024 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 12 years
- Limited Warranty period (labor): 12 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-888-624-5099
- Support Email: [email protected]
