Cooler Master N500 - Mid Tower Computer Case with Meshed Front Panel
- Polymer, mesh front bezel ATX Mid Tower
- USB 3.0 x 1 (int.) USB 2.0 x 2 Mic x 1 Audio x 1 (supports AC97 / HD Audio) Front Ports
- 3 External 5.25" Drive Bays
- 4 Internal 3.5" Drive Bays
Overview
Specs
Reviews (4)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

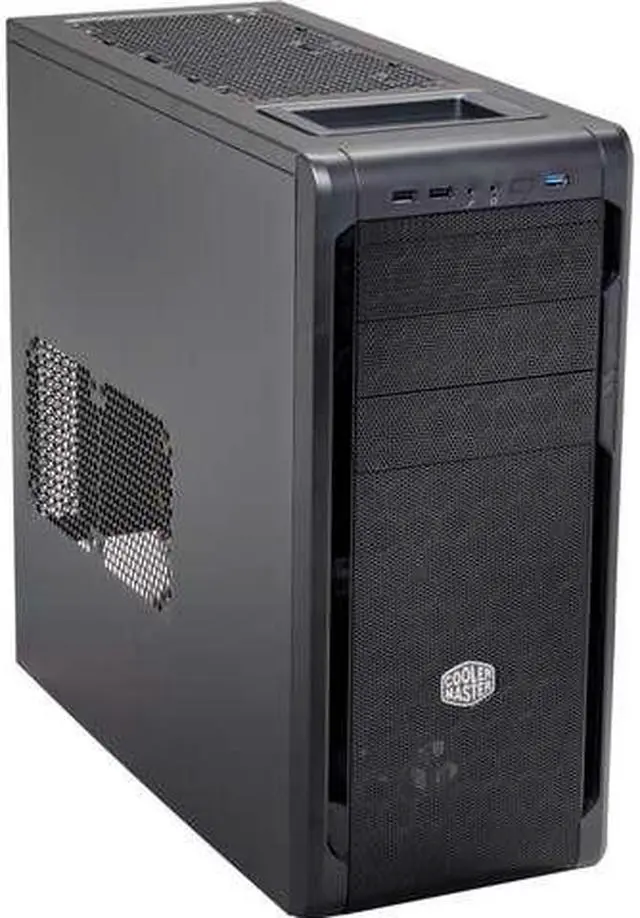

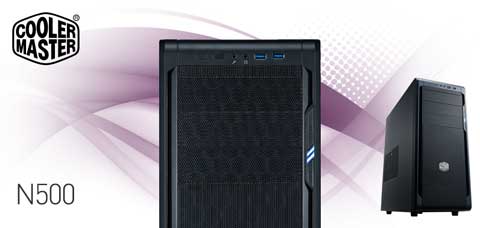

Cooler Master N500 Mid-Tower Case

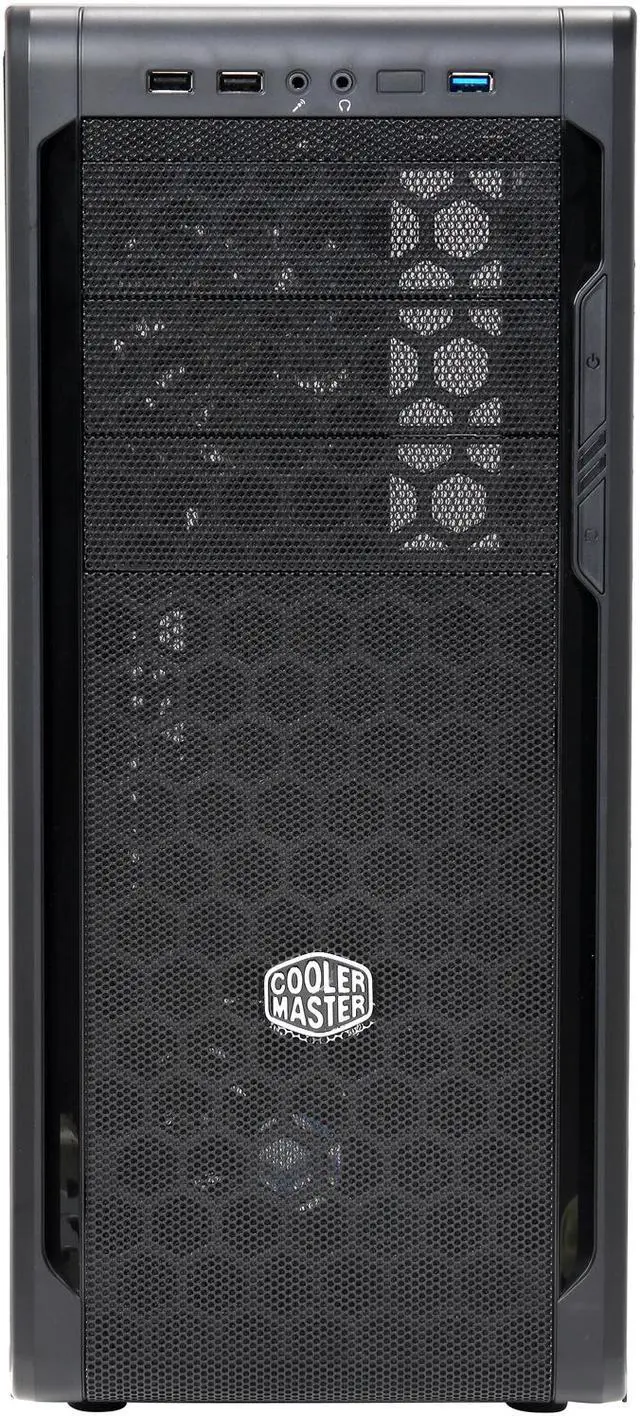

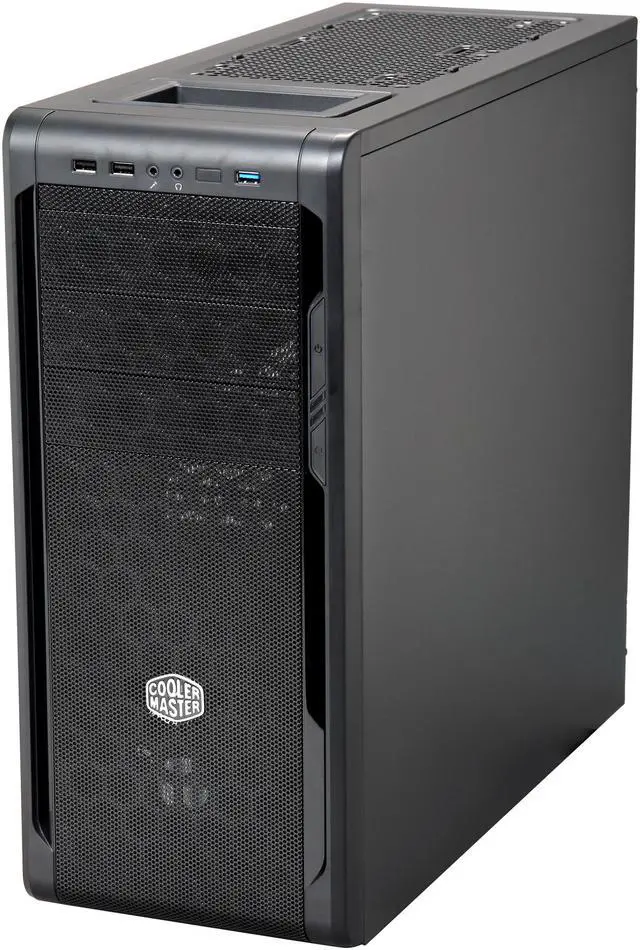

The N300/N500 series cases join the existing N200, N400, and N600 to complete the N Series. They do so with a full array of exciting options that have been designed specifically with cooling performance in mind, especially liquid cooling. Their full mesh front panels and well-ventilated layout provide for a more abundant flow of air throughout the case.
Scalable Cooling

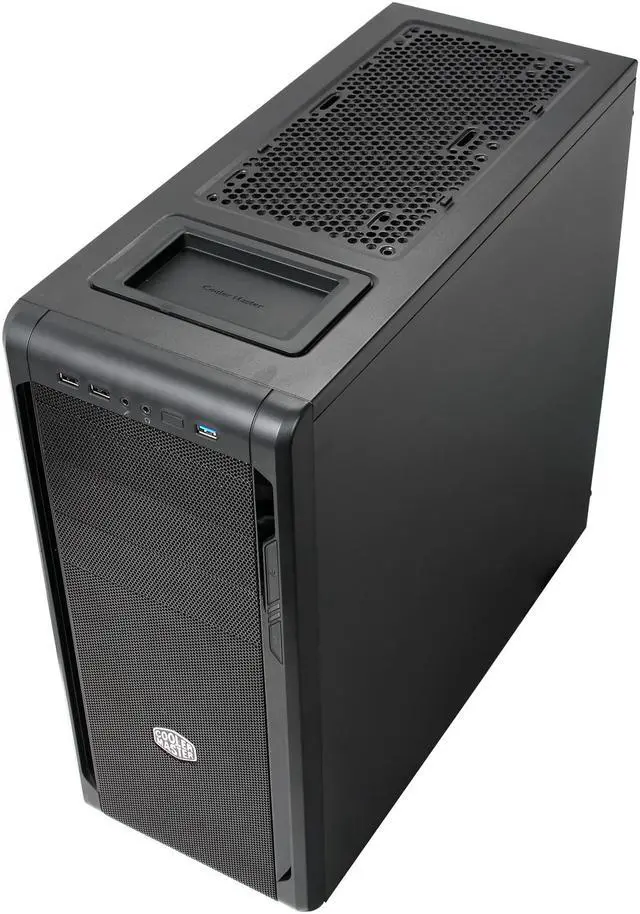

Supports a 240mm liquid cooling radiator or two 120mm/140mm fans on the top.
High-End Hardware Support
Supports long graphics cards and tall CPU coolers.
Expansive Air Cooling
Includes two XtraFlo 120mm fans, with support for up to eight fans.
Rich I/O Panel
The rich I/O panel allows easy access to two USB 3.0 ports, two USB 2.0 ports, and two Audio In/Out jacks (supports HD Audio).
Easy Maintenance Dust Filters
Dust filters provided at the Top, Right, Side Panel, and PSU intakes prevent dust buildup.

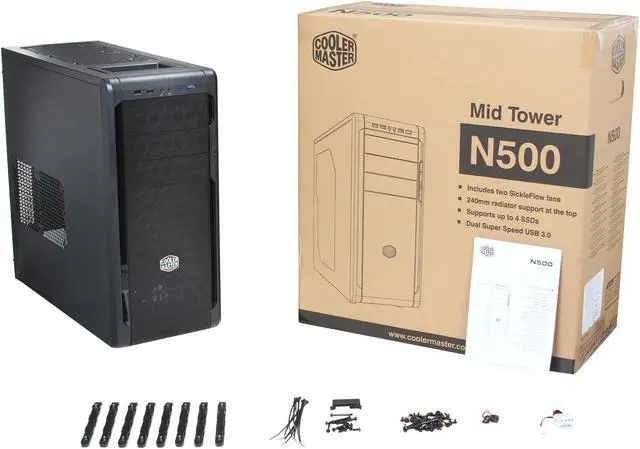

What's in the Box
- N500 Case
- Accessory Box
- User Manual
N Series Comparison
| This Model | |||||
 |
 |
 |
 |
 |
 |
| N200 | N300 | N400 | N500 | N600 | |
| Features | |||||
| Size | Mini | Mid | Mid | Mid | Mid |
| Dimensions |
7.95in. x 14.9in. x 17.5in. (202mm x 378mm x 445mm) |
7.5in. x 16.7in. x 19.3in. (190mm x 426mm x 491.5mm) |
7.5in. x 16.7in. x 19.7in. (190mm x 426mm x 501.4mm) |
7.8in. x 18.3in. x 18.9in. (200mm x 450mm x 475mm) |
8.1in. x 17.9in. x 18.9in. (207mm x 455mm x 520mm) |
| Expansion Slots | 4 | 7 | 7 | 7 | 7 |
|
5.25in. Bays (Optical Drives) |
1 (Max. length of 5.25in.: 6.7in. (170mm)) |
2 (exposed) | 2 (exposed) | 3 (exposed) | 3 (exposed) |
|
3.5in. Bays (Hard Drives) |
3 |
1 (exposed) 7 (hidden) |
1 (exposed) 7 (hidden) |
4 (hidden) | 7 (hidden) |
|
2.5in. Bays (Hard Drives or SSDs) |
4 | 1 (hidden) | 3 (hidden) | 4 (hidden) |
5 (hidden) 4 in SSD cage 1 behind MB tray) |
| Side Panel Window | No | Optional | No | Optional | Window & Non-Window Available |
| Compatibility | |||||
|
All-In-One (AIO) DIY Watercooling Radiator Support |
1 x 120mm and up to 1 x 240mm |
Up to 2 x 240mm | Up to 2 x 240mm | Up to 2 x 240mm | Up to 2 x 240mm |
|
Motherboard Support |
mATX, M-ITX | mATX, ATX | mATX, ATX | mATX, ATX | mATX, ATX |
|
Maximum CPU Cooler Height |
w/o 120mm side panel fan: 6.3in. 160mm with 120mm side panel fan: 5.5in. (140mm) |
6.4in. (164mm) |
6.4in. (164mm) |
6.4in. (162mm) |
6.6in. (167mm) |
|
Maximum Graphics Card Length |
14in. (355mm) |
12.6in. (320mm) |
12.6in. (320mm) |
15.9in. (405mm) |
16.9in. (430mm) |
