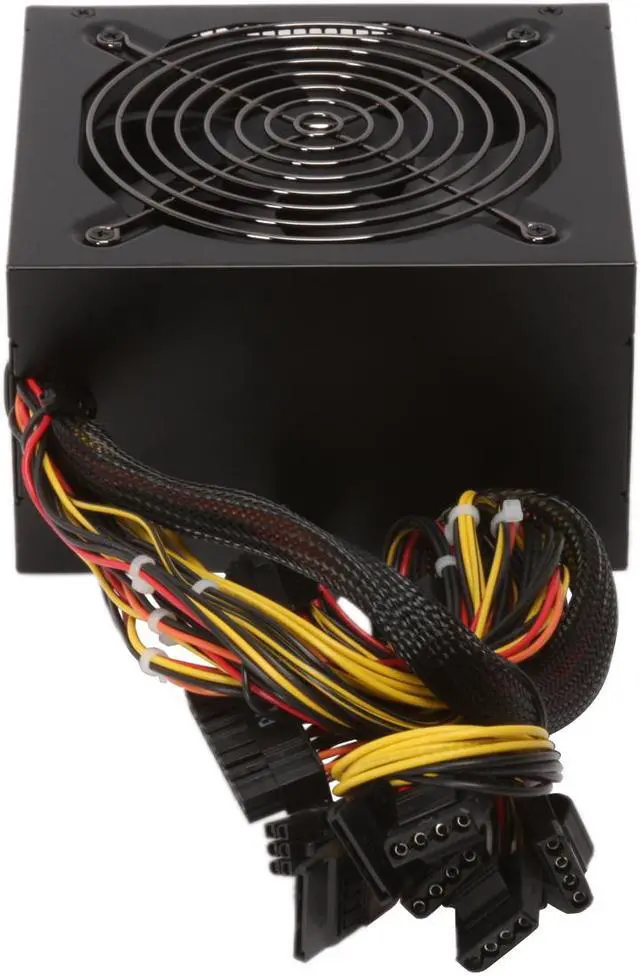

Brand | Cooler Master |
---|---|
Series | eXtreme Power Plus |
Model | RS500-PCARD3-US |
Type | ATX12V v2.3 |
---|---|
Maximum Power | 500 W |

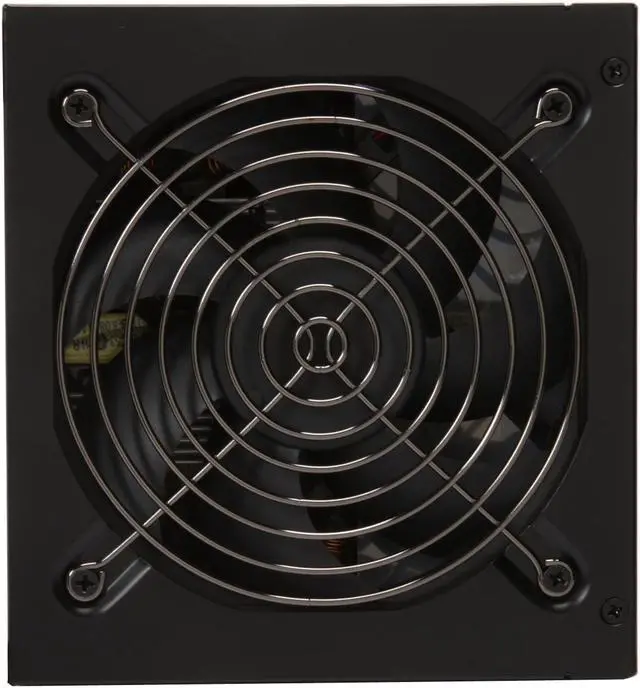

Fans | 1 x 120mm Sleeve Bearing Fan |
PFC | No |

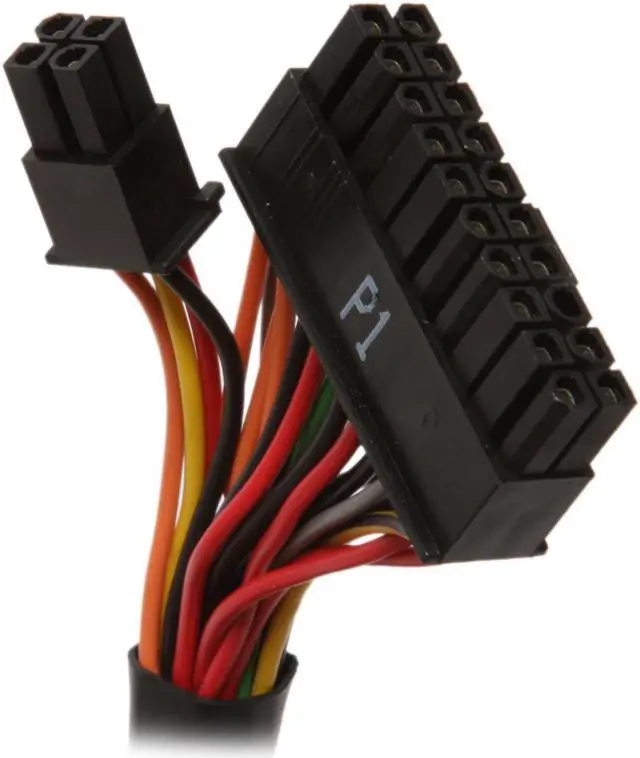

Main Connector | 20+4Pin |
+12V Rails | 2 |
PCI-Express Connector | 1 x 6-Pin |
SATA Power Connector | 4 |
SLI | No |
Haswell Support | Yes |
CrossFire | No |
Power Good Signal | 100-500ms |
Hold-up Time | 17ms min. |
Efficiency | > 70% |
Over Voltage Protection | Yes |
Input Voltage | 90 - 132V / 180 - 264V (Selectable) |
Input Frequency Range | 47 - 63 Hz |
Input Current | 10A @ 115V, 6A @ 230V |

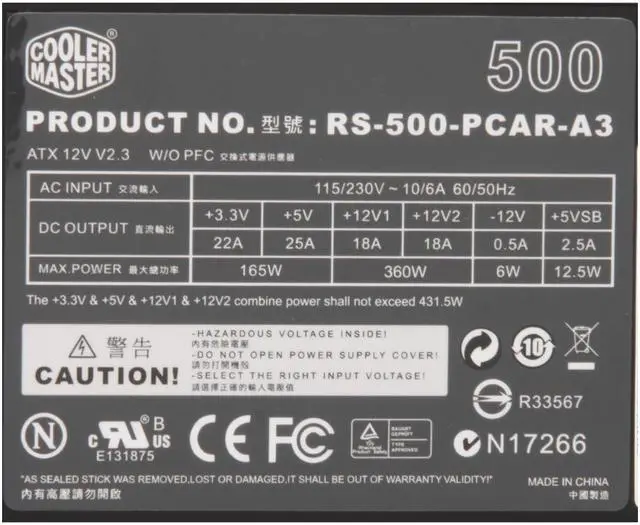

Output | +3.3V@22A, +5V@25A, +12V1@18A, +12V2@18A, [email protected], [email protected] |
MTBF | >100,000 Hours |
Approvals | Nemko / TUV / cUL / CE / BSMI /FCC / C-tick / CCC (Passive Model Only) |

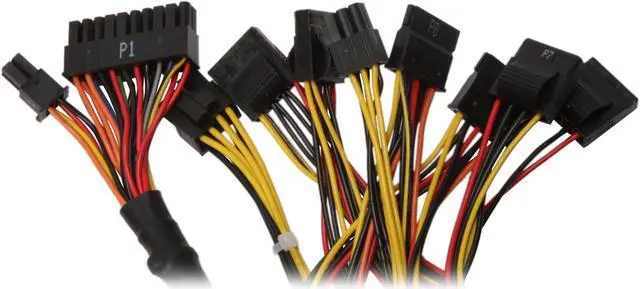

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4+4Pin) 5 x peripheral 4 x SATA 1 x Floppy 1 x PCI-E |
Features | Compliance with the newest Intel standard ATX 12V V2.3 More than 70% better efficiency at typical load operation Green power design to meet Energy Star and Blue Angel requirements Multiple protection design(OVP/OCP/OPP/SCP) Support dual +12V1 and +12V2 outputs for higher power usage |
---|
Dimensions | 5.91" x 5.52" x 3.39" |
---|
First Listed on Newegg | December 23, 2010 |
---|
