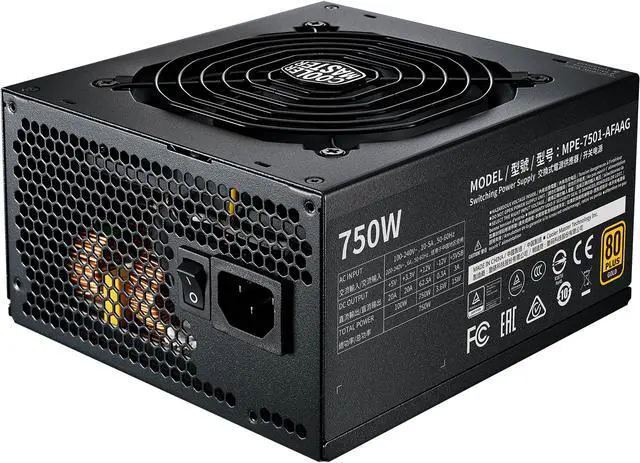

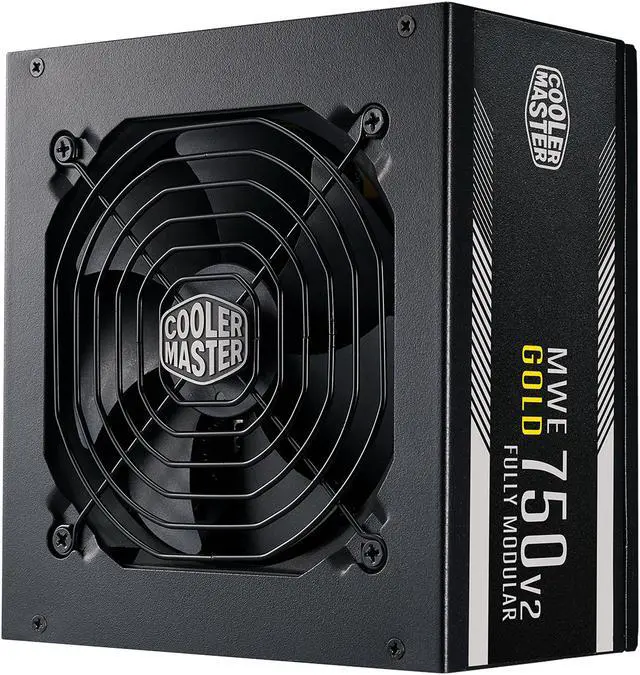

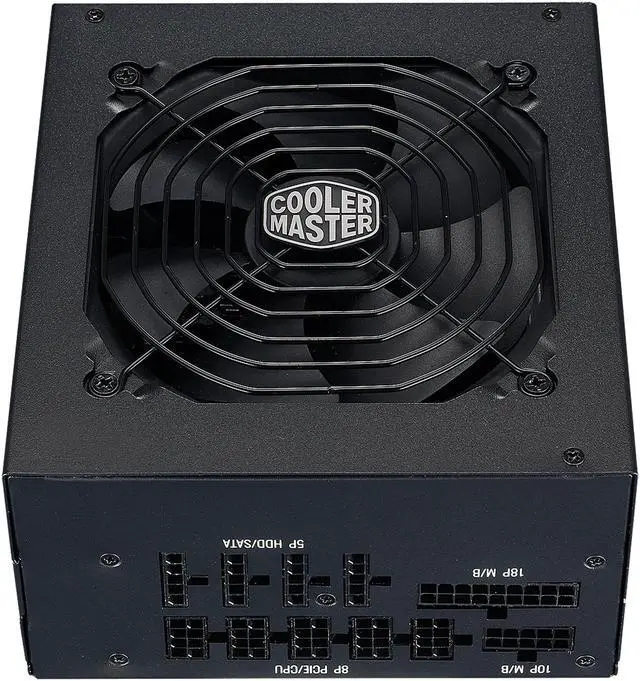

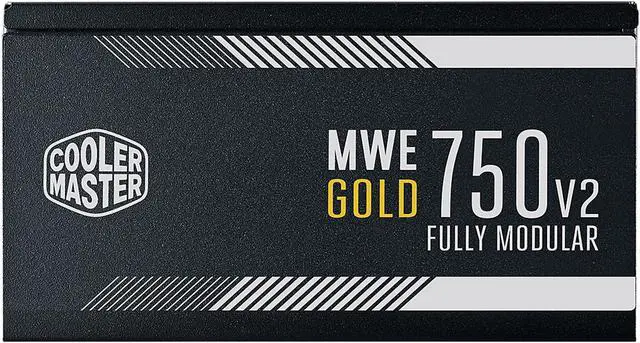

    Cooler Master MWE Gold 750 V2 MPE-7501-AFAAG-U2 750W ATX12V 80 PLUS GOLD Certified Full Modular Active PFC Power Supply

    (3) Write a Review
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (3)
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Cooler Master MPE-7501-AFAAG-U2

    General
    Brand Cooler Master
    Series MWE Gold 750 V2
    Model MPE-7501-AFAAG-U2
    Details
    Type ATX12V
    Maximum Power 750 W

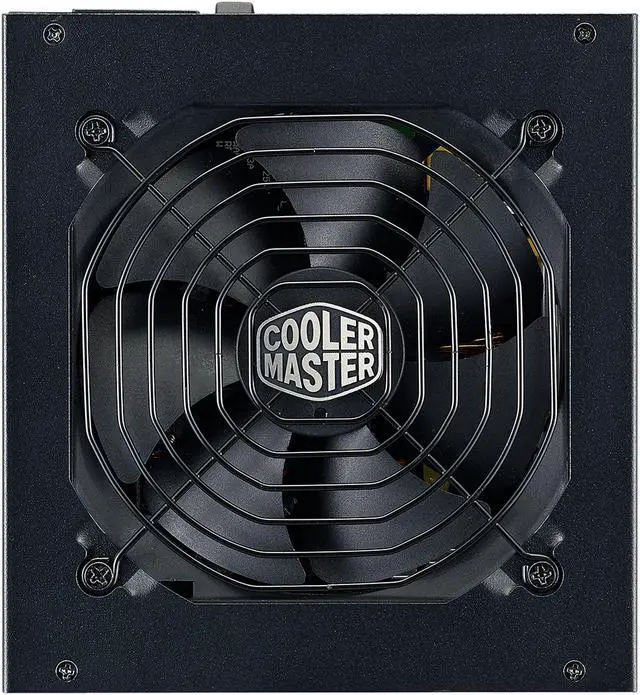

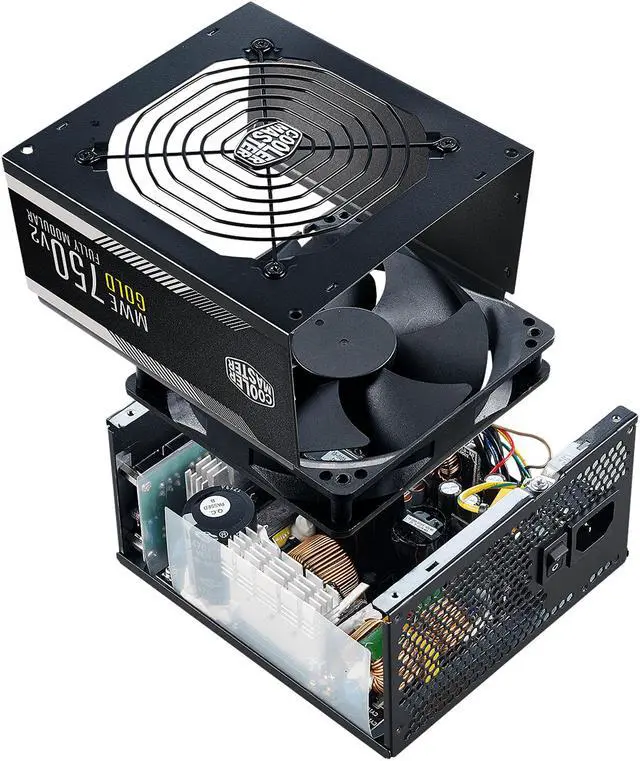

    Fans 1 x 120 mm HDB fan
    PFC Active
    Main Connector 24Pin
    +12V Rails Single
    PCI-Express Connector 4 x 6+2-Pin
    SATA Power Connector 12
    Max PSU Length 160 mm

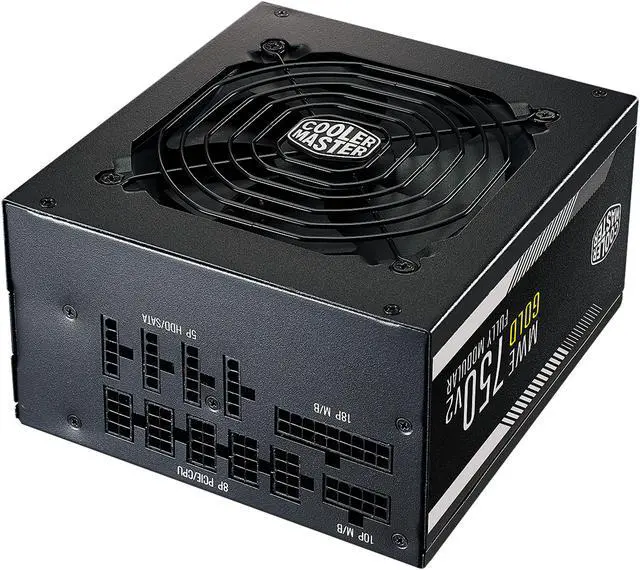

    Modular Full Modular
    Power Good Signal 100-150ms
    Hold-up Time >16ms at 100% Load
    Efficiency 90% @ Typical Load
    Energy-Efficient 80 PLUS GOLD Certified
    Protection OVP / OPP / OTP / SCP / OCP / UVP

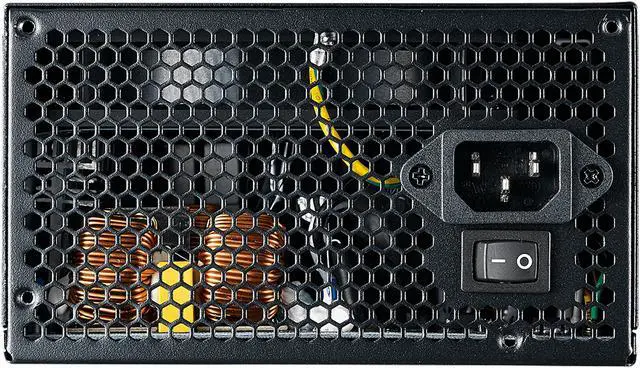

    Input Voltage 90 - 264 V
    Input Frequency Range 47 - 63 Hz
    Input Current 10 - 5 A

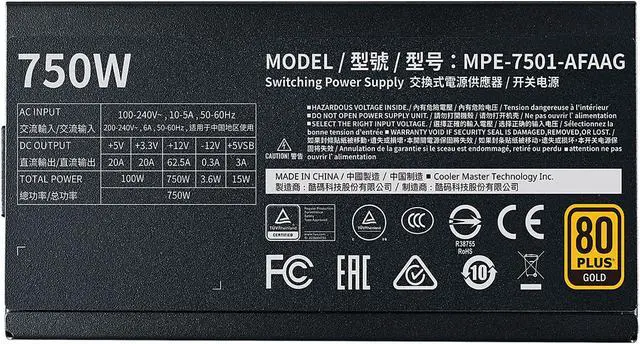

    Output +3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A
    MTBF >100,000 Hours
    Approvals TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

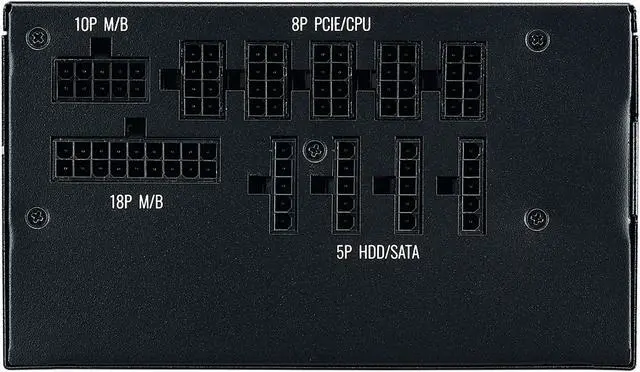

    Connectors 1 x 24 pin ATX
    1 x 8 pin (4+4) EPS (CPU)
    1 x 8 pin EPS (CPU)
    4 x 8 pin (6+2) PCIe
    12 x SATA
    4 x 4 pin Peripheral
    Dimension & Weight

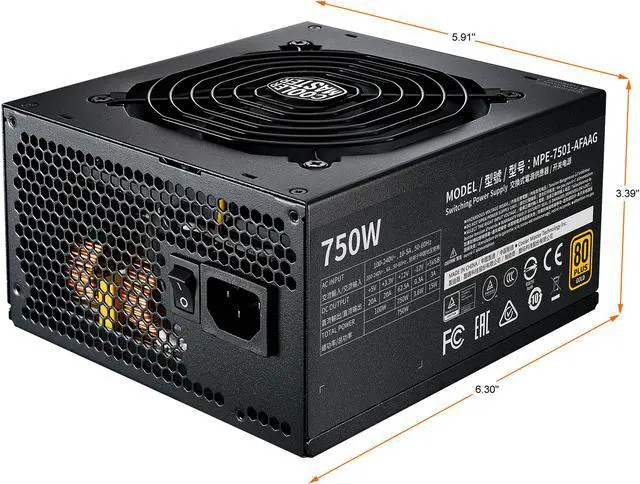

    Dimensions 3.39" x 5.91" x 6.30"
    Weight 4.78 lbs.
    Additional Information
    First Listed on Newegg June 12, 2025
