| Color | Black |
|---|

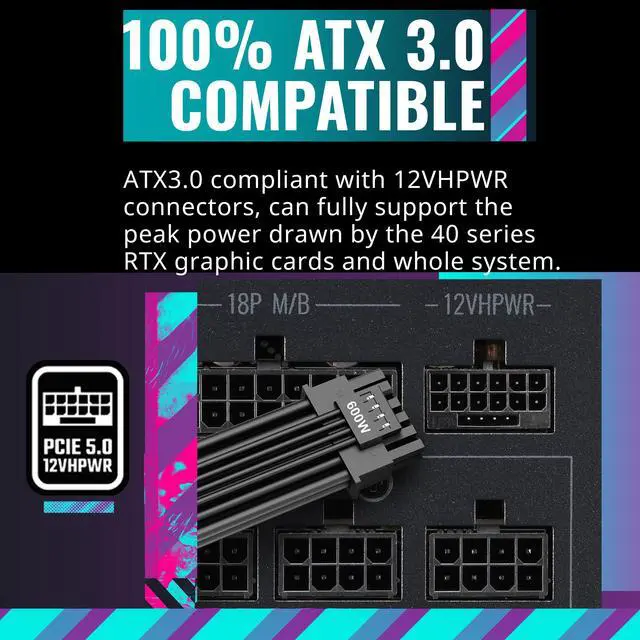

| Type | ATX / ATX 3.0 Compatible |
|---|
| Maximum Power | 1250 W |
|---|

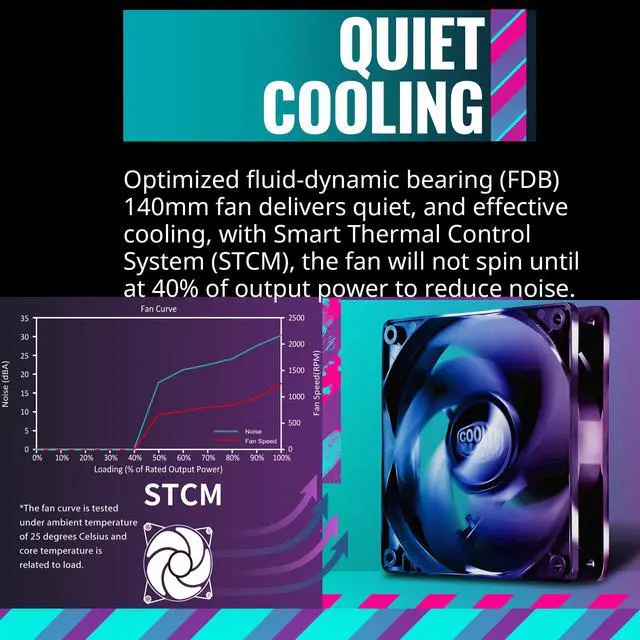

| Fans | 1 x 140 mm silent fan |
|---|
| PFC | Active |
|---|
| Main Connector | 24Pin |
|---|
| PCI-Express Connector | 3 x 6+2-Pin |
|---|
| SATA Power Connector | 12 |
|---|
| Max PSU Length | 180 mm |
|---|

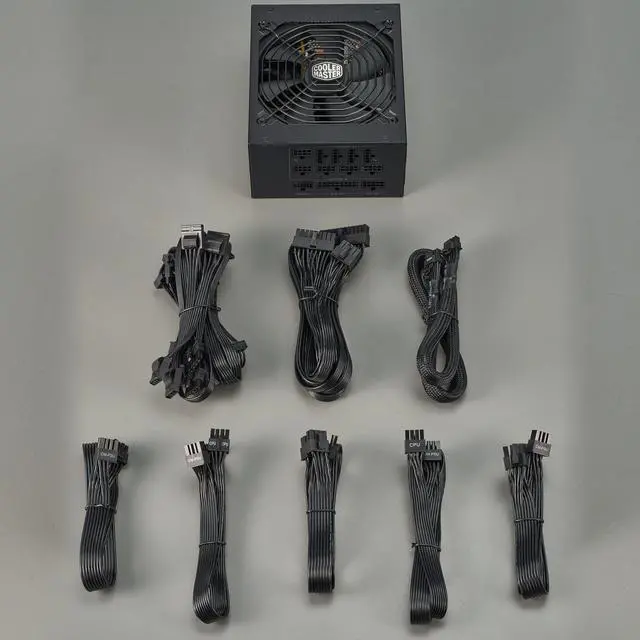

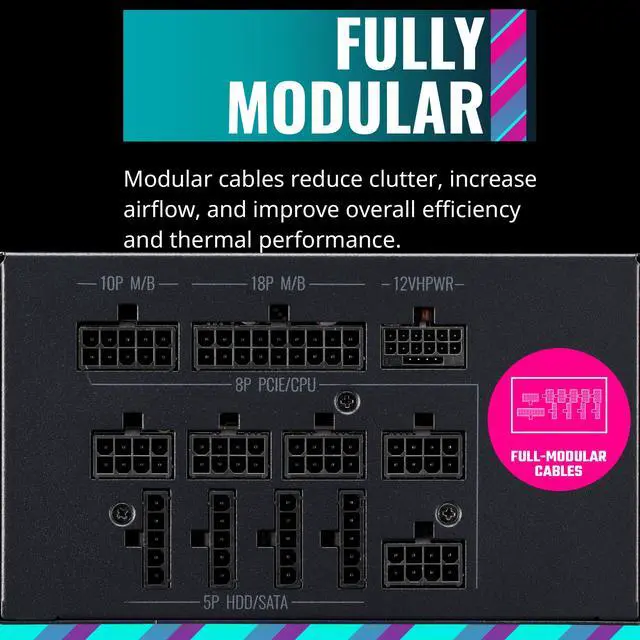

| Modular | Full Modular |
|---|
| Power Good Signal | 100-150ms |
|---|
| Hold-up Time | >=16ms at 100% Load |
|---|
| Efficiency | >=90% @ Typical Load |
|---|

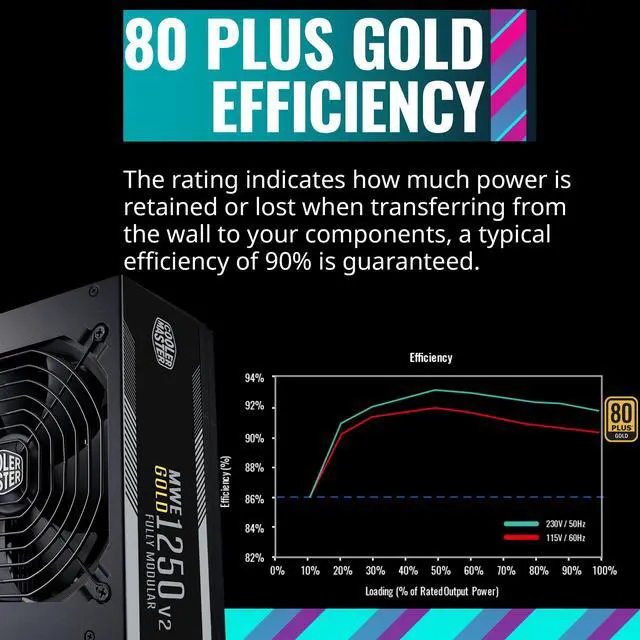

| Energy-Efficient | 80 PLUS GOLD Certified |
|---|
| PSU Noise Level | Cybenetics Standard + |
|---|
| Protection | OVP / OPP / SCP / OCP / UVP / OTP / Inrush Protection |
|---|
| Input Voltage | 100 - 240 V |
|---|
| Input Frequency Range | 50/60 Hz |
|---|
| Input Current | 15~7A |
|---|
| Output | +3.3V@20A, +5V@20A, +12V@104A, [email protected], +12V@3A |
|---|
| MTBF | >100,000 Hours |
|---|
| Approvals | TUV,cTUVus,CE,FCC,BSMI,CCC, EAC,RCM,UKCA,BIS |
|---|

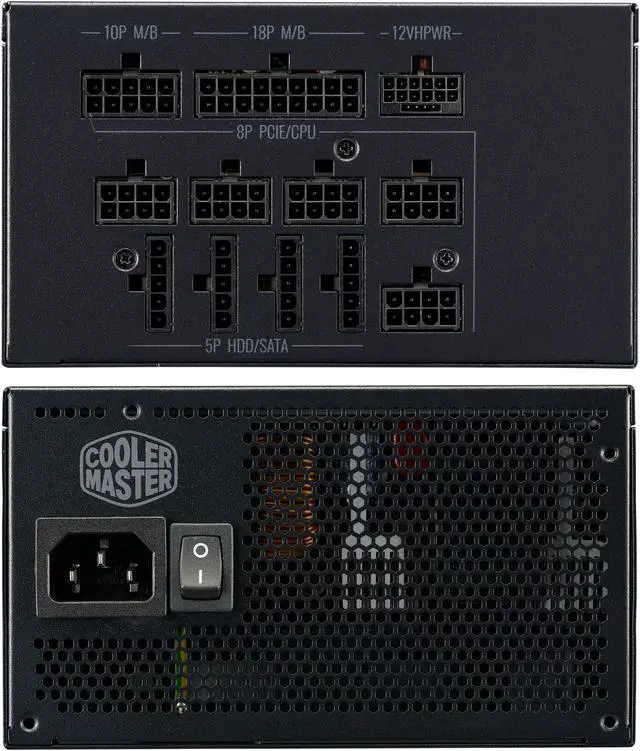

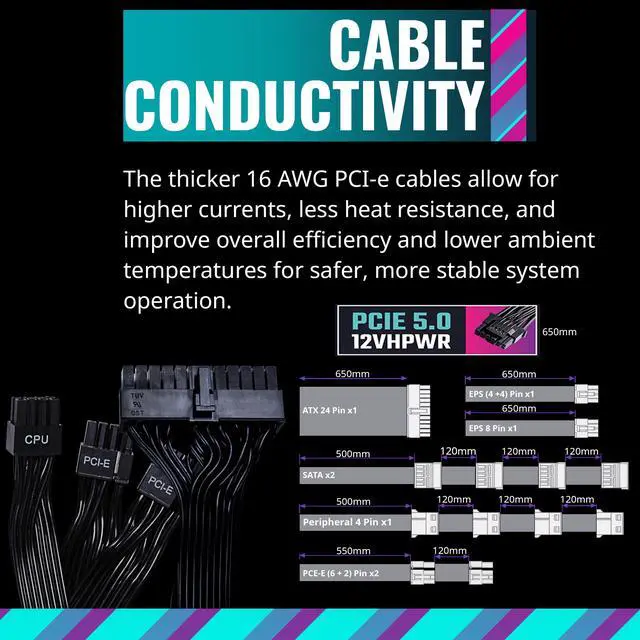

| Connectors | 1 x ATX 24 Pin (650mm) 1 x EPS 4+4 Pin (650mm) 1 x EPS 8 Pin (650mm) 3 x PCI-e 6+2 Pin = 3x (550mm) 12 x SATA = 3 x (500+120+120+120mm) 4 x Peripheral 4 Pin = 1x (500+120+120+120mm) 1 x 12VHPWR (650mm) |
|---|
