| Type | ATX Form Factor 12V V2.2 / SSI standard EPS 12V V2.91 |
|---|
| Maximum Power | 600 Watts Continuous |
|---|
| Fans | Dual ball bearing 120mm fan |
|---|
| PFC | Active PFC (0.99) |
|---|

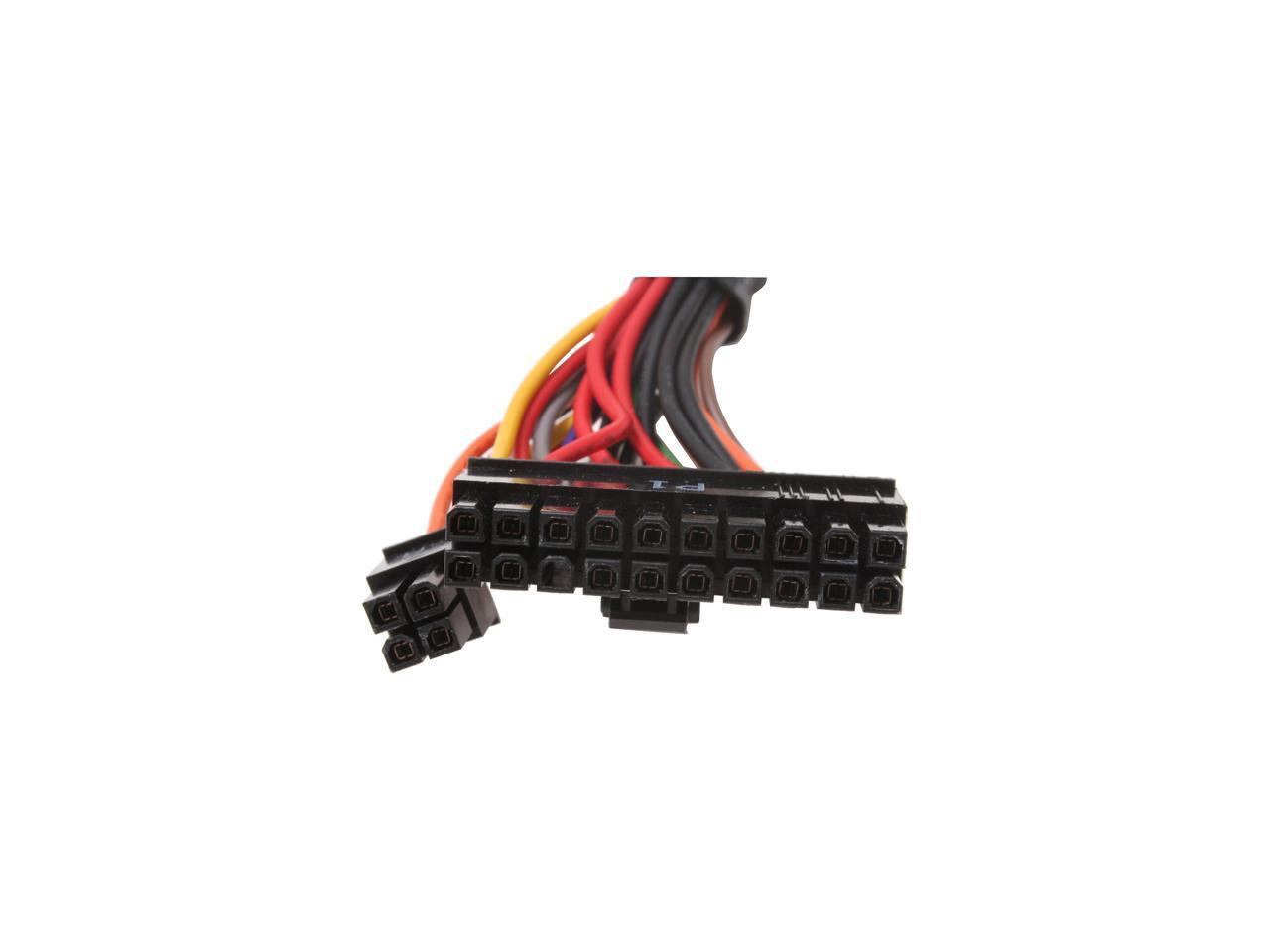

| Main Connector | 20+4Pin |
|---|
| +12V Rails | 3 |
|---|
| PCI-Express Connector | 2 x 6-Pin |
|---|
| SLI | SLI Certified |
|---|
| CrossFire | CrossFire Ready |
|---|
| Modular | No |
|---|
| Power Good Signal | 100-500ms |
|---|
| Hold-up Time | 17ms min. |
|---|
| Efficiency | 81% (100W) / 85% (250W) / 82% (500W) |
|---|
| Energy-Efficient | 80 PLUS Certified |
|---|
| Input Voltage | 115 / 230 V |
|---|
| Input Frequency Range | 50/60 Hz |
|---|
| Input Current | 10A @ 115V, 5A @ 230V |
|---|

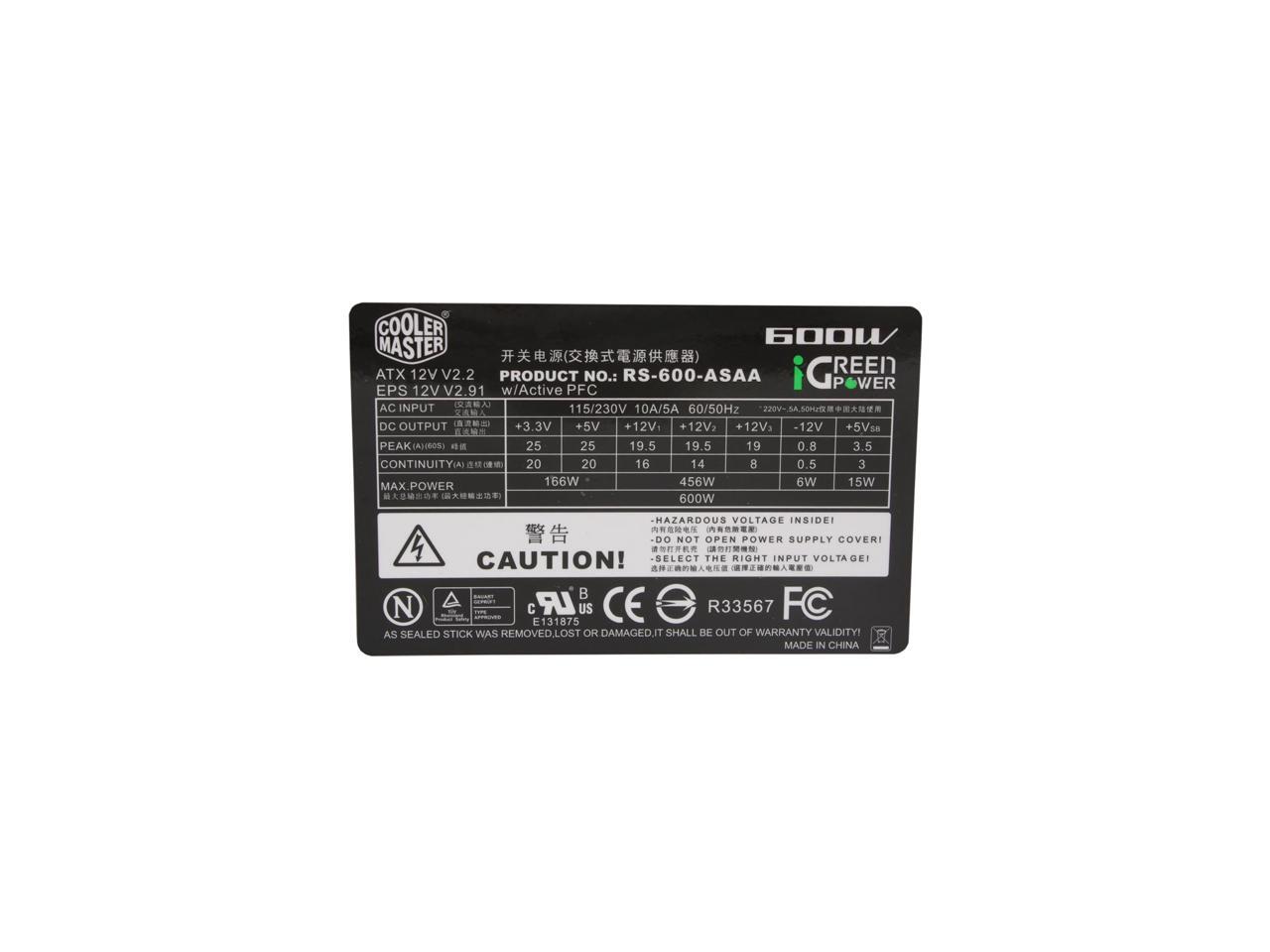

| Output | +3.3V@25A,+5V@25A,[email protected],[email protected], +12V3@19A,[email protected],[email protected] |
|---|
| MTBF | >400,000 hrs |
|---|
| Approvals | Nemko, TUV, cUL, CE, BSMI, FCC, CCC |
|---|

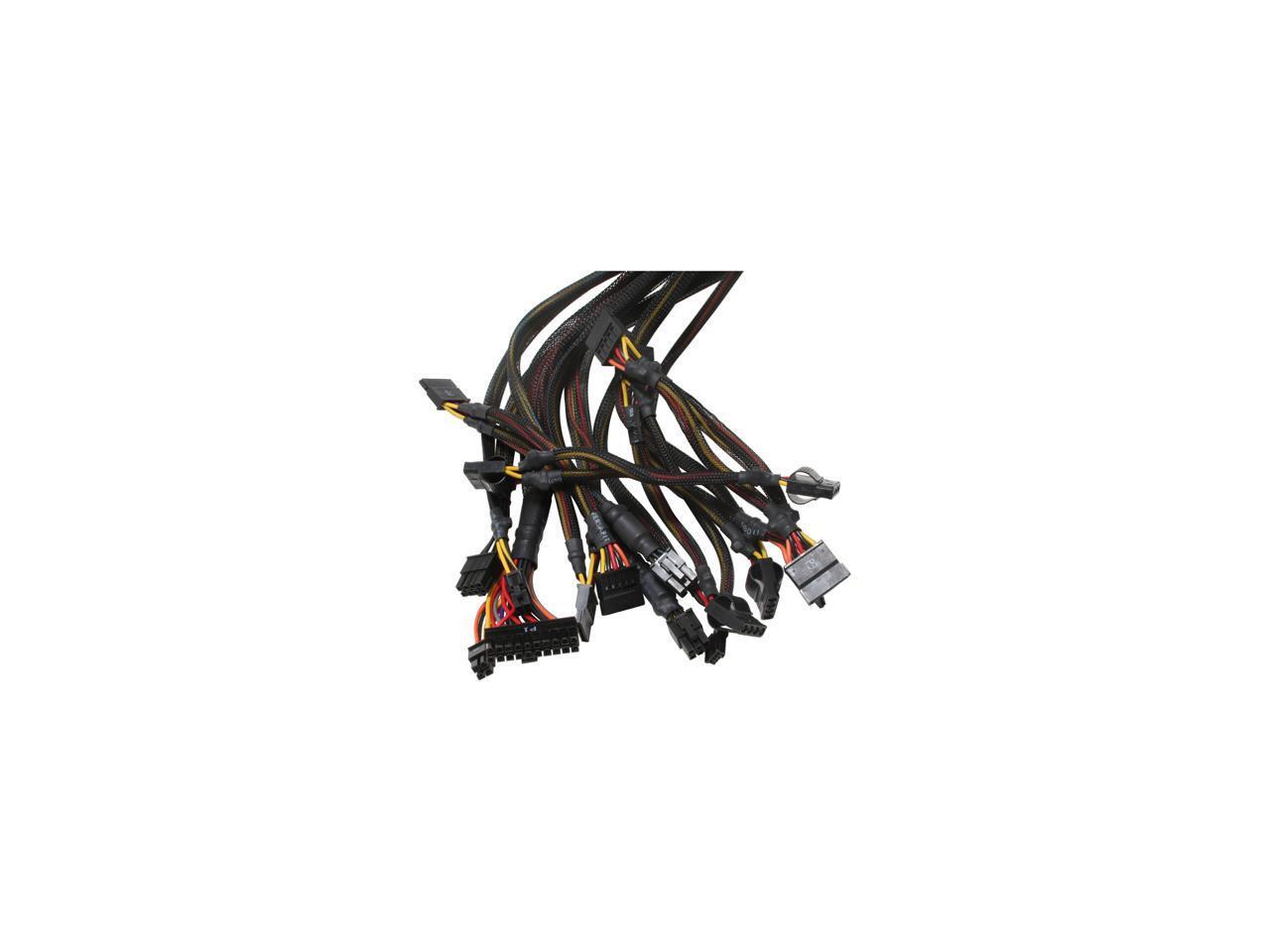

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 1 x 12V(8Pin) 6 x peripheral 2 x SATA 1 x Floppy 2 x PCI-E |
|---|
