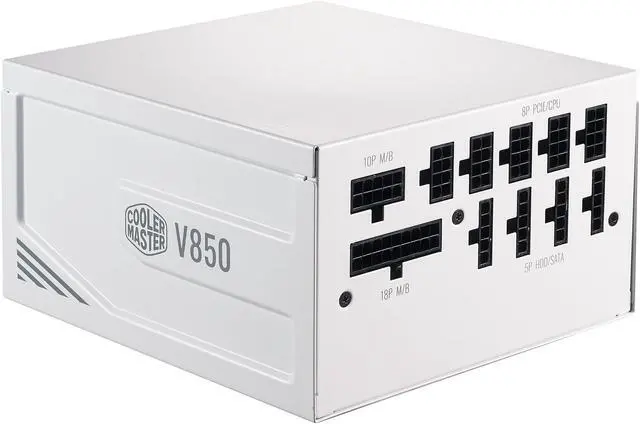

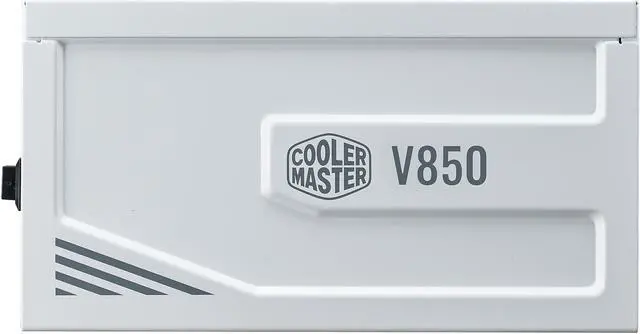

Cooler Master V850 Gold V2 White Edition Full Modular, 850W, 80+ Gold Efficiency, Semi-fanless Operation, 16AWG PCIe High-efficiency Cables, 10 Year Warranty
- Input Voltage of 100 - 240 Volts

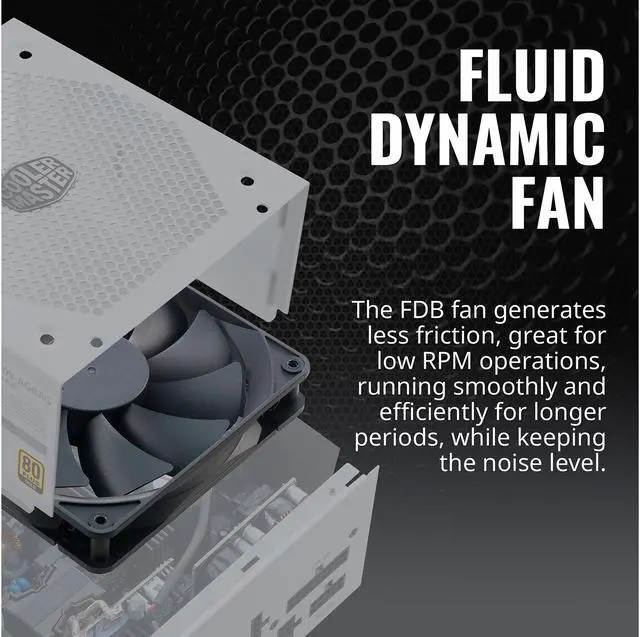

- 1 x 135mm FDB fan built-in

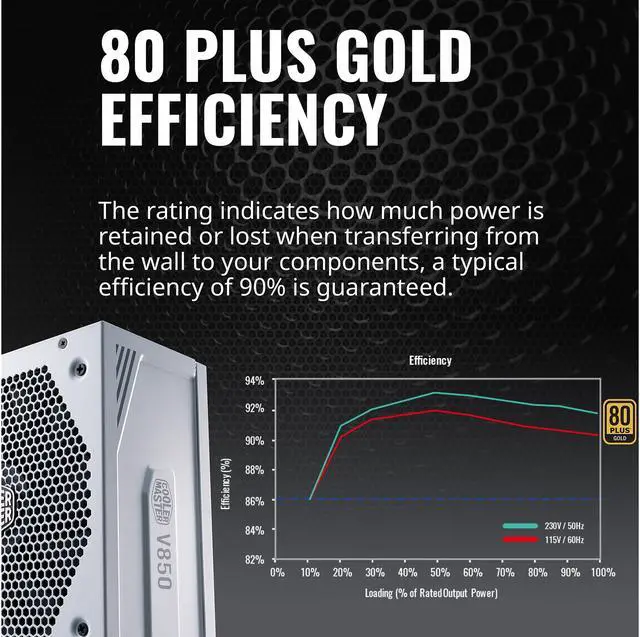

- 80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions.

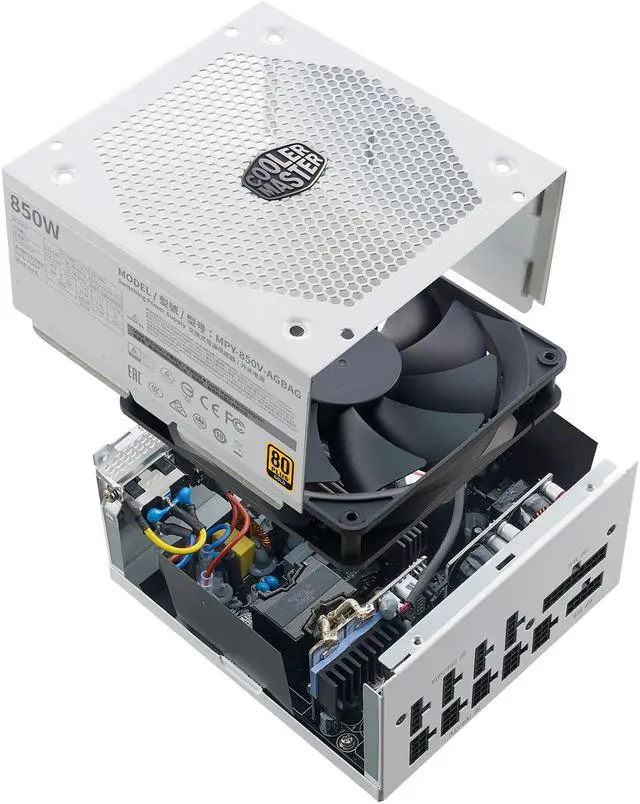

- Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

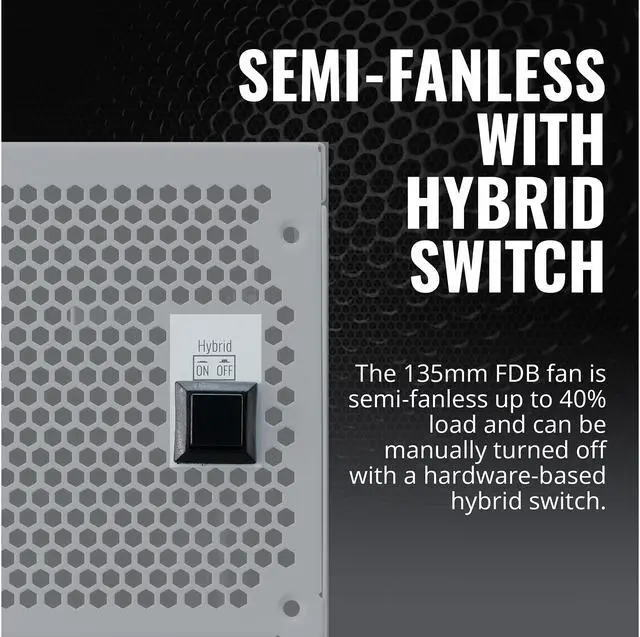

- Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch.

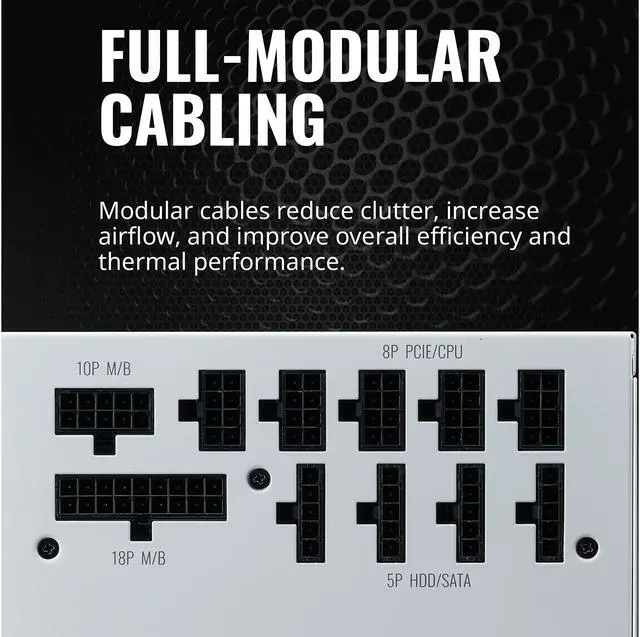

- Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

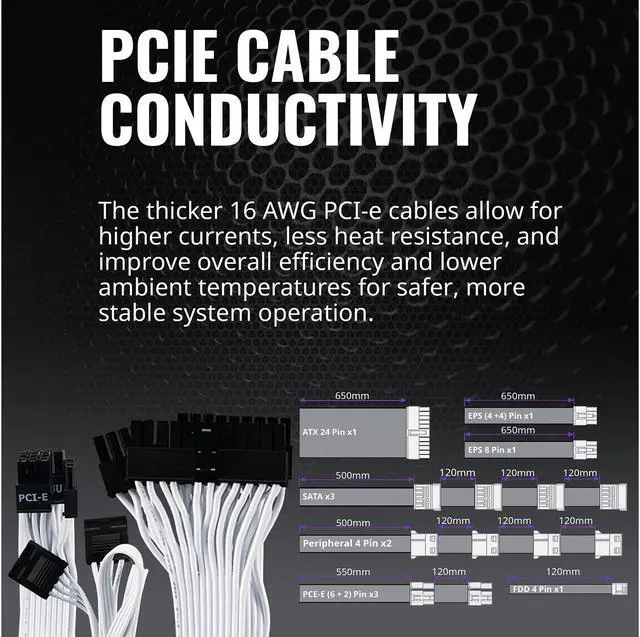

- 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
- 10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
+
+
Specs
Reviews (198)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Cooler Master MPY-850V-AGBAG-US
| Brand | Cooler Master |
|---|---|
| Series | V850 Gold V2 White Edition |
| Model | MPY-850V-AGBAG-US |
| Type | ATX 12V Ver. 2.52 |
|---|---|
| Maximum Power | 850 W |
| Fans | 1 x 135mm FDB fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 12 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | 90% @ Typical Load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP / OPP / SCP / OCP / UVP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 13 - 6 A |

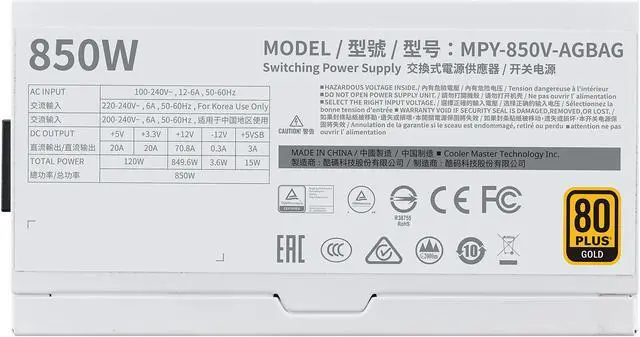

| Output | +3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |
| Connectors | 1 x ATX 24 Pin 1 x EPS 4+4 Pin 1 x EPS 8 Pin 6 x PCI-e 6+2 Pin 12 x SATA 4 x Peripheral 4 Pin 1 x FDD |
| Features | 80 PLUS Gold Certified: This certification guarantees a typical efficiency of 90% under normal operating conditions. Performance Driven Topology: The half-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency. Semi-Fanless Mode with Hybrid Switch: The 135mm FDB fan is semi-fanless up to 40% load and can be manually turned off with a hardware-based hybrid switch. Full-Modular Cabling: Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance. 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety. 10 Year Warranty: This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase. |
|---|
| Dimensions | 3.39" x 5.91" x 6.30" |
|---|---|
| Weight | 4.85 lbs. |
| Package Content | V850 Gold v2 White Edition White Connectors Power Cord 4x screws Manuel |
|---|
| First Listed on Newegg | December 27, 2024 |
|---|
