Coolgear 4 Port USB 3.2 Gen 2 Type-C Hub w/ ESD Surge Protection, 10Gbps Speed, LED Indicators, Wide Range Power Input, Screw Lock Compatible for Secure Connections
- [ Expand Device Connectivity ] : Connect up to four USB devices, including printers, keyboards, and external hard drives, without sacrificing speed.
- [ Compact Design ] : Slim form factor fits neatly into any workspace, making it ideal for crowded desks or smaller setups.
- [ High-Speed Data Transfer ] : Enjoy fast 10Gbps USB 3.2 data rates, perfect for seamless file transfers and peripheral management, with backwards compatibility for 5Gbps, 480Mbps, 12Mbps, and 1.5Mbps speeds.
- [ Power Monitoring ] : LED indicators for each port provide instant feedback on device power status, keeping you informed at all times.
- [ Connectivity ] : Upstream: 1 USB Type C Port | Downstream: 2 USB Type A Ports and 2 USB Type C Ports | Power Connector: 7-24V DC 2-pin Terminal Block or DC Barrel Jack | DC Barrel Power Adapter Included.
- [ Why Coolgear? ] : Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

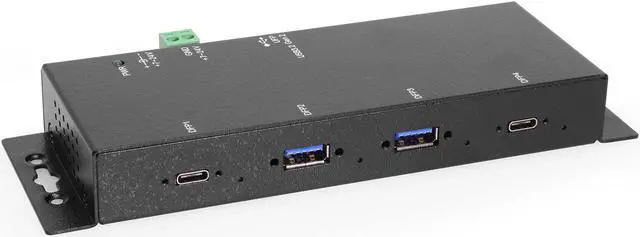

The CG-4P31CHUB-M is a USB3.2 Metal Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.1 Gen 2 and works up to 10Gbps. It provides 1 USB-C upstream port and 4 downstream facing ports with 2 USB-C and 2 USB-A connectors. With the RISC-like USB controller it supports simultaneous operation of any combination of SuperSpeed Plus(SS+) SuperSpeed(SS) High-Speed(HS) Full-Speed(FS) and Low-Speed(LS) devices. It is backward compatible with USB1.1 2.0 USB3.2 Gen 1 legacy devices. The CG-4P31CHUB-M provides a unique self-power mode to work with wide range (+7~24V DC) input DC power from its DC Jack or 2-pin terminal blocks. It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP). Since the USB is the most popular external port for the devices to connect to PCs the CG-4P31CHUB-M provides an ideal solution to expand your USB ports immediately and save your USB investment.
Features:
- Compliant with USB3.2 Gen 2 Specification
- Metal Case with Different Mounting Options for Industrial Critical Applications
- Each Port Supports 15KV (air) ESD Surge Protection
- Upstream Facing Port: USB-C Connector

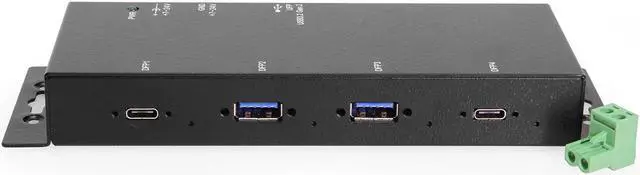

- Downstream Facing Ports: 2 x USB-C and 2 x USB-A
- Supports Type-C and Type-A Screw-Lock Cables
- Detects Flip-able/Reversible Plugging
- Supports 10Gbps (SS+) 5Gbps (SS)480Mbps (HS) 12Mbps (FS) and 1.5Mbps (LS) Speed
- Multi Transaction Translators (TT) per Hub
- Built-in Port Status Indicator LED for Each Port

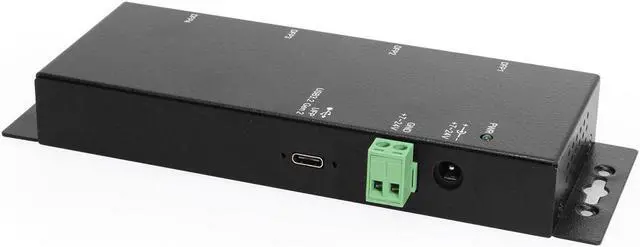

- Supports Wide Range (+7~24V DC) Self-power Input
- Supports BC 1.2: SDP CDP and DCP modes
- Charges all 4 USB Ports up to 2A Each Simultaneously
- Includes jumper for bus power isolation

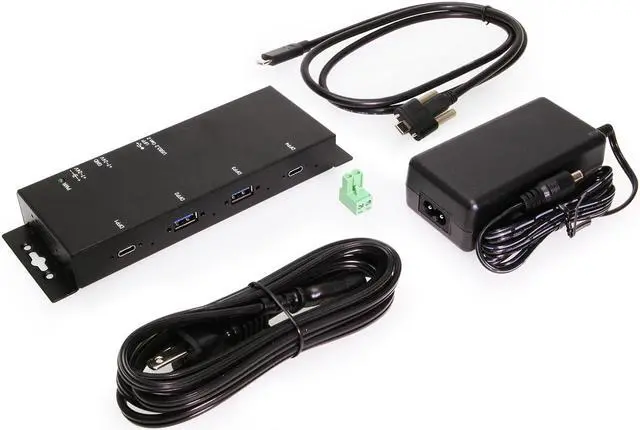

Package Contents:
- 4 Port USB 3.2 Gen 2 Type-C Hub
- USB-C to Screw Lock USB-C Cable
- 2-Pin Terminal Block
- Power Adapter
*Surface Mounting screws not included.
