Coolgear 4 Port USB 3.2 Gen 2 Type-C Hub, 10Gbps Speeds, Screw Locking Ports, Status LEDs, AC Power Adapter Included
- [ Super Fast Speeds ] : This USB hub is 3.2 Gen 2 compliant, ensuring super-fast 10 Gbps data transfer speeds. It supports super speed +, high speed, and full speed which enables it to be compatible with USB 3.2 Gen 1 (5 Gbps), 2.0 (480 Mbps), and 1.1 (12 Mbps).
- [ Secure Connections ] : Each port features screw locking for safe and secure USB connections, and LED indicators allow you to quickly check per-port connection status.
- [ Durable Construction ] : Built with a rigid plastic enclosure, perfect for office, desks, workstations, and other commercial environments.
- [ Purpose-Built ] : Features Multiple Transaction Translator (MTT) architecture to handle device speeds efficiently, and supports USB Battery Charging SDP, CDP, and DCP modes.
- [ Connectivity ] : Upstream: 1 USB Type C Port | Downstream: 2 USB Type A Ports and 2 USB Type C Ports | Power Connector: 7-24V DC 2-pin Terminal Block or DC Barrel Jack | DC Barrel Power Adapter Included.
- [ Why Coolgear? ] : Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
4 Port Type-C USB 3.0 Super-Speed Plus Hub
The USB 3.0 Type-C Hub is a light weight hub with a DIN Rail Mounting Kit. This hub supports USB 3.1 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports.
NOTE: Asus motherboards not recommended for use with this hub

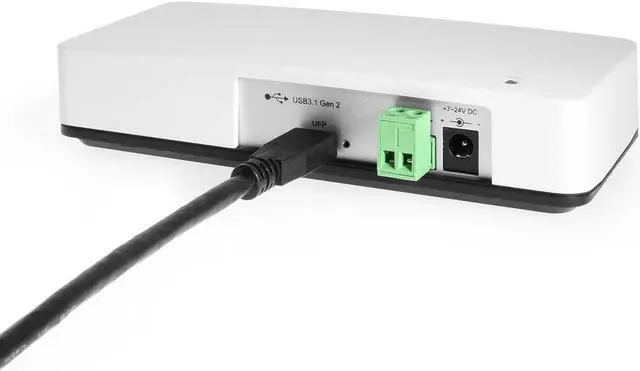

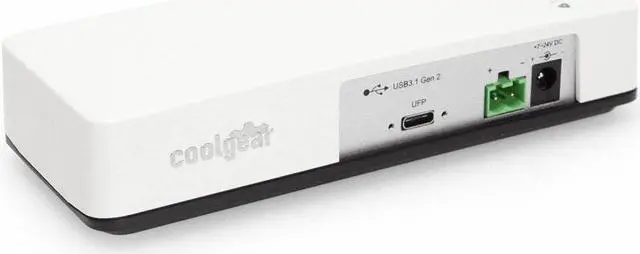

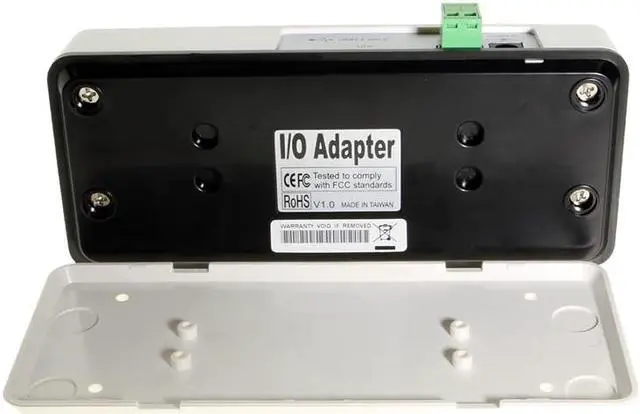

The USB 3.0 Type-C Hub uses a 2-pin terminal block connection for input power of +7 - 24V DC for the downstream facing ports (power supply is included). It is backward compatible with 5Gbps (Super-Speed) 480Mbps(High-Speed) 12Mbps(Full-Speed) and 1.5Mbps(Low-Speed) data rates. The plastic Mounting plate for the DIN Rail Clips snaps on to the bottom of the hub for secure mounting. Upstream information is carried with the USB-C connection on the back panel of the hub.
4 Port Type-C USB 3.0 / 3.1 Hub Features
- Compliant with USB 3.0 / 3.1 Gen2 Specifications
- Rigid plastic Wall and DIN Rail Mounting Case.

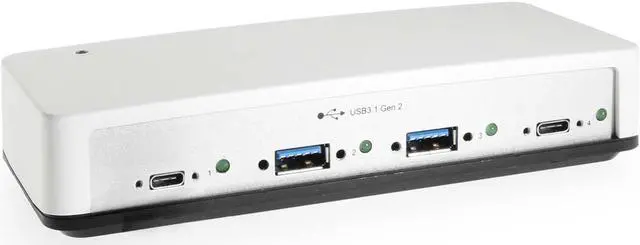

- Provides 4 (2 USB-C and 2 USB-A) Downstream facing USB 3.1 Ports
- Supports 10Gbps(Super-Speed Plus) 5Gbps (Super-Speed) 480Mbps(High-Speed) 12Mbps(Full-Speed) and 1.5Mbps(Low-Speed) data rates
- Multi Transaction Translators (TT) per Hub
- Support USB Battery Charging: SDP CDP and DCP modes
- Built with the VLI VL820-Q8 chip
- Item Dimensions: 152.04mm(L) x 62.45mm(W) x 30mm(H) - 152.04mm(L) x 67.67mm(W) with 2-pin connector x 34.25(H) with mounting plate

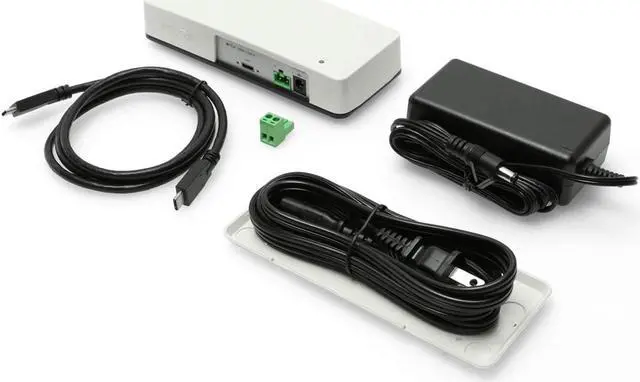

Package Contents
- USB 3.1 Gen2 Type-C 4 Port Hub
- 3ft. USB-C Male to Male Gen2 Cable
- Wall and DIN Rail Mounting Plate
- Power Supply
- 4 rubber foot pads
- DIN Rail Mounting Kit
- Paper User Manual
*Surface Mounting screws not included
