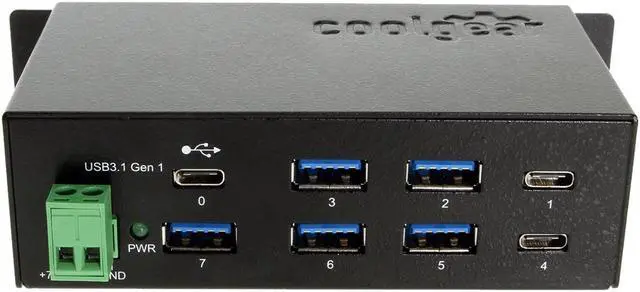

Coolgear 7 Port USB 3.2 Gen 1 Type-C Hub w/ ESD Surge Protection & USB-C Upstream

New USB-C Hub - 3x USB-C Ports and 5x USB-A

CoolGear's new USB-C 7 Port Hub that is USB3.1 Gen1 specifications compliant includes a metal constructed chassis and multiple mounting options. This USB-C Hub is an excellent choice for your USB 3.1 Gen1 applications it delivers up to 5Gbps and provides 1 USB-C Upstream port 2 USB-C and 5 USB-A downstream ports.

The USB-C hub is backward compatible with USB 2.0/1.1 compliant host using its RISC-like USB controller. It provides a unique self-power mode to work with wide range (+7 ~ 48V DC) input DC power from its terminal block (power adapter sold separately). It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).

USB-C Hub Features and Specifications

• Compliant with USB 3.1 Gen 1 Specifications
• Provides 1 USB3.1 Gen 1 Upstream Port with USB-C connector
• Provides 7 USB3.1 Gen 1 Downstream Facing Ports (with 2 USB-C and 5 USB-A Connectors) which manage up to 5Gbps
• Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
• Supports 5Gbps 480Mbps 12Mbps and 1.5Mbps Speed

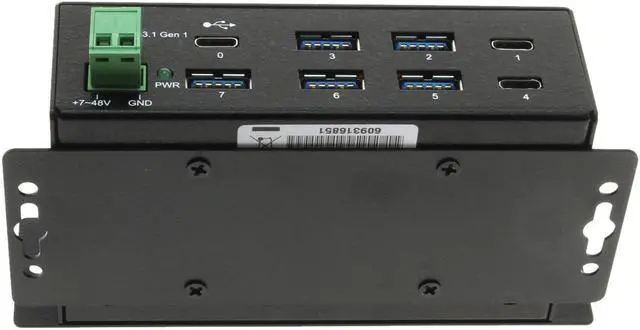

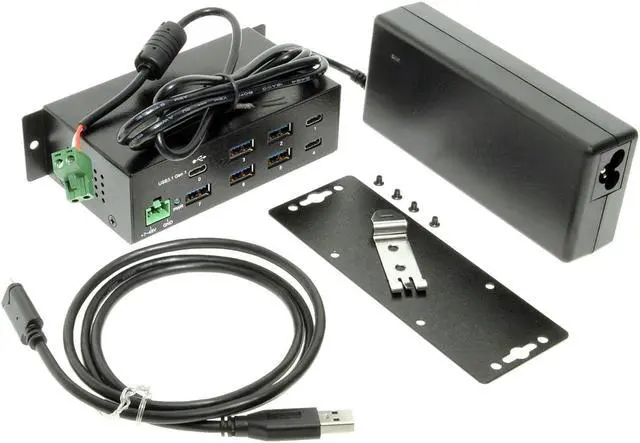

• Includes a Mounting bracket for flat surface mounting i.e. under desk on walls or tech bench
• Supports Multi Transaction Translators per Hub
• Supports Wide Range Input (+7~48V DC) Self-power Mode from the Terminal Blocks (power adapter sold separately)
• Supports 15KV ESD Surge Protection for Each Port.
• Supports a 2-pin Terminal Block Connector for external power input from AC adapter
• Form Factor: 5.23inch(L) x 2.42inch(W) x 1.43inch(H) (13.30x6.15x3.63 cm)
