Brand | COOLMAX |
---|---|
Model | CP-500T |
Type | EPS12V |
---|---|
Maximum Power | 500 W |
Fans | 120mm silent long life fan |
PFC | Active |

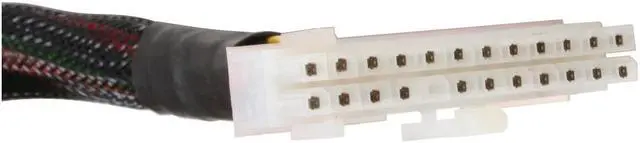

Main Connector | 20+4Pin |
+12V Rails | 2 |
SLI | No |
Modular | No |
Over Voltage Protection | Yes |
Overload Protection | Yes |
Input Voltage | 115 / 230 V |
Input Frequency Range | 50/60 Hz |
Input Current | 12A @ 115V, 6A @ 230V |

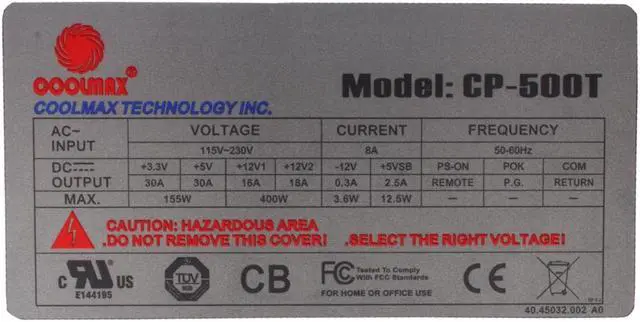

Output | +3.3V@30A, +5V@50A, +12V1@18A, +12V2@18A, -12V@1A, +5VSB@2.5A |
Approvals | UL, CSA, TUV |

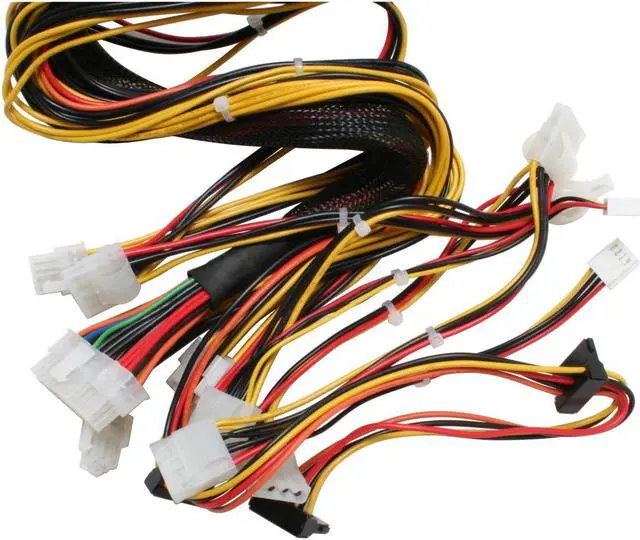

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4Pin) 6 x peripheral 3 x SATA 2 x Floppy |
Features | Universal connector fits most of branded motherboards Fully supports all Intel & AMD series demand High quality fan guard & connectors are good for conduction UV tube design to tidy the wires Over voltage protection, short protection on all output levels Built in EMI filter, low ripple noise Meet FCC part 15 Class B,CISPR 22 Class B and Intel ATX12V/ATX 2.03 Compatible with all leading processors including Pentium III, 4 and AMD Athlon XP |
---|
Date First Available | March 07, 2005 |
---|
