Brand | COOLMAX |
---|---|

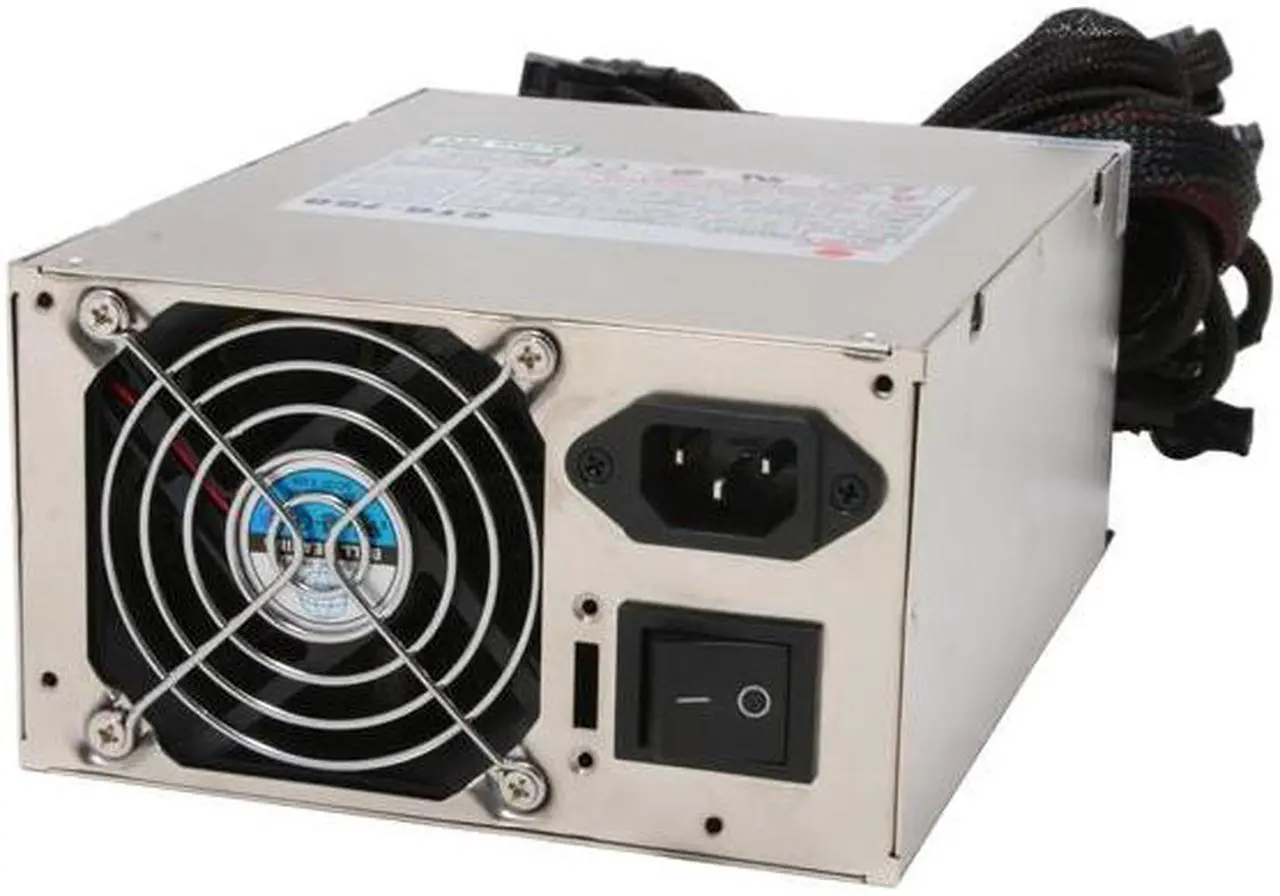

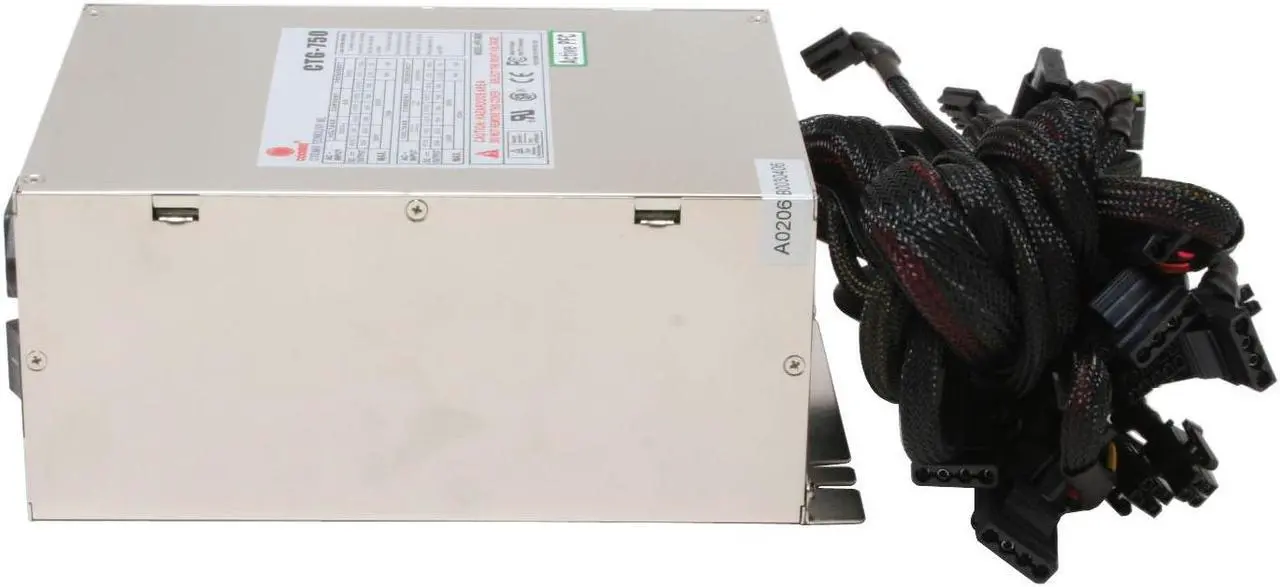

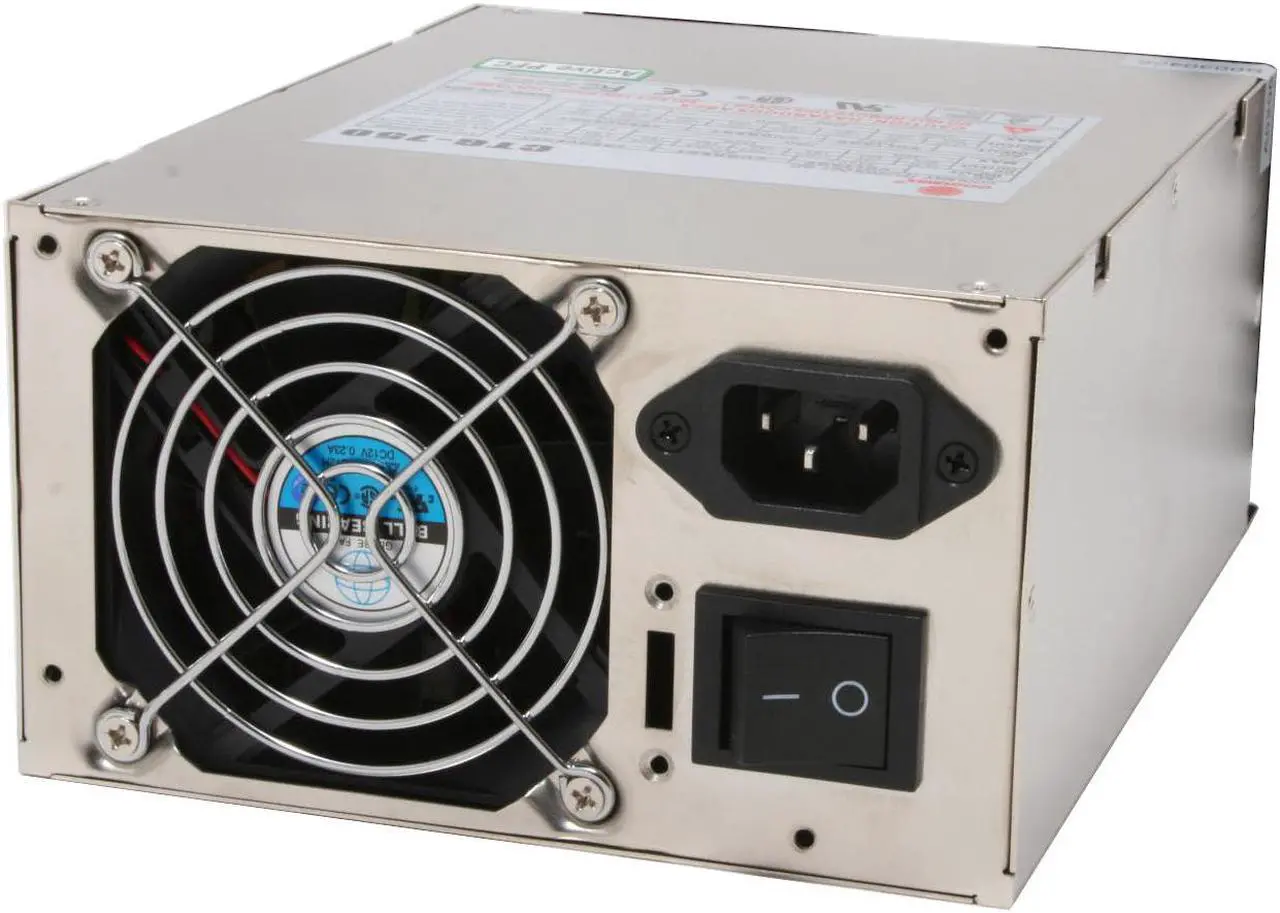

Model | CTG-850 |
Type | ATX12V |
---|---|
Maximum Power | 850 W |
Fans | 2 |
PFC | Active |

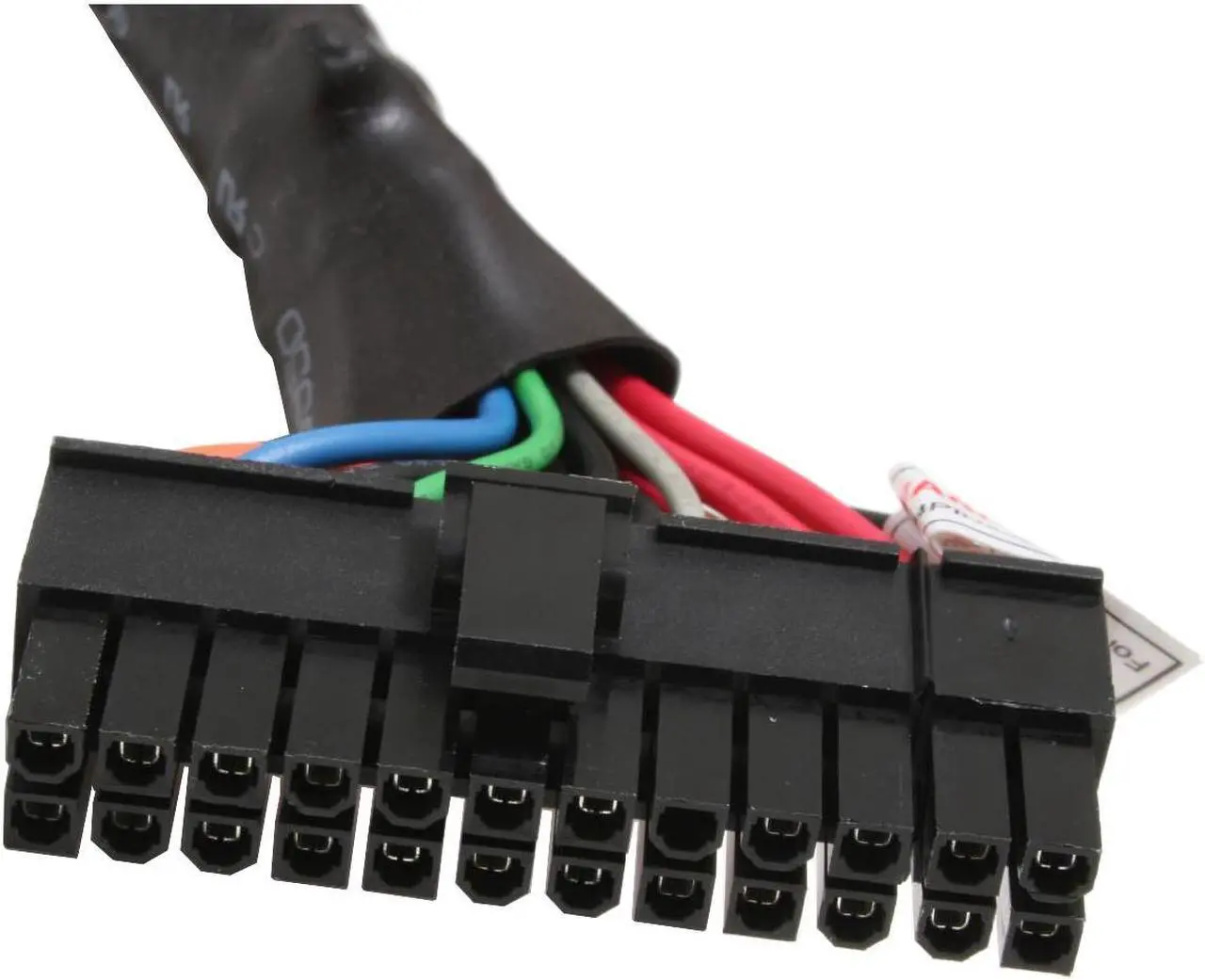

Main Connector | 20+4Pin |
+12V Rails | 4 |

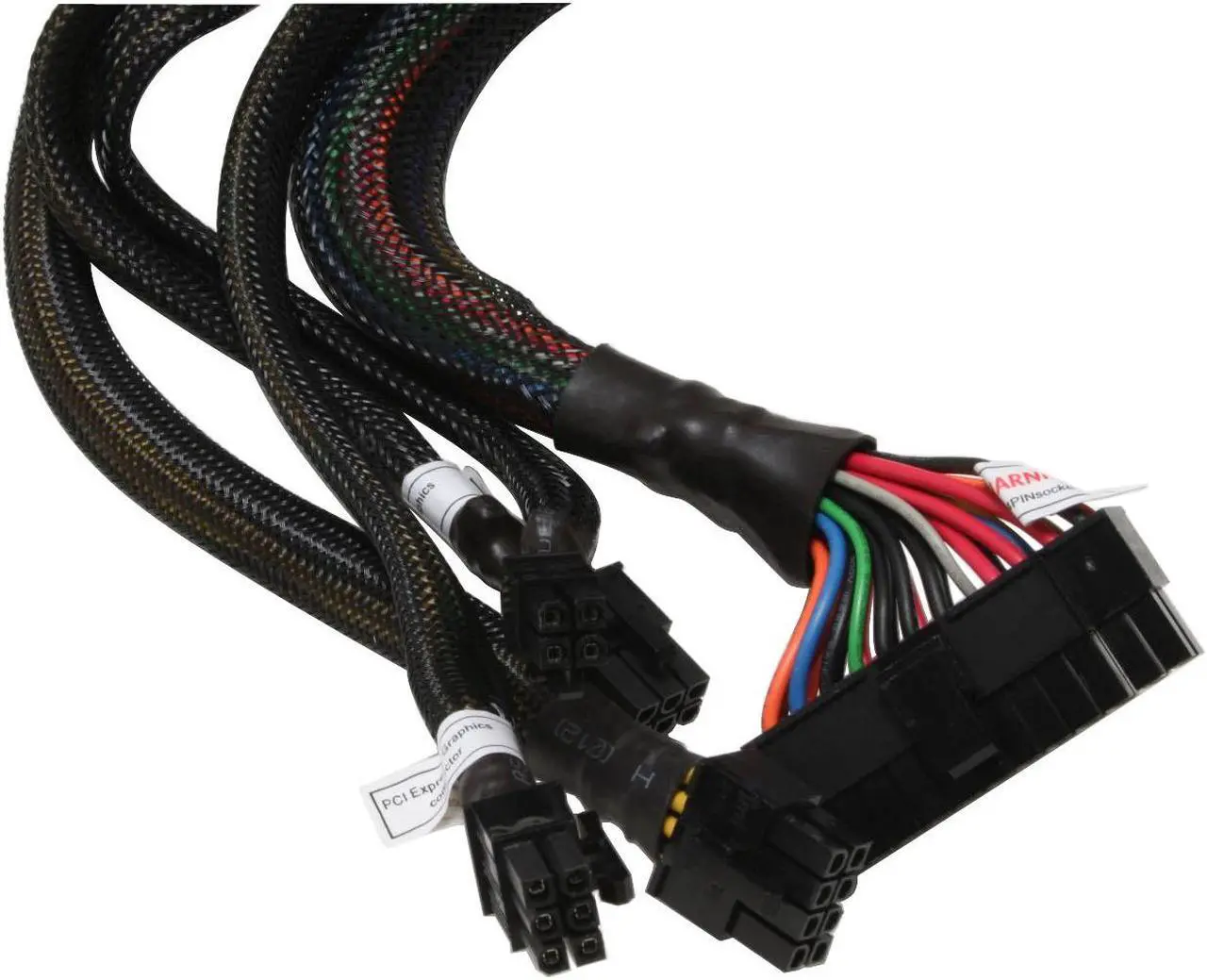

PCI-Express Connector | 2 x 6-Pin |
SLI | SLI Certified |
CrossFire | CrossFire Ready |
Modular | No |
Over Voltage Protection | Yes |
Input Voltage | 230V |
Input Frequency Range | 50Hz |
Input Current | 6A |

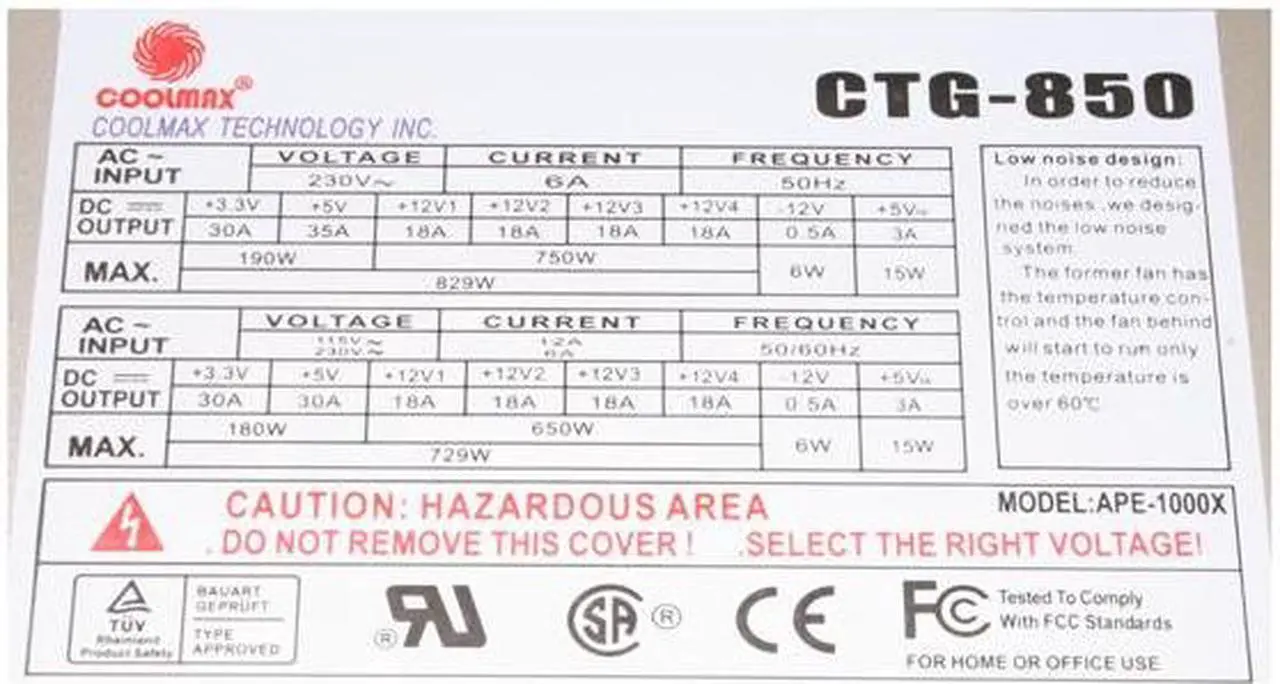

Output | +3.3V@30A,+5V@35A,+12V1@18A,+12V2@18A,+12V3@18A, +12V4@18A,[email protected],+5VSB@3A |
Approvals | TUV, UL, CSA, CE, FCC |

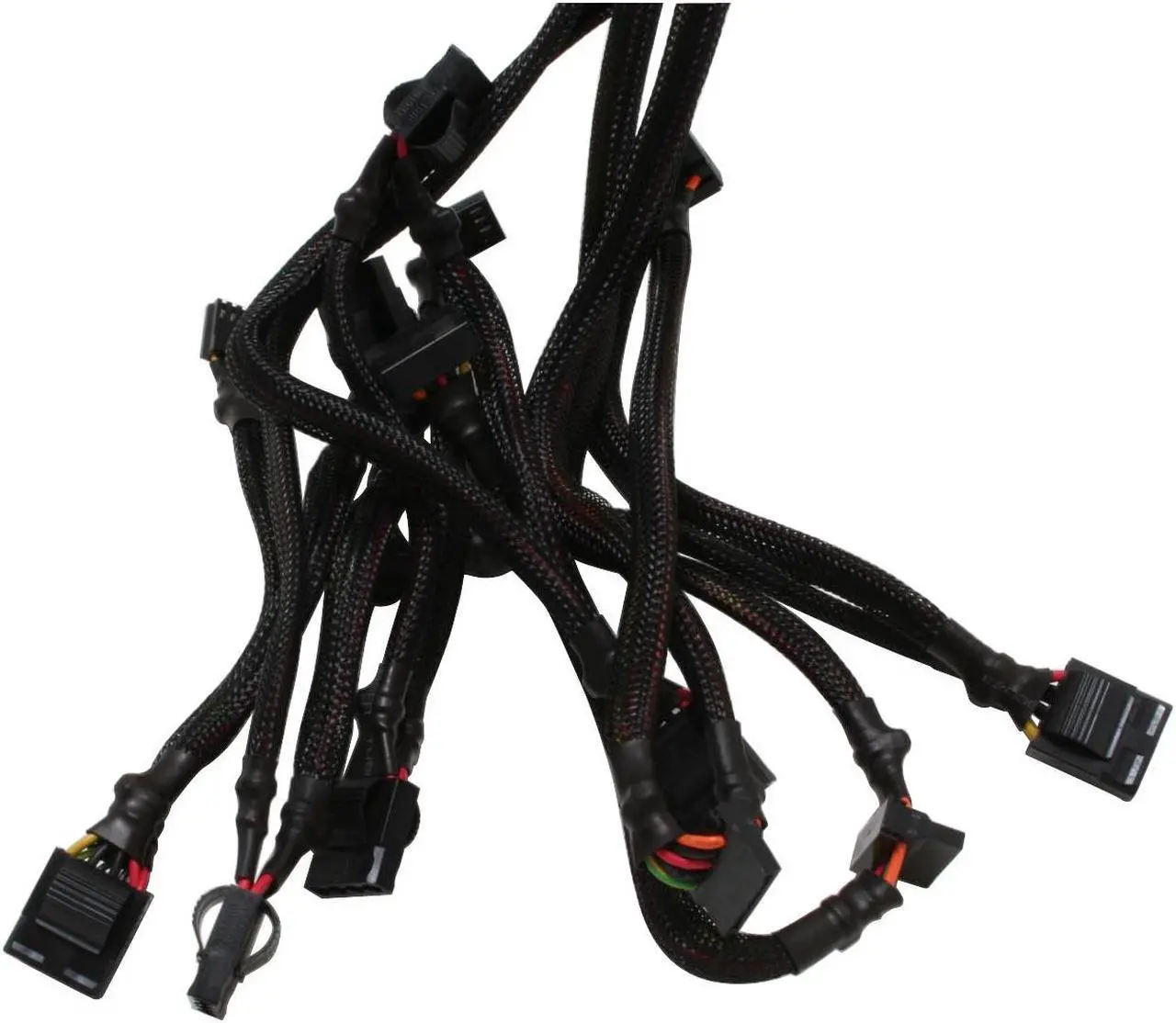

Connectors | 1 x Main connector (20+4Pin) 1 x 12V(P4) 1 x 12V(8Pin) 8 x peripheral 4 x SATA 2 x Floppy 2 x PCI-E |
Features | Reduce line harmonics AC Inrush current Remote On/Off Control Over shoot Turn-on/Turn-Off Power good Signal Dielectric strength Insulation Resistance Ground Leakage Current No noise design Power factor correction (PFC)>0.95 at full load Over current, over voltage, over power & short circuit protection |
---|
Date First Available | June 21, 2006 |
---|
