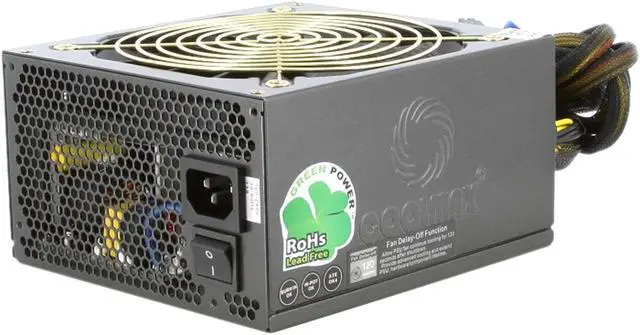

Brand | COOLMAX |
---|---|

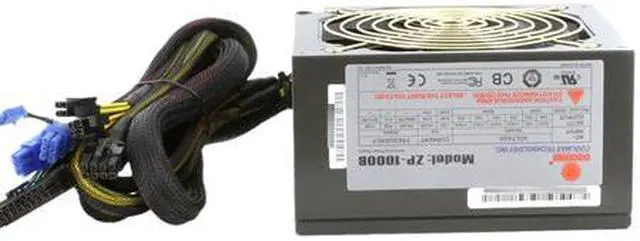

Model | ZP-1000B |
Type | ATX 12V v2.3 / EPS 12V v2.92 |
---|---|
Maximum Power | 1000 W |

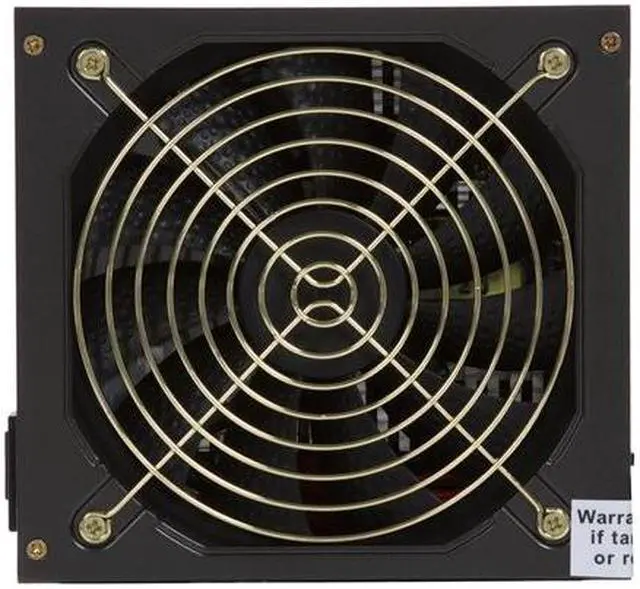

Fans | 1 x 140mm silent fan |
PFC | Active |
Main Connector | 24Pin |
+12V Rails | 4 |
PCI-Express Connector | 3 x 6-Pin, 3 x 6+2-Pin |
SATA Power Connector | 6 |
SLI | SLI Ready |
CrossFire | CrossFire Ready |

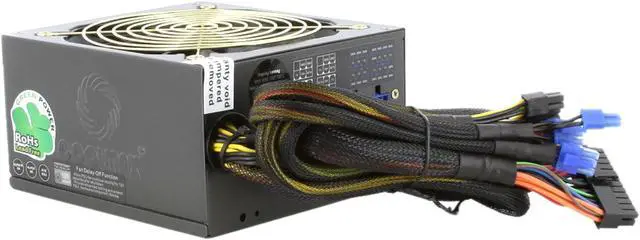

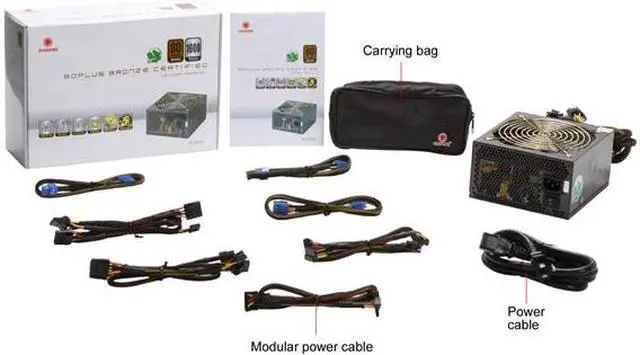

Modular | Modular |
Efficiency | > 85% |
Energy-Efficient | 80 PLUS BRONZE Certified |
Over Voltage Protection | Yes |
Input Voltage | 115 V - 230 V |

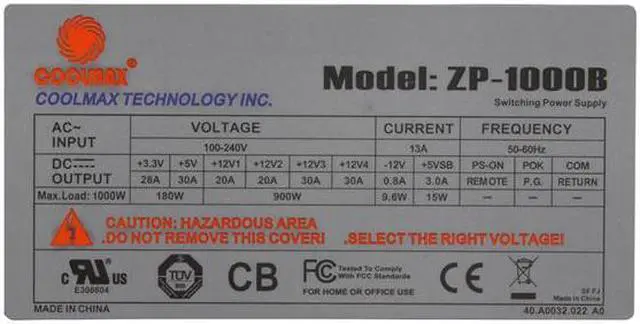

Output | +3.3V@28A, +5V@30A, +12V1@20A, +12V2@20A, +12V3@30A, +12V4@30A, [email protected], +5VSB@3A |
Approvals | CE, CB, TUV, FCC, UL, CUL, and BSMI certified |

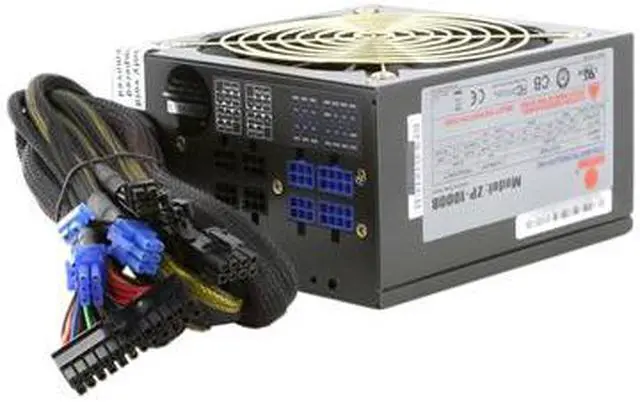

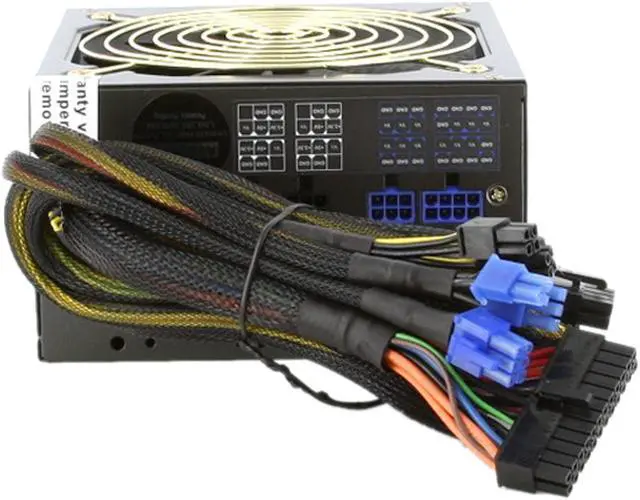

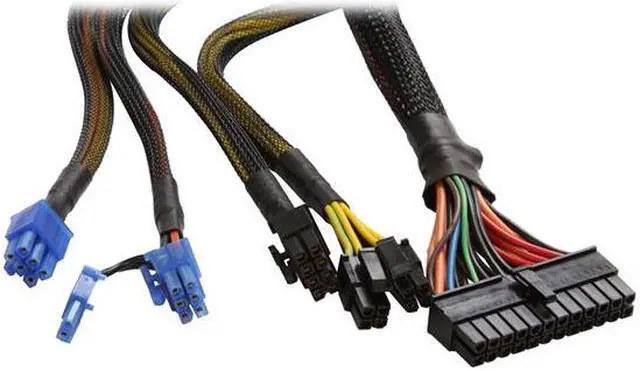

Connectors | 1 x Main connector (24Pin) 1 x 4+4-Pin 12V 1 x 8-Pin EPS 12V 6 x Peripheral 6 x SATA 2 x Floppy 6 x PCI-E |
Features | Modular Cable Management to eliminate clutter and improve airflow inside the case Support INTEL/AMD Dual Core CPU and Multi-Core GPU technologies Built in next generation 8-pin PCI-Express graphic card connector offering further upgradability Ultra-silent operation with 140mm fan and automatic fan speed control Comprehensive protection function provides full-scale protection for your components. (OCP/OVP/UVP/SCP/OPP) |
---|
Dimensions | 5.90" x 6.30" x 3.30" |
---|---|
Weight | 4.15 lbs. |
First Listed on Newegg | September 21, 2009 |
---|
